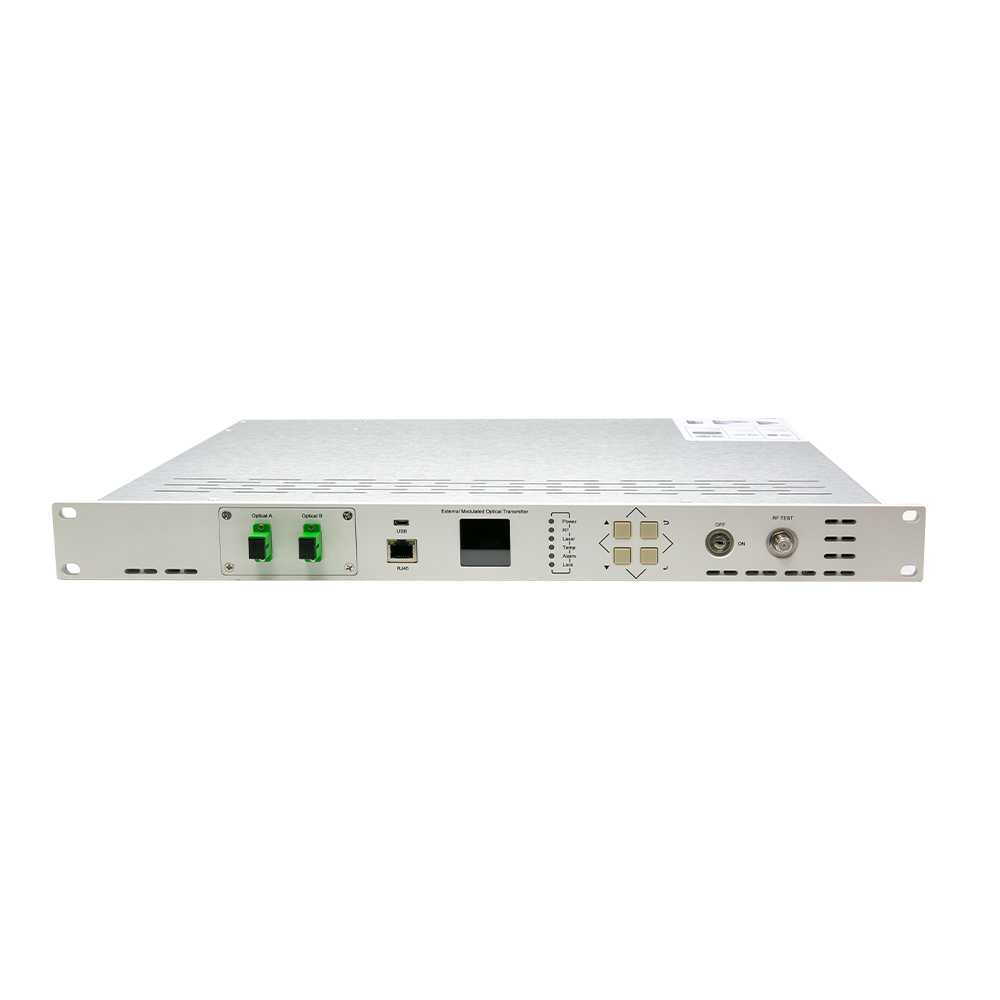

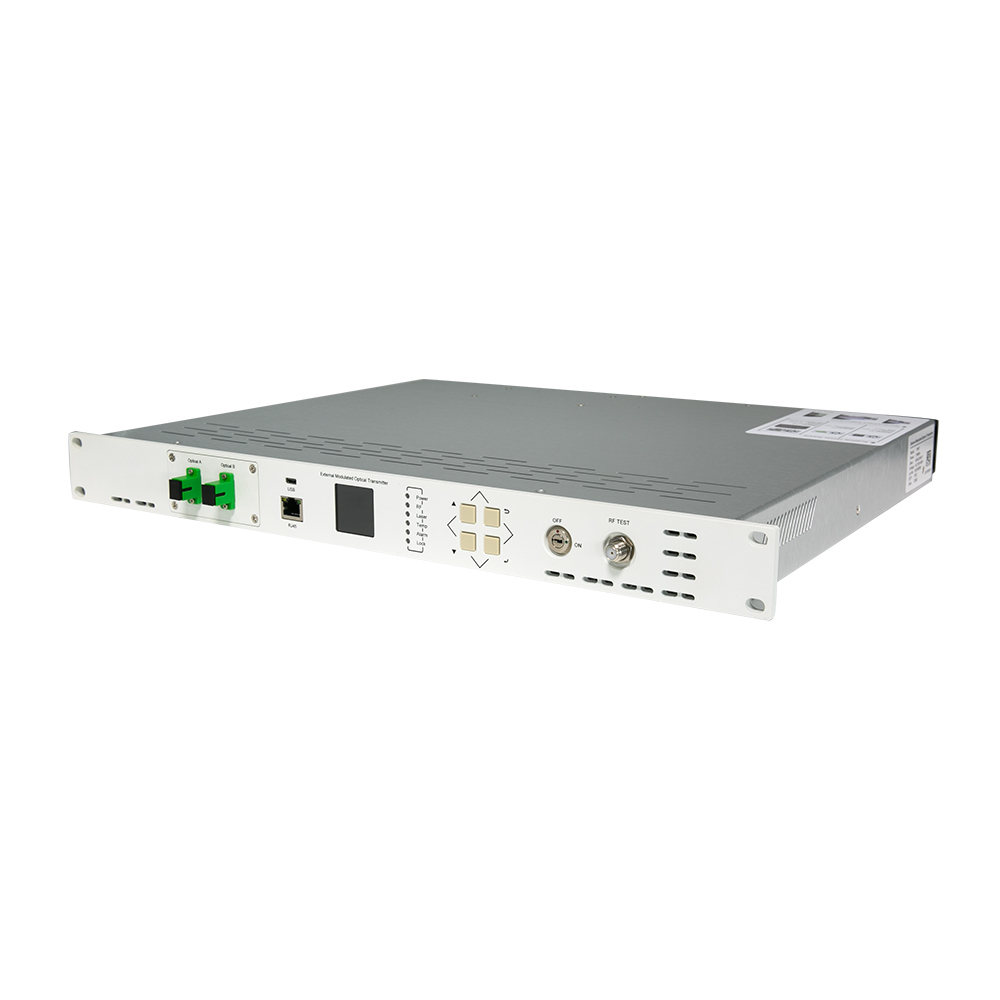

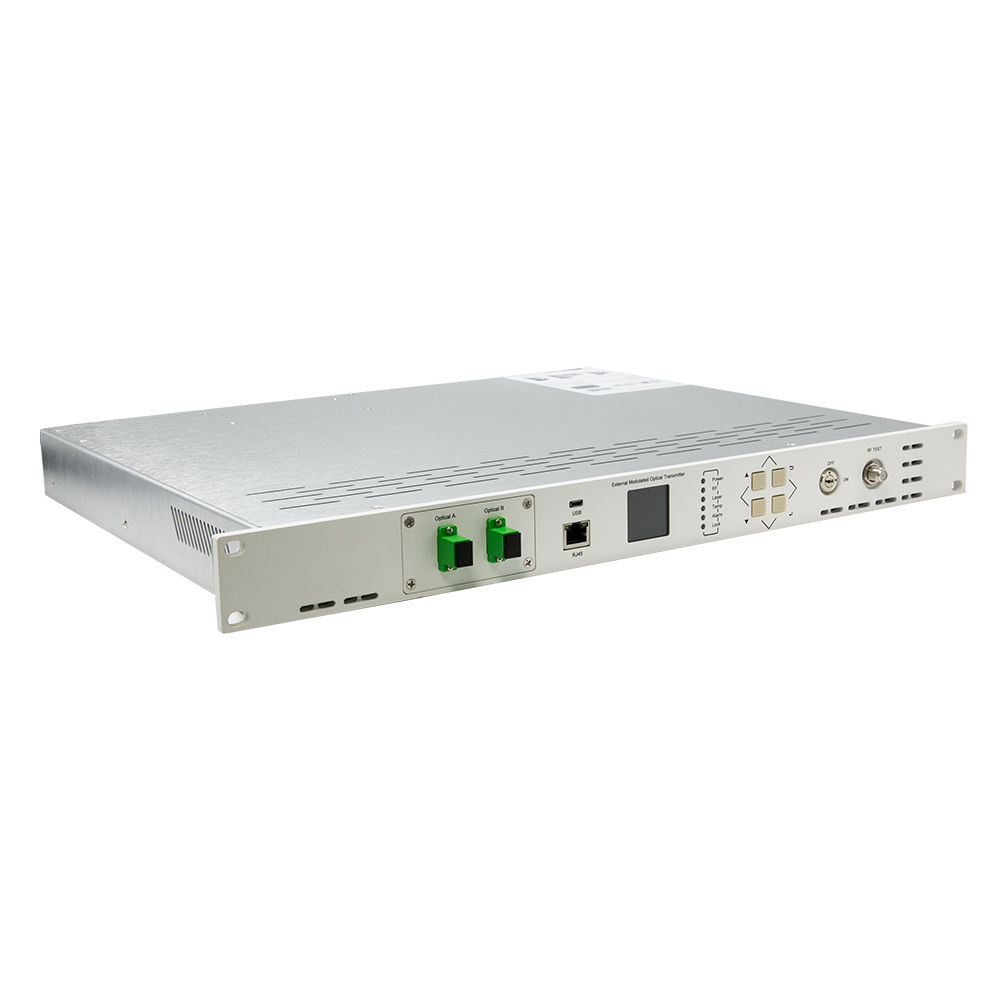

CATV External Modulated Optical Transmitter 1550nm

Introduction

Performance characteristics

• Using 32-bit high-performance ARM processor,together with a complete automatic monitoring system circuit, can accurately monitor the optical output power and various working conditions of the laser in real time to ensure a stable optical output power and ensure that the laser is in the best working environment.
• A good modulator servo system and a unique “wind pendulum” mode of operation of the modulator phase tracking system provide a more accurate and delicate control process and a wider temperature range for the entire machine.
• Using a microwave source programmed and controlled by the CPU, the frequency and amplitude of the signal can be dynamically adjusted to generate microwave signals of any frequency and amplitude with less harmonics. The SBS threshold range is 13-19dBm.
•  RF digital signal predistortion system can precisely match the predistortion amount according to the signal strength and modulation amplitude to ensure the signal quality
• Narrow line width (1MHz), low noise, DFB continuous wave lasers, and LiNBo3 external modulators perform signal modulation to ensure improved optical power into the fiber and increase transmission distance when the system COS performance index is excellent.
• The RF gain is selectable in AGC/MGC mode and the OMI±10dB range is adjustable.

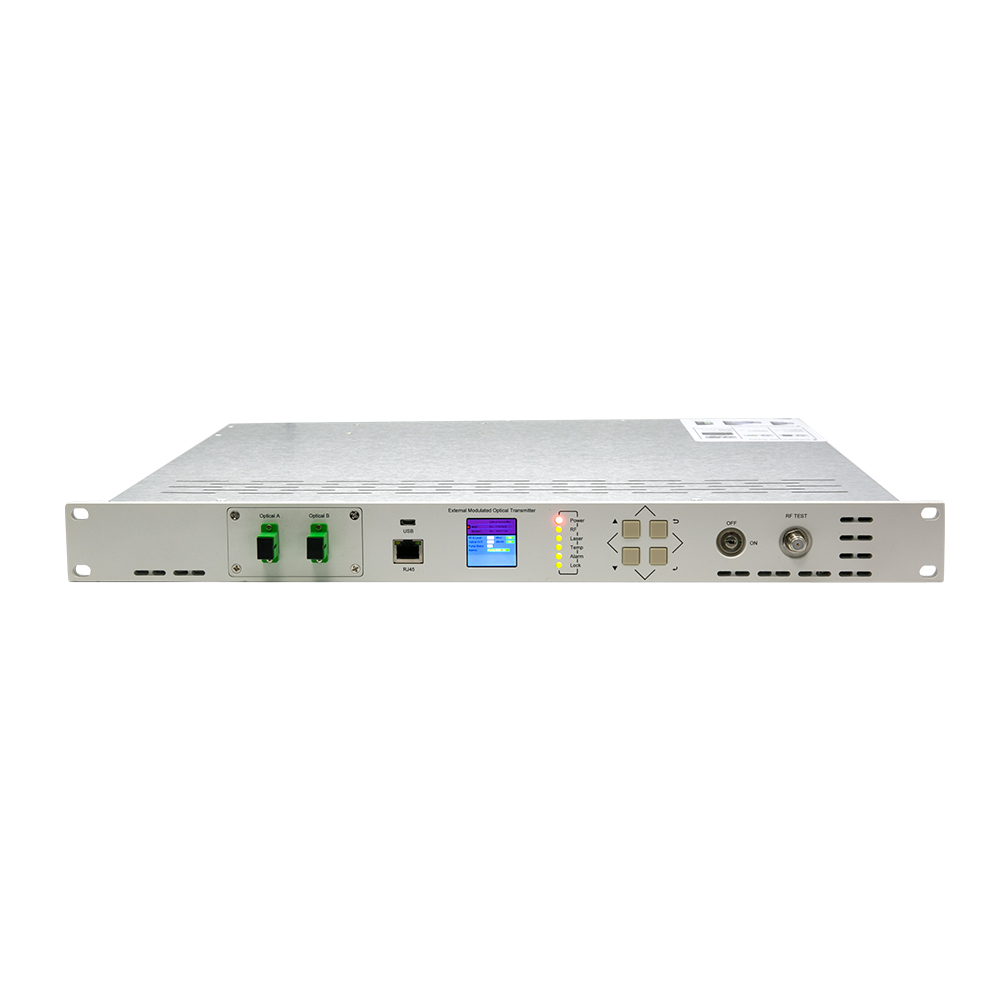

• 19-inch 1U height standard rack, with a 1.54-inch LCD screen embedded in the front panel, which can accurately display the working parameters and fault information of the equipment, and is equipped with a transponder, which can realize network management monitoring through the network.
• Modular structure facilitates functional expansion and maintenance of the equipment.
• Equipped with a complete network management interface that complies with the SNMP network management protocol.

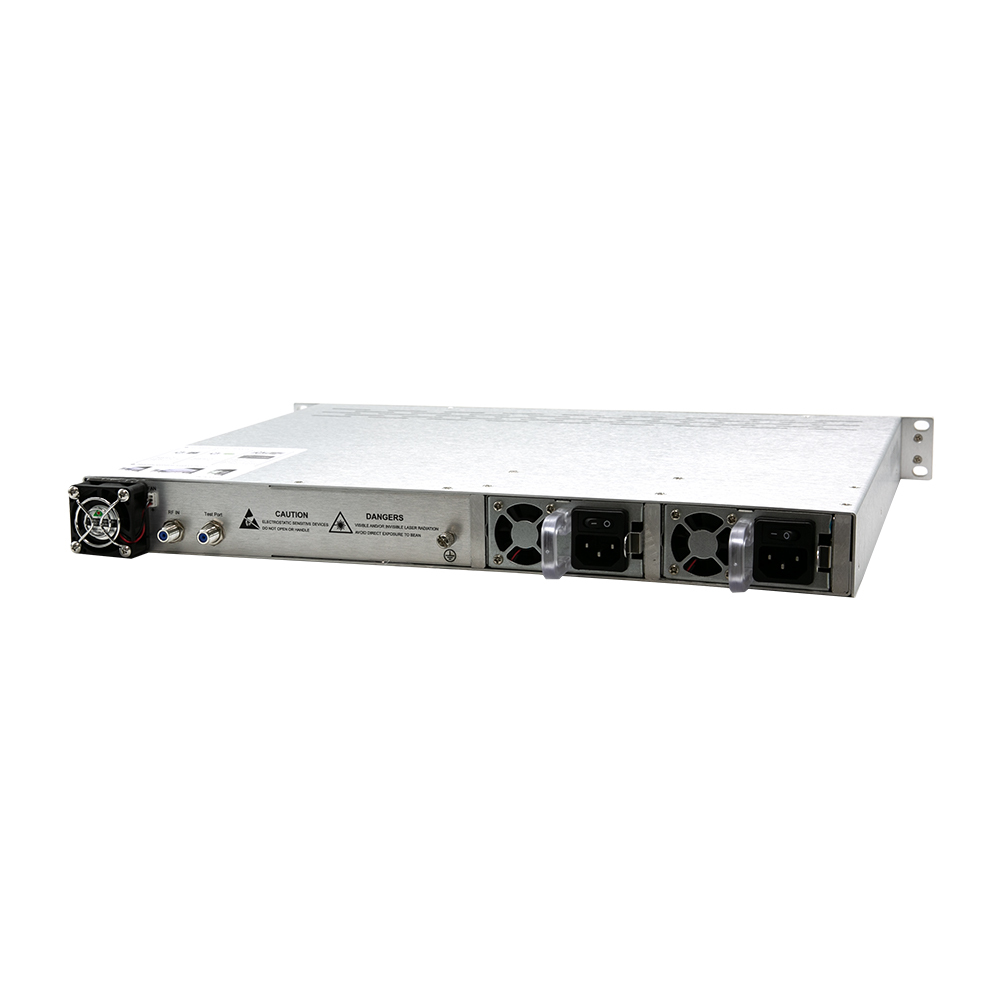

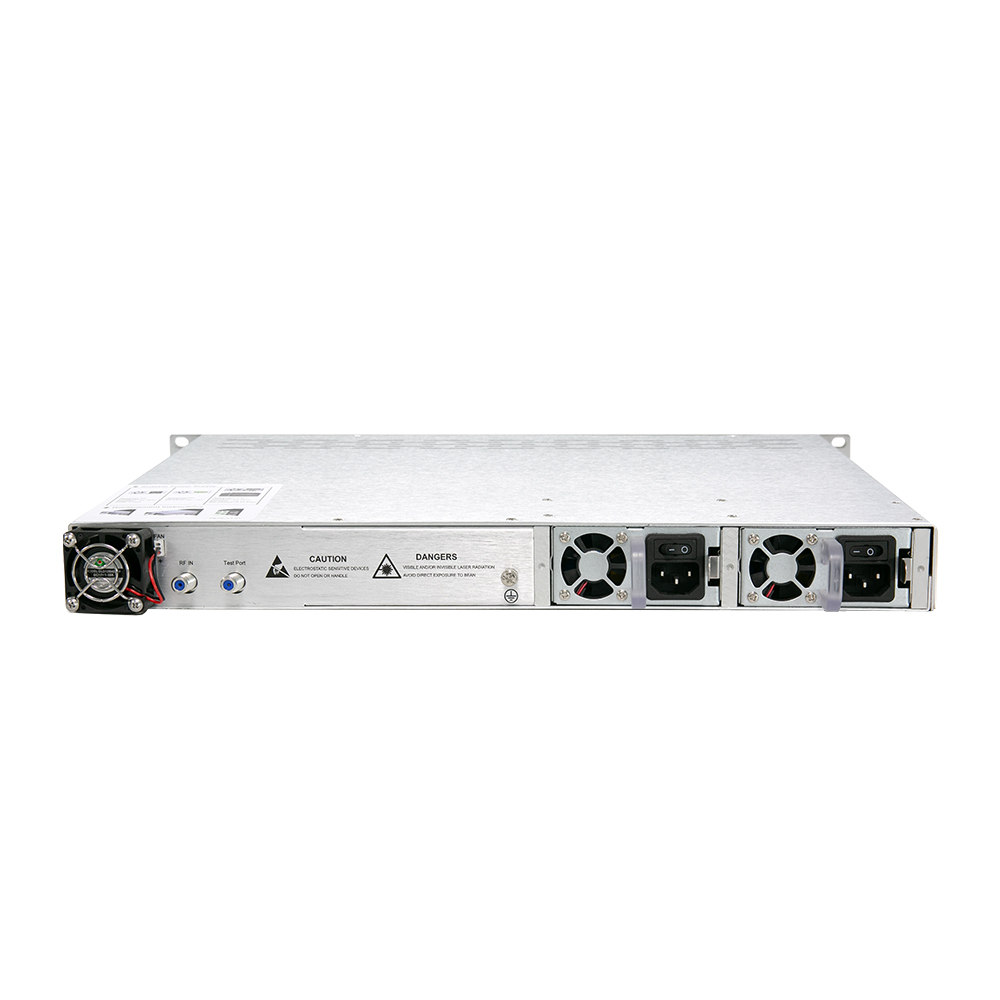

• Hot-swappable dual power supply, Clip-on fixing, one-touch pulling. Easy to operate and firmly fixed. Voltage 220V & 110V & 48V optional.

Model guide

• RF connector form(Male M/Female F)
• Output connector form (SA：SC/APC；SP：SC/PC；LA：LC/APC；LP：LC/PC optional)
• Power type (Main and auxiliary power, 2：AC220V；1：AC110V；4：DC48V optional)
• Product type（D: single fiber; A: dual fiber+Number of optical output ports+per port power）
• Example：77WT1500-A29-22-FA-M
• Explanation: This is an external modulation optical transmitter. The product model is 77WT1500.Withdual-fiber2output ports, each port output power 9dBm. The main power supply is 220V, and the auxiliary power supply is 220V. The output connector is FC/APC; the RFconnector is male.
