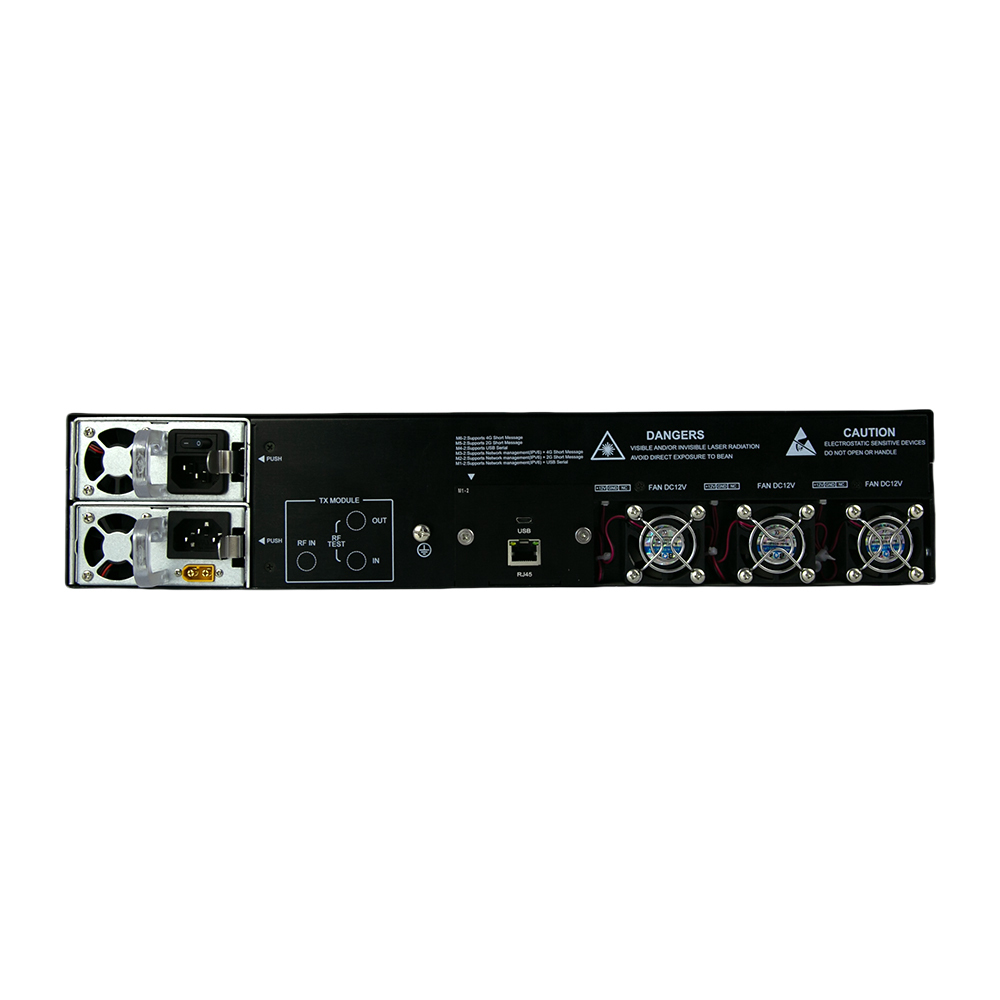

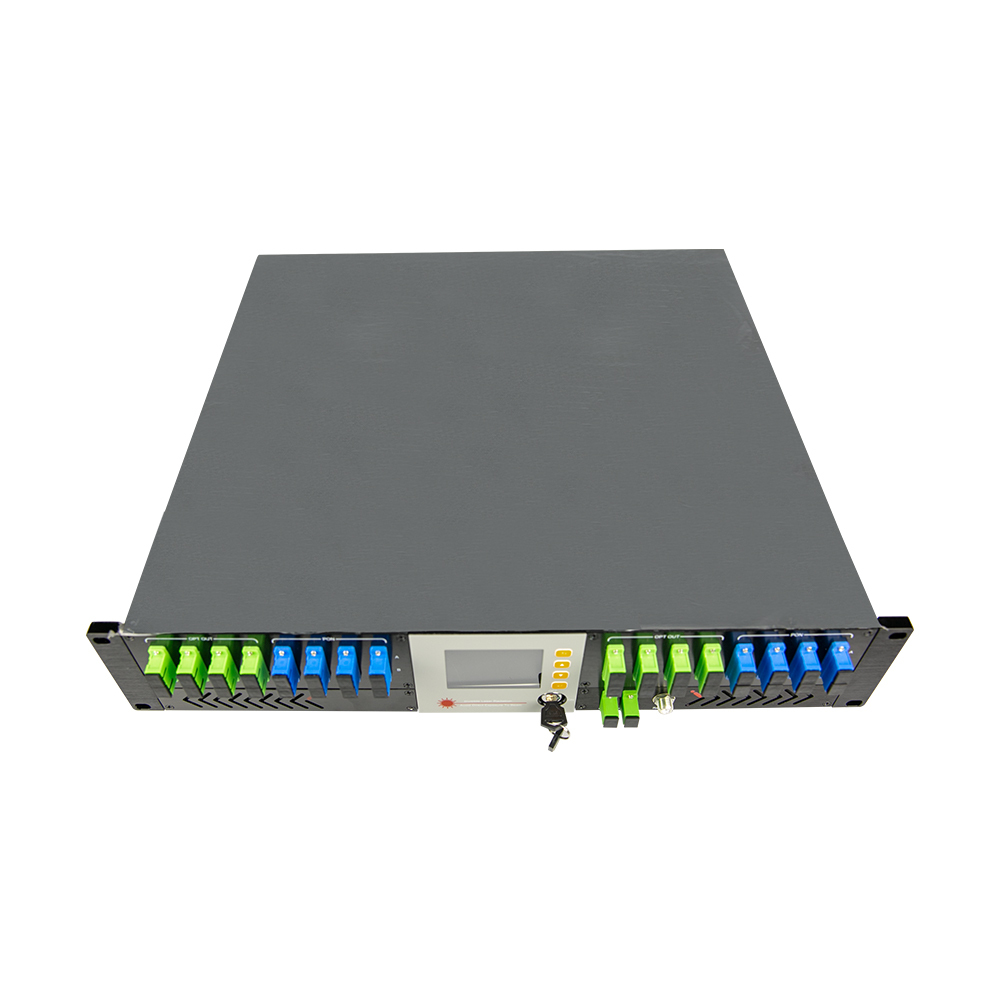

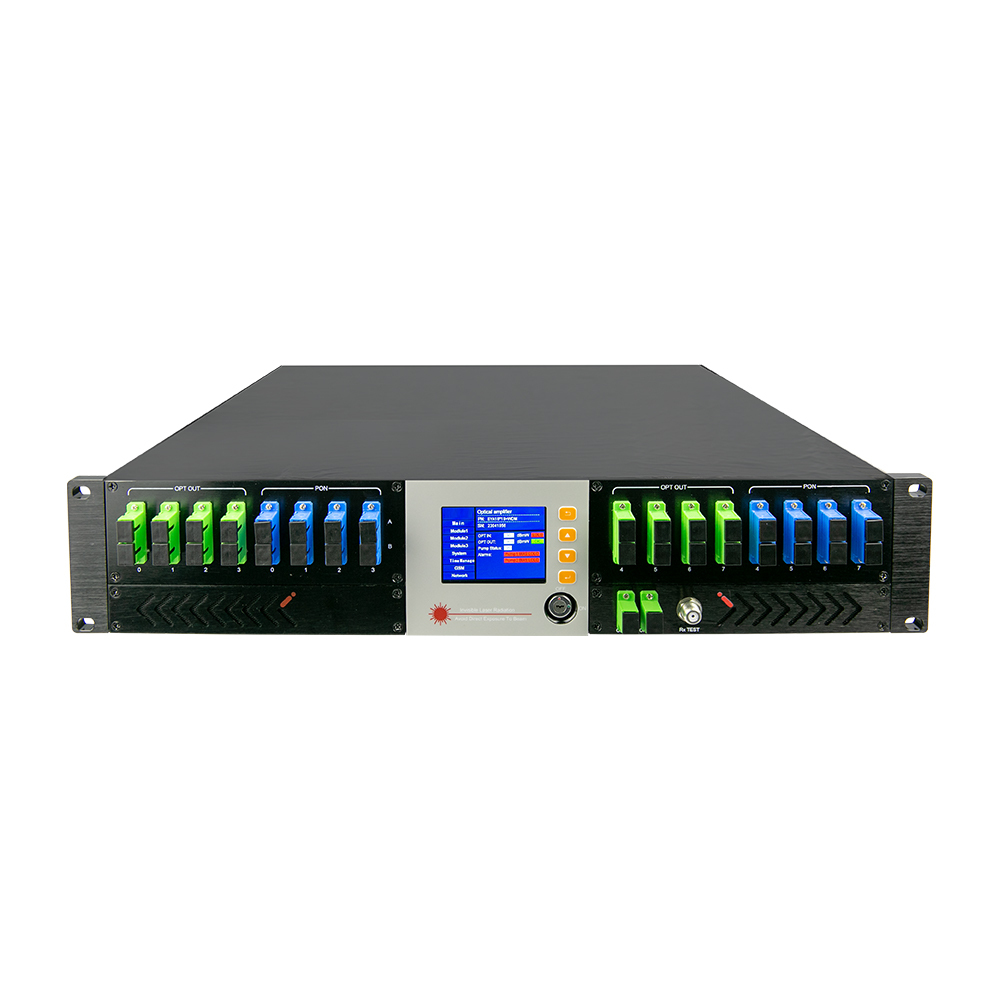

Technical parameters
|
Item |
Unit |
Technical parameters |
Remark |
||
|
CATV working wavelength |
nm |
1545~1560 |
centre wavelength 1550nm |
||
|
PON OLTworking wavelength |
nm |
1270/1310/1490/1577 |
|
||
|
CATV Input power |
dBm |
-5dBm~+10dBm |
Limit-10dBm~+10dBm |
||
|
Maximum total optical output power |
dBm |
41 |
|
||
|
Output power stability |
dB |
±0.1 |
|
||
|
Noise |
dB |
≤ 6 |
|
||
|
Reflective loss |
Input |
dB |
≥ 45 |
|
|
|
|
Output |
dB |
≥ 45 |
|
|
|
OSW |
Input port |
|
2 |
Optional Features |
|
|
|
insertion loss |
dB |
≤1.2 |
|
|
|
|
switching time |
s |
＜0.5 |
|
|
|
Direct - Modulation transmitter |
working wavelength |
nm |
1550 |
Optional Features |
|
|
|
Input level |
dBuV |
75~90 |
|
|
|
|
Output power |
dBmW |
3/5/7/10 |
|
|
|
Output ports |
straight |
SC |
unit |
4~64 |
|
|
|
|
LC |
|
4~64 |
|
|
Output power per port |
dBm |
13~23 |
|
||
|
RFtest |
Output level |
dBuV |
≥56 |
Optional Features |
|
|
Optical connector |
|
SC/APC；SC/PC；LC/APC；LC/PC |
Customized |
||
|
C/N |
dB |
≥ 50 |
Test conditions are performed according to GD / J115-2020 |
||
|
C/CTB |
dB |
≥ 65 |
|
||
|
C/CSO |
dB |
≥ 65 |
|
||
|
Supply voltage |
V |
AC(90V ~ 264V) |
Optional DC (DC: 36~72V) |
||
|
Power Consumption |
W |
＜150 |
|
||
|
Operating Temperature Range |
℃ |
-5 - +50 |
|||
|
Maximum working relative humidity |
% |
Maximum 95% non-condensing |
|
||
|
Storage temperature range |
℃ |
-40 ~ +80 |
|
||
|
Maximum storage relative humidity |
% |
Maximum storage relative humidity |
|
||
|
Product net size |
mm |
480(W)*428(D)*89(H) |
Don’tinclude handles |
||
|
Package dimension(1 unit) |
mm |
610(W)*590(D)*155(H) |
|||
