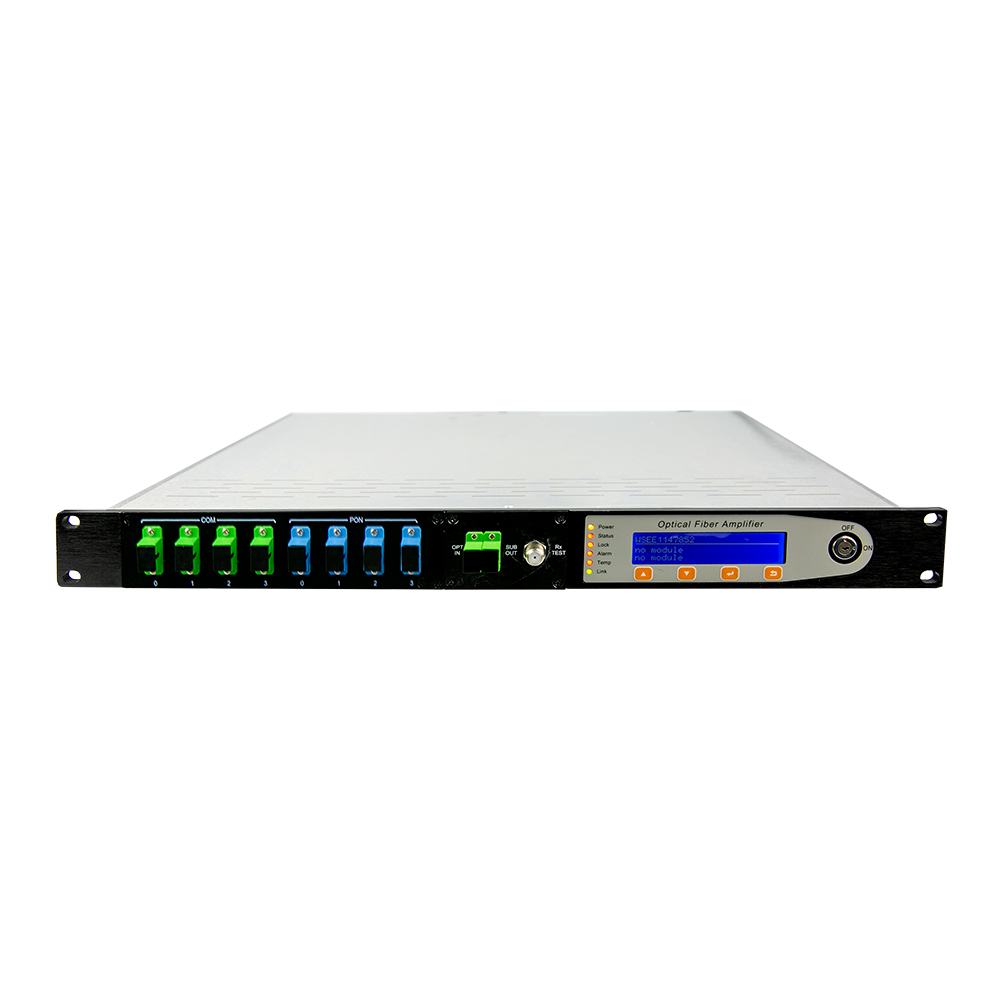

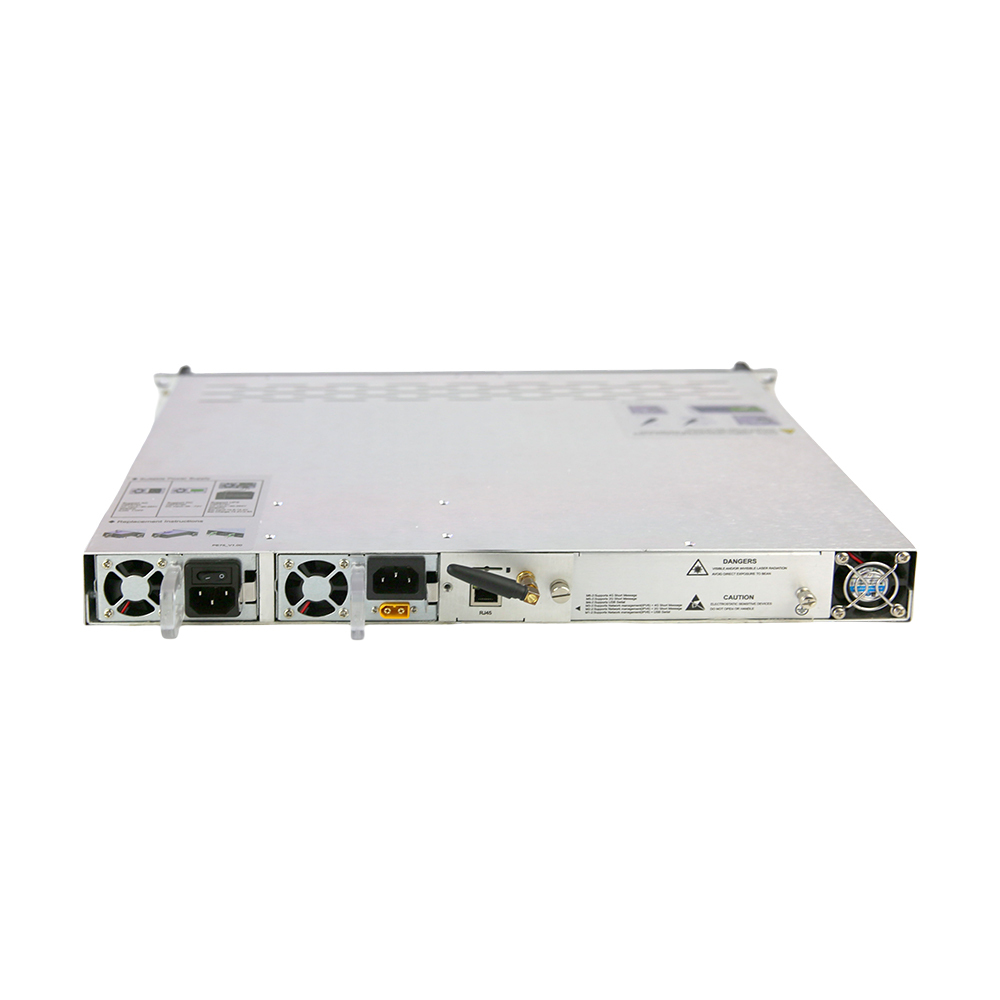

Technical parameters
|
Item |
Unit |
Specification |
Note |
||
|
CATV wavelength |
nm |
1545~1560 |
Central wavelength 1550nm |
||
|
PON OLT wavelength |
nm |
1270/1310/1490/1577 |
|
||
|
CATV Input Power Range |
dBm |
-5dBm~+10dBm |
LimitRange -10dBm~+10dBm |
||
|
Max Total Output Power |
dBm |
38 |
|
||
|
OutputPowerStability |
dB |
±0.1 |
|
||
|
Noise |
dB |
≤ 6 |
|
||
|
Return Loss |
Input |
dB |
≥ 45 |
|
|
|
|
Output |
dB |
≥ 45 |
|
|
|
OSW |
Input port |
|
2 |
Optional |
|
|
|
Insertionloss |
dB |
≤1.3 |
|
|
|
|
Switching time |
s |
＜0.5 |
|
|
|
Direct Modulation Transmitter |
Wavelength |
nm |
1550 |
Optional |
|
|
|
Input level |
dBuV |
75~90 |
|
|
|
|
Output power |
dBmW |
3/5/7/10 |
|
|
|
Output ports |
straight |
SC |
unit |
2~32 |
Optional |
|
|
|
LC |
|
2~32 |
|
|
Output power per port |
dBm |
13~23 |
|
||
|
RFTest |
Output level |
dBuV |
≥56 |
Optional |
|
|
Optical Connector |
|
SC/APC；SC/PC；LC/APC；LC/PC |
Customized |
||
|
C/N |
dB |
≥ 50 |
Testing conditions are carried out according to GT/T 184-2002 |
||
|
C/CTB |
dB |
≥ 65 |
|
||
|
C/CSO |
dB |
≥ 65 |
|
||
|
PowerSupplyVoltage |
V |
AC(90V ~ 264V) |
Optional DC or UPS |
||
|
Consumption |
W |
＜75 |
|
||
|
OperatingTemperature |
℃ |
-5 -+50 |
|||
|
Max OperatingHumidity |
% |
Maximum 95% non-condensing |
|
||
|
StorageTemperatureRange |
℃ |
-40 ~ +80 |
|
||
|
Max StorageHumidity |
% |
Maximum 95% non-condensing |
|
||
|
Size |
mm |
482(W)*356(D)*44(H) |
Without handle |
||
|
Package Size(1pc) |
mm |
590(W)*505(D)*115(H) |
|
||
|
Package Size(2pcs) |
mm |
590(W)*505(D)*220(H) |
|
||
|
Package Size(5pcs) |
mm |
590(W)*505(D)*525(H) |
|||
