Product introduction

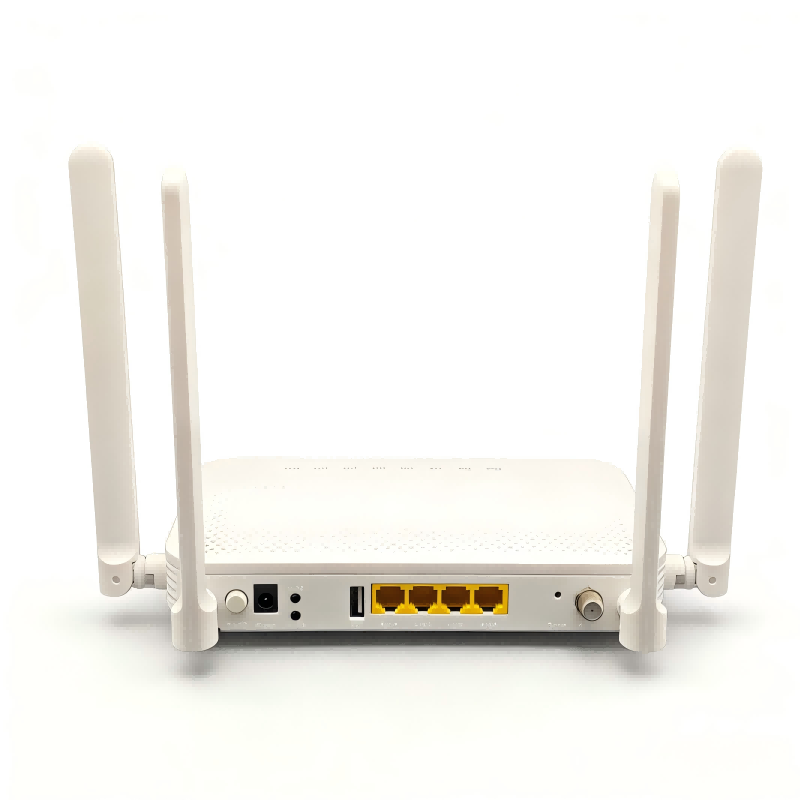

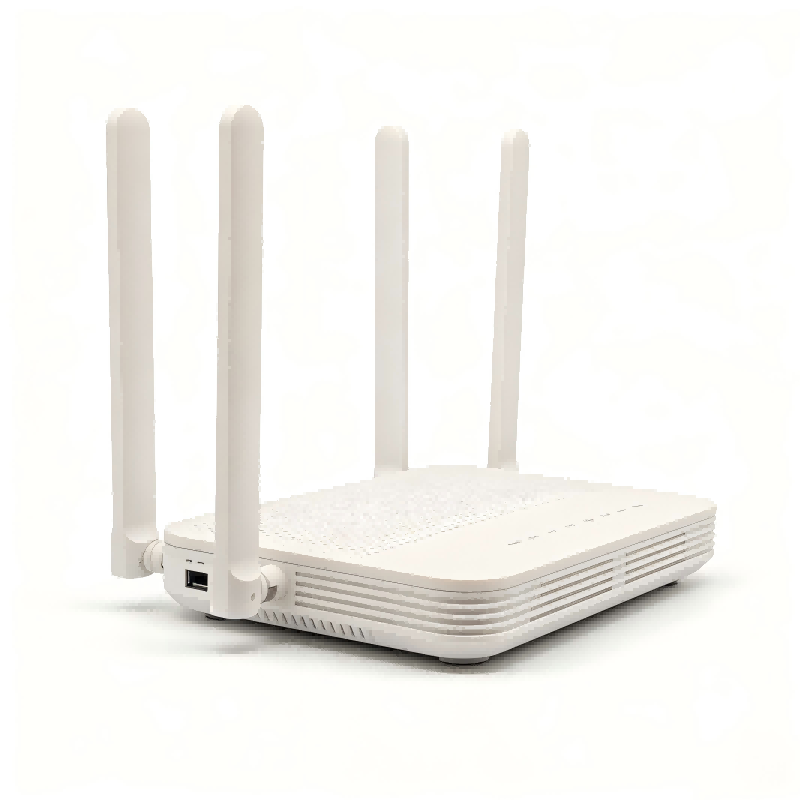

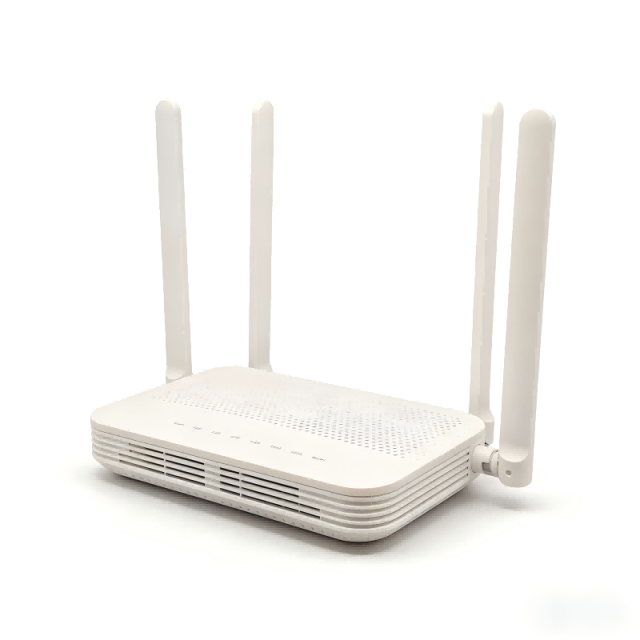

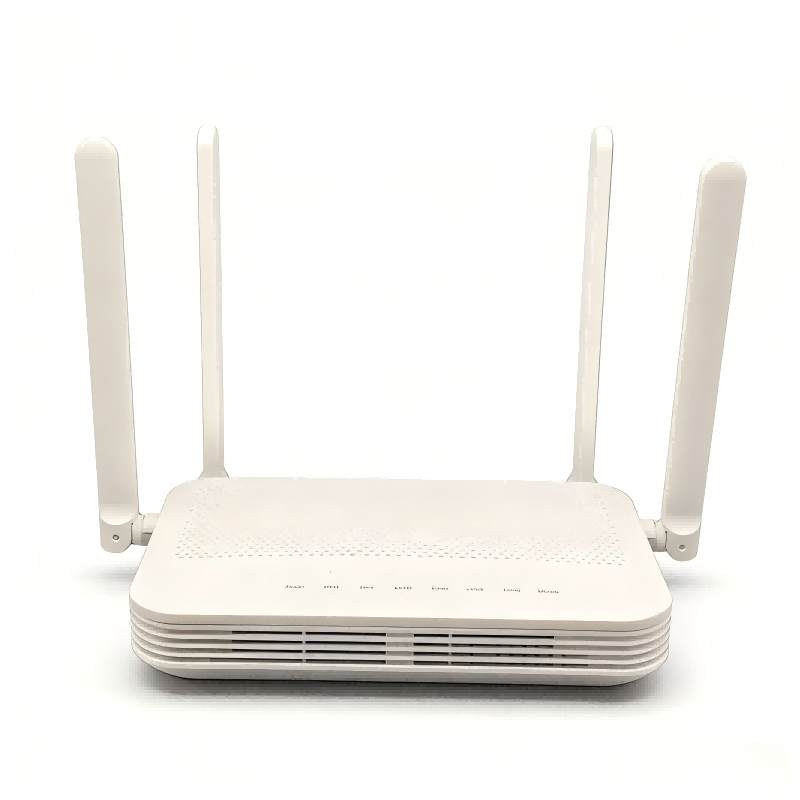

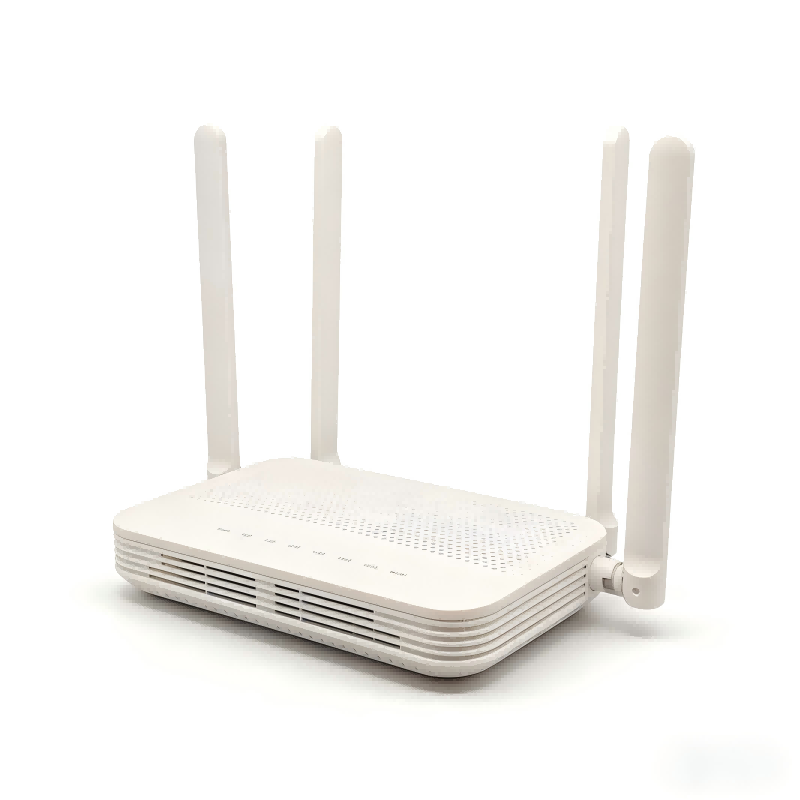

The EG8147X6-10 is an intelligent GPON and Wi-Fi 6 routing-type ONT. It uses GPON and Wi-Fi 6 technologies to deliver ultra-broadband access, high performance, and wide coverage for users. Its high forwarding performance ensures the user experience of voice, data, and HD video services, providing customers with an ideal all-optical access solution and future-oriented service support capabilities. This device offers 4 GE ports, 1 CATV port, 1 USB port, and supports 2.4GHz & 5GHz Wi-Fi6 functions, with features of smart interconnection, smart service, and smart O&M.
Key parameters
| Parameter Category |
Parameter Details |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
5% RH to 95% RH (non-condensing) |
| Power Adapter Input |
100–240 V AC, 50/60 Hz |
| System Power Supply |
12V DC, 1.5 A |
| Static Power Consumption |
6.8 W |
| Maximum Power Consumption |
18 W |
| Dimensions (H x W x D) |
35 mm x 195 mm x 120 mm (without external antenna and pads) |
| Weight |
About 305g |
| Memory |
128MB Flash, 256MB RAM |
| NNI Interface |
GPON |
| UNI Interface |
4xGE+1xCATV+2.4 GHz&5GHz Wi-Fi 6+1xUSB2.0 |
| Optical Connector |
SC/APC |
| GPON Class |
Class B+ |
| GPON Receiver Sensitivity |
-27 dBm |
| GPON Overload Optical Power |
-8 dBm |
| Wi-Fi Standard |
IEEE 802.11 b/g/n/ax (2.4G), IEEE 802.11 a/n/ac/ax (5G) |
| Wi-Fi MIMO |
2×2 MIMO (2.4G), 2×2 MIMO (5G) |
| Wi-Fi Air Interface Rate |
574 Mbit/s (2.4G), 1200 Mbit/s (5G) |
| CATV Frequency Range |
54 MHz to 1000 MHz |
Datasheet
FAQ
Q1: What network access methods does the EG8147X6-10 support?
A1: This device supports GPON access, as well as WAN access methods such as PPPoE, static IP, and DHCP, meeting different network deployment needs.
Q2: What are the advantages of Wi-Fi 6 on this device?
A2: It adopts Wi-Fi 6 technology, supporting features such as OFDMA, MU-MIMO, and 160MHz bandwidth. Compared with traditional Wi-Fi, it can provide higher speeds and greater capacity, effectively improving the network experience in scenarios with multiple devices connected simultaneously and reducing lag.
Q3: Does the EG8147X6-10 support IPTV services?
A3: Yes, this device supports IPTV video quality diagnostics and has multicast functionality (IGMP v2/v3 proxy/listening), which can stably support IPTV services.
Q4: What is the power consumption of this device?
A4: Its static power consumption is 6.8W, and its maximum power consumption is 18W. It maintains high performance while also offering good energy efficiency.
Q5: Is the EG8147X6-10 compatible with Huawei OLTs?
A5: Yes, the EG8147X6-10 supports the OMCI common protocol and is compatible with mainstream OLTs such as Huawei, ZTE, Nokia, and Fiberhome.
Q6: Does the EG8147X6-10 support customized logos?
A6: Yes, the EG8147X6-10 is an OEM product and supports free customization services, including logos and firmware.
