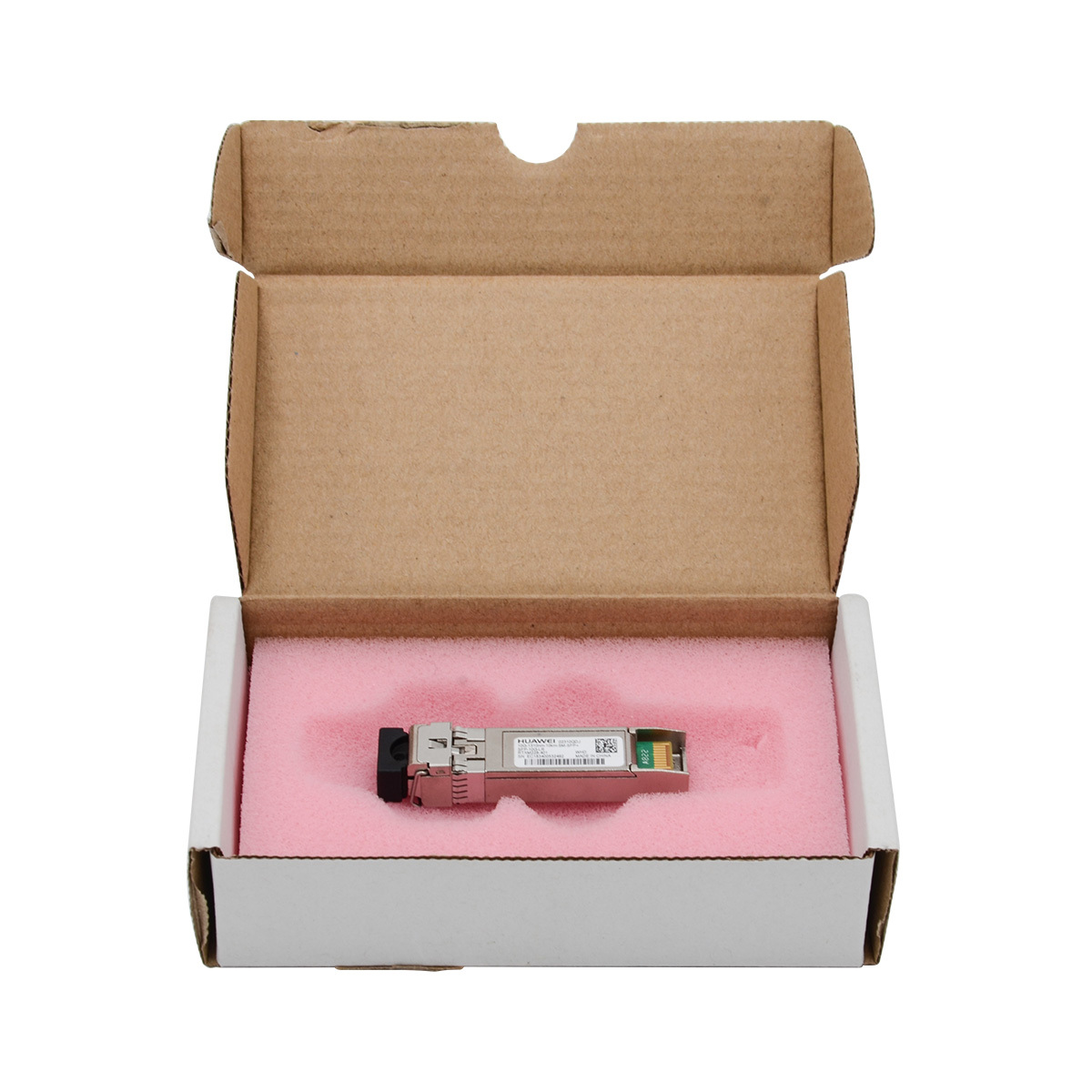

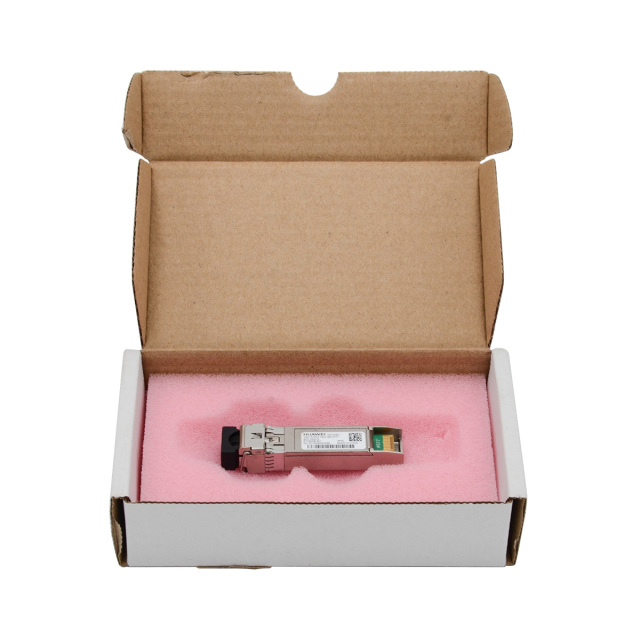

Name: eSFP-GE-SX-MM850 0.5km (02313URD)
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0075
Price: 18.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0075

Huawei Original eSFP-GE-SX-MM850 GE eSFP 1000BASE-SX 0.5km MMF LC Modules PN. 02313URD

Packing Box Specifications

17*8*4cm

Gross Weight

0.5kgs

Condition

Original new

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description

eSFP-GE-SX-MM850 Introduction
The Huawei eSFP-GE-SX-MM850 is an enhanced small form-factor pluggable (eSFP) transceiver module designed for Gigabit Ethernet (GE) applications over short distances using multimode fiber (MMF).The eSFP-GE-SX-MM850 is hot-swappable and provides a reliable, high-performance solution for connecting network devices within data centers, campus networks, and other environments where short-range, high-speed connectivity is required.
Huawei Original eSFP-GE-SX-MM850 Modules can be plugged into Huawei switch.
eSFP-GE-SX-MM850 Target transmission distance [km] :
Multimode optical fiber (modal bandwidth: 160 MHz*km; diameter: 62.5 μm): 0.22 km
Multimode optical fiber (OM1): 0.275 km
Multimode optical fiber (modal bandwidth: 400 MHz*km; diameter: 50 μm): 0.5 km
Multimode optical fiber (OM2): 0.55 km
Multimode optical fiber (OM3): 1 km

eSFP-GE-SX-MM850 Specifications

Item	Parameters
Basic Information
Module name	eSFP-GE-SX-MM850
Part Number	02313URD
Model	eSFP-GE-SX-MM850
Form factor	eSFP
Application standard	1000BASE-SX
Connector type	LC
Optical fiber type	MMF
Working case temperature [°C(°F)]	-20°C to +85°C (-4°F to +185°F)
Digital diagnostic monitoring (DDM)	Supported
Transmission rate [bit/s]	1 Gbit/s
Target transmission distance [km]	Multimode optical fiber (modal bandwidth: 160 MHz*km; diameter: 62.5 μm): 0.22 km
	Multimode optical fiber (OM1): 0.275 km
	Multimode optical fiber (modal bandwidth: 400 MHz*km; diameter: 50 μm): 0.5 km
	Multimode optical fiber (OM2): 0.55 km
	Multimode optical fiber (OM3): 1 km
Transmitter Optical Characteristics
Center wavelength [nm]	850 nm
Maximum Tx optical power [dBm]	-2.5 dBm
Minimum Tx optical power [dBm]	-9.5 dBm
Minimum extinction ratio [dB]	9 dB
Receiver Optical Characteristics
Rx sensitivity [dBm]	-17.0 dBm
Overload power [dBm]	0 dBm

GE eSFP Optical Modules List
LE2MGSC40DE0
LE2MGSC40ED0
S-SFP-GE-LH40-SM1310
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550
SFP-GE-BXU1-SC
SFP-GE-EX-C
SFP-GE-LX-SM1310 (02315200)
SFP-GE-LX-SM1310-BIDI (02315285)
SFP-GE-LX-SM1490-BIDI (02315286)
SFP-GE-LX10-C
SFP-GE-SX-C (02312UUB)
SFP-GE-ZBXD1
SFP-GE-ZBXU1
eSFP-GE-SX-MM850 (02315204)
eSFP-GE-ZX100-SM1550
OGSC10DD0
OGSC40DD0
OGSM01880
SFP-GE-BX-D1-I
SFP-GE-BX-U1-I
SFP-GE-BX40-D-I
SFP-GE-BX40-U-I
eSFP-GE-SX-MM850 (02313URD)
SFP-GE-LX-SM1310 (02313URF)
SFP-GE-SX-C (02314KKF)
SFP-GE-LX-SM1310-BIDI (02314KKJ)
SFP-GE-LX-SM1490-BIDI (02314KKH)
