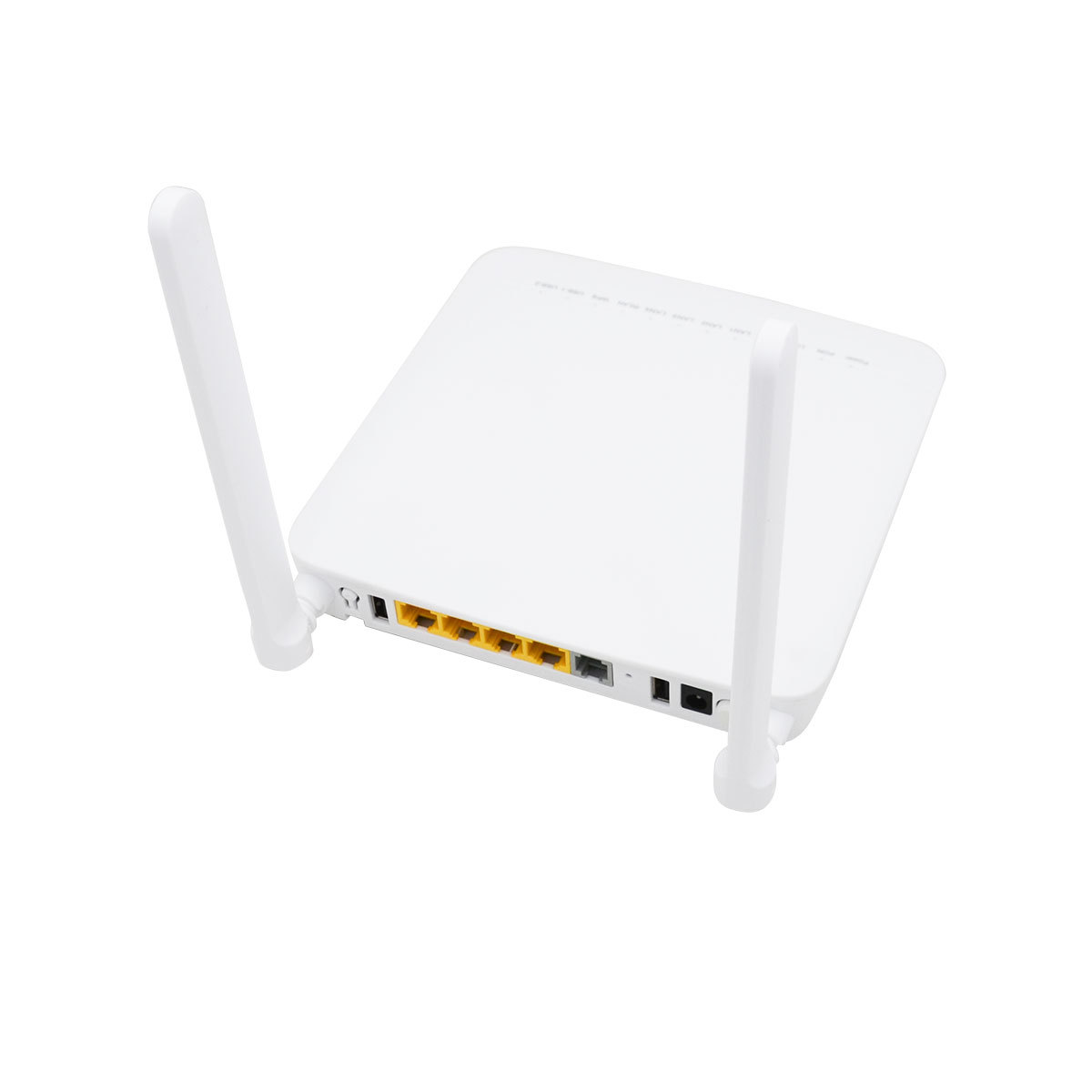

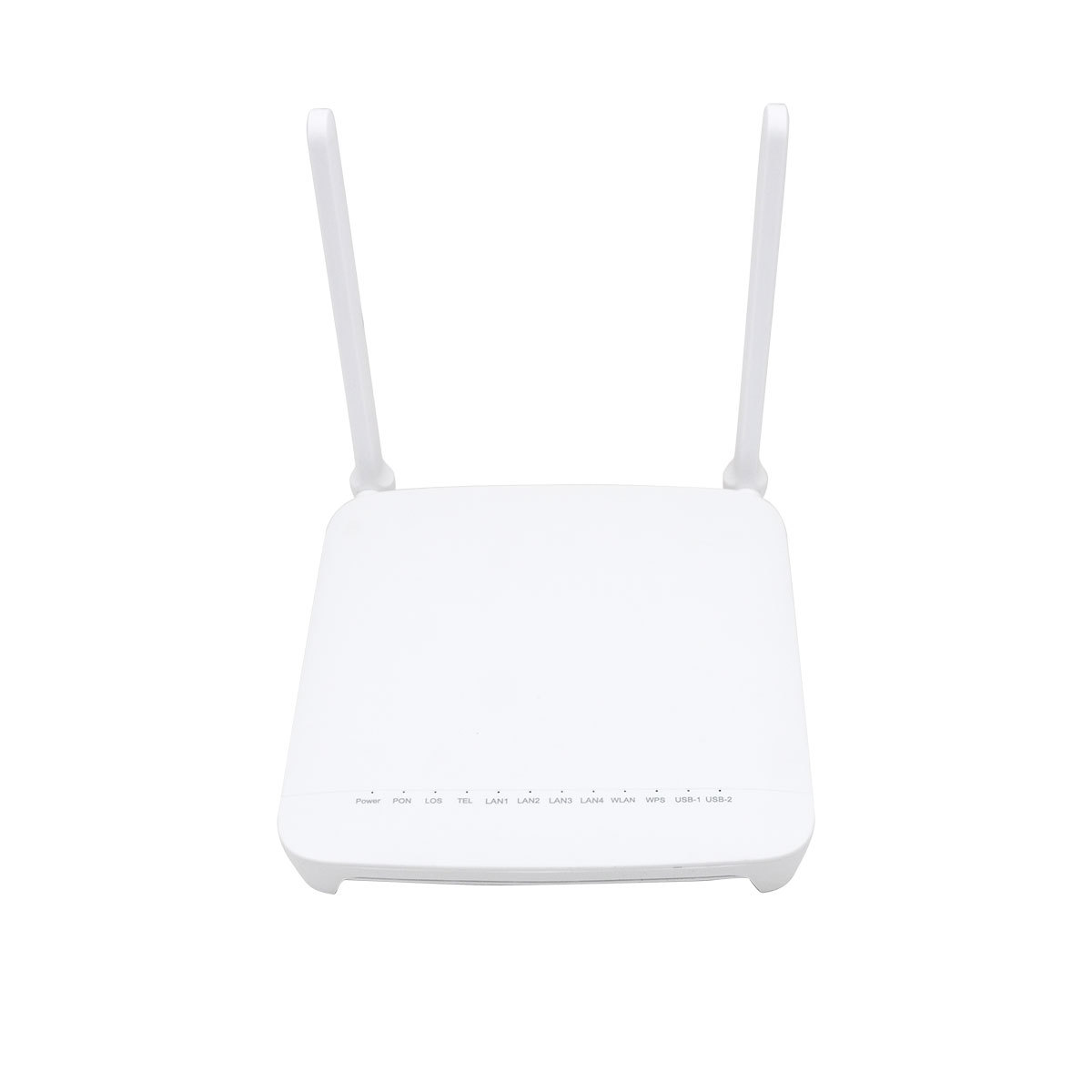

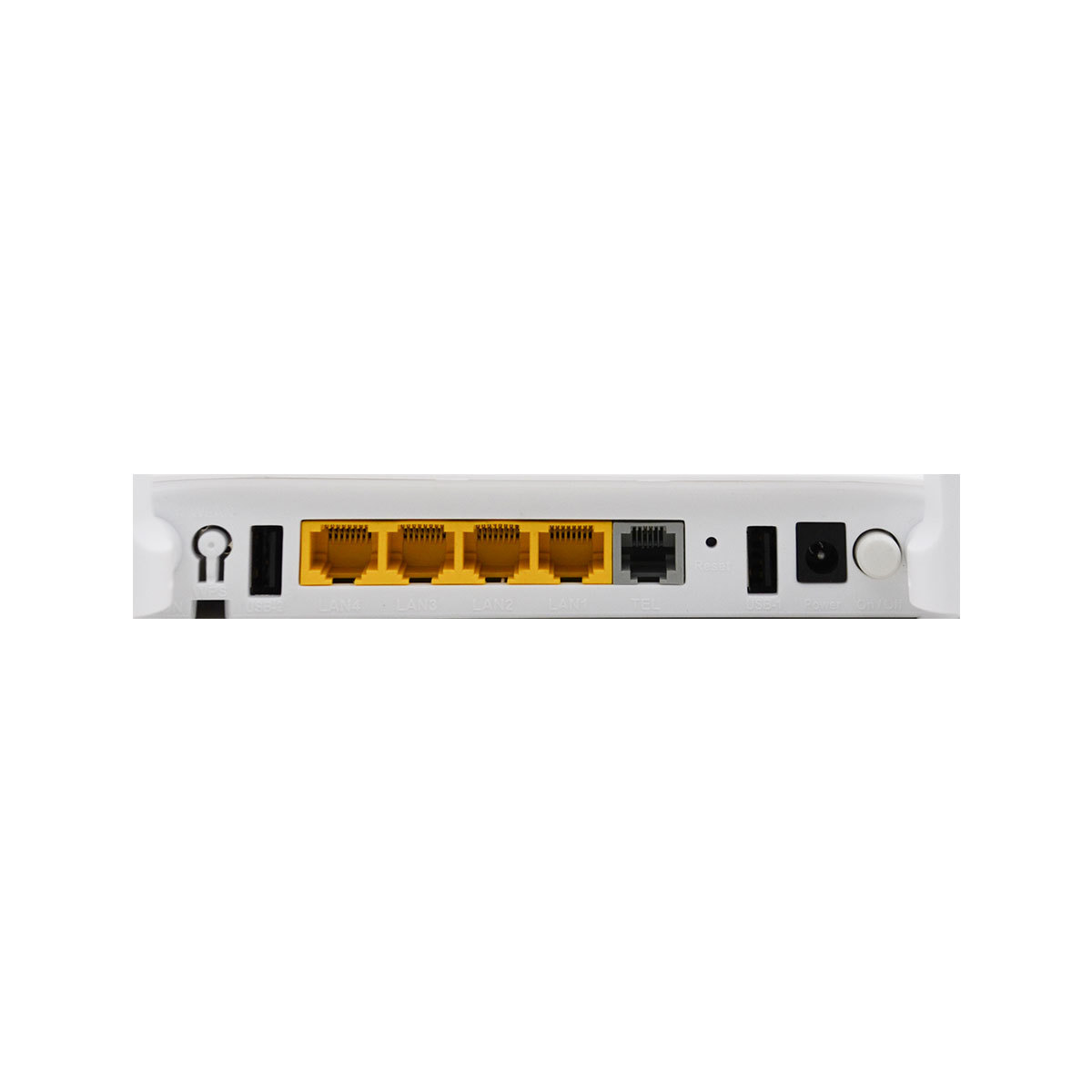

The F670L is a high-performance routing-type dual band WiFi ONT used in FTTH deployments. It supports FTTH ultra-broadband access, compatible with Huawei/ZTE/Nokia/FiberHome OLT.
It comes with English firmware and English interface, WEBUI and TR069 supported.
| Model | F670L |
| NNI | GPON/EPON/XPON |
| UNI | 4GE+POTS+2*USB+2.4/5G WIFI 5dBi |
| Chip | ZTE ZXIC Dual Core Chip |
| Storage | RAM: 512MB I FIash: 256MB |
| Antenna | 2X5dBi High Gain Antennas |
| Indicators | POWER/PON/LOS/WIFI/Internet/USB-1/USB-2/LAN1/LAN2/LAN3/LAN4/TEL |
| Management | Web UI, TR069 |
| USB: USB backup | |
| System power supply | 11–13V DC, 1-1.5A |
| Power adapter input | 100–240V AC, 50–60Hz |
| Weight | About 350g |
| Dimensions (HxWxD) | 200mm*150mm*40mm |
