Built-in high precision delay retumn electric one-step fiber cleaver.

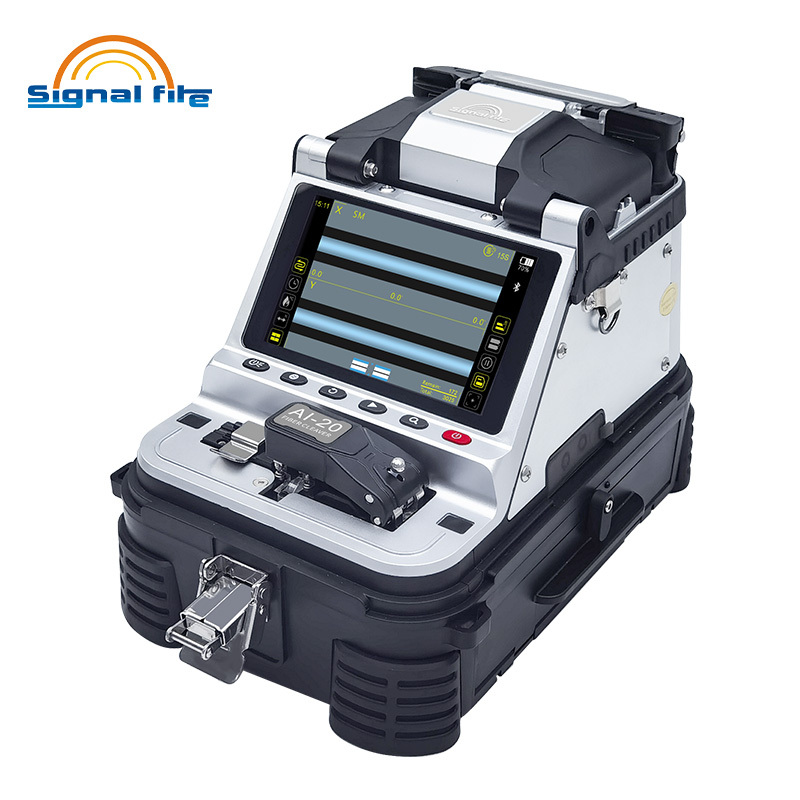

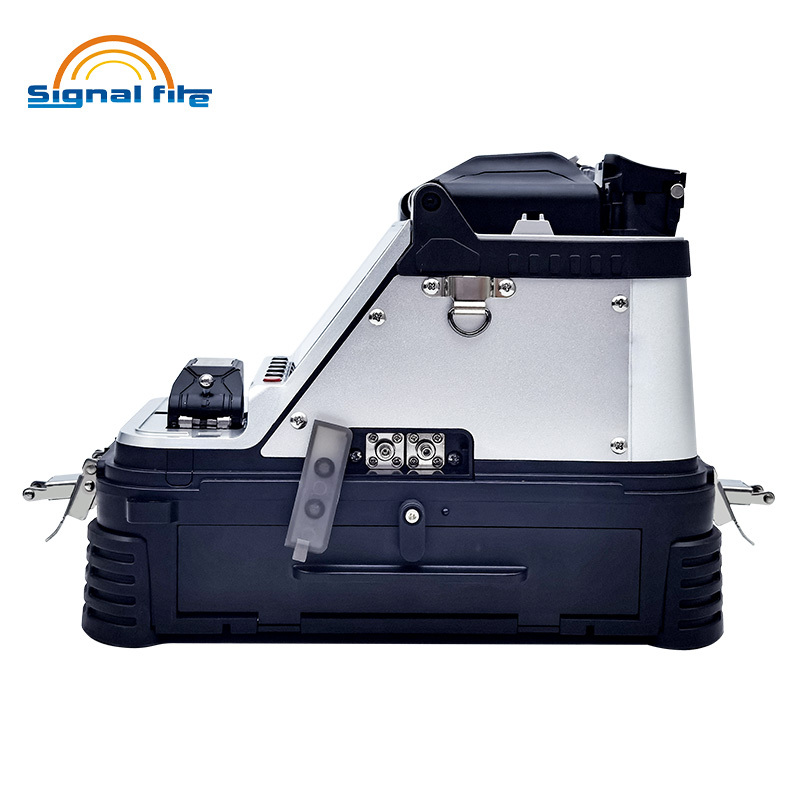

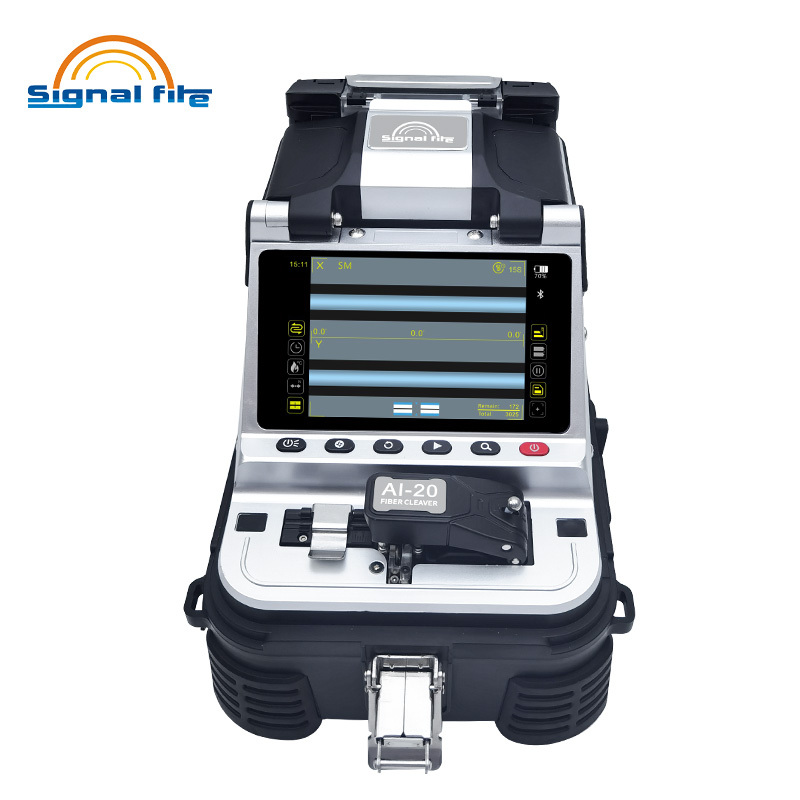

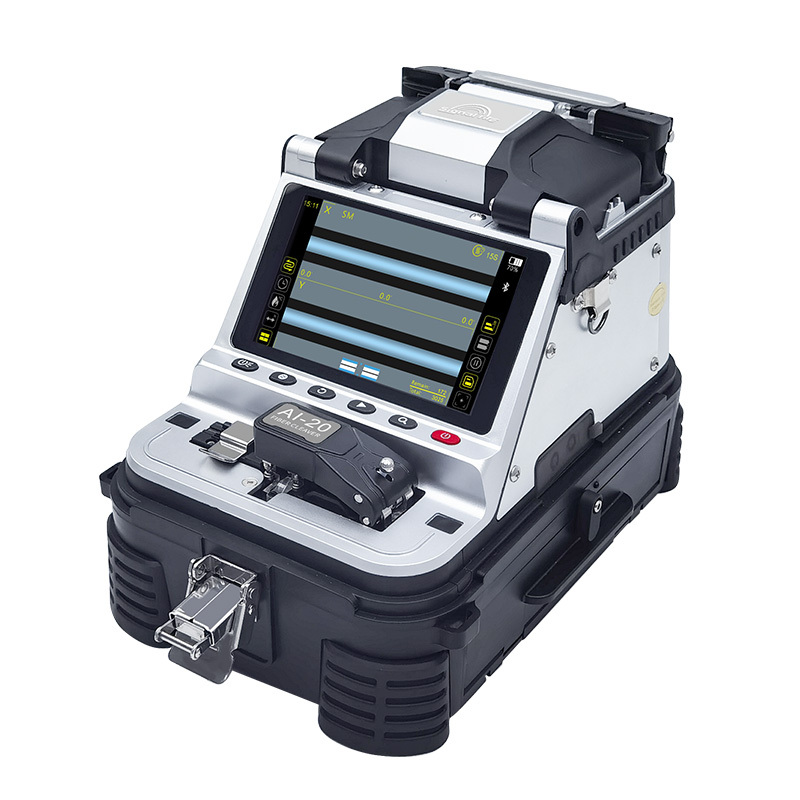

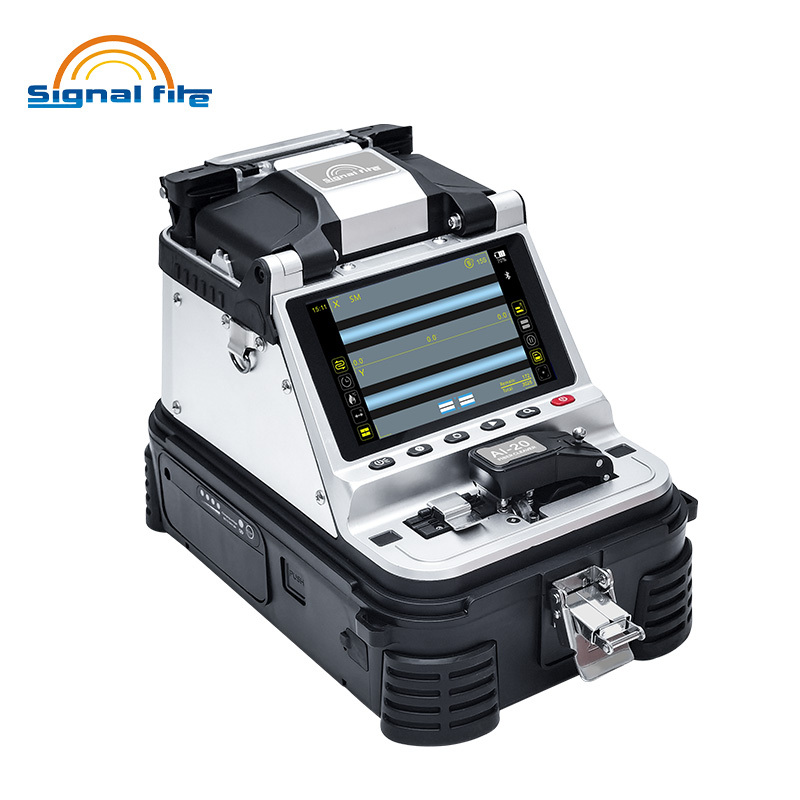

The Al-20, the fourth generation fiber fusion splicer developed bySignal fire, is the latest generation of fiber fusion splicer designedfor full link integration.lt combines Signal fire's latest research anddevelopment of a delaved return electric one-step cleaver withfiber fusion splicing, while integrating OPM and VFL functionsCombined with a nine in one signalfire fiber stripper, a combinableworkbench and worktable, it truly becomes a compact, lightweightand easy to operate fiber fusion splicer, which will greatly improveyour work efficiency.

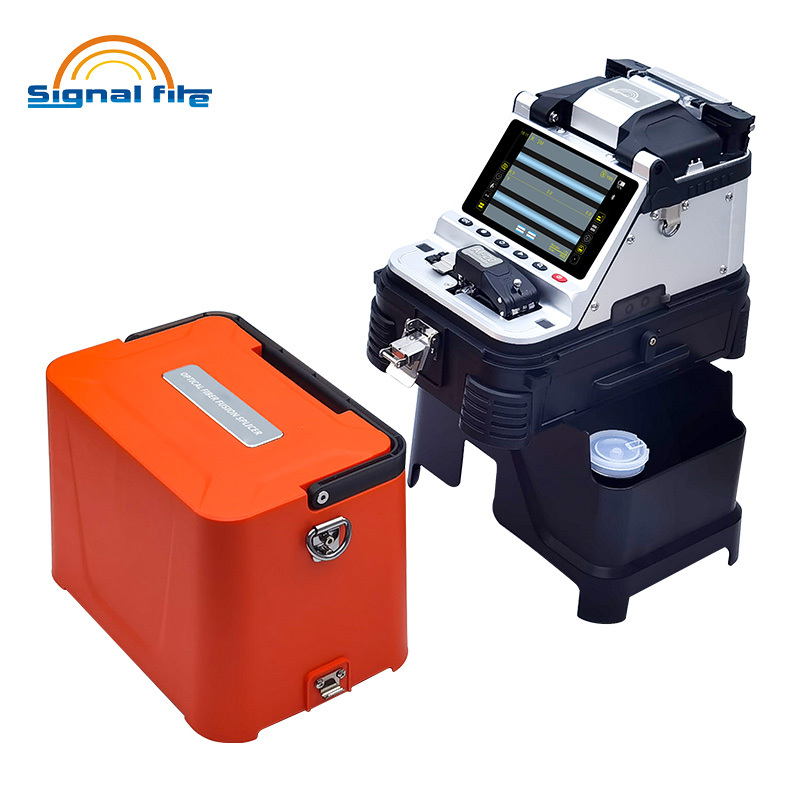

Sianal fire Al-20 fusion splicer applies multiple of the latest patentedtechnologies of Signal fire, and adopts a more advanced central pro.cessing unit, more advanced algorithms, and higher precision camerasThe weight of bare machine.tool case and complete set of accessoriesonly 4.5kg,size of tool case is 25.5cmx16.5cmx23cm. In such a com-pact and compact situation, the combination design of workbench andbench has been achieved simultaneously,1 second startup. 6 secondsrapid fusion,15 seconds heating, 5-inch color high-definition LCDscreen,320xmagnification,7800mAh large capacity lithium battery canfuse and heat 240 cores, still performs well in harsh environments suchas high altitude, dry, and cold.
Datasheet
| Item | Specification |
| Fiber alignment | Core/cladding；Real-time luminous flux assisted alignment（Only applicable to environments with stable optical signal link from front） |
| Motor number | 6 motors Accurate of fiber alignment: 0.1μm |
| Splicing time | 6s |
| Heating mode | 15s，can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible optical fiber. |
| The cladding diameter | 80-150μm |
| Splicing loss | 0.02dB (SM)、0.01dB (MM)、0.04dB (DS/NZDS) |
| Splicing mode | Automatic focusing core alignment, conventional/high precision splicing |
| Splicing way | Automatic, semi-automatic, manual |
| Fiber cleaver | High precision delay return automatic one-step fiber cleaver |
| Visual Fault Locator | Power:15mw;2Hz flashing And Constantly Bright Mode |
| Optical Power Meter | Wavelength: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm、980nm、1270nm、1577nm、1690nm；Measuring Range: -50~+30dBm；Absolute Error <0.3db (-50dbm ~ +3dbm Range) |
| Fusion splicer languages | 10 languages（Chinese、Russian、English、French、Italian、Thai、Portuguese、Spanish、Arabic、Polish） |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper, leather cable |
| Battery capacity | 7800mAh large capacity lithium battery; charging time ≤3.5 hours; It can continuously weld and heat about 240 cores |
| Magnification | 320x (X or Y axis single display)、200x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm; Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-18mm; coating layer 250-1000μm:16mm |
| Heat shrink tube | 60mm、50mm、40mm、25mm |
| Tensile testing | standard 2N |
| display | 5 inch TFT color display screen |
| Boot time | 1s, boot can enter the working mode |
| Data is stored | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless communication | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management function | The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return loss | Better than 60 db |
| Product protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| The work environment | Temperature: -15 ~ +50℃, humidity: <95%RH (no condensation), working altitude 0 ~ 5000m, maximum wind speed: ≤15m/s |
