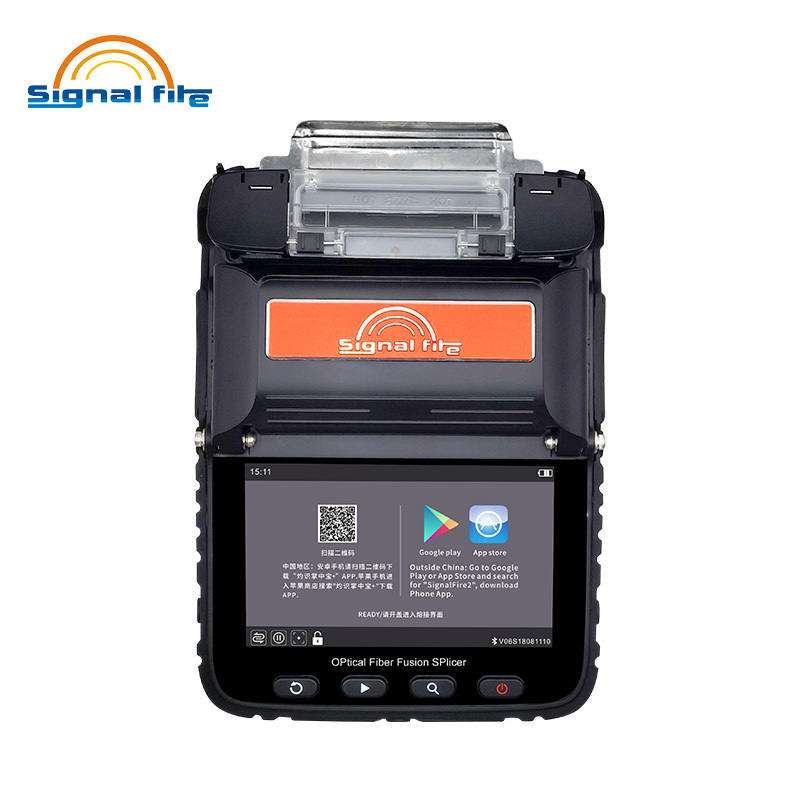

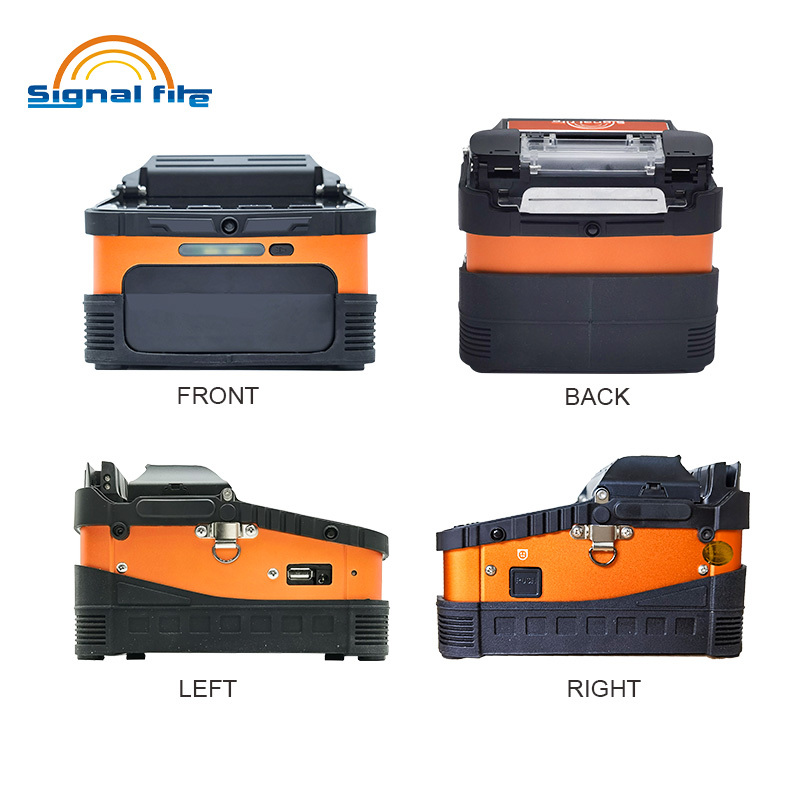

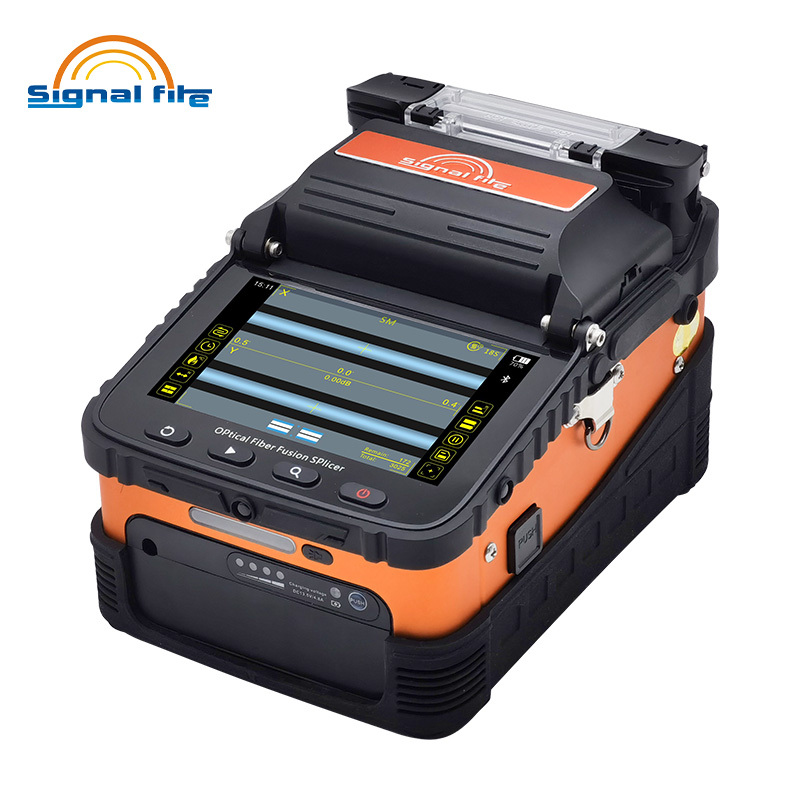

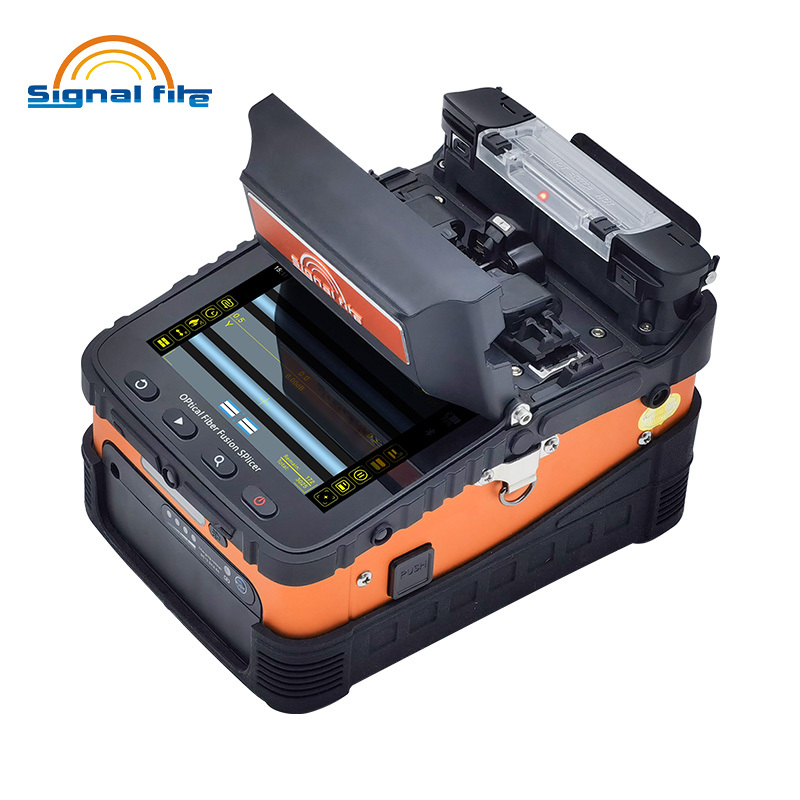

AI-6C Fiber Optic Fusion Splicer.
Datasheet
| Item | Specification |
|---|---|
| Fiber alignment | Core/cladding alignment / Manual alignment |
| Splicing time | 8S |
| Heating time | 18S |
| Heating mode | Automatic heating (Preheating) |
| Focus mode | Six motors Auto focus |
| Applicable Fibers | SM(G.652&G.657)、MM (G.651)、DS(G.657)、NZDS (G.655) |
| Splice Loss | 0.02dB (SM)、0.01dB (MM)、0.04dB (DS/NZDS) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter: 80-150μm; Coating Diameter: 100-1000μm |
| Fiber Cleave Length | Coating less than 250μm: 8-16mm; Coating less than 250-1000μm:16mm |

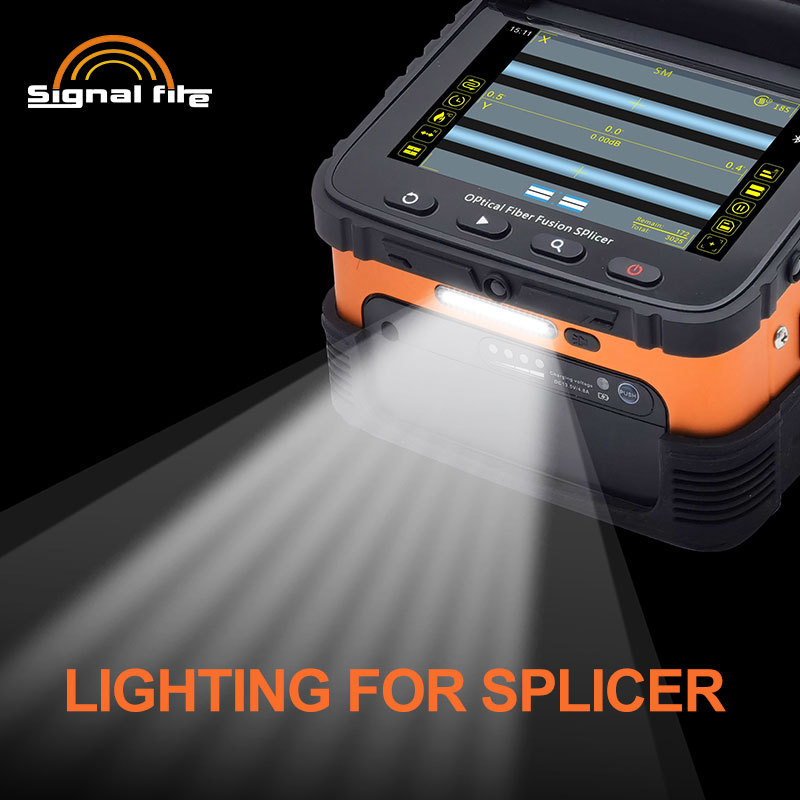

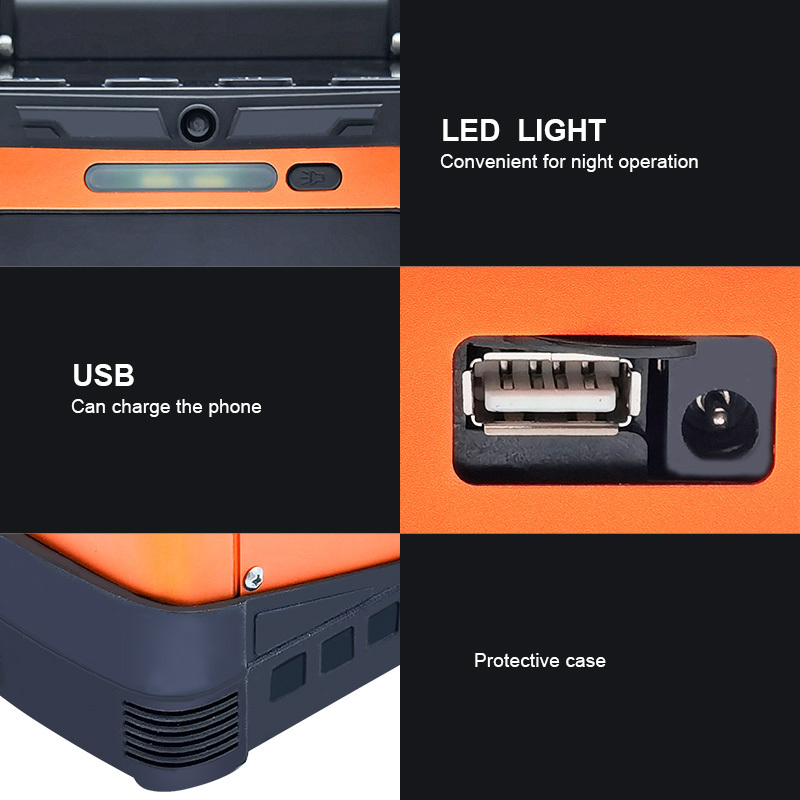

| Built-in lighting | easy for night operation |
| Tension Test | Standard 2N |
| Fiber holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, Drop cable, multi fiber cable |
| Magnification | 300x (X or Y axis single display)、150x (x and Y axis dual display) |
| Screen | 5 inch TFT color display |
| Splicing Mode | Normal / high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 5200 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 160 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
| Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation); Working altitude: 0 ~ 5000m; Resist max. wind speed: ≤ 15m / s |
| Shrinkable tube | 60mm、40mm |
