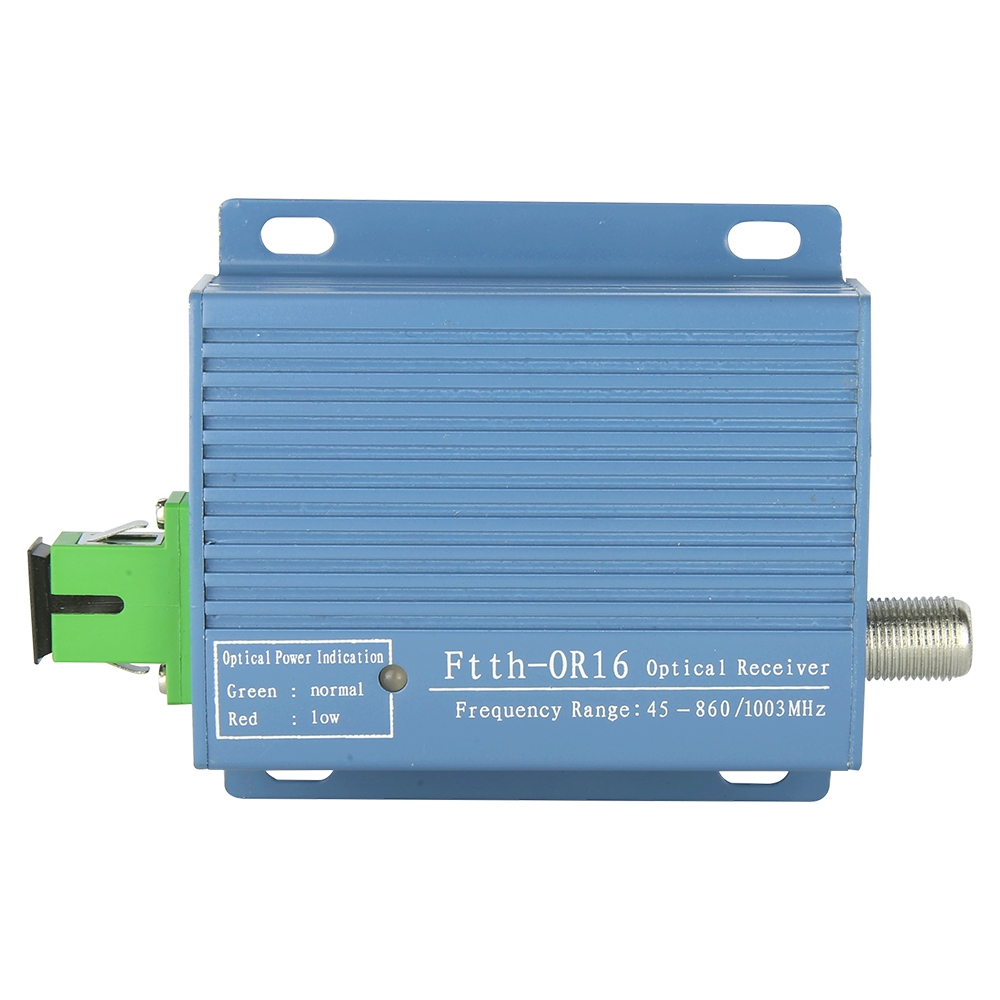

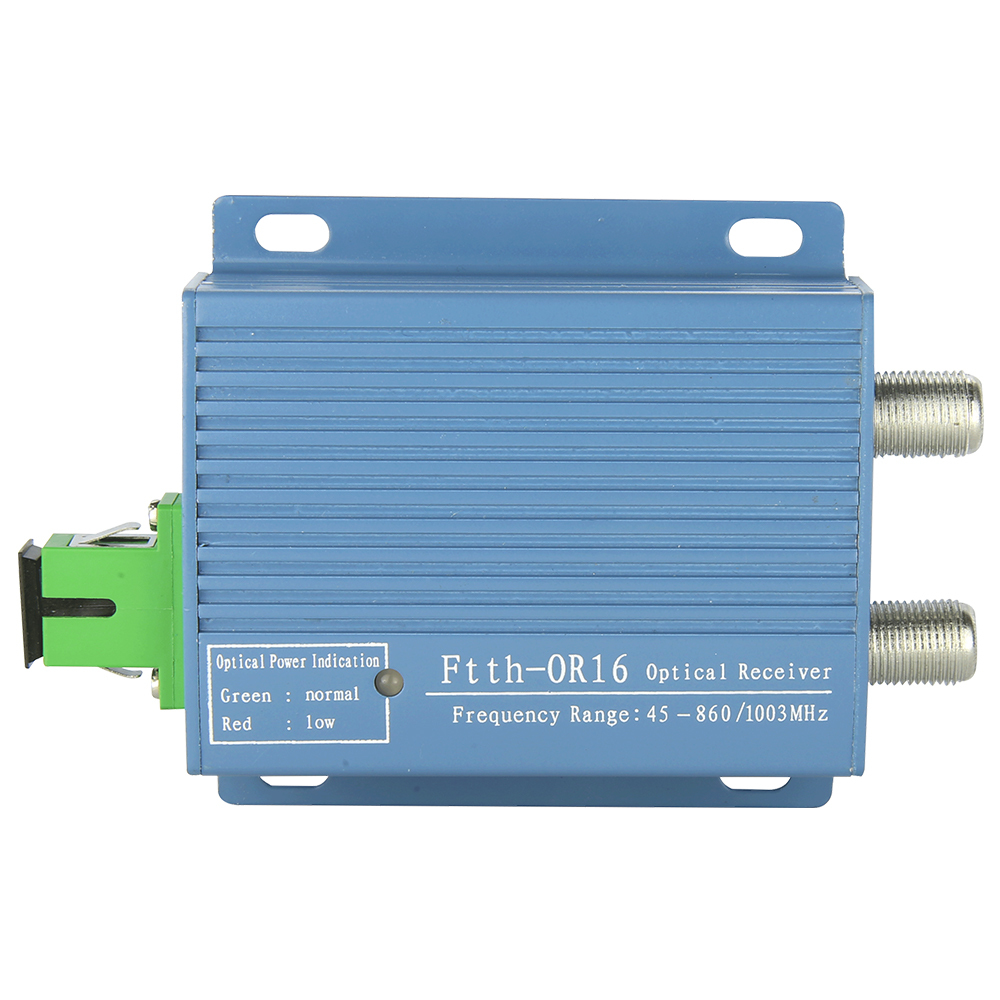

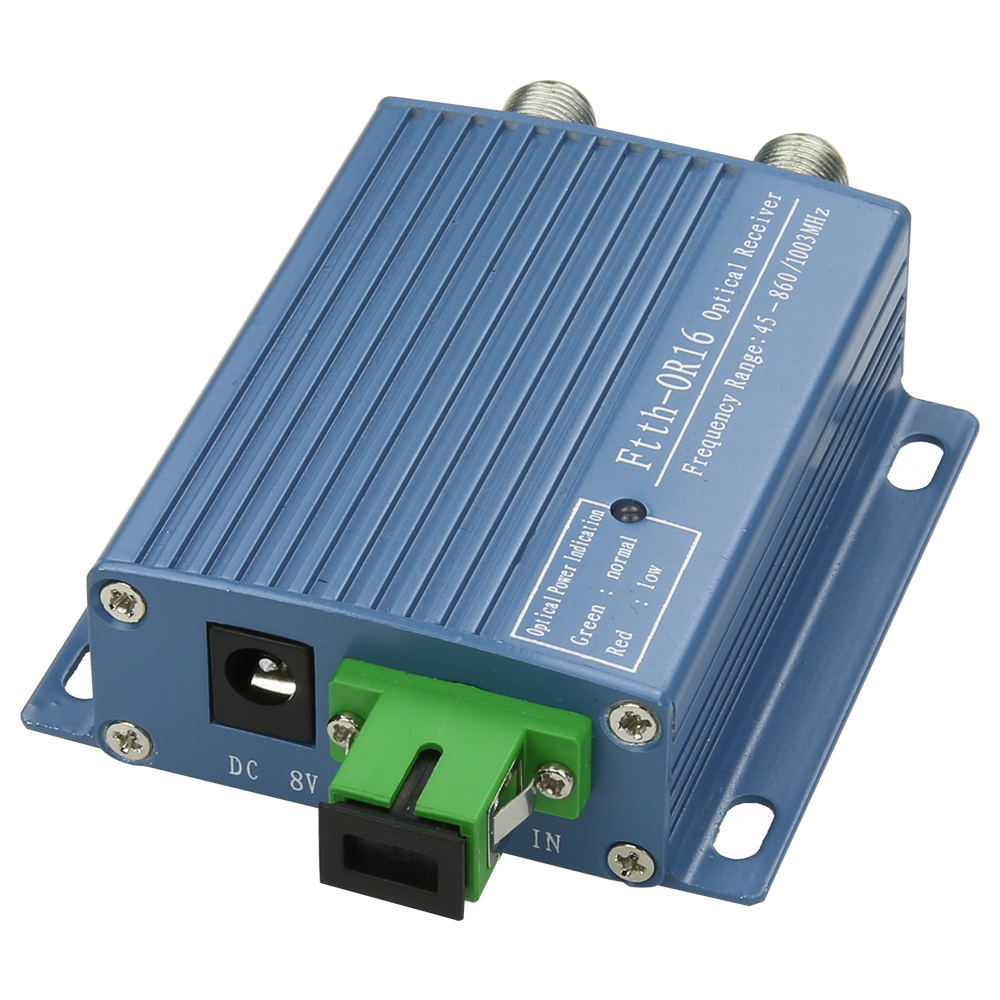

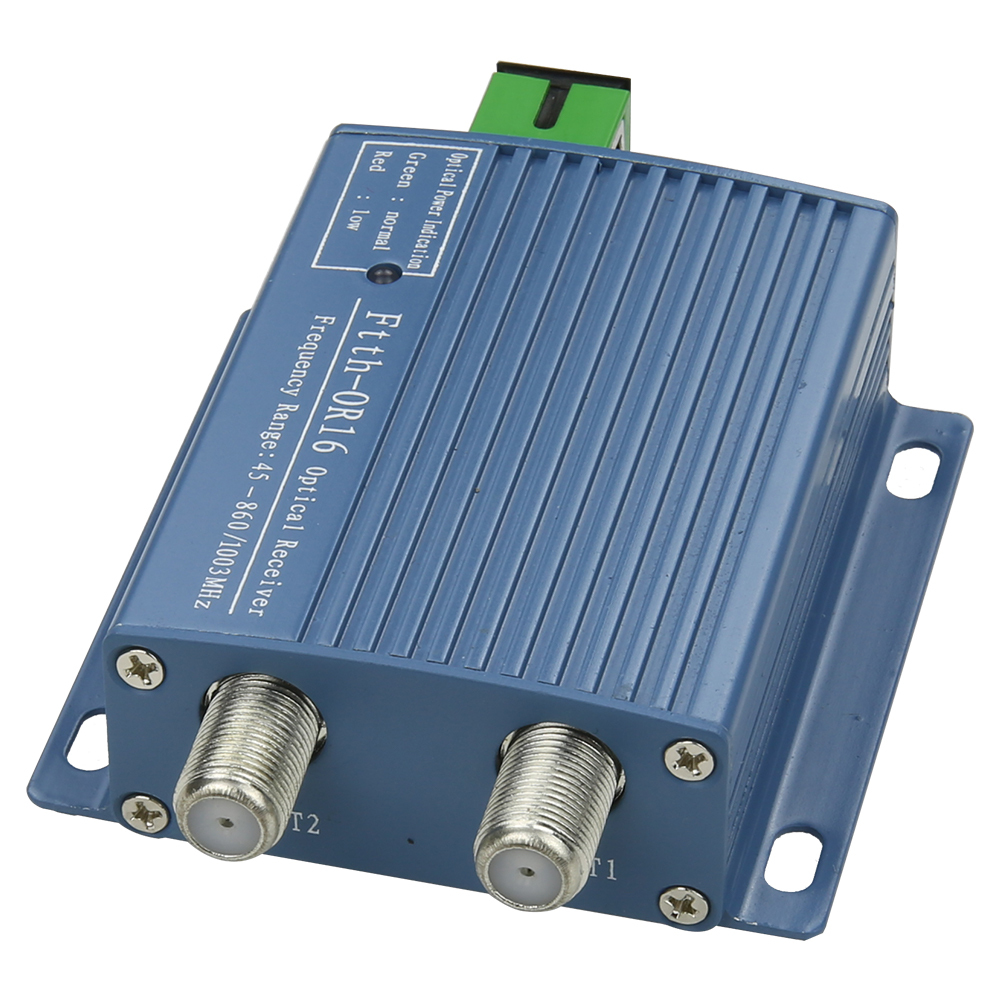

Technical parameters of the OR16
|
Item |
Unit |
Paramter |
Remark |
|
Optical wavelength |
(nm) |
1100~1600&1550 |
|
|
Optical input range |
(dBm) |
0~-10 |
Analog TV |
|
|
|
0~-15 |
Digital TV |
|
Output return loss |
(dB) |
≥45 |
|
|
Bandwidth (MHz) |
MHz |
47~862&1000MHz |
|
|
Flatness (dB) |
dB |
±1 |
|
|
RF output level |
(dBuv) |
≥80dBuv（1 port） ≥76dBuv（2ports） |
Pin: -3~-12dBm |
|
AGC range |
(dBm) |
-3~-12 |
|
|
Output return loss |
(dB) |
≥14 |
Pin: -3.0~-12.0dBm |
|
Output impendance |
(Ω) |
75 |
|
|
CNR (dB) |
dB |
≥51 |
47-1006MHz |
|
CTB (dB) |
dB |
≥65 |
|
|
CSO (dB) |
dB |
≥62 |
|
|
Power supply (V) |
V |
AC110V or AC220V or customized |
|
|
Power consumption |
W |
≤3 |
|
|
Operating temperature |
(℃) |
-20~+60 |
|
|
Dimension |
mm |
105*67*24 |
