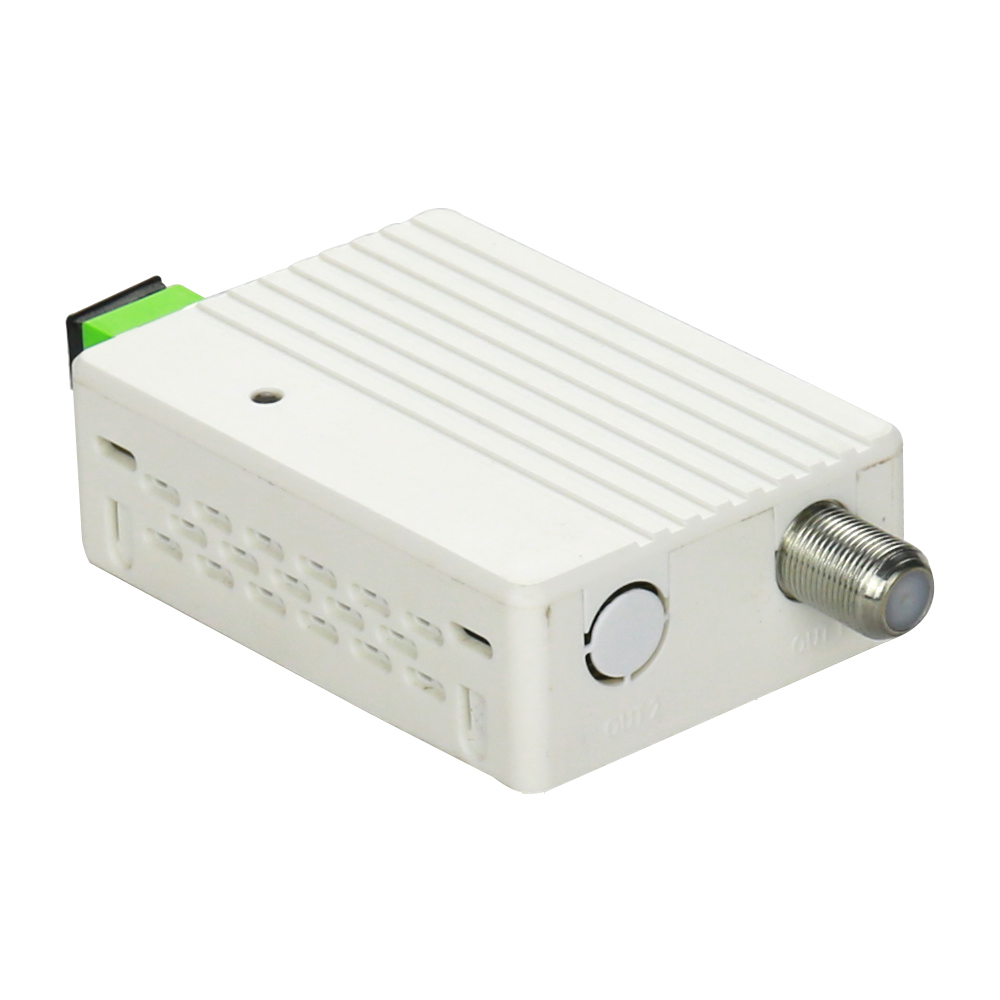

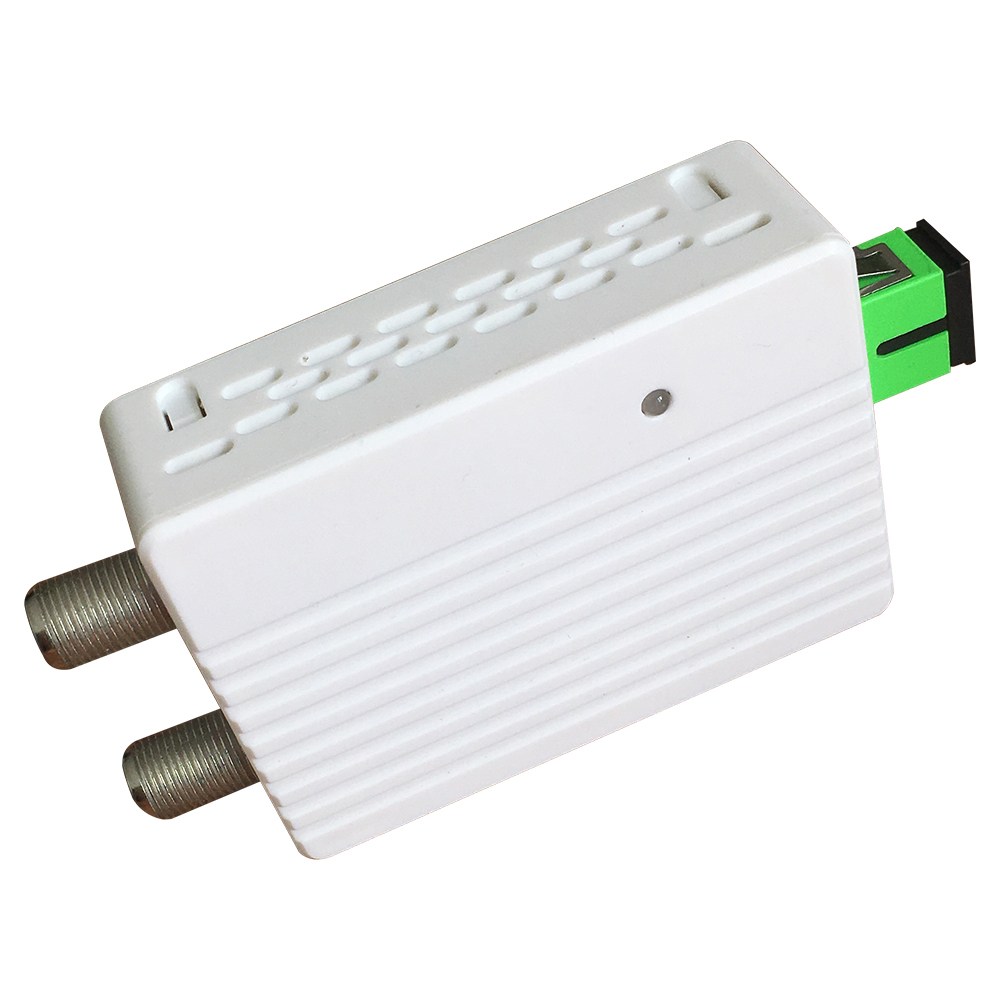

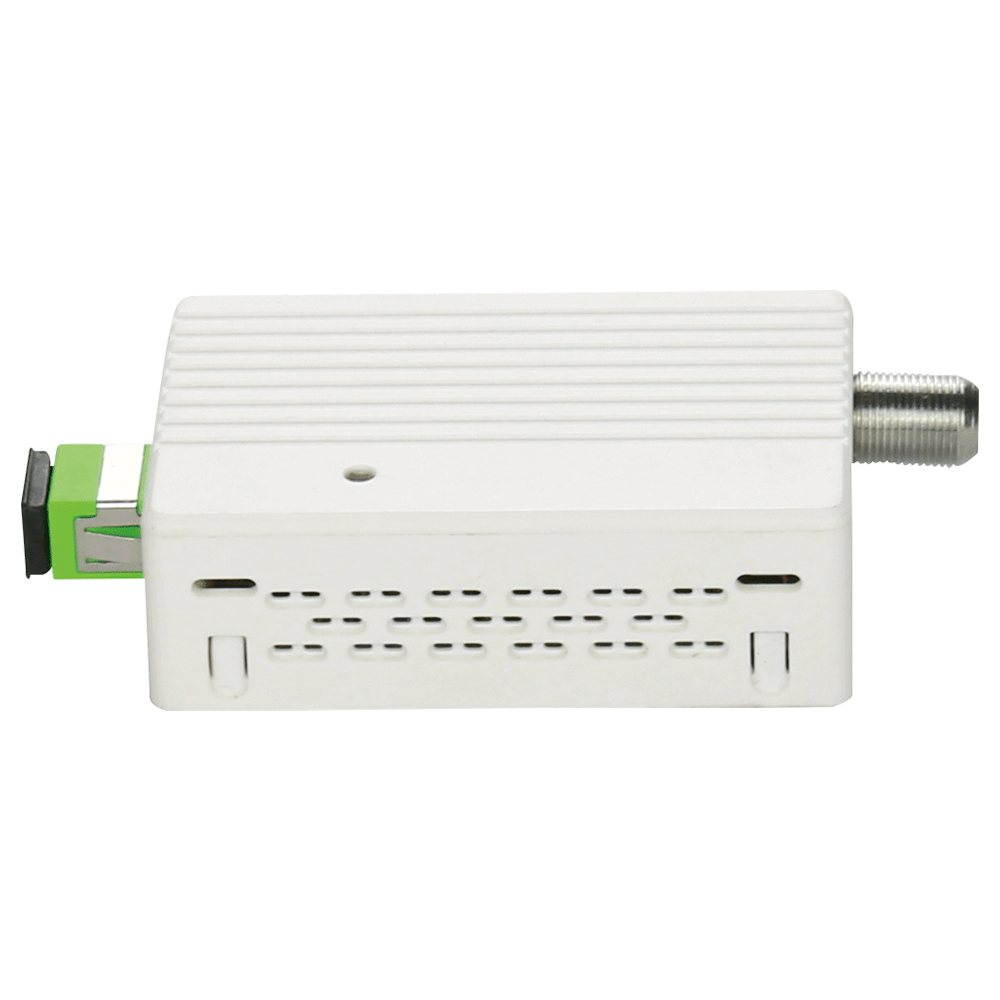

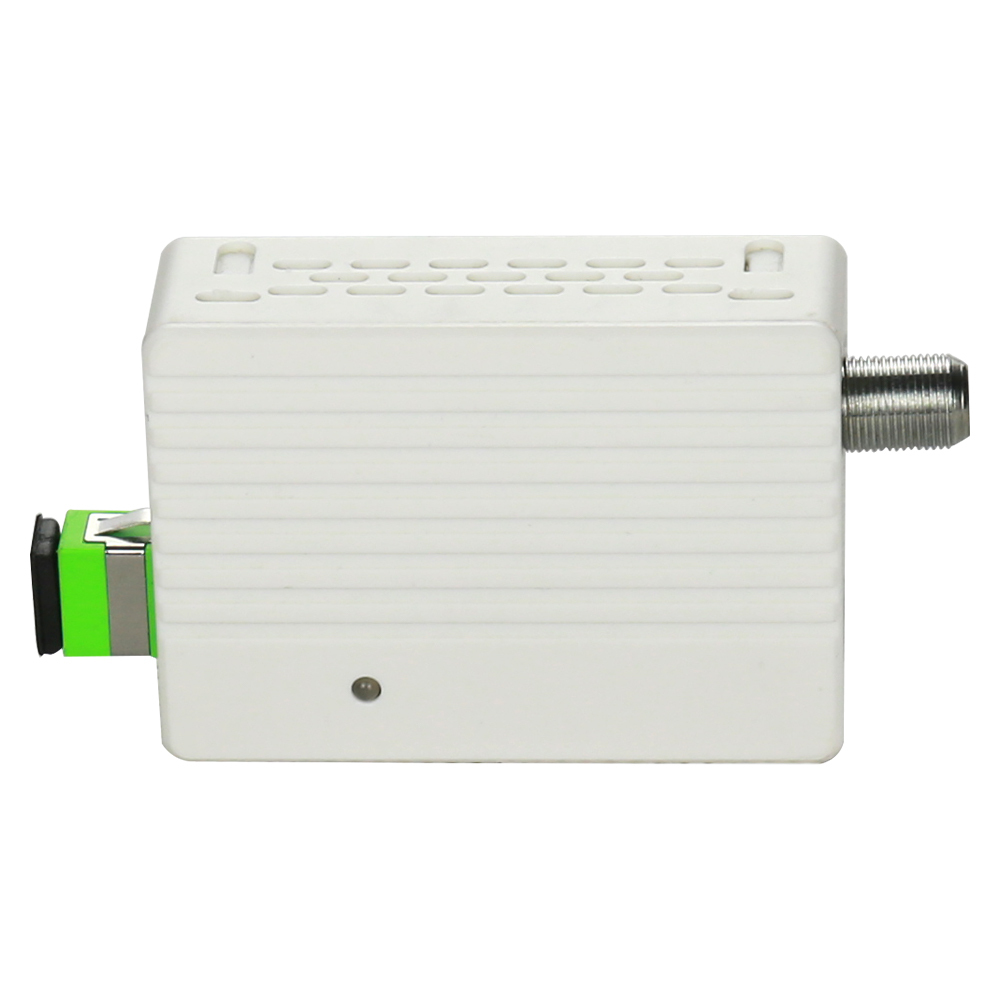

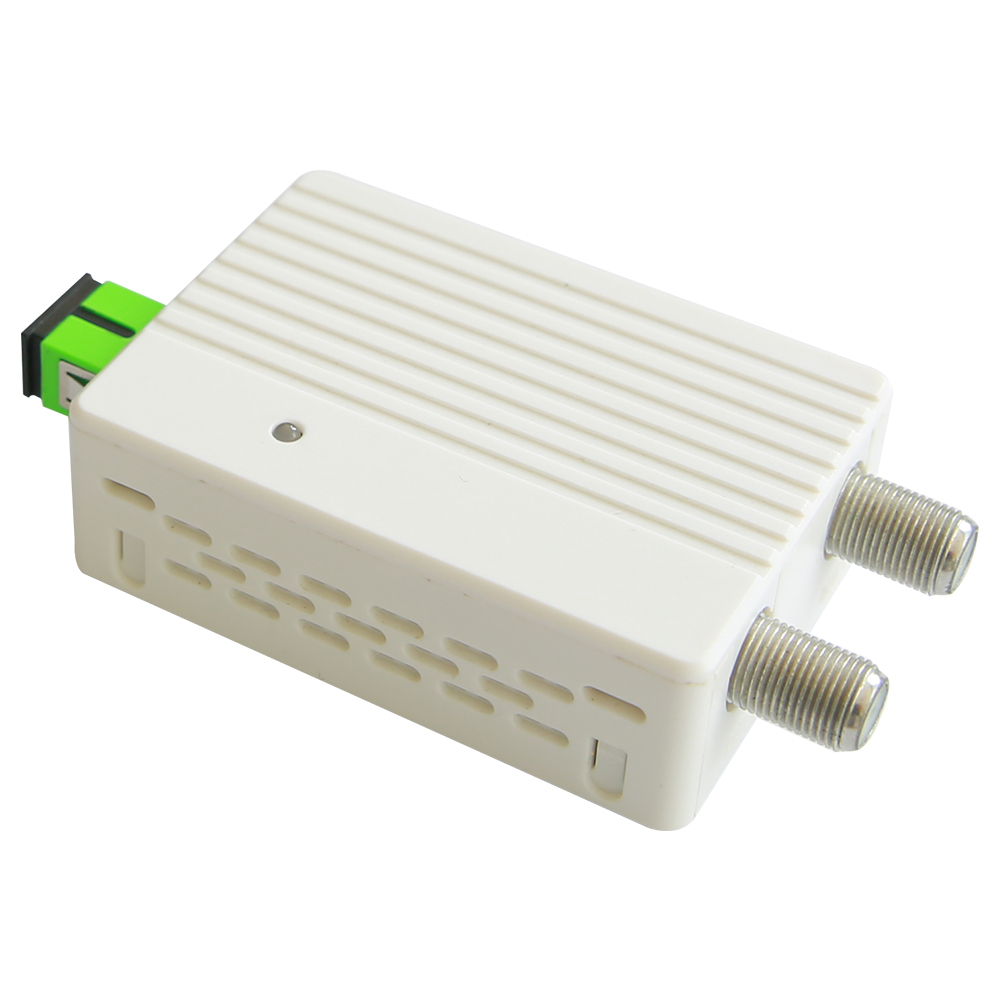

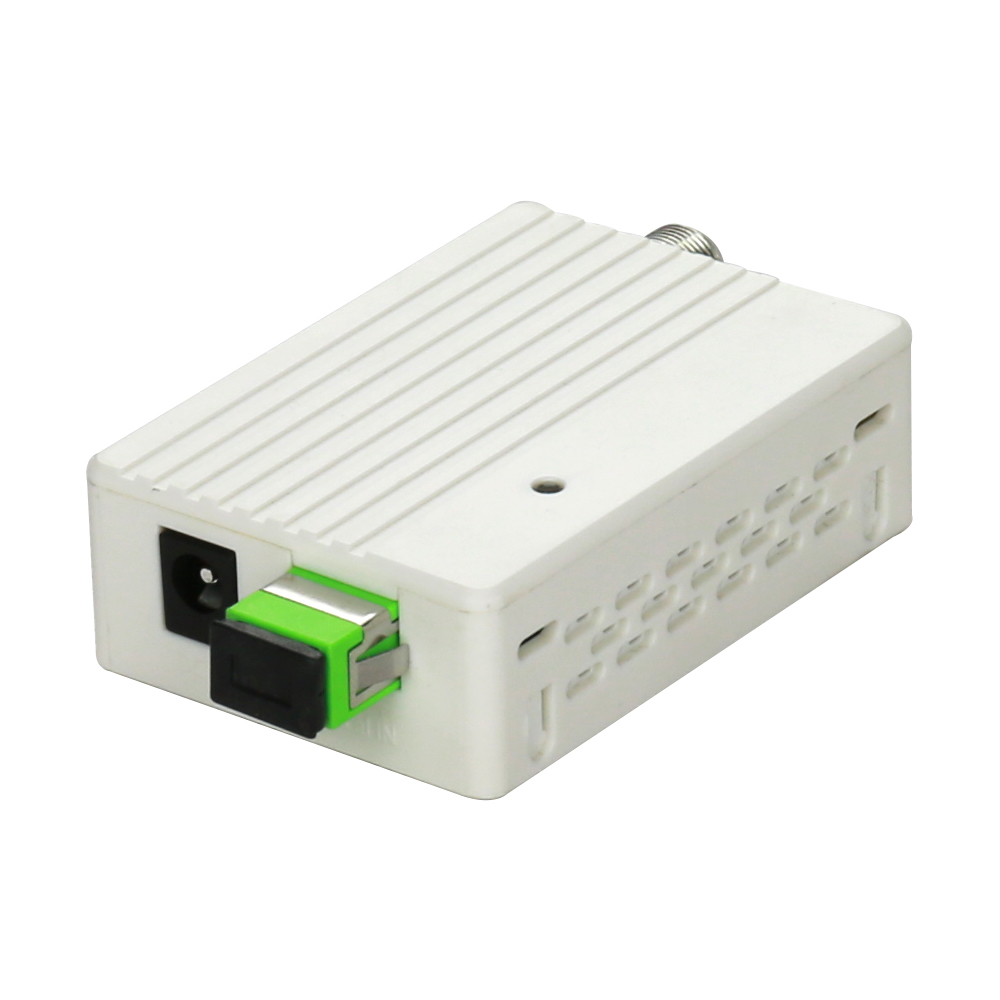

Technical parameters of the OR18D
|
Technicalparameters |
OR18 |
|
|
Wavelength |
1100~1600nm&1550nm |
|
|
Optical input power |
0dBm~-10dBm(analog signal )&0dBm~-15dBm(digital signal) |
|
|
Return loss |
＞45 dBm |
|
|
Optical connector |
SC/APC&SC/PC |
|
|
Bandwidth |
47~1006MHz |
|
|
Flatness |
±1@47~1006MHz |
|
|
RF output loss |
≥16dB@47~550MHz ≥14dB@550~1006MHz |
|
|
Output level Pin@0dBm |
≥80dBuV(1 port) |
≥76dBuV(2 ports) |
|
RF Output port |
1 port or 2 ports |
|
|
Output impedance |
75Ω |
|
|
AGC range |
-3dBm~-12dBm |
|
|
Carrier to noise ratio(note 1) |
≥51dB |
|
|
CTB(note 1) |
≥65dB |
|
|
CSO(note 1) |
≥62dB |
|
|
Equipment voltage |
DC5V±0.5 |
|
|
Adapter voltage |
AC220V or AC110V or customized |
|
|
Inner feedback voltage |
DC5V±0.5 |
|
|
Workingtemperature |
-25℃~+45℃ |
|
|
Consumption |
＜2W |
|
|
Size |
96*50*24mm |
|
|
Carton gross weight |
1.2kgs(10pcs) |
|
