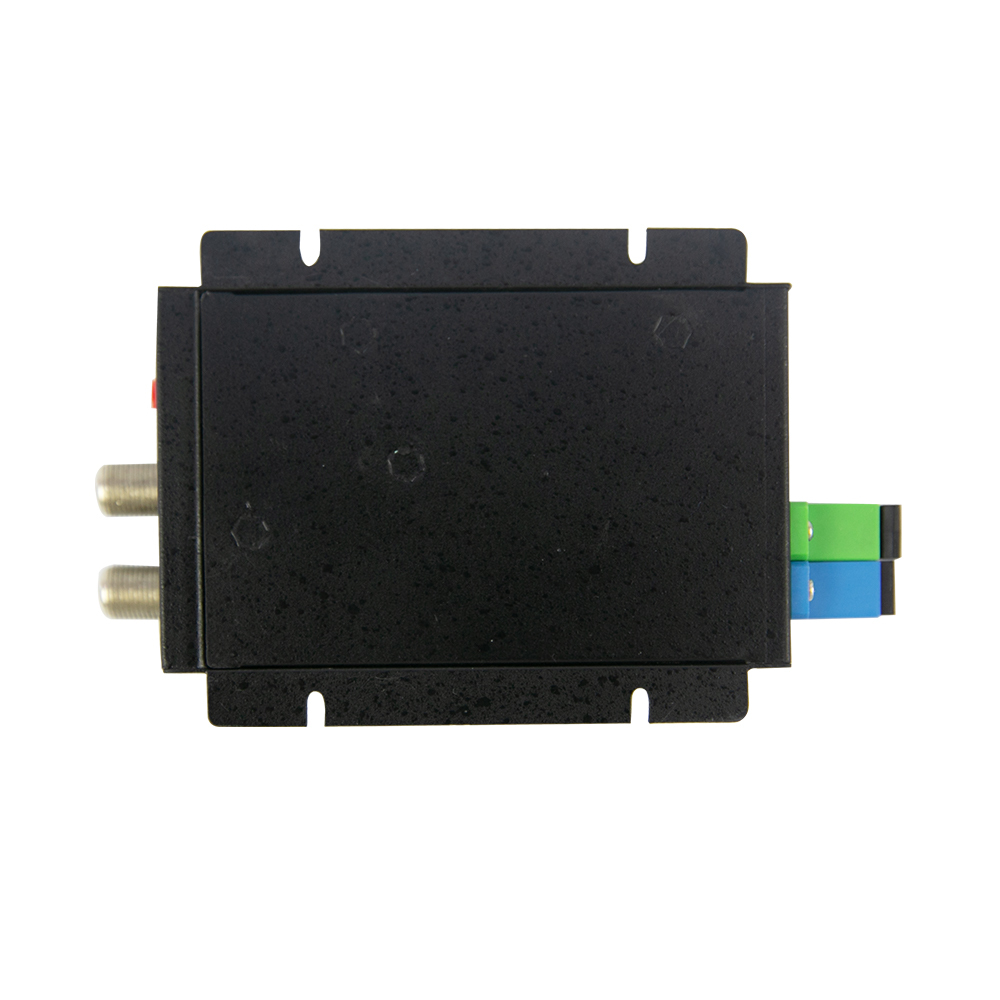

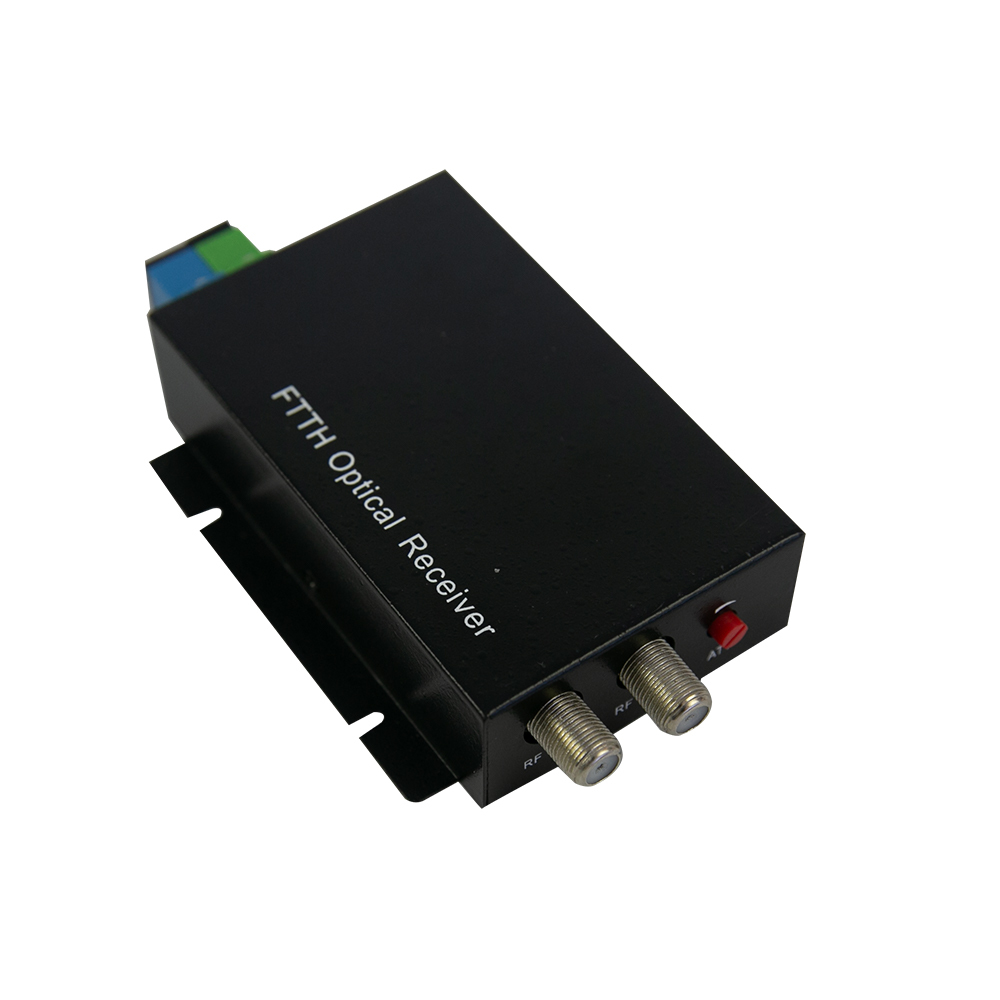

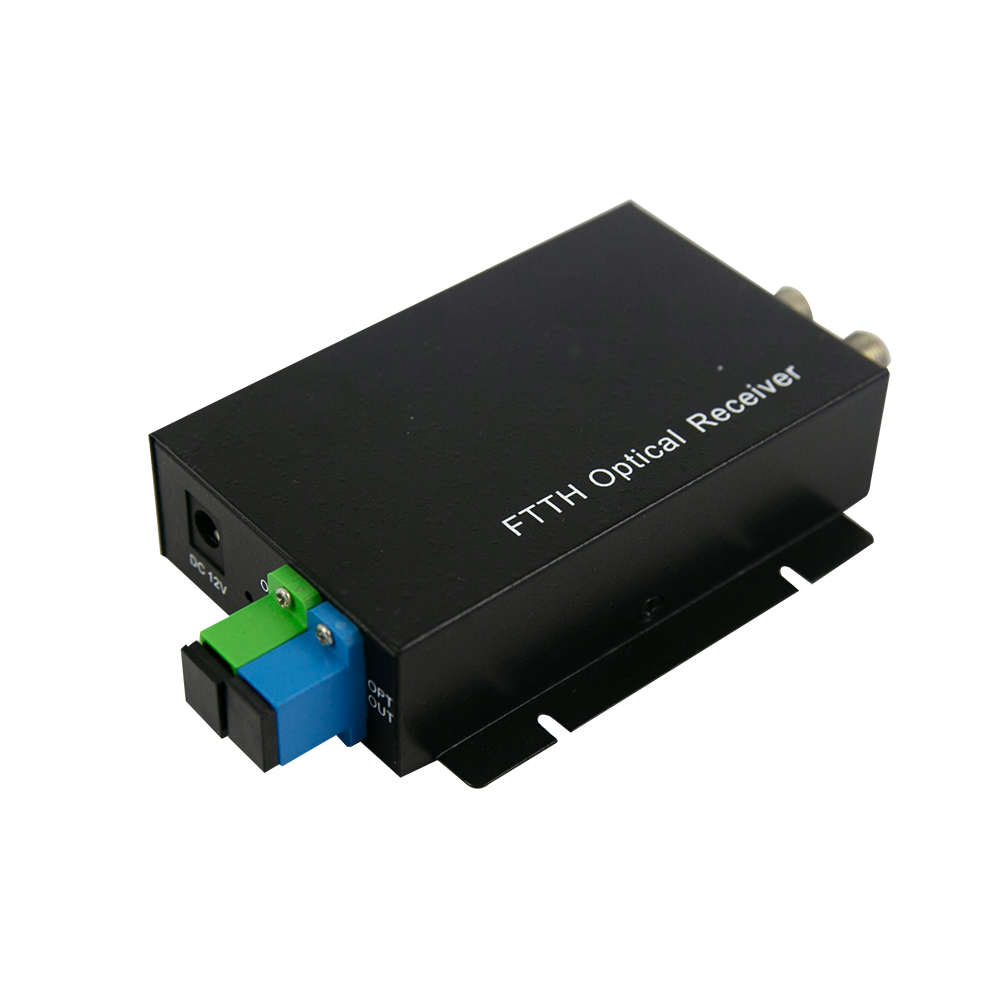

FTTH OR21 Optical Receiver

OR21 Introduction

OR21 Performance Characteristics

• High quality iron profile shell, with good heat dissipation.
• RF channel full GaAs low noise amplification circuit. The digital signal meets-18 dBm, and the analog signal meets-10 dBm;
• With the optical input AGC function (OR21 AGC range 0-11 dBm);
• Low power consumption design, using efficient switching power supply, to ensure high reliability and high stability. The overall power consumption is less than 2W, with an optical detection circuit.
• WDM is optional to realize the three-network fusion application of single fiber entry (1490 / 1310 / 1550nm).
• Built-in protection device, to prevent lightning damage to the equipment, to ensure the safe operation of the equipment.

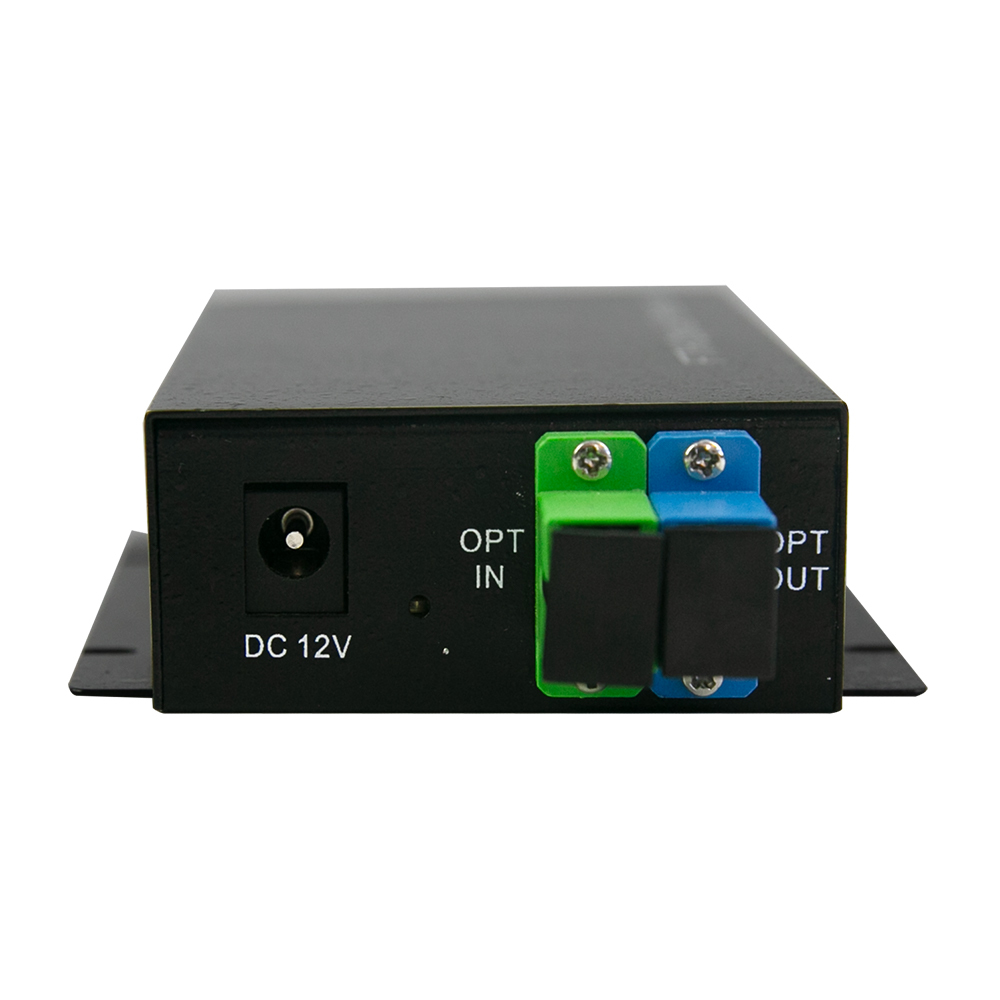

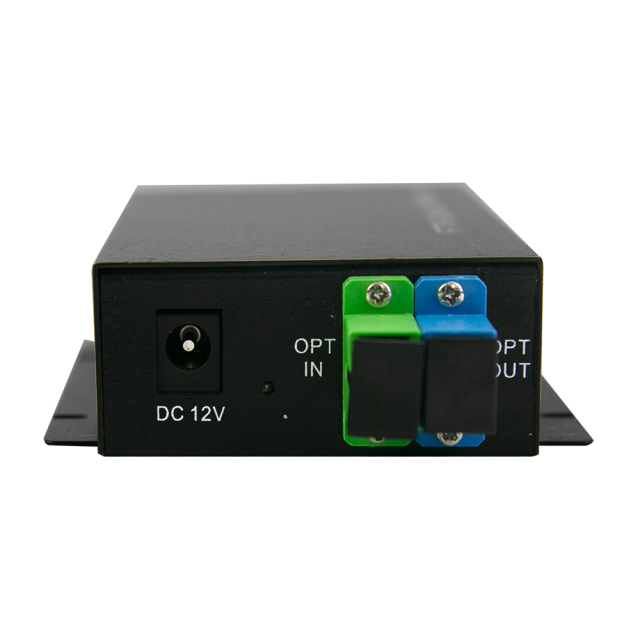

• SC / APC or custom optical connector, metric or British RF interfaces.

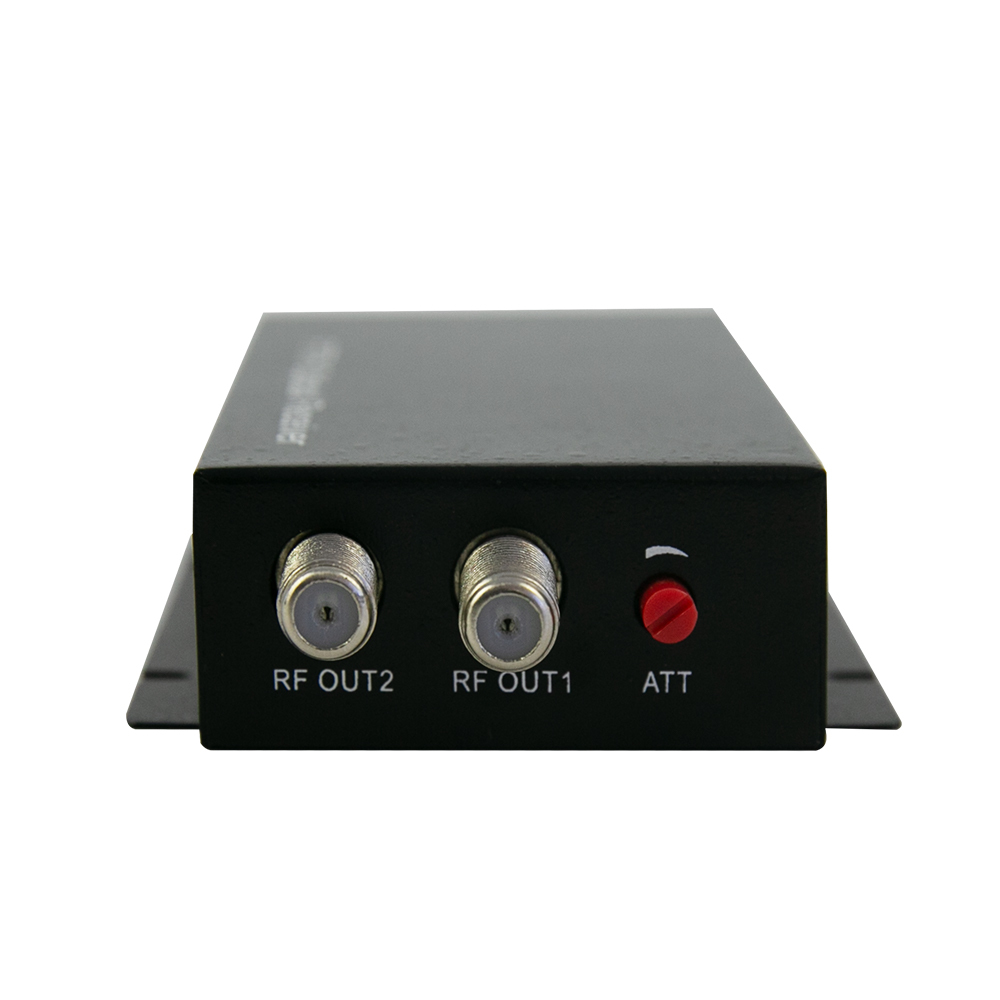

• Single-port or dual-port output is optional

Technical parameters of the OR21
