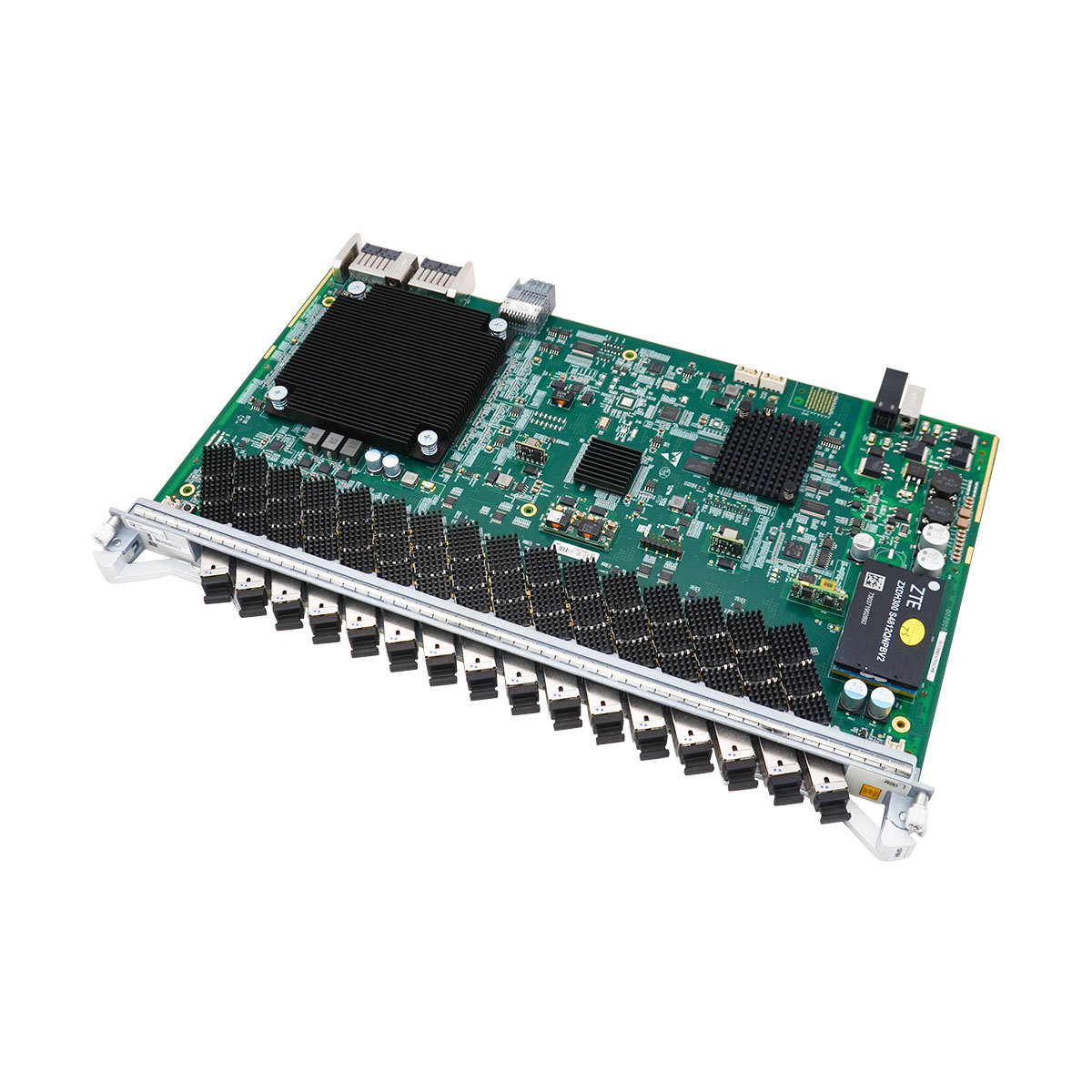

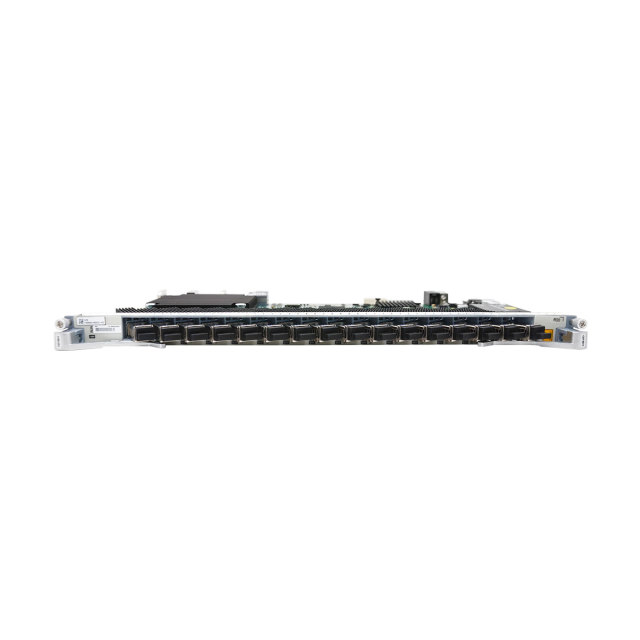

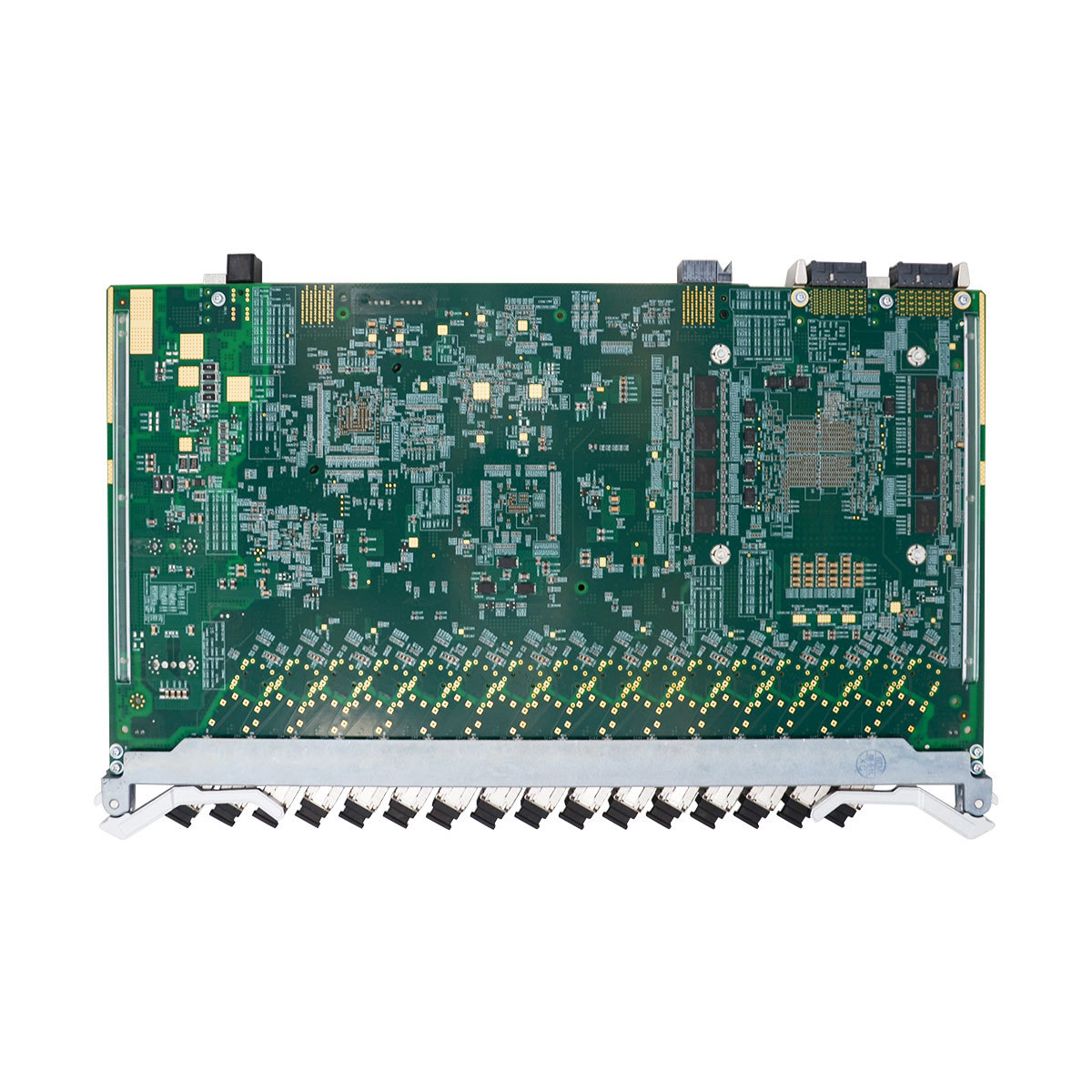

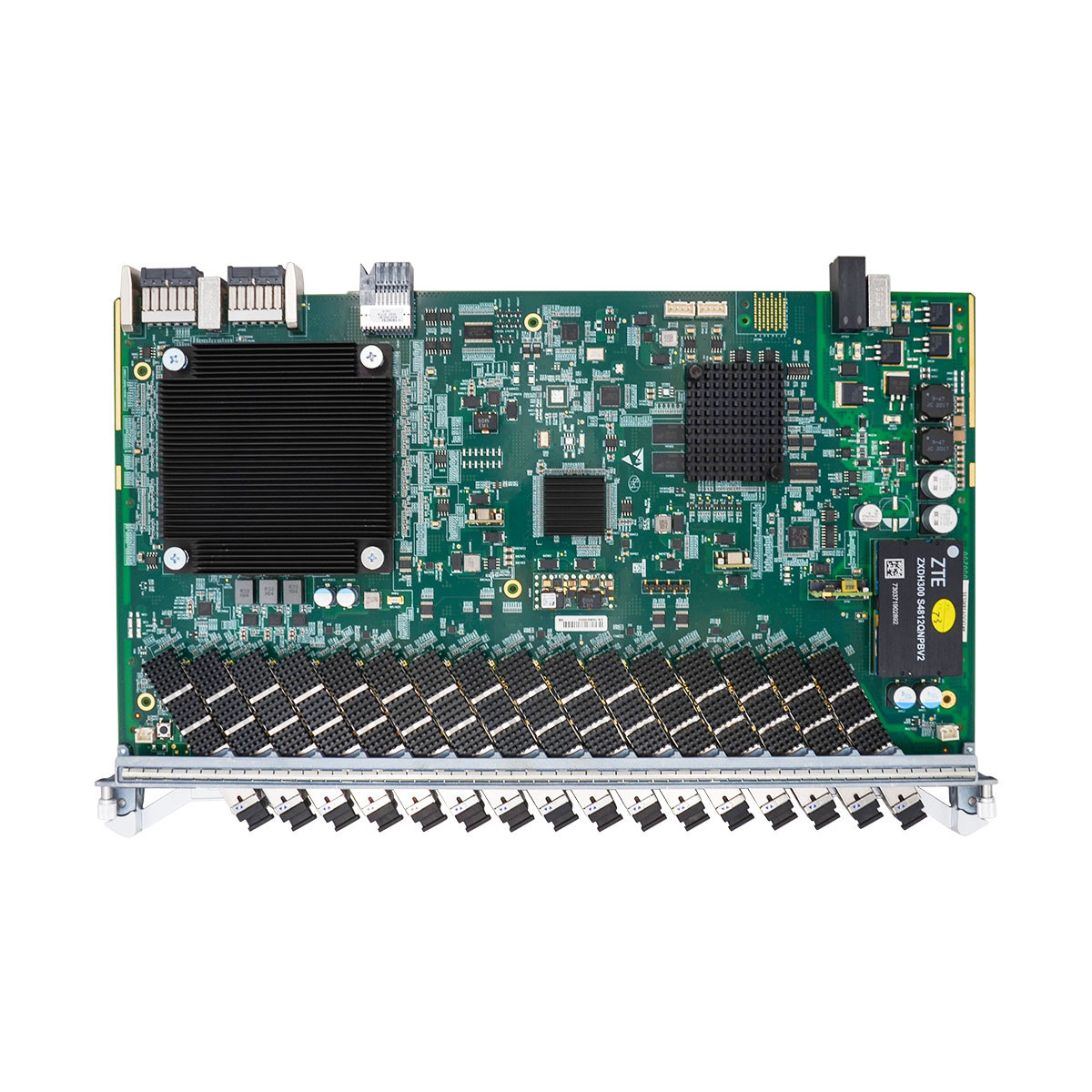

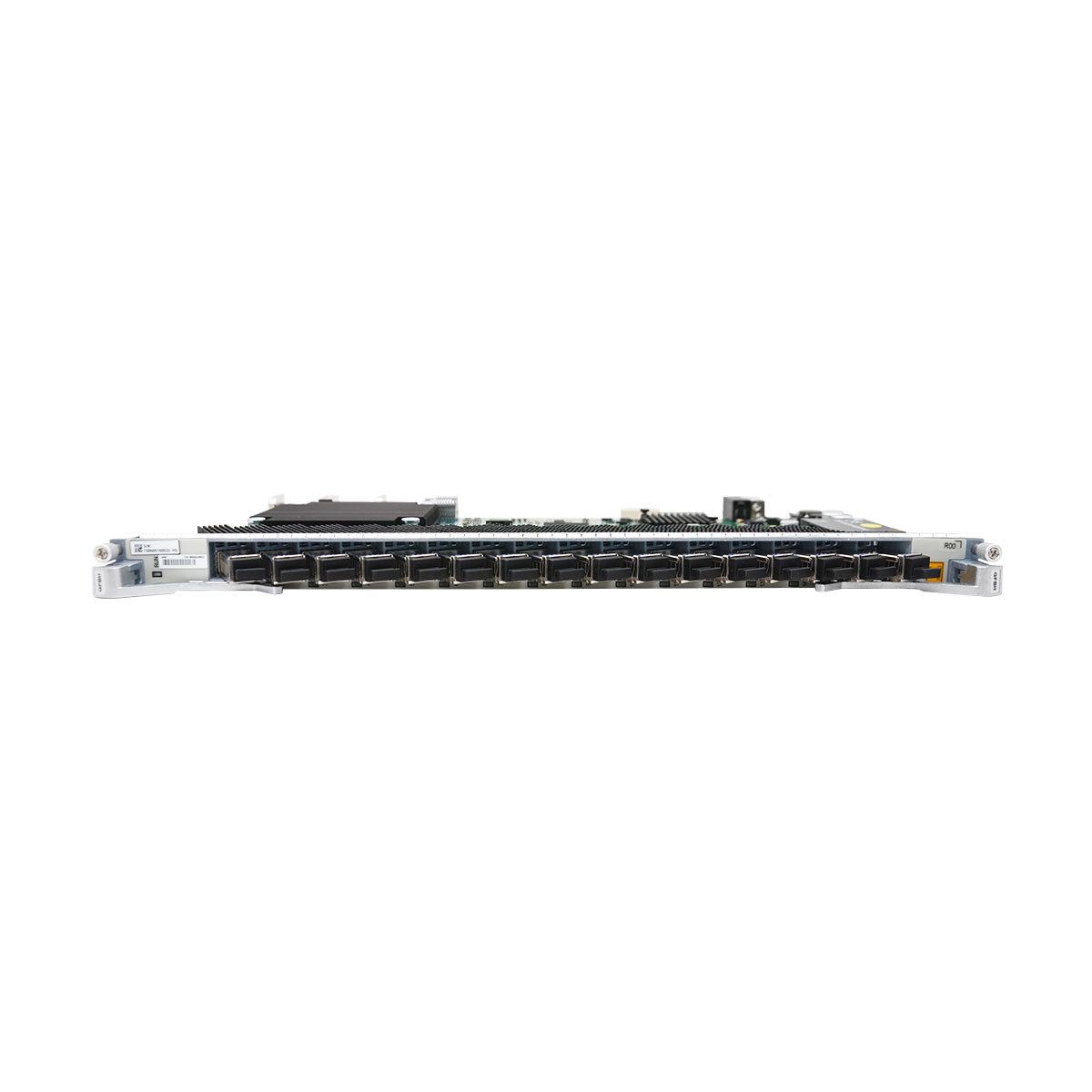

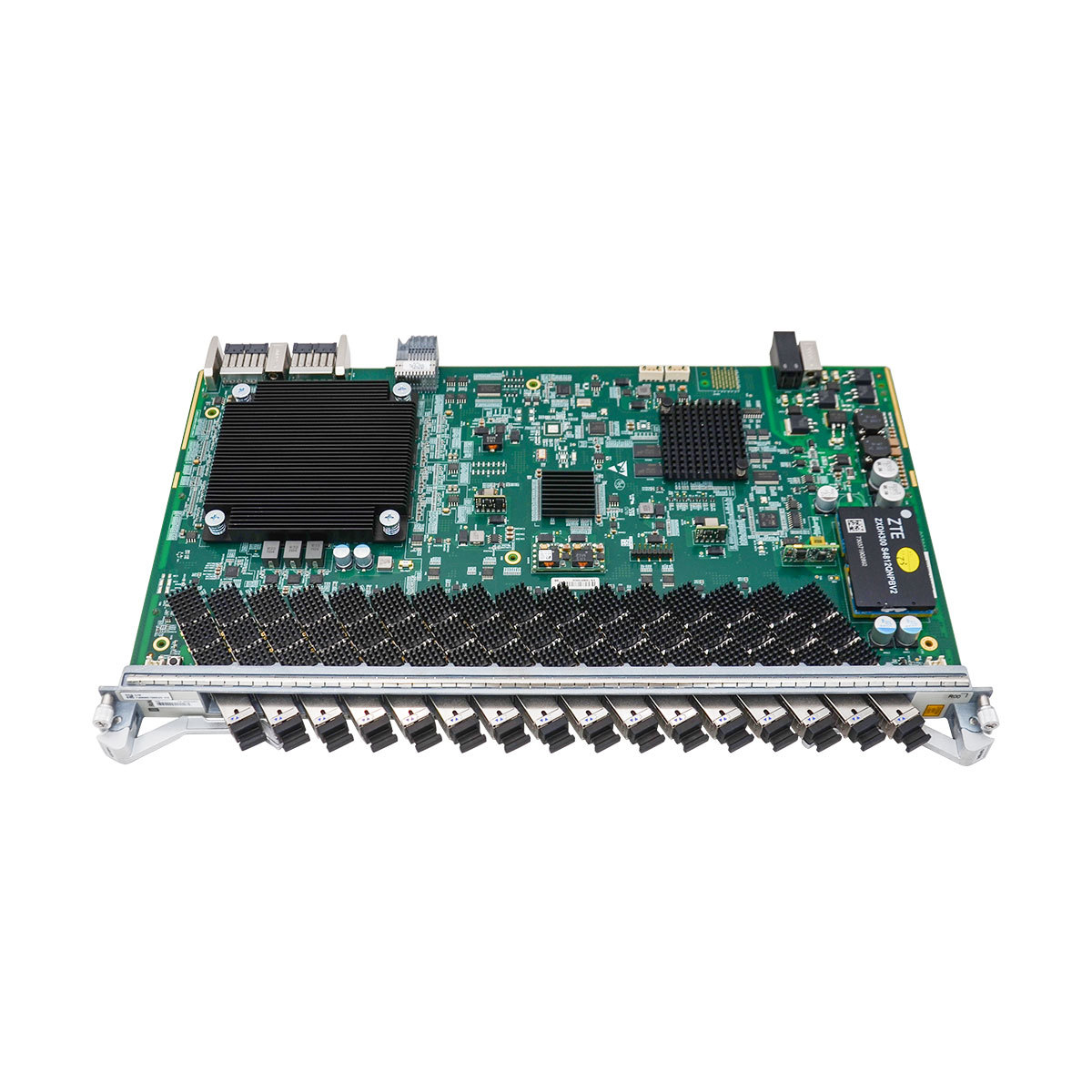

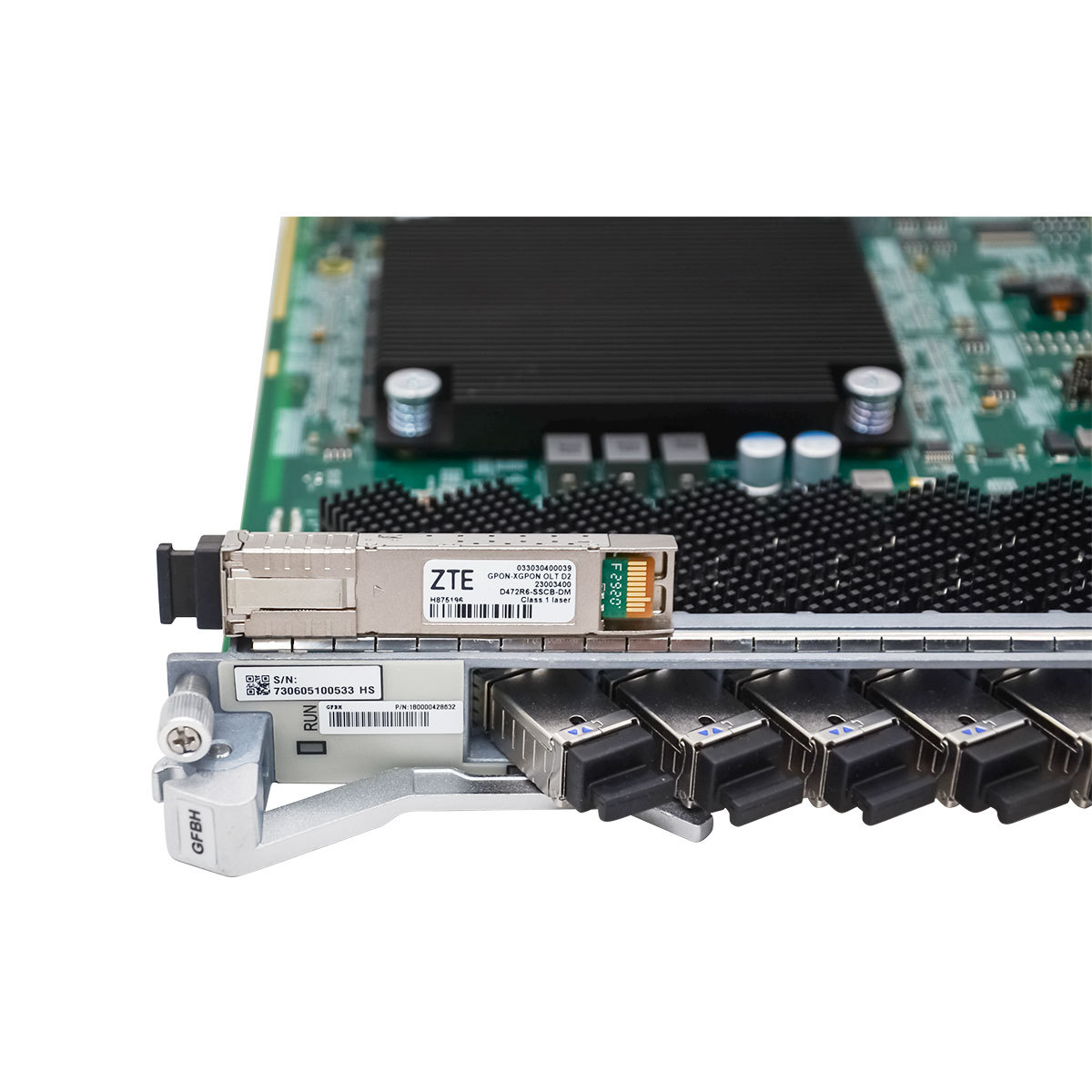

ZTE GFBH XG-PON Card

ZTE GFBH Overview

The ZTE GFBH is a 16-port XG-PON&GPON Combo OLT service card applicable to ZTE ZXA10 C600/C650/C680 OLTs, which features 16 XG-PON & GPON SFP+ hybrid interfaces, supports a maximum optical split ratio of 1:128 for both GPON and XG-PON, and is equipped with functions including optical power monitoring, the optical module ALS function and hot swapping; in contrast, the ZTE GFTL is a 16-port XGS-PON OLT interface board compatible with N1/N2a modules that can also be applied to the same ZXA10 C600/C650/C680 OLT models, characterized by a higher maximum optical split ratio of 1:256, along with support for optical power monitoring, the optical module ALS function and hot swapping to ensure efficient and reliable network operation and maintenance.

Product Features

• Technology: Supports both GPON (ITU-T G.984) and XGS-PON (ITU-T G.9807.3) for flexible upgrades.
• Ports: 16 SFP+ ports, supporting hybrid XGS-PON and GPON interfaces.
• Performance: High exchange capacity and a 200G forwarding rate for ultra-high-speed data.
• Optical Split Ratio: Up to 1:128 for both GPON and XG-PON.
• Compatibility: Works with ZTE ZXA10 C600, C620, C650, C680 OLT platforms.
• Network Management: Supports Carrier-class QoS, VLANs, ACLs, SNMP, and RMON for robust management.

Application Scenarios

1. Network Evolution in the Philippines

Downloadable resources

ZTE GFBH Board Datasheet

Technical Specifications

ZTE GFBH Board Datasheet
Specification
Port	16-port
Interface	XG-PON & GPON Combo
Function	XG-PON & GPON service access
Specification	XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
Modules of the XG-PON Subscriber Card
Management and control module	Configures, controls, and manages the card.
PONMAC module	Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.
NP module	Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
Optical module	Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.
Clock module	Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
Device Specifications
Weight	1.72 kg
Dimensions (L x H x W)	393.1 mm × 23.9 mm × 214 mm
