The ZTE GFBH is a 16-port XG-PON&GPON Combo OLT service card applicable to ZTE ZXA10 C600/C650/C680 OLTs, which supports 16 XG-PON & GPON SFP+ hybrid interfaces, a maximum optical split ratio of 1:128 for both GPON and XG-PON, optical power monitoring, the ALS function of optical modules, and hot swapping; while the ZTE GFTL is a 16-port XGS-PON OLT interface board compatible with N1/N2a modules that can also be applied to the same ZXA10 C600/C650/C680 OLT models, featuring a maximum optical split ratio of 1:256, along with support for optical power monitoring, the ALS function of optical modules, and hot swapping to ensure efficient and reliable network operation and maintenance.
|

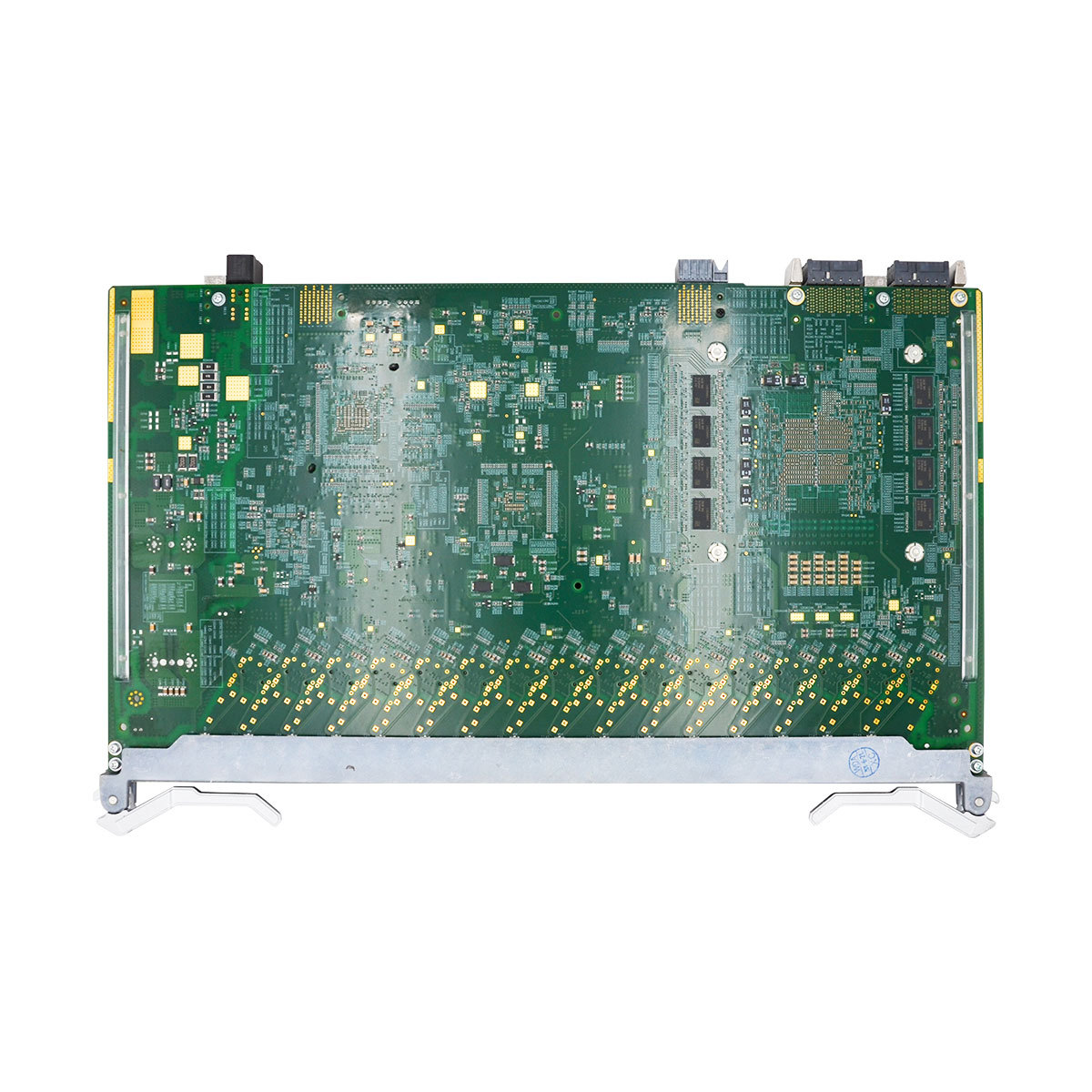

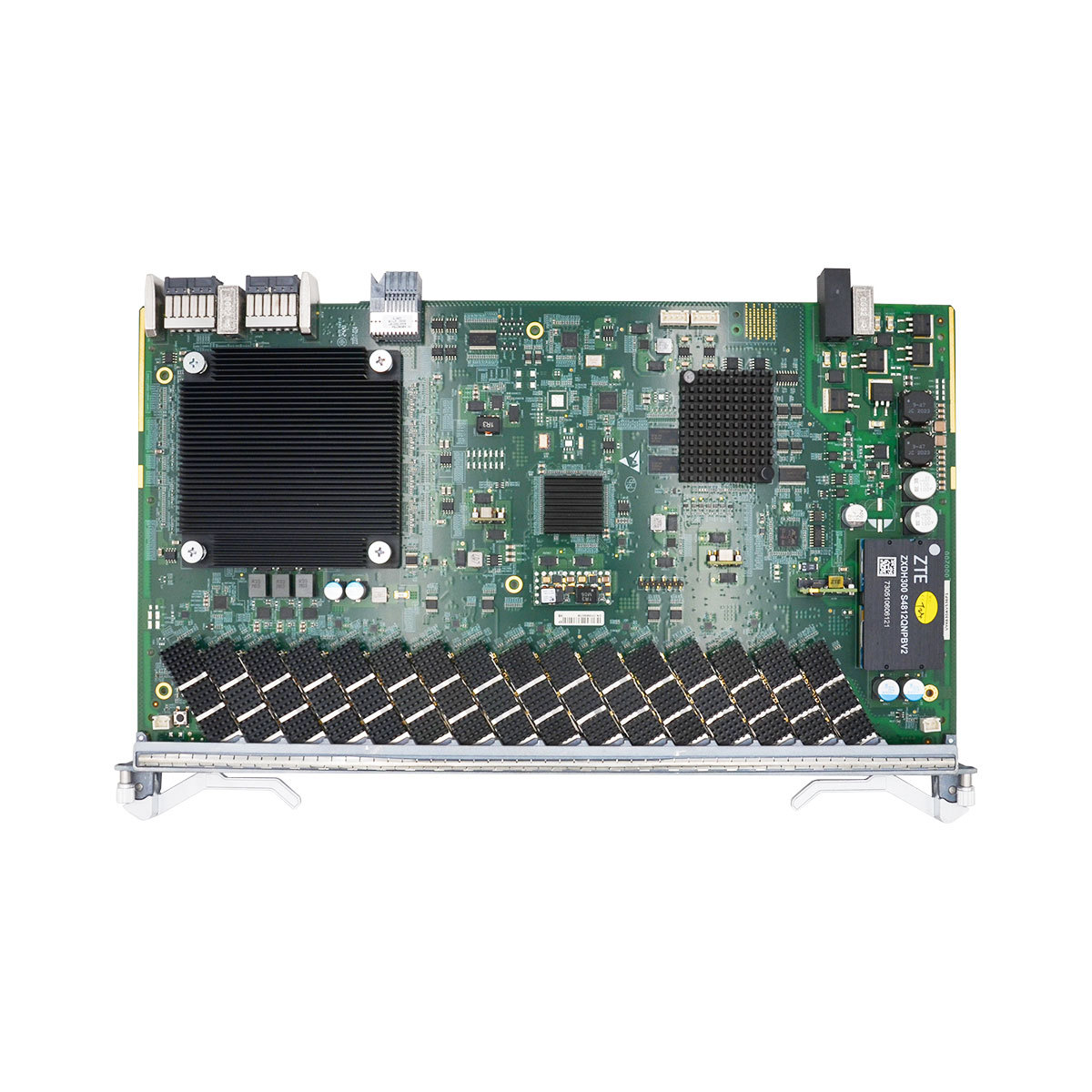

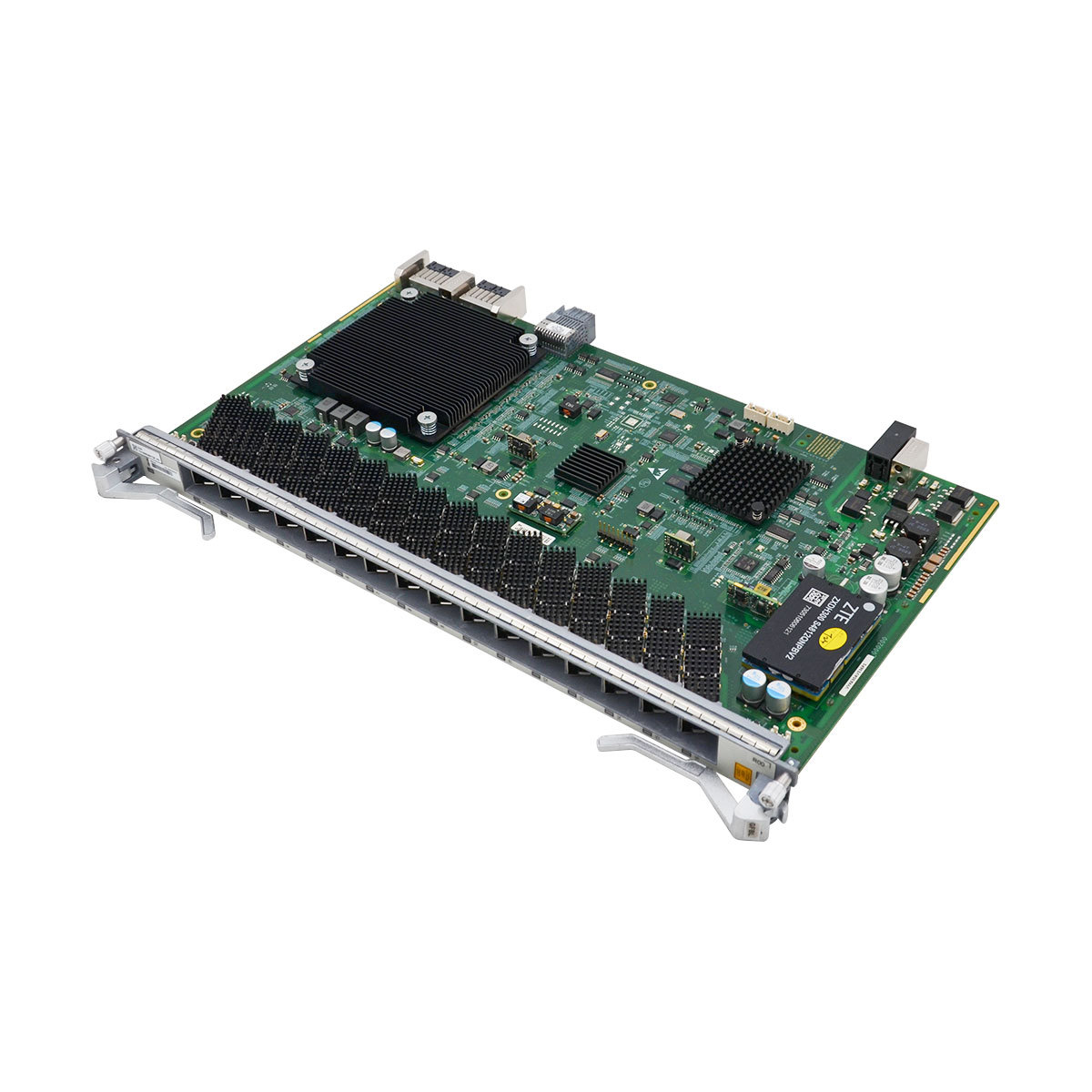

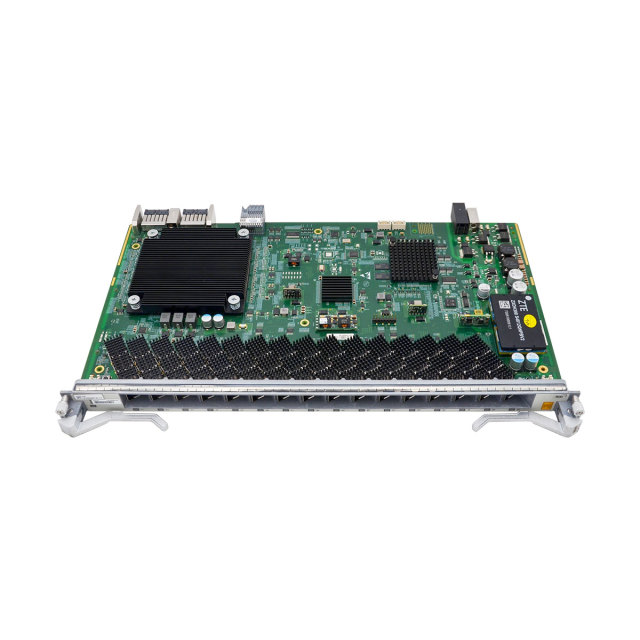

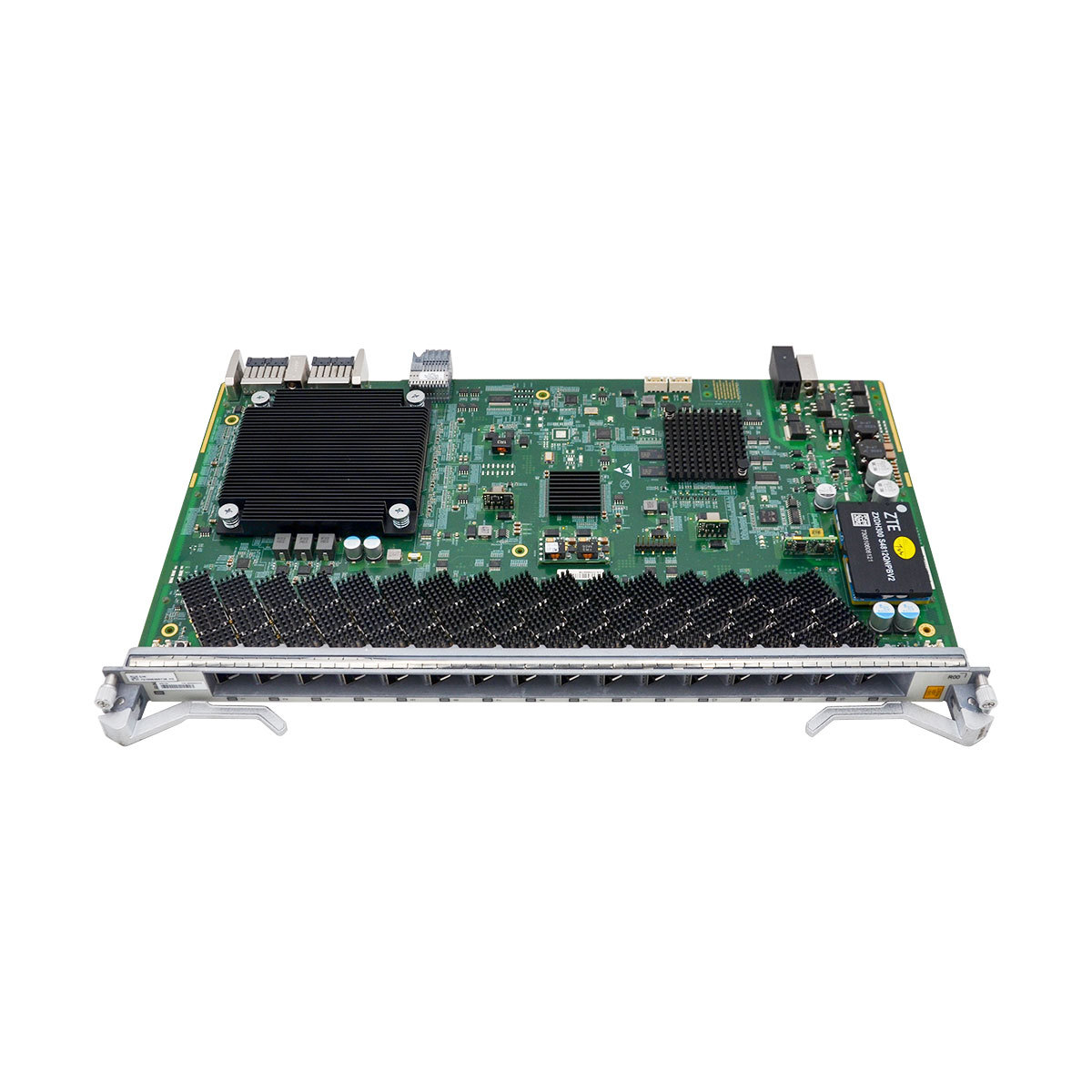

ZTE GFBL Board Datasheet |
|
| Port | 16-port |
| Interface | XG-PON & GPON Combo |
| Function | XG-PON & GPON service access |
| Specification | XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector |
| Modules of the XG-PON Subscriber Card | |
| Management and control module | Configures, controls, and manages the card. |
| PONMAC module | Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3. |
| NP module |
|
| Optical module | Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807. |
| Clock module | Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781. |
| Device Specifications | |
| Weight | 1.72 kg |
| Dimensions (L x H x W) | 393.1 mm × 23.9 mm × 214 mm |
FAQ
Q: How does the GFBL differ from the GFTL Board?
A: GFBL is a dual-mode (XG-PON/GPON) combo card with 1:128 split ratios, while GFTL is a single-mode XGS-PON board with 1:256 split ratio.
Q: What is the maximum split ratio for XG-PON and GPON on the GFBL?
A: Both XG-PON and GPON support a maximum optical split ratio of 1:128.
Q: Which interfaces does the GFBL Board feature?

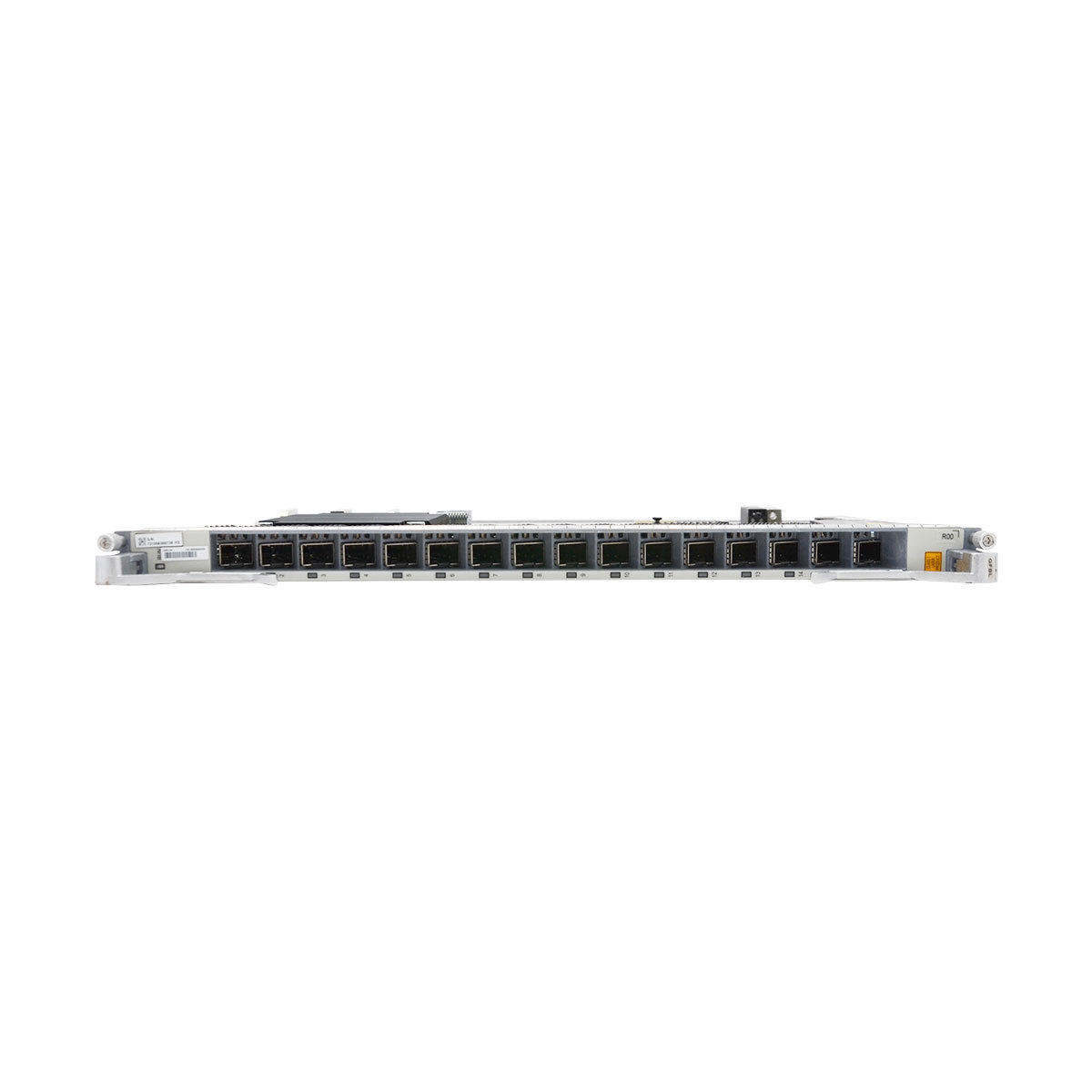

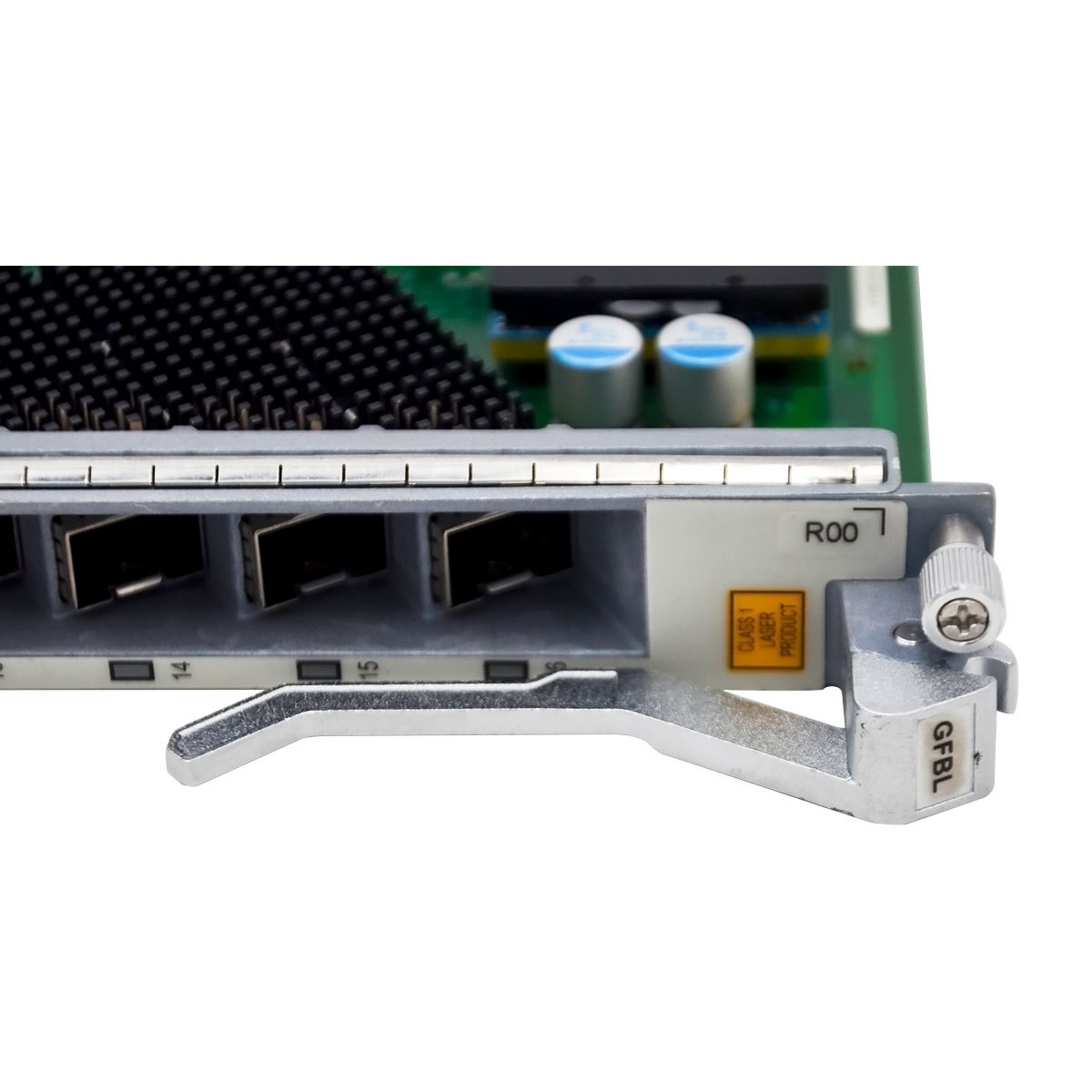

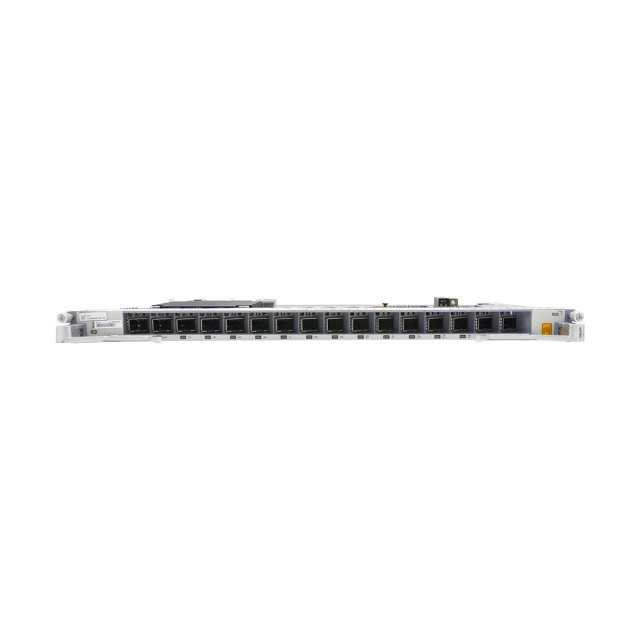

A: It is equipped with 16 XG-PON & GPON SFP+ hybrid interfaces with built-in internal multiplexing and SC/UPC optical connectors.
Q: What is the warranty period?
A: 12-month warranty covering manufacturing defects.
Q: What is the lead time for orders?
A: 3-5 days for samples/small orders.
