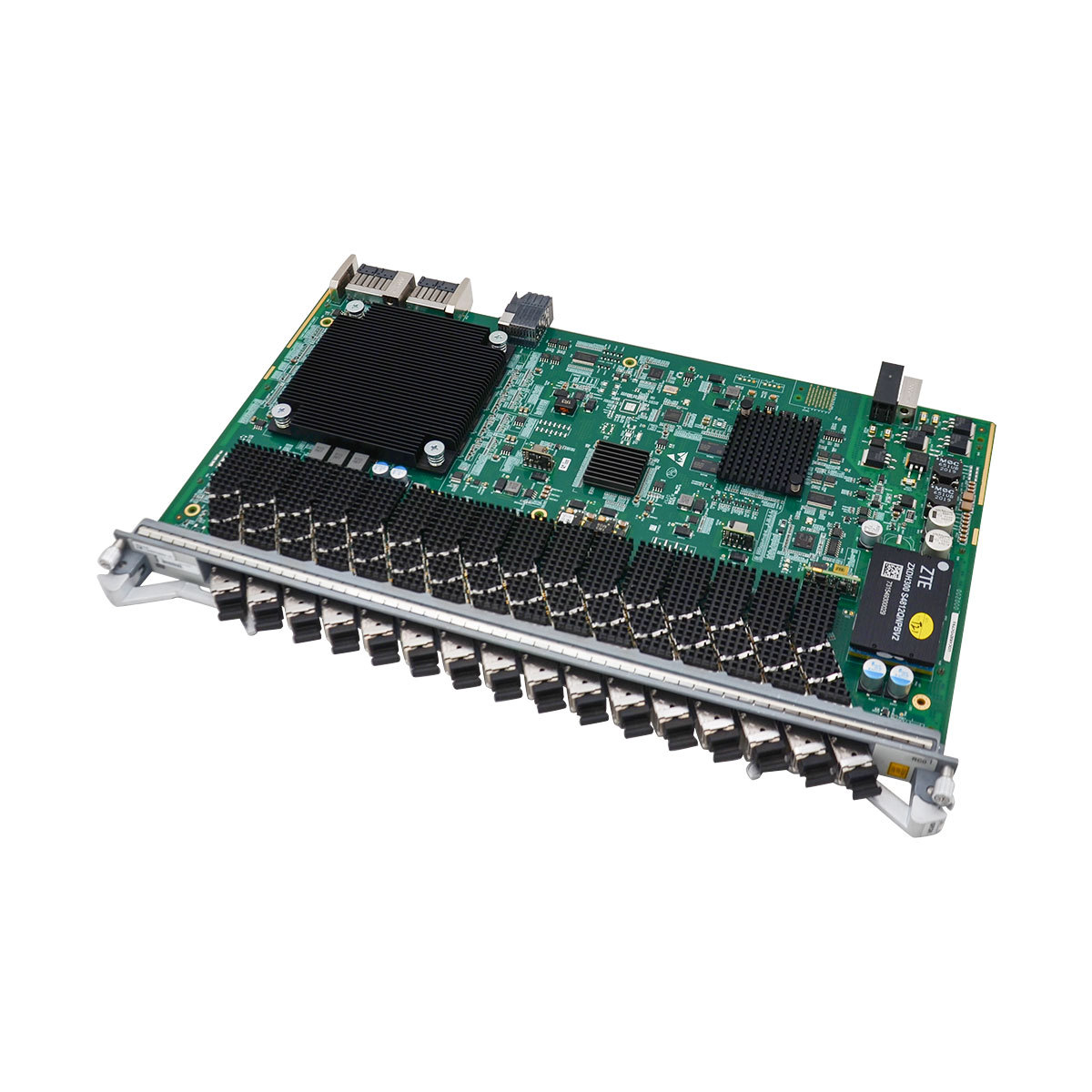

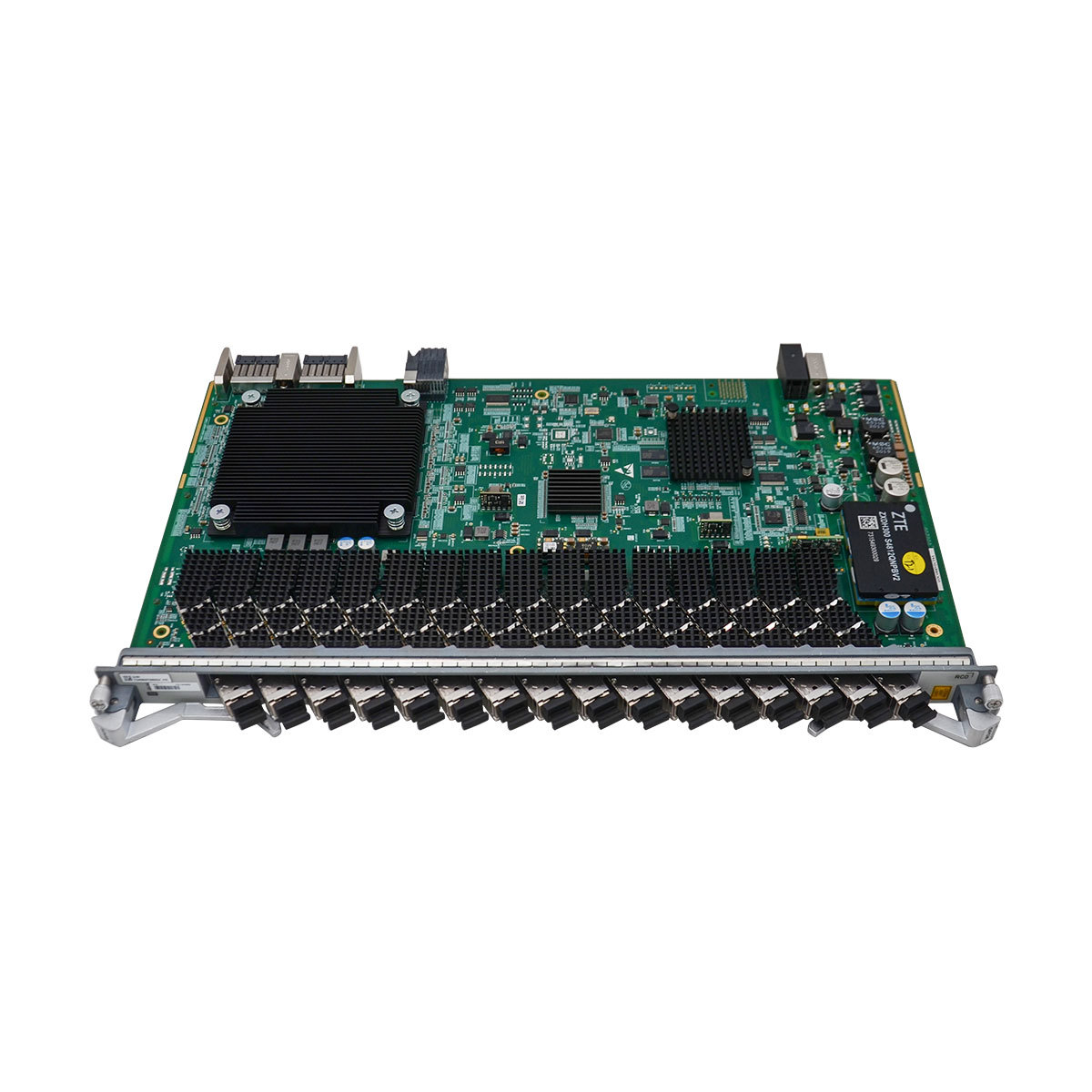

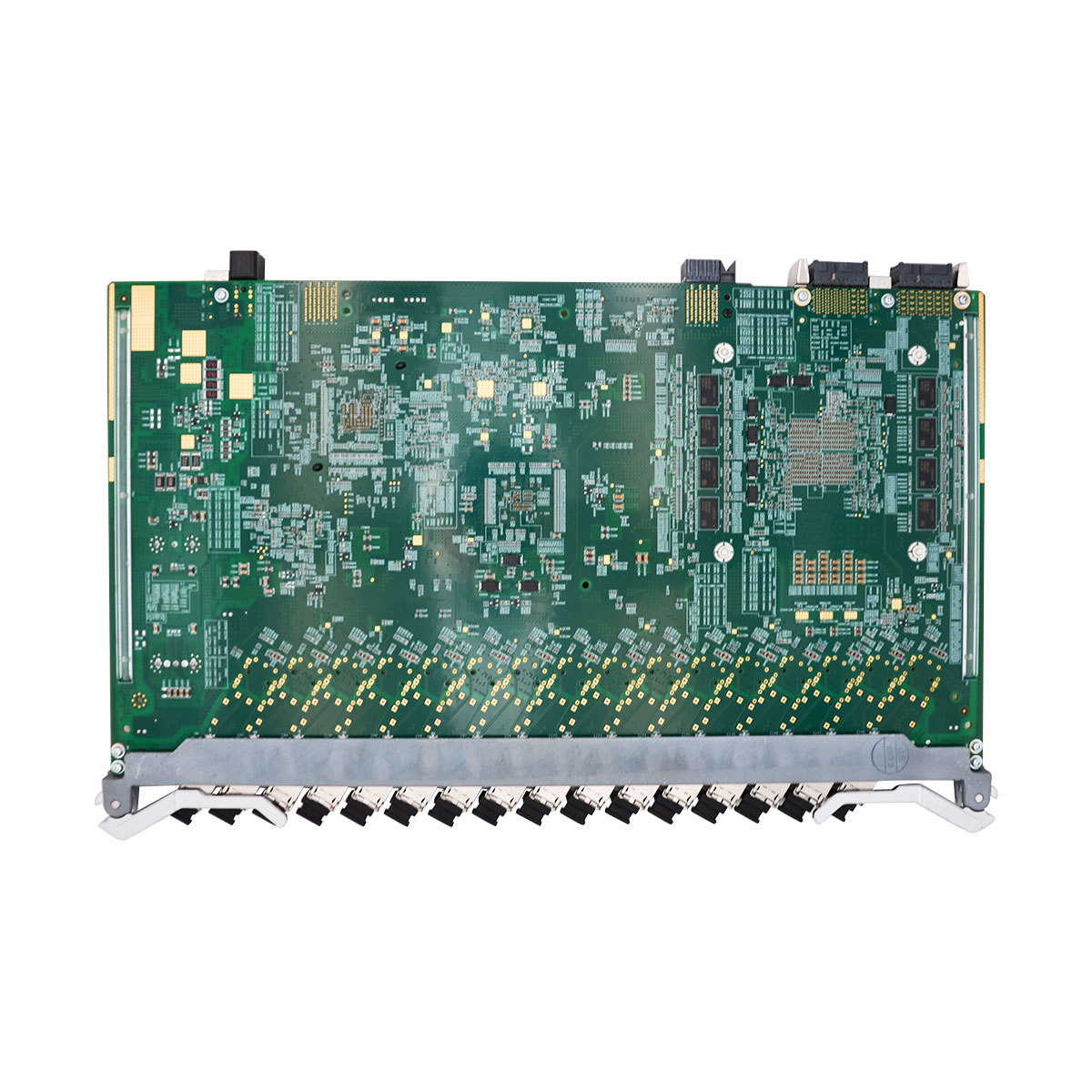

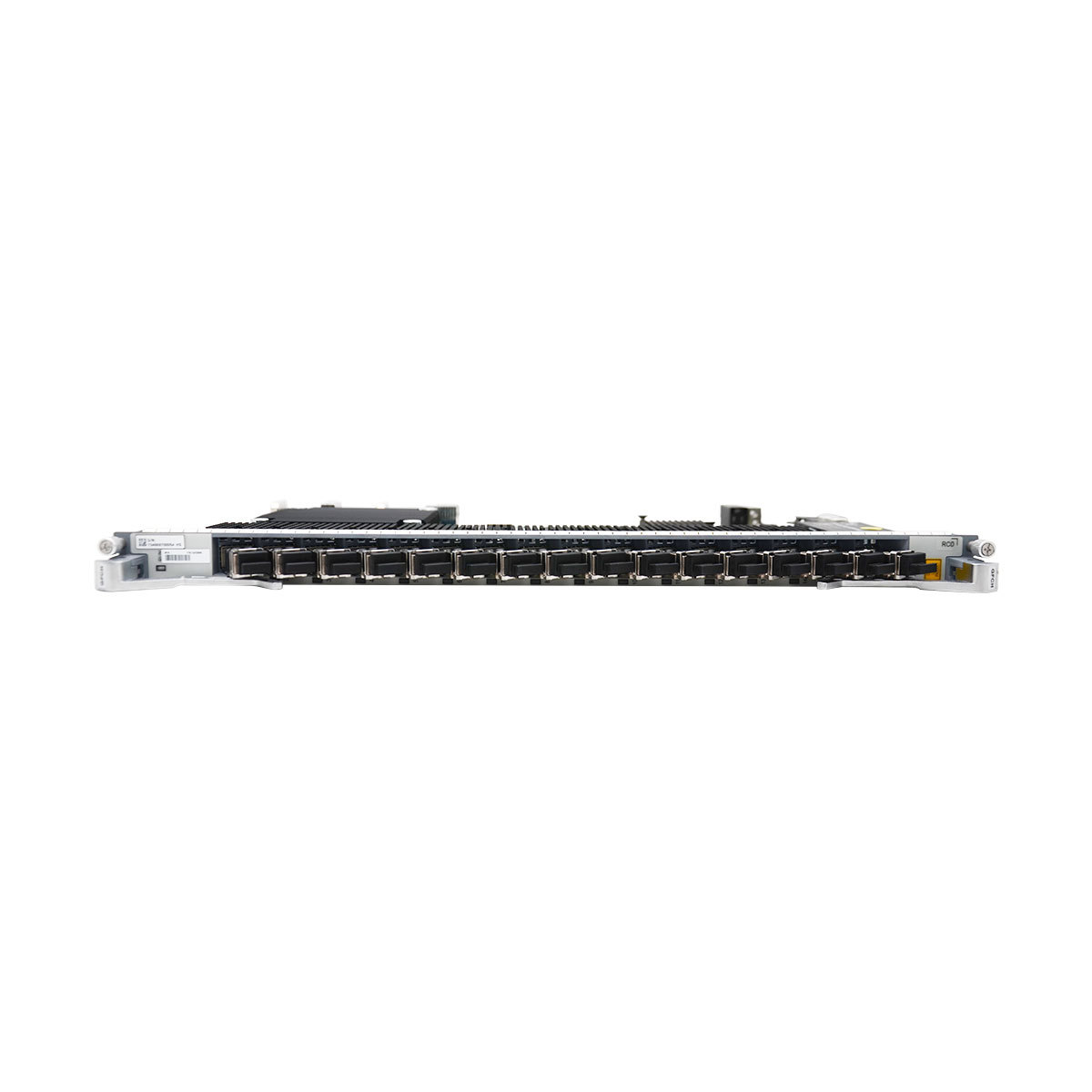

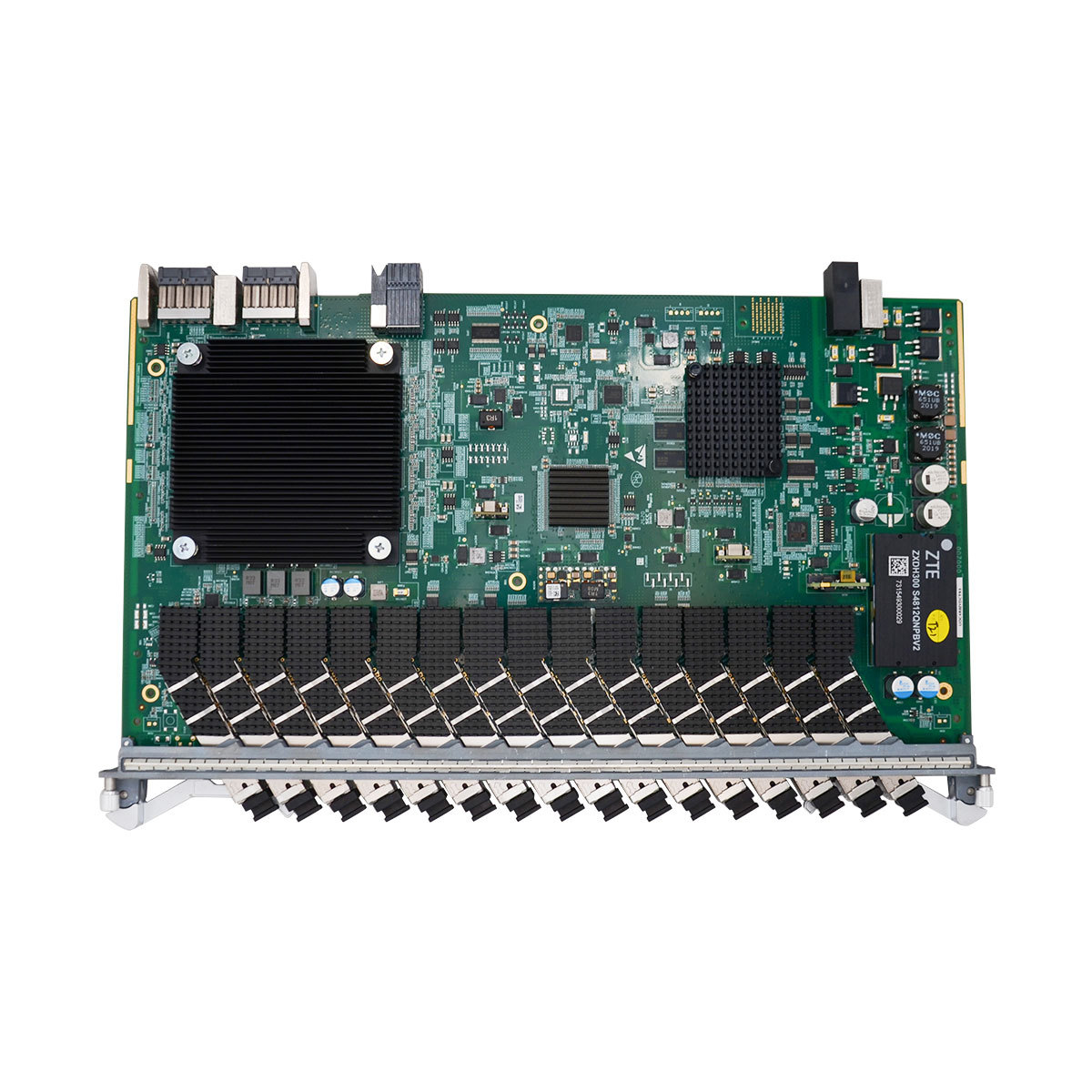

The ZTE GFCL is a 16-port XGS-PON & GPON combo OLT interface board applicable to ZTE ZXA10 C600/C650/C680 OLTs, which provides 16-port dual-mode XGS-PON & GPON access, supports a maximum split ratio of 1:128 for both XGS-PON and GPON, enables the access of XGS-PON ONUs, XG-PON ONUs and GPON ONUs, and features Optical Line Supervision (OLS), the optical module Auto Laser Shutdown (ALS) function as well as hot-swappable capability; in contrast, the GFTL is a 16-port single-mode XGS-PON OLT interface board compatible with N1/N2a modules that can also be applied to the same ZTE ZXA10 C600/C650/C680 OLT models, characterized by a higher maximum optical split ratio of 1:256, along with support for optical power monitoring, the optical module ALS function and hot swapping to ensure efficient and reliable network operation and maintenance.
|
ZTE GFCL Board Datasheet |
|
| Port | 16-port |
| Interface | XGS-PON & GPON Combo |
| Function | XGS-PON & GPON service access |
| Specification | XGS-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector |
| Modules of the XG-PON Subscriber Card | |
| Management and control module | Configures, controls, and manages the card. |
| PON MAC module | Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3. |
| NP module |
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
|
| Optical module | Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807. |
| Clock module | Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781. |
| Device Specifications | |
| Weight | 1.65 kg |
| Dimensions (L x H x W) | 393.1 mm × 23.9 mm × 214 mm |
Q: Are the optical module types supported by GFCL consistent with those of GFCH?
A: Yes, both support Class B+/C+/C++/D GPON modules and XGS-PON N1/N2a modules.
Q: Which ONU types are compatible with the GFCL Board?
A: It supports access for XGS-PON ONUs, XG-PON ONUs, and GPON ONUs, enabling seamless coexistence of legacy and next-generation PON devices in the same network.
Q: What payment methods are accepted at MF-Telecom?
A: T/T, PayPal, China UnionPay, LC (Letter of Credit), Alipay, and Western Union are supported for secure transactions.
Q: What is the warranty period?
A: 12-month warranty covering manufacturing defects.
Q: What is the lead time for orders?
A: 3-5 days for samples/small orders.
