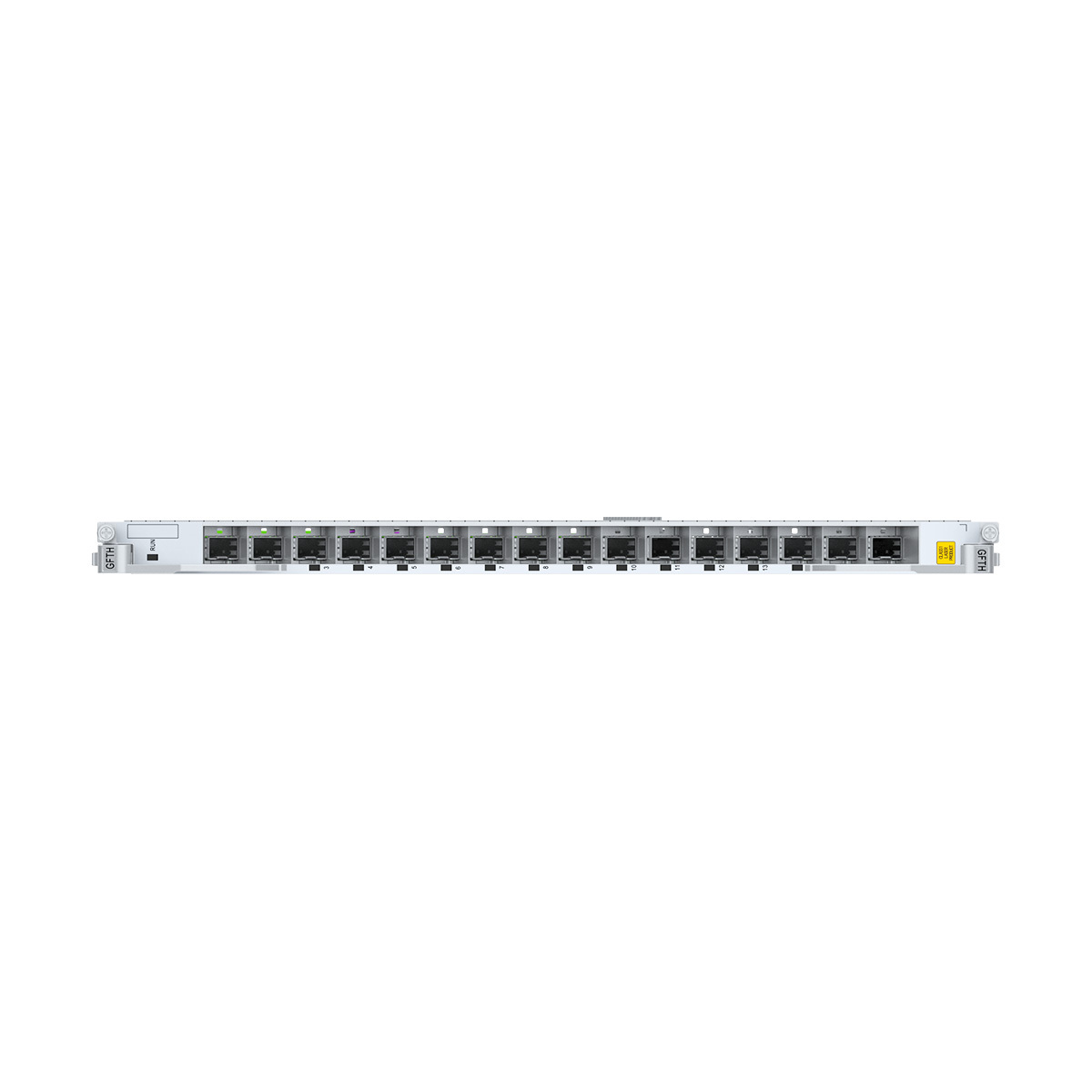

GFTH is a 16-port XGS-PON OLT interface board compatible with N1/N2a optical modules, which can be installed in ZTE ZXA10 C600/C650/C680 OLTs and features a maximum optical split ratio of 1:256, along with support for optical power monitoring, the ALS function of optical modules and hot swapping for efficient and reliable network deployment and maintenance.
|
ZTE GFTH Board Datasheet |
|
| Management and control module | Configures, controls, and manages the card. |
| PON MAC module | Implements all the functions on the XGS-PON layer defined by ITU-T G.9807. |
| NP module | Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156. |
| Optical module | Provides an XGS-PON optical interface that complies with ITU-T G.9807. |
| Clock unit | Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781. |
| Dimensions | 393.1 mm × 23.9 mm × 214 mm (height × width × depth) |
| Weight | Enhanced GFTH: 1.65 kg
GFTL: 1.65 kg |
Q: Is GFTH compatible with GPON ONU?
A: No, GFTH is a pure XGS-PON card and needs to be used with an XGS-PON ONU.
Q: Which OLT models are compatible with the GFTH Board?
A: It is fully compatible with ZTE ZXA10 series OLTs including C600, C650, and C680.
Q: What types of optical modules does the GFTH Board support?
A: It supports N1 and N2a single-fiber bidirectional optical modules with SC/UPC connectors.
Q: What is the warranty period?
A: 12-month warranty covering manufacturing defects.
Q: What is the lead time for orders?
A: 3-5 days for samples/small orders.
