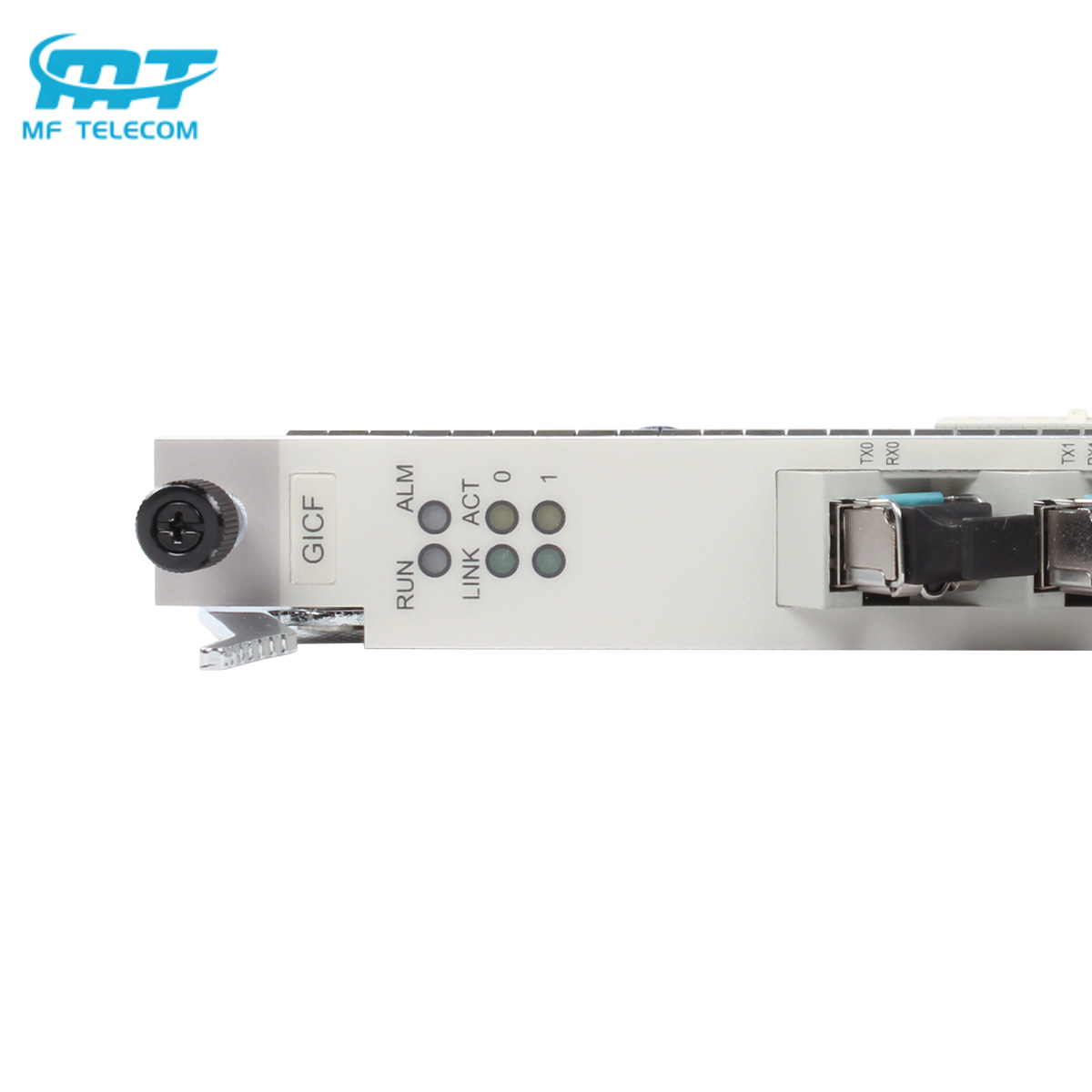

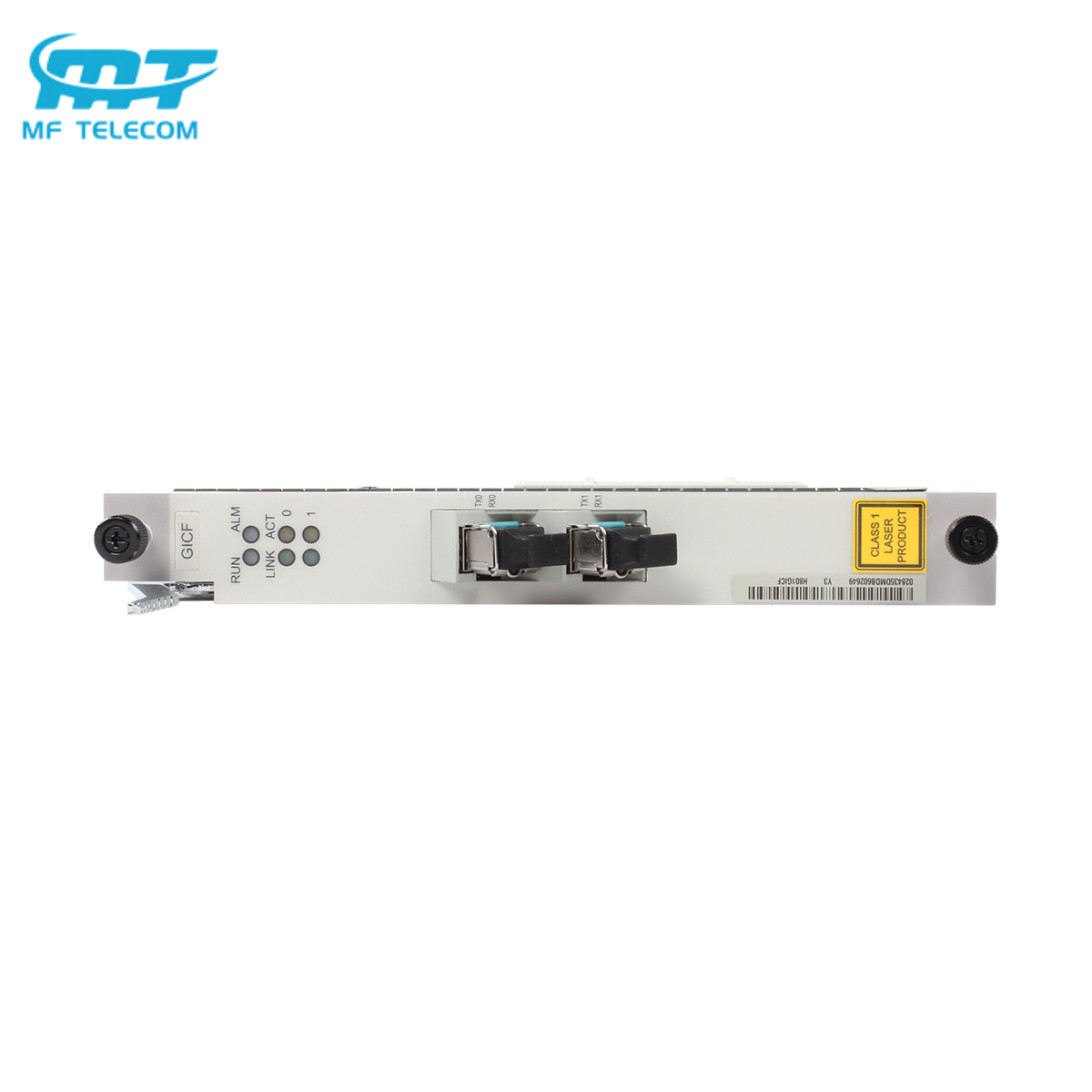

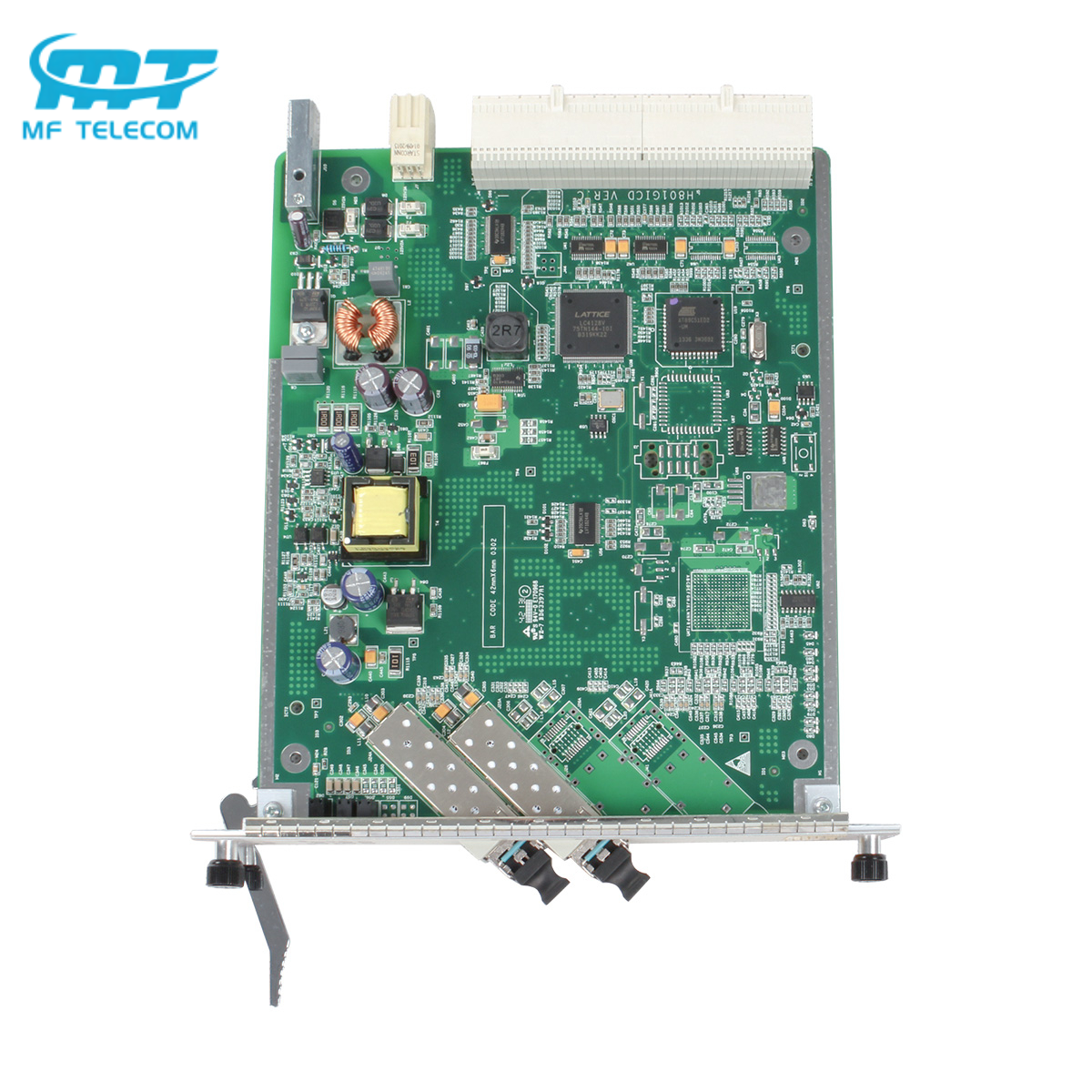

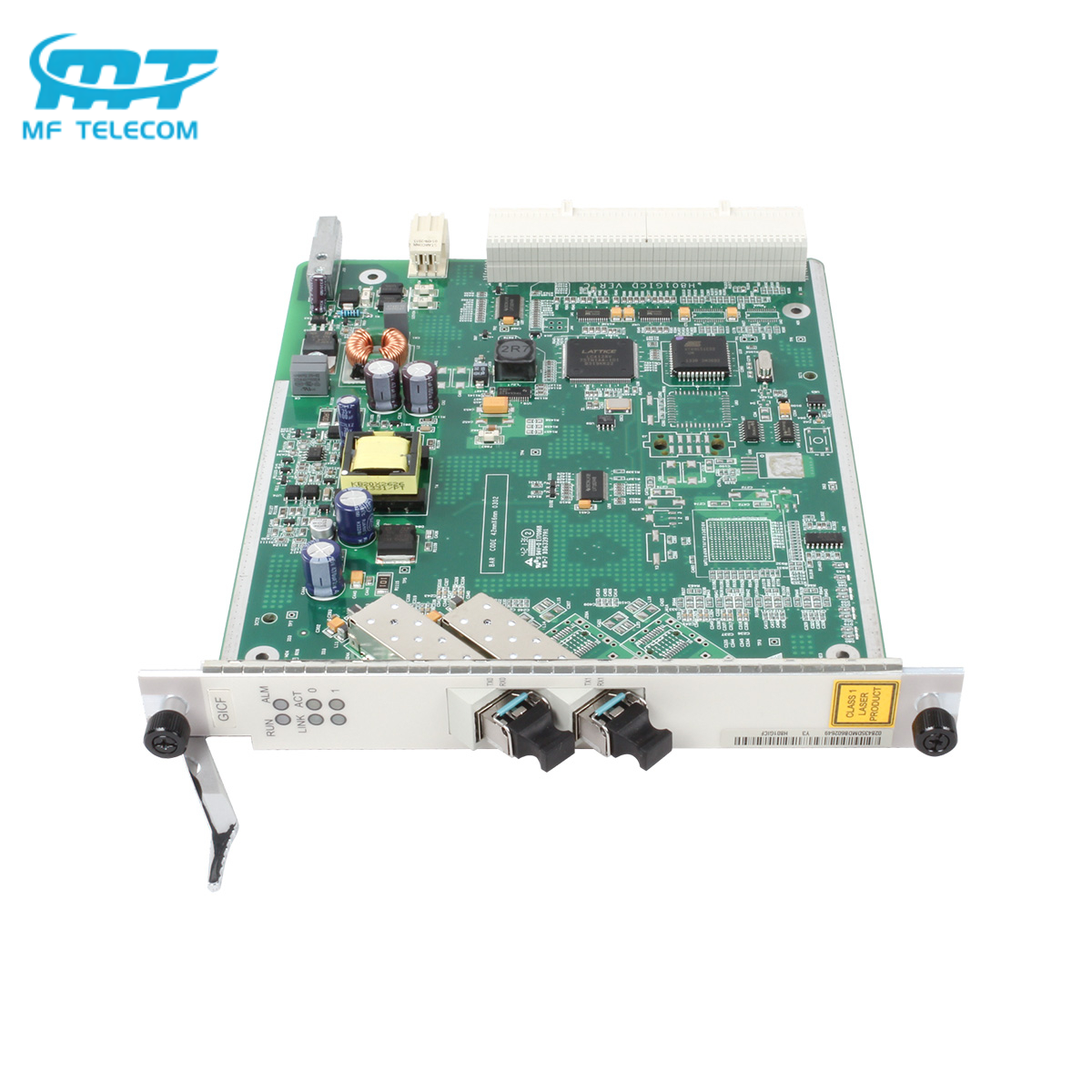

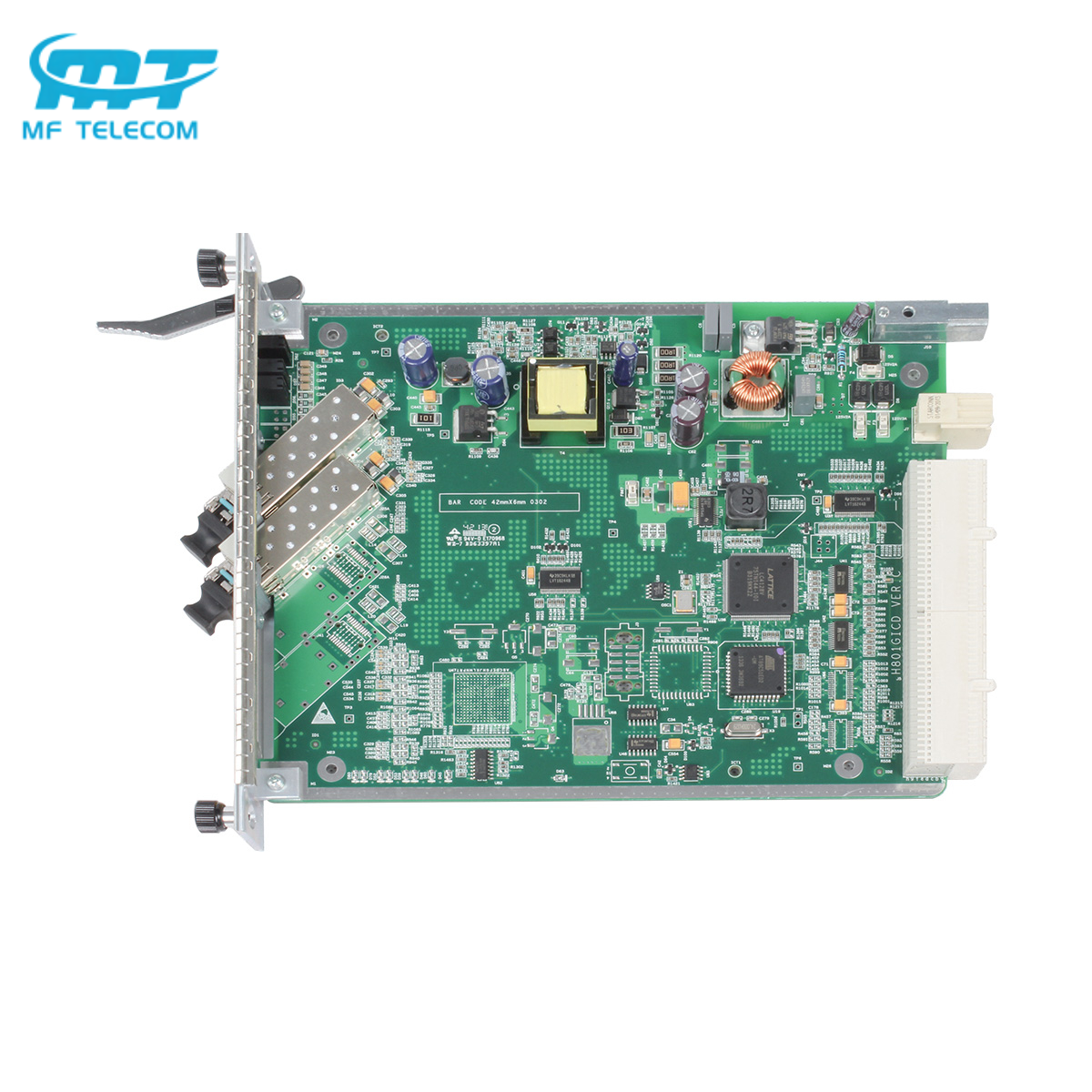

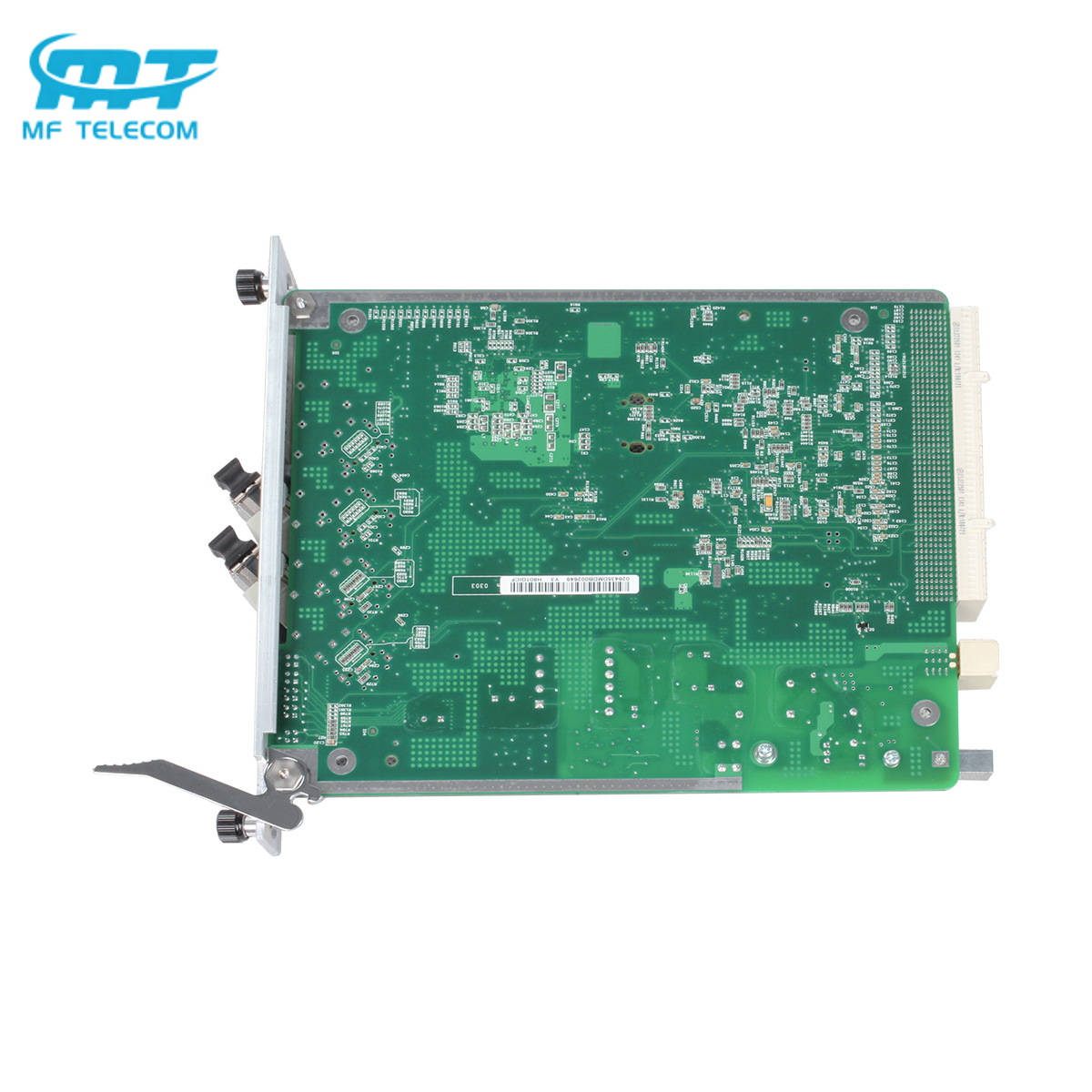

Huawei GICF Overview
The Huawei GICF is a high-reliability 2-port GE optical uplink board, specifically tailored for seamless integration with Huawei MA5600T series OLTs, including the MA5683T and MA5680T models. As a dedicated uplink expansion solution, this board is delivered without pre-installed optical transceivers and is optimally paired with two GE SFP modules supporting 10km transmission distance, ensuring stable and efficient data uplink for medium-to-large scale optical access networks.
Product Features
- Optical Interfaces: Two Gigabit Ethernet (GE) optical ports, often equipped with SFP modules (e.g., B+/C+ for GPON).
- High-Density Access: Supports high-density P2P optical access.
- Seamless Integration: Designed for easy plug-and-play into Huawei OLTs (MA5600T, MA5680T, MA5683T).
- Network Versatility: Facilitates GPON, 10G GPON, EPON, 10G EPON, and P2P access modes.
- Low Latency: Ensures minimal delay for data transmission.
Jumbo Frame Support: Can handle frames up to 9216 bytes with jumbo frame function enabled.
Application Scenarios
A telecom operator in Western Europe deployed Huawei GICF boards via MF-Telecom to upgrade its FTTx network. Integrating with MA5683T OLTs, the boards enabled 10km optical uplinks for 50,000+ residential users, delivering stable internet/voice/video services. The pluggable SFP design allowed easy distance adjustment (from 10km to 40km) for rural extensions, reducing deployment time by 30% while maintaining 99.99% uptime.
Downloadable resources
| Huawei GICF Board Datasheet |
| Port |
2 GE Optical Uplink Ports |
| Pluggable Module |
Optical Module(SFP)
Electrical Module(SFP) |
| Corresponding Control Board |
SCUN/SCUL/SCUH |
| SFP Module specification |
SFP module type
(typical configuration) |
One-channel two-fiber bi-directional optical module |
| Operating Wavelength |
1310 nm |
| Encapsulation Type |
SFP |
| Port Rate |
1.25 Gbit/s |
| Minimum Output Optical Power |
-9.00 dBm/-9.50 dBm |
| Maximum Output Optical Power |
-3.00 dBm |
| Maximum Receiver Sensitivity |
-20.00dBm |
| Optical Connector Type |
LC |
| Optical Fiber Type |
Single-mode |
| Reach |
10.00KM |
| Overload Optical Power |
-3.0 dBm |
| Extinction Ratio |
9.0 dB |
| Device Specifications |
| Dimensions (mm) |
25.40 (W) x 237.00 (D) x 197.20 (H) |
| Power Consumption and Maximum Frame Size |
| Power Consumption |
H801GICF : Static: 3.9 W
Maximum: 3.9 W |
| Maximum Frame Size |
2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| Operating temperature |
-25°C to +65°C |
| Relation between GE optical/electrical modules and boards |
One-channel Two-fiber Bi-directional GE Optical Module |
| One-channel One-fiber Bi-directional GE Optical Module |
| One-channel Two-fiber Bi-directional GE CWDM Optical Module |
| GE Electrical Module |
FAQ
Q: What is the Huawei GICF board?
A: It’s a 2-port GE optical uplink board designed for Huawei OLT systems.
Q: Which Huawei OLT systems are compatible with the GICF board?
A: It works seamlessly with Huawei MA5608T, MA5680T, and MA5683T OLT systems.
Q: What control boards does the GICF require?
A: It is compatible with Huawei SCUN, SCUL, and SCUH control boards.
Q: What is the power consumption of the GICF board?
A: Static and maximum power consumption is 3.9W (model H801GICF), ensuring energy efficiency.
Q: Does MF-Telecom provide a warranty for the Huawei GICF?
A: Yes, we offer a 1-year manufacturer-backed warranty for all genuine GICF boards.
