ZTE GTXO XG-PON Card

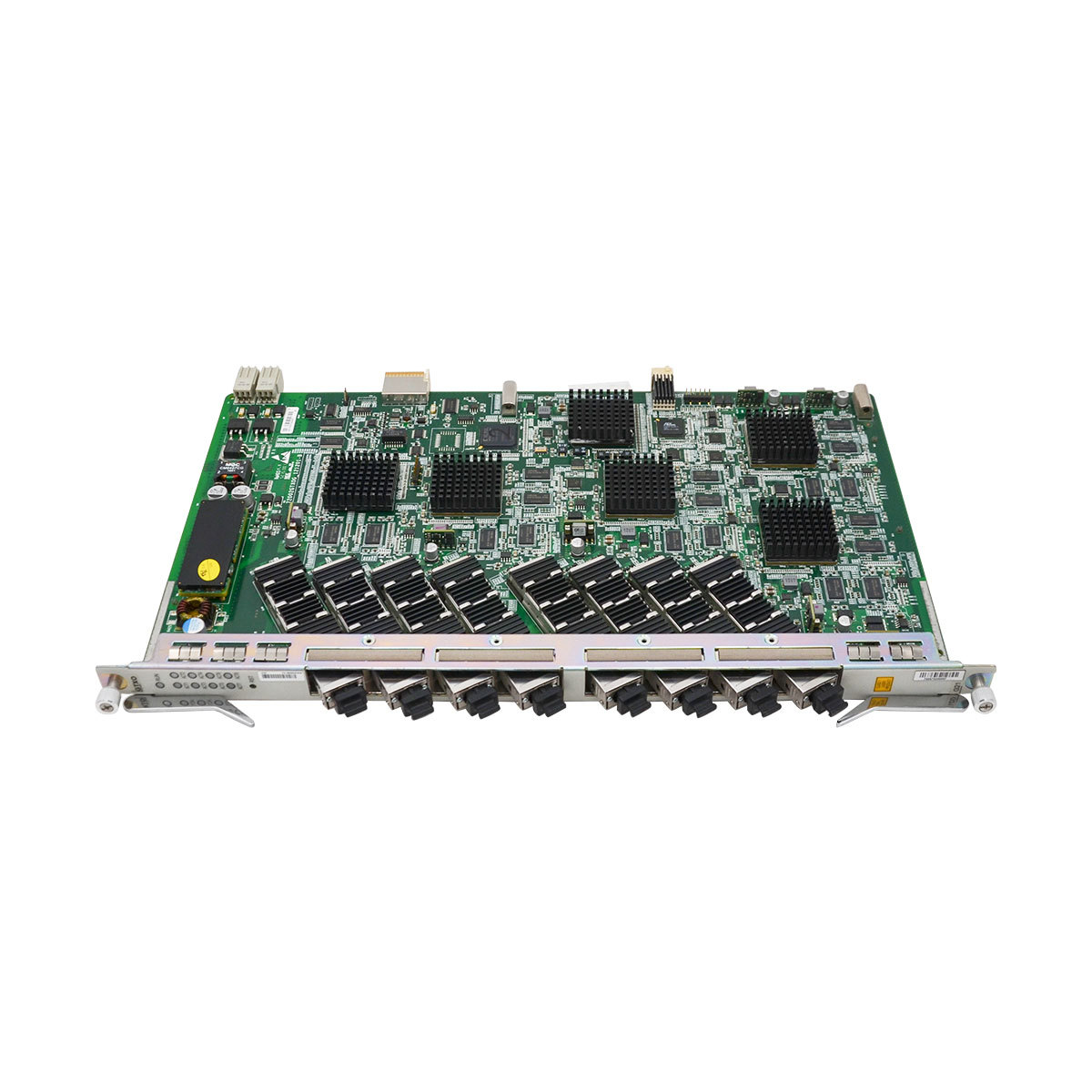

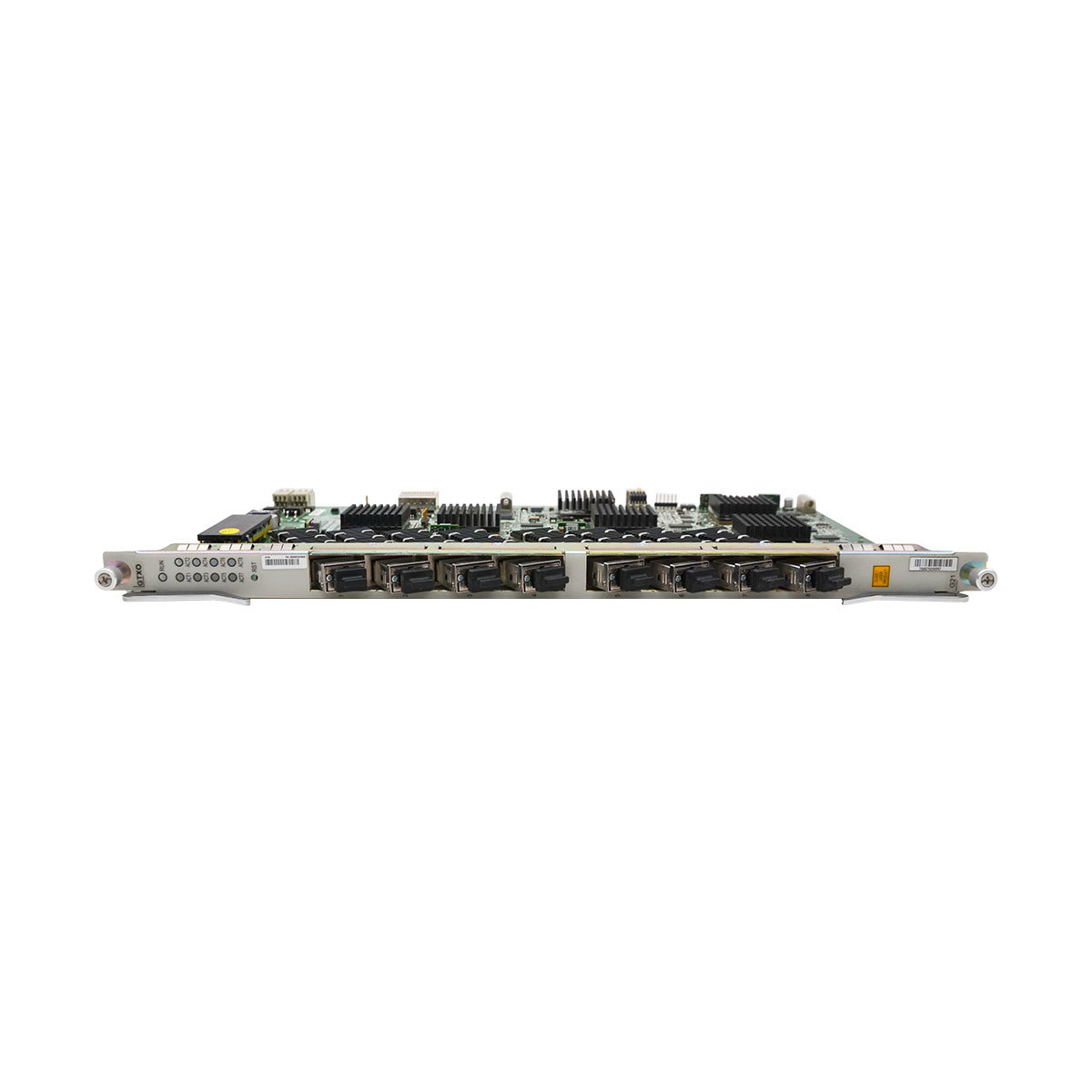

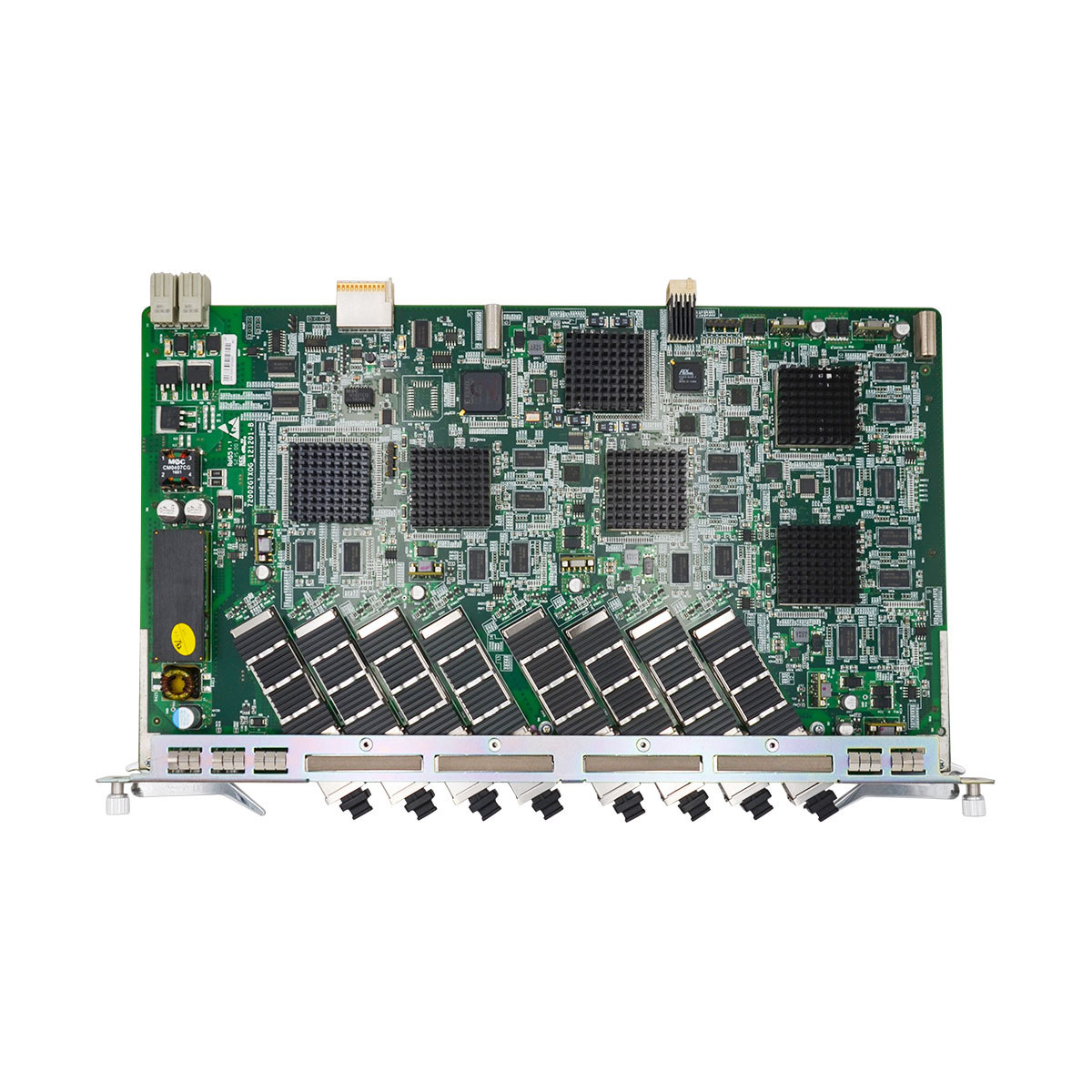

Name: ZTE GTXO XG-PON Card
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0052
Price: 690.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0052

ZTE ZXA10 GTXO 8-port XG-PON interface board with N2a XFP module for C320/C350/C300

Packing Box Specifications

48*33*7cm

Gross Weight

2.5kgs

Condition

Original new

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

XGPON Optical Module:

N1 (2~6dBm)

N2a (4~8dBm)

Get Price/Help

Bulk Quote View Quote List

Description

ZTE GTXO Overview

The ZTE GTXO is a high-density, energy-efficient 8-port XG-PON/XGS-PON service board for ZTE's ZXA10 OLT platforms (like C300/C320), offering 10G upstream/downstream speeds, supporting massive users with high-bandwidth services (IPTV, HSI, VoIP, VPN), advanced traffic management (HQoS), PON/Ethernet protection, and reduced power consumption via an efficient ASIC chip and idle port shutdown.

Product Features

High Density & Performance: 8 XG-PON/XGS-PON ports per board, supporting up to 2048 users and 40Gbps forwarding rate.
High-Speed Services: Delivers 10Gbps upstream and 2.488Gbps downstream rates for demanding applications like 4K/8K video and business services.
Energy Efficiency: Features a new ASIC chip for 50% lower power consumption and supports manual shutdown of idle ports.
Advanced QoS & Traffic Management: Implements Level 4 HQoS to improve user experience.
Rich Service Support: Carries VoIP, HSI, IPTV, VPN, and mobile backhaul over a single platform.
Network Reliability: Supports Type-B/C PON protection, ISSU (In-Service Software Upgrade), and NSR (Non-Stop Routing).

Application Scenarios

A major European telecom operator deployed ZTE GTXO XG-PON Cards in its FTTH network upgrade. Integrating with ZXA10 C320 OLTS, the cards enabled 10Gbps broadband services for 50,000+ residential users across Madrid. The 1:256 split ratio reduced infrastructure costs, while stable performance (20km transmission distance) ensured 99.99% service availability – a success replicated via MF-Telecom’s global supply chain.

Downloadable resources

ZTE GTXO Board Datasheet

Technical Specifications

ZTE GTXO Board Datasheet
Description	8-port XGPON interface card
Interface Quantity	8
Interface	XG-PON XFP interfaces.
Slot	ZXA10 C300/C350/C320 service card slot
Function	Supports eight XG-PON XFP interfaces. Supports maximum split ratio 1:128. Supports optical power monitoring. Supports optical module ALS.
Power consumption	Static: 5, maximum: 75, typical: 65
Dimensions	395.5 mm × 22.5 mm × 225 mm
Weight	1.185 kg

FAQ

Q: Which ZTE OLTS does the GTXO card support?
A: It’s compatible with ZXA10 C300/C320/C350 OLTS service card slots.

Q: What optical modules are compatible with the GTXO?

A: It supports N1/N2a XFP optical modules.

Q: What’s the maximum split ratio of the GTXO card?

A: It supports a 1:256 split ratio, serving up to 2048 users.

Q: What’s the typical power consumption of the GTXO?

A: Typical power consumption is 70W, with a maximum of 80W.

Q: Is technical support available globally?
A: MF-Telecom offers technical support and 1-year warranty.
