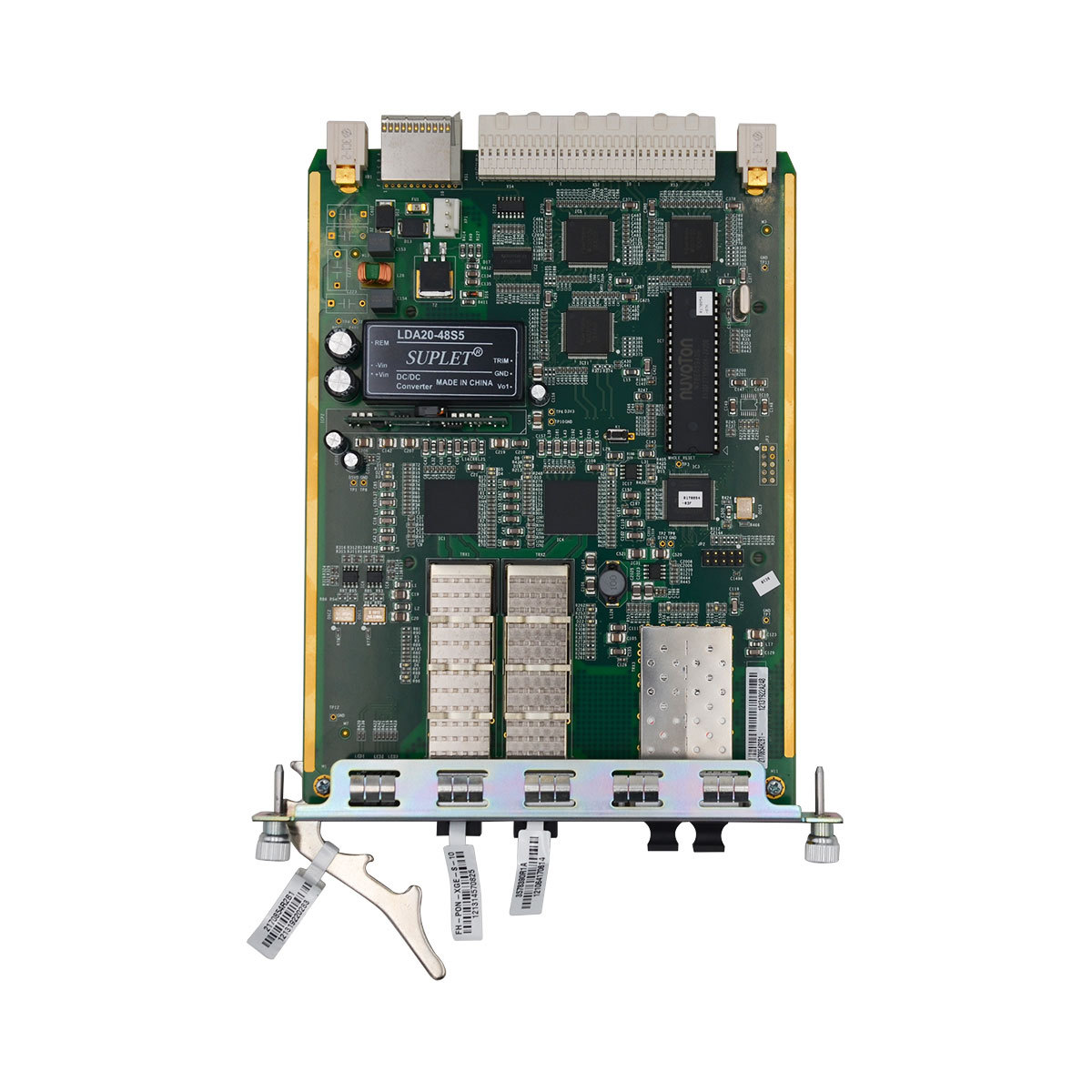

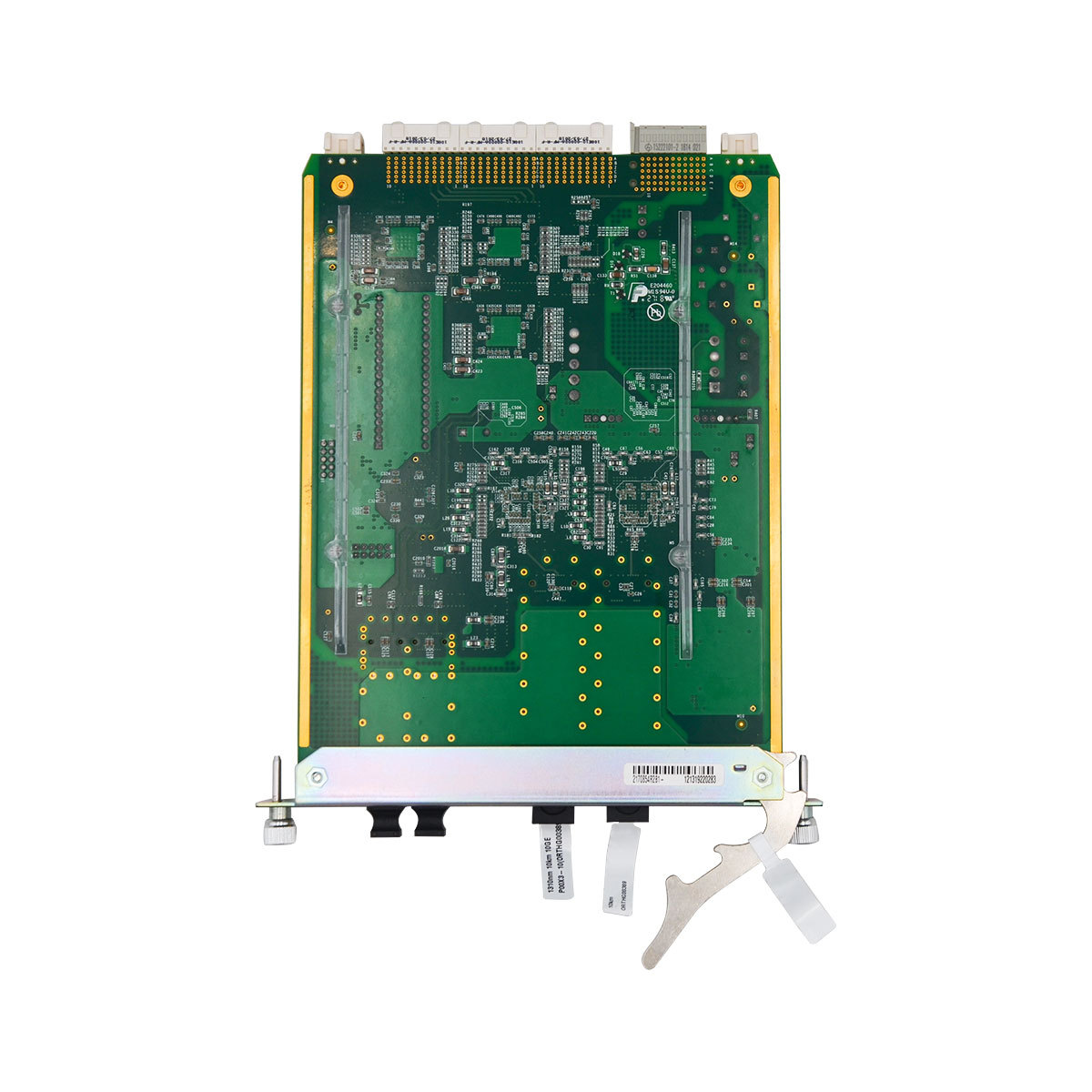

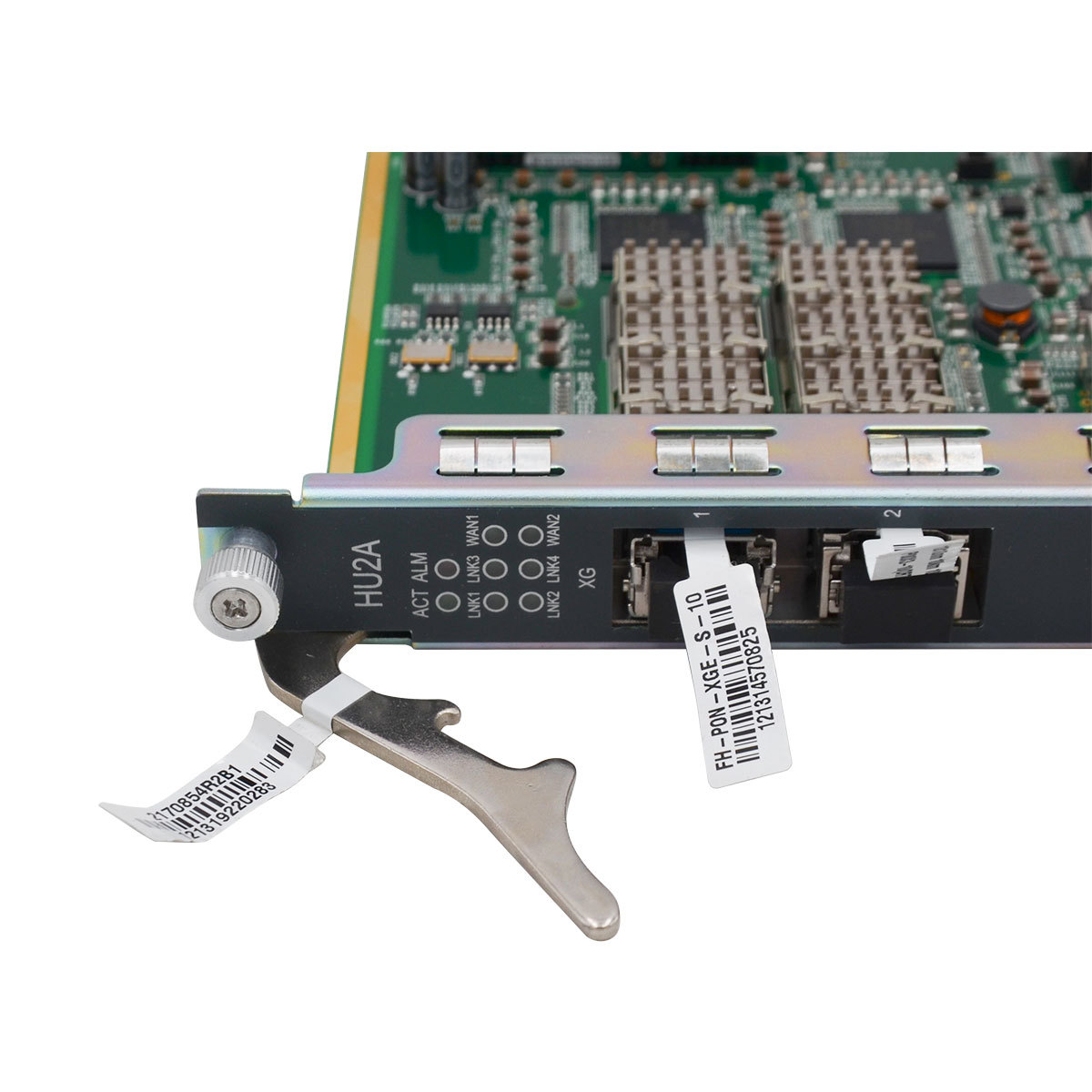

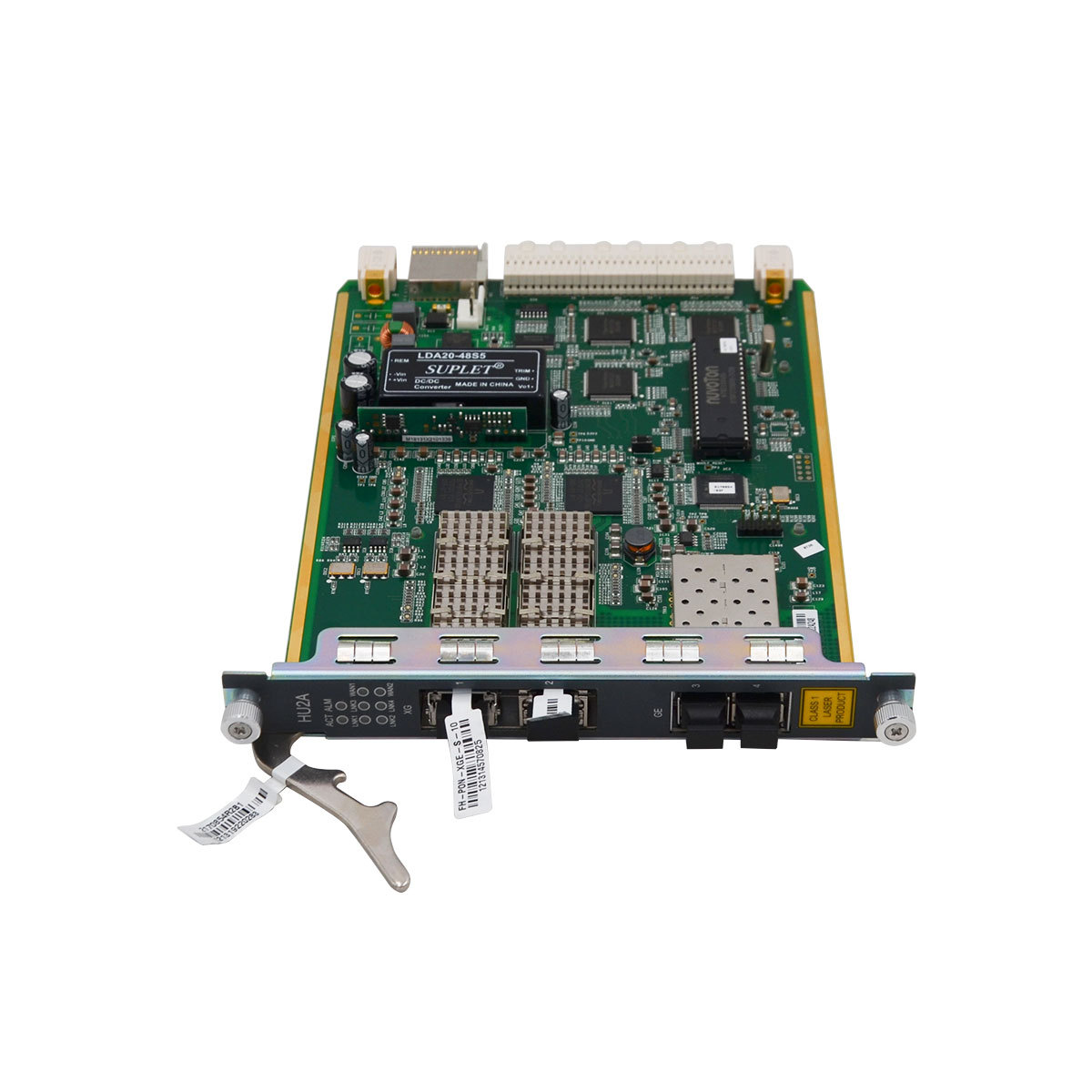

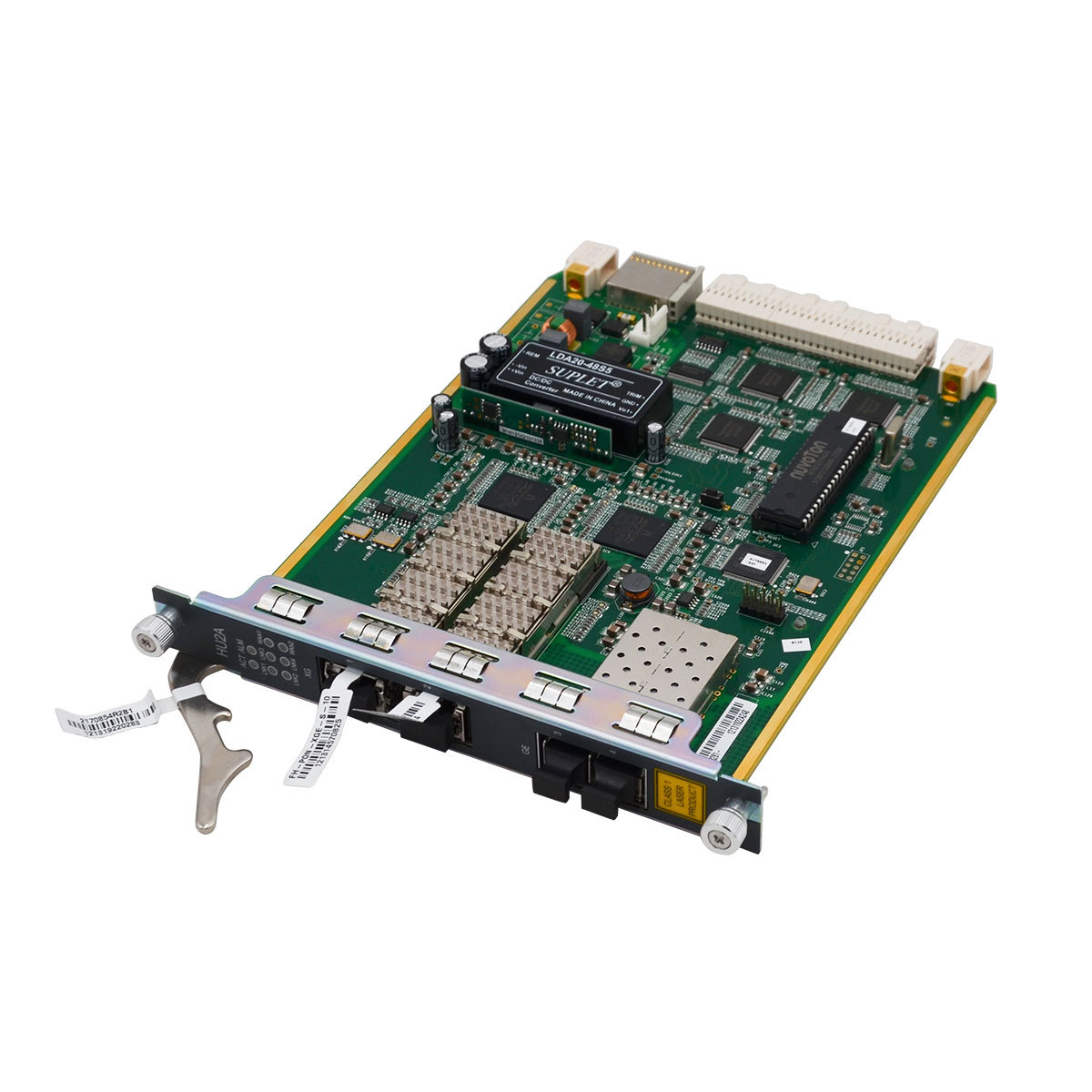

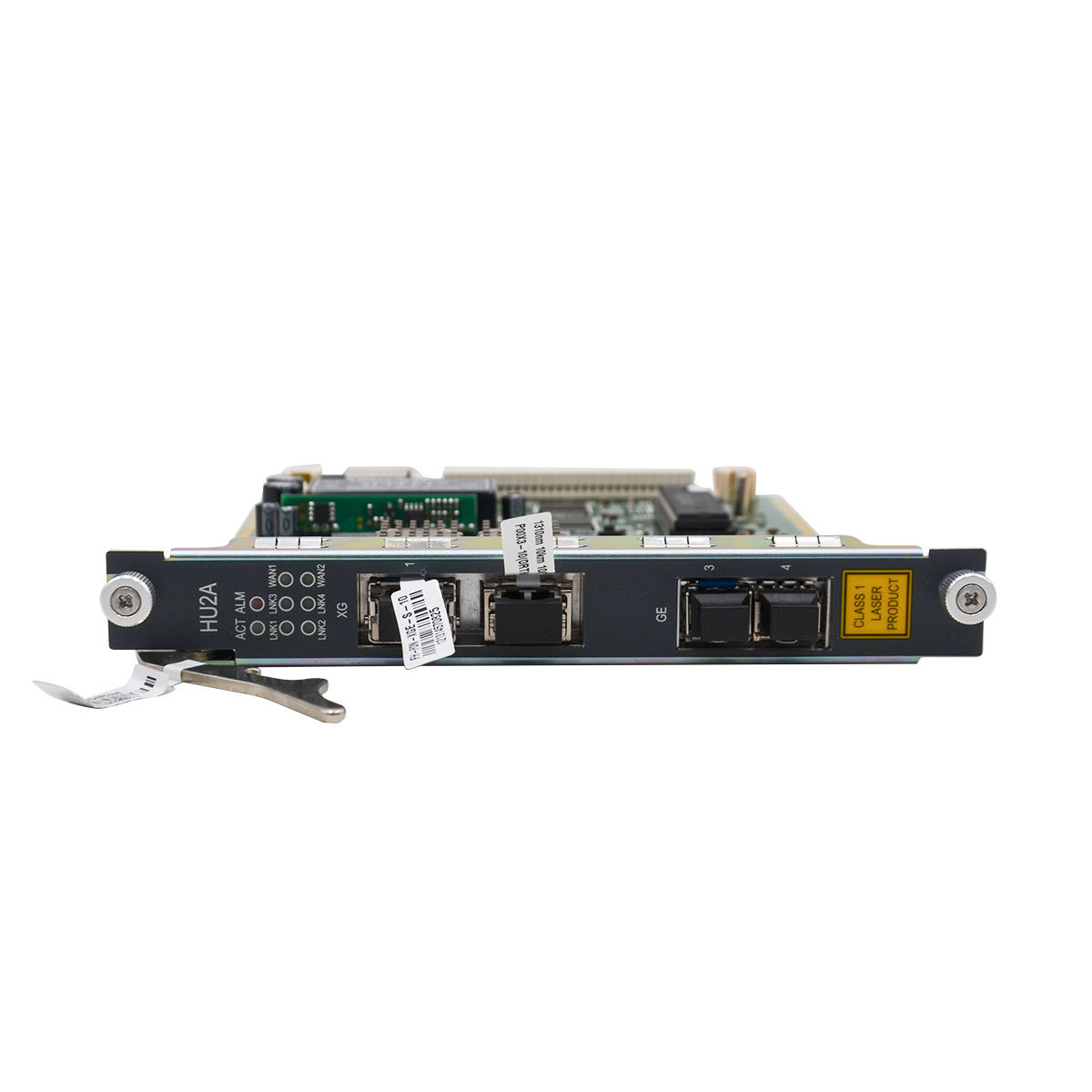

Fiberhome HU2A overview
The Fiberhome HU2A is a high-capacity 10G uplink interface board for Fiberhome AN5516 OLTs, featuring 2x 10GE (SFP+) and 2x GE (SFP) ports for high-speed data aggregation, supporting GPON/10G PON/P2P, multi-service access (Internet, Voice, IPTV), hot-swappable design, redundancy, and energy efficiency, enabling flexible and reliable FTTx network builds.
Product Features
- High-Speed Uplinks: Provides 2 x 10 Gigabit Ethernet (10GE SFP+) ports and 2 x 1 Gigabit Ethernet (GE SFP) ports for high-bandwidth aggregation.
- Broad PON Support: Works with Fiberhome's AN5516 OLTs, supporting smooth evolution to EPON, GPON, 10G PON (XG-PON, XGS-PON), and P2P access.
- Multi-Service Capability: Delivers Internet, Voice, IPTV, and CATV services, aggregating traffic from various ONTs/MDUs.
- Carrier-Class Reliability: Features hot-swappable design, redundant protection for services, controllers, and uplinks, plus millisecond-level switch protection.
- Flexible Architecture: Compatible with different AN5516 OLT chassis (AN5516-01/06B), allowing deployment in large central offices or smaller, sparse areas.
- Advanced Timing: Includes a Clock Module for IEEE 1588v2 protocol and precise clock synchronization.
Application Scenarios
1. Urban FTTH Uplink Expansion in Mexico
A Mexican telecom integrated Fiberhome HU2A uplink boards into AN5516-06 OLTs for dense urban FTTH networks in Mexico City. The board’s 2×10GE optical ports and 2×GE optical/electrical ports handled gigabit data traffic from 10,000+ households, supporting 4K IPTV and cloud services. Compatible with 10G XFP modules (up to 80km transmission), it connected central offices to core networks seamlessly. Low power consumption (≤20W) reduced operational costs, while compliance with IEEE 802.3 standards ensured interoperability. This deployment boosted network capacity, aligning with the operator’s goal of delivering reliable triple-play services in high-demand areas.
2. Enterprise & Residential Convergence in Brazil
A Brazilian ISP adopted HU2A boards for AN5516-01 OLTs in São Paulo’s mixed-use tech parks. The 4-port uplink configuration (2×10GE + 2×GE) aggregated traffic from GPON service cards, serving both small businesses and residential users. Its compact dimensions (182×24.7×222.9mm) fit existing OLT chassis without upgrades, and support for diverse SFP/XFP modules adapted to different transmission distances. The board’s transparent data transmission and stable clock synchronization ensured low-latency connectivity for enterprise cloud applications and home streaming. This solution optimized network efficiency for mixed-traffic scenarios.
Downloadable resources
Technical Specifications
|
Fiberhome HU2A Board Datasheet
|
| Network standards |
IEEE 802.3, IEEE 802.3z, IEEE 802.3ae, etc. |
| Operating modes |
10 / 100 / 1000 Mbit/s, 10 Gbit/s |
| Dimensions (H × W × D) |
182 mm × 24.7 mm × 222.9 mm |
| Power Consumption |
≤ 20 W |
| XG1 to 2 |
10GE uplink optical interface |
| GE3 to 4 |
GE uplink optical /electrical interface |
| Matching Module |
| GE electrical module |
1.25G-100m-tdM-SFP (10/100/1000BASE-T) |
| 1.25G-100m-tdM-SFP (1000BASE-T) |
| GE optical module |
1.25G-0.55km-tdM-SFP (1000BASE-SX) |
| 1.25G-15km-tdM-SFP (1000BASE-LX) |
| 1.25G-40km-tdM-SFP (1000BASE-EX) |
| 1.25G-80km-tdM-SFP (1000BASE-ZX1) |
| 10GE optical module |
10G-10km-tdM-XFP (I-64.1) |
| 10G-40km-tdM-XFP (S-64.2b) |
| 10G-80km-tdM-XFP (L-64.2) |
FAQ
Q: What is the Fiberhome HU2A Board?
A: It is a 4-port uplink card for Fiberhome AN5516 series OLTs.
Q: Which OLT models is the HU2A compatible with?
A: It works with Fiberhome AN5516-01, AN5516-06, and AN5516-06B OLTs, integrating seamlessly into existing AN5516 series chassis.

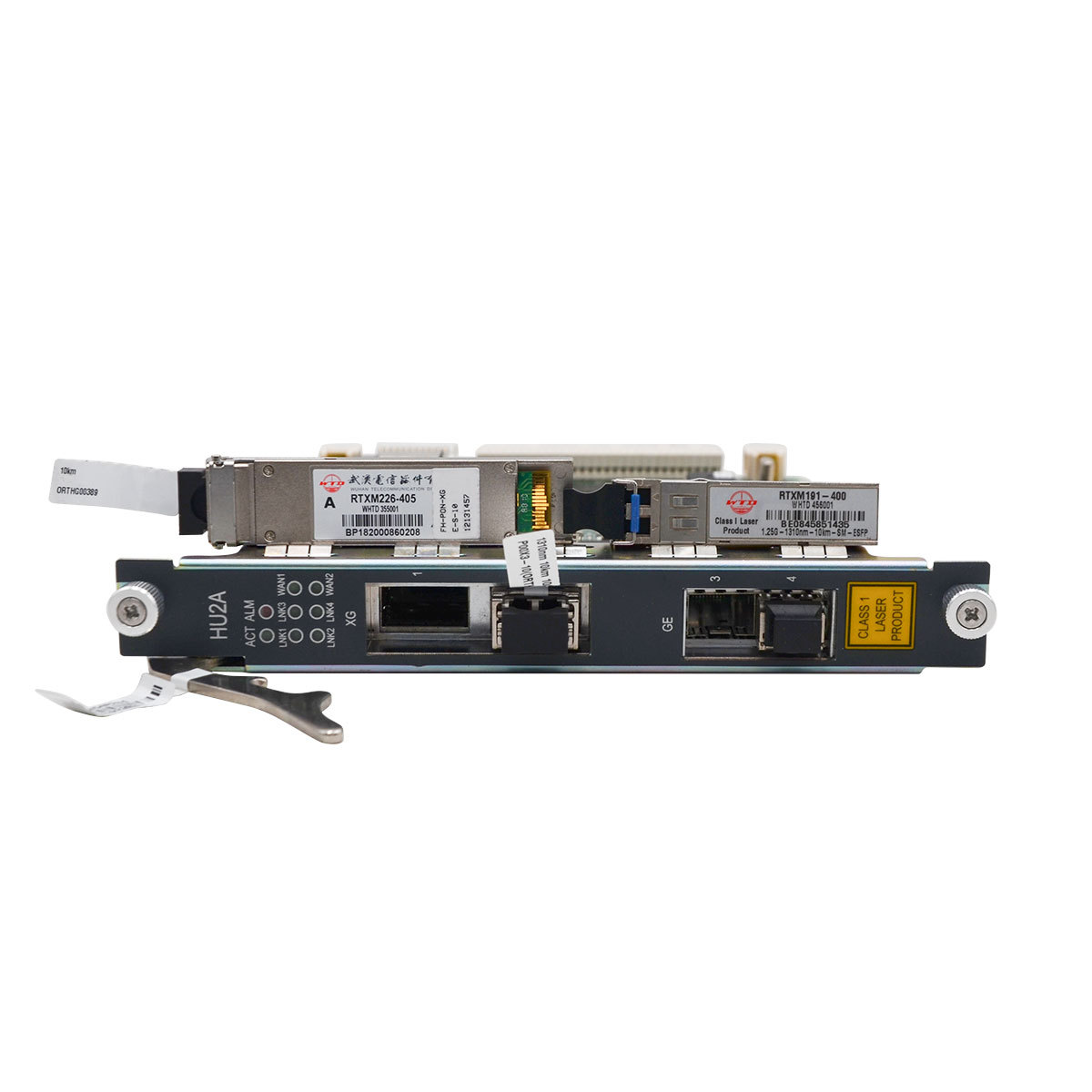

Q: What optical modules does the HU2A support?
A: It matches GE SFP modules and 10GE XFP modules.
Q: What is the lead time for orders?
A: 3-5 days for samples/small orders.
