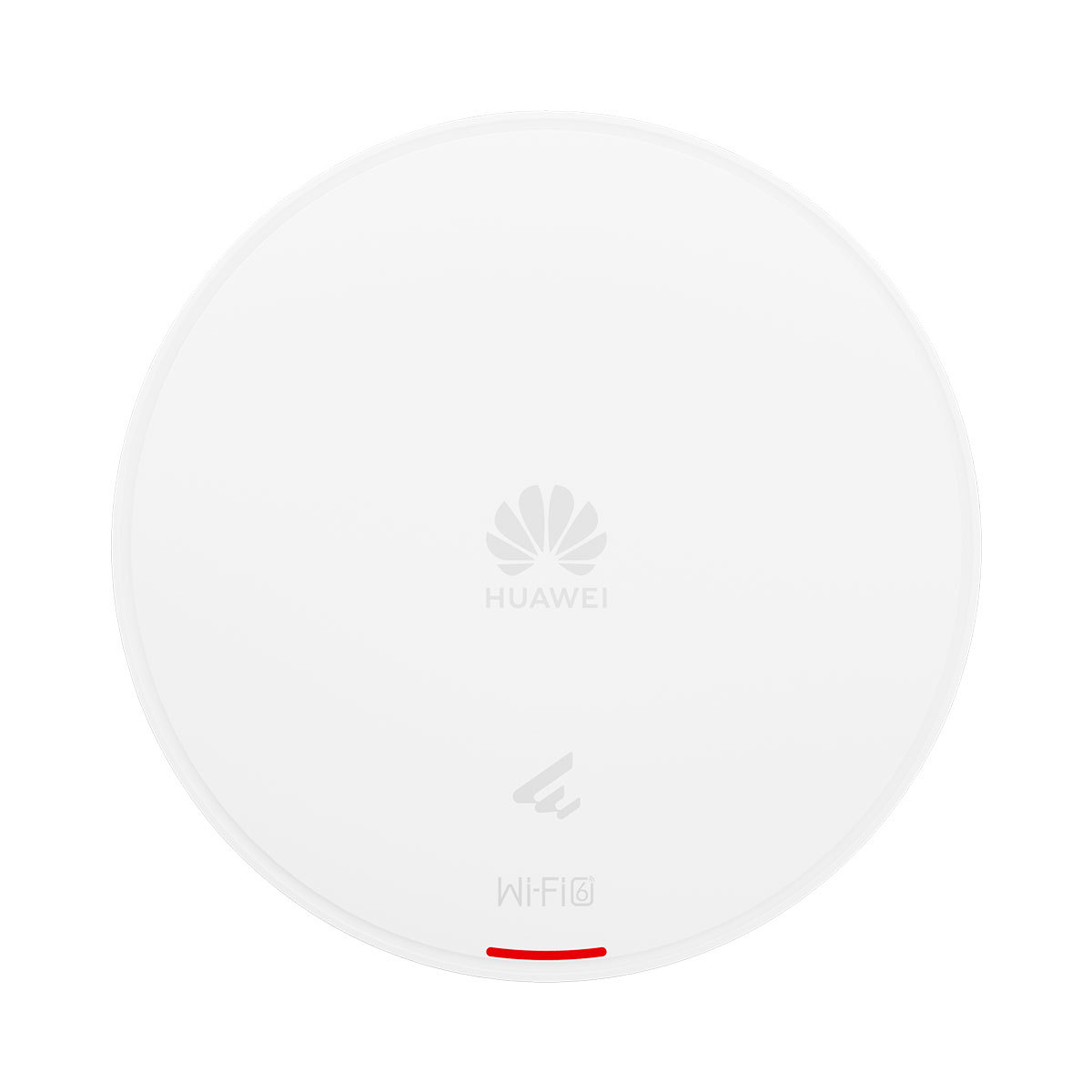

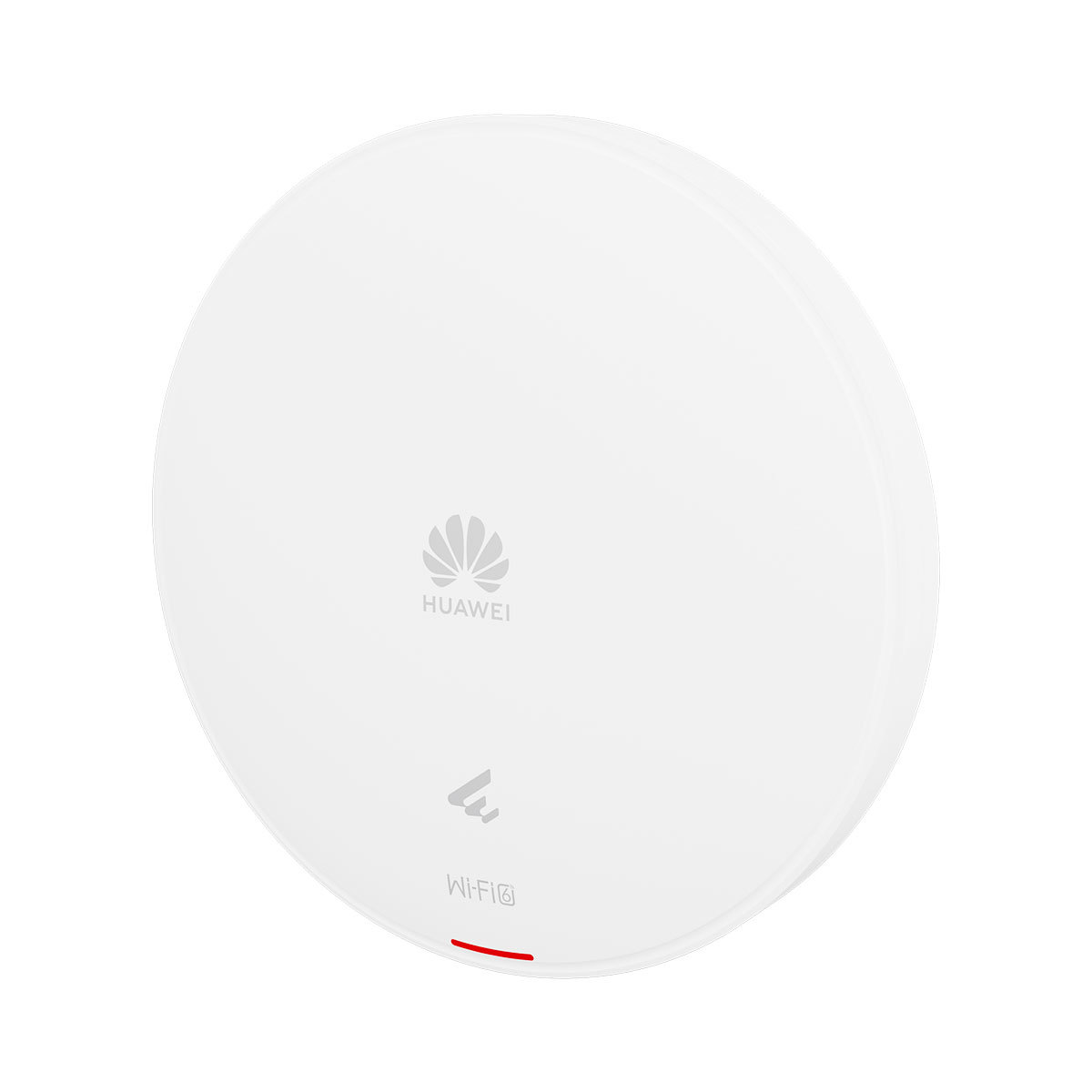

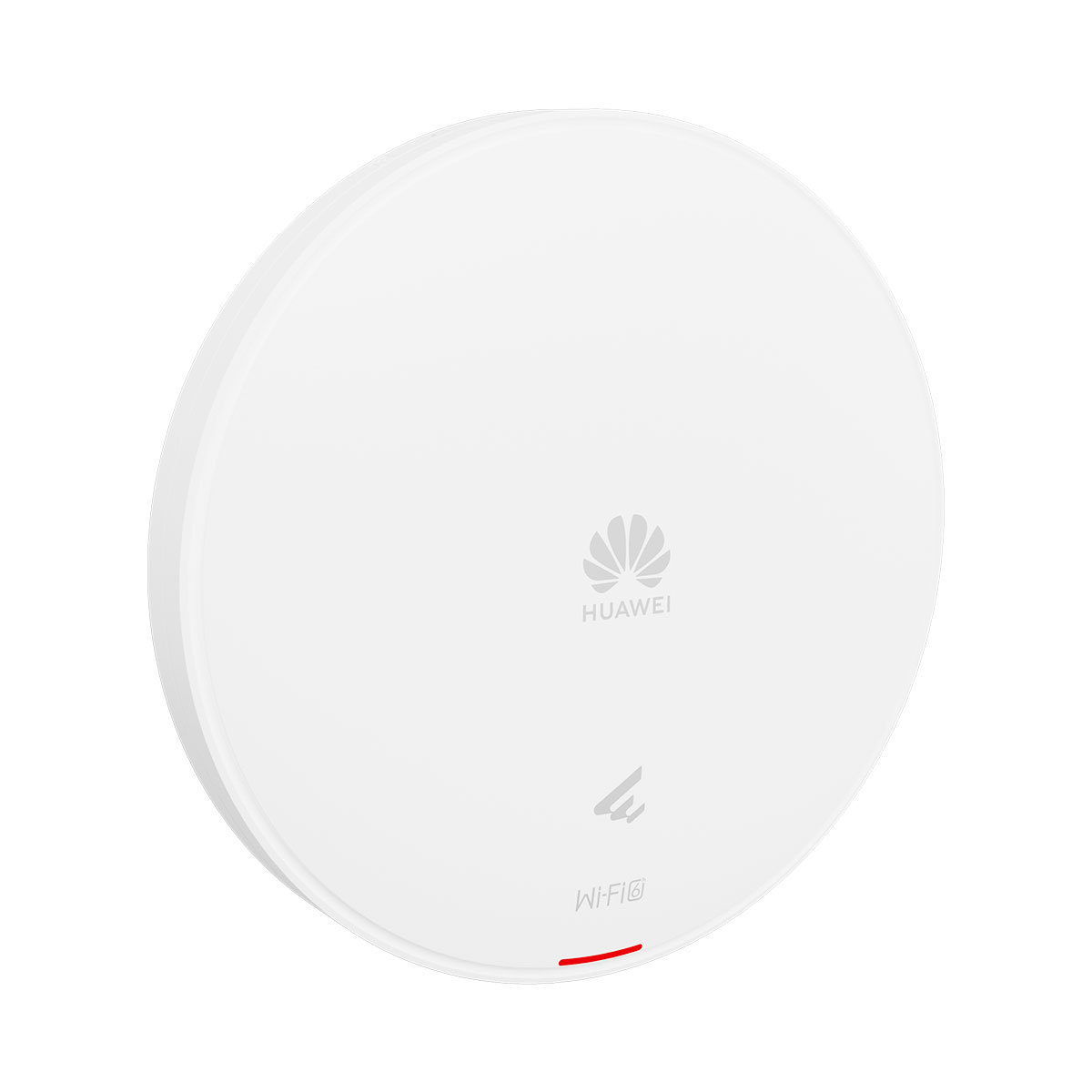

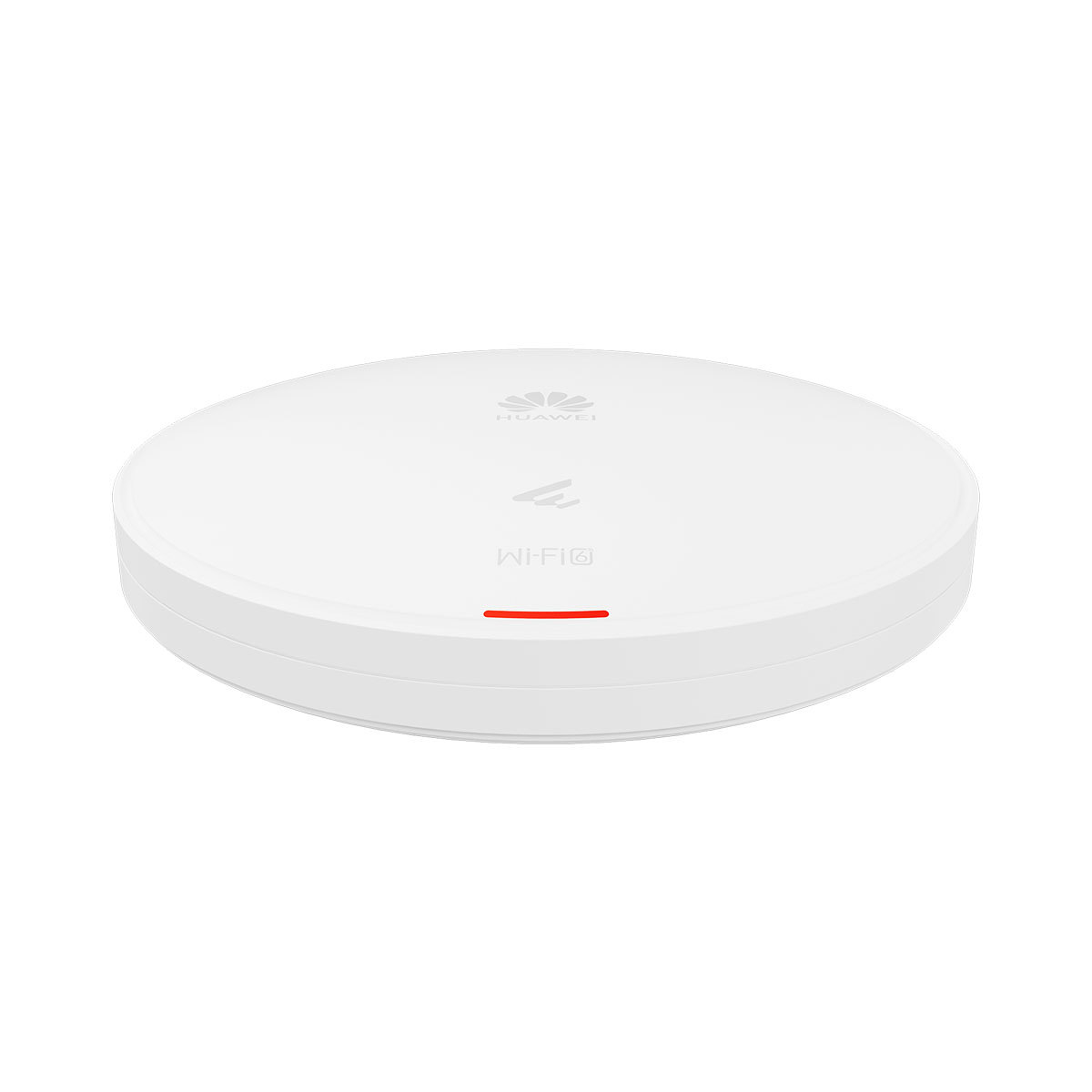

Huawei AirEngine 5761S-13 is an access point (AP) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, and cafes.

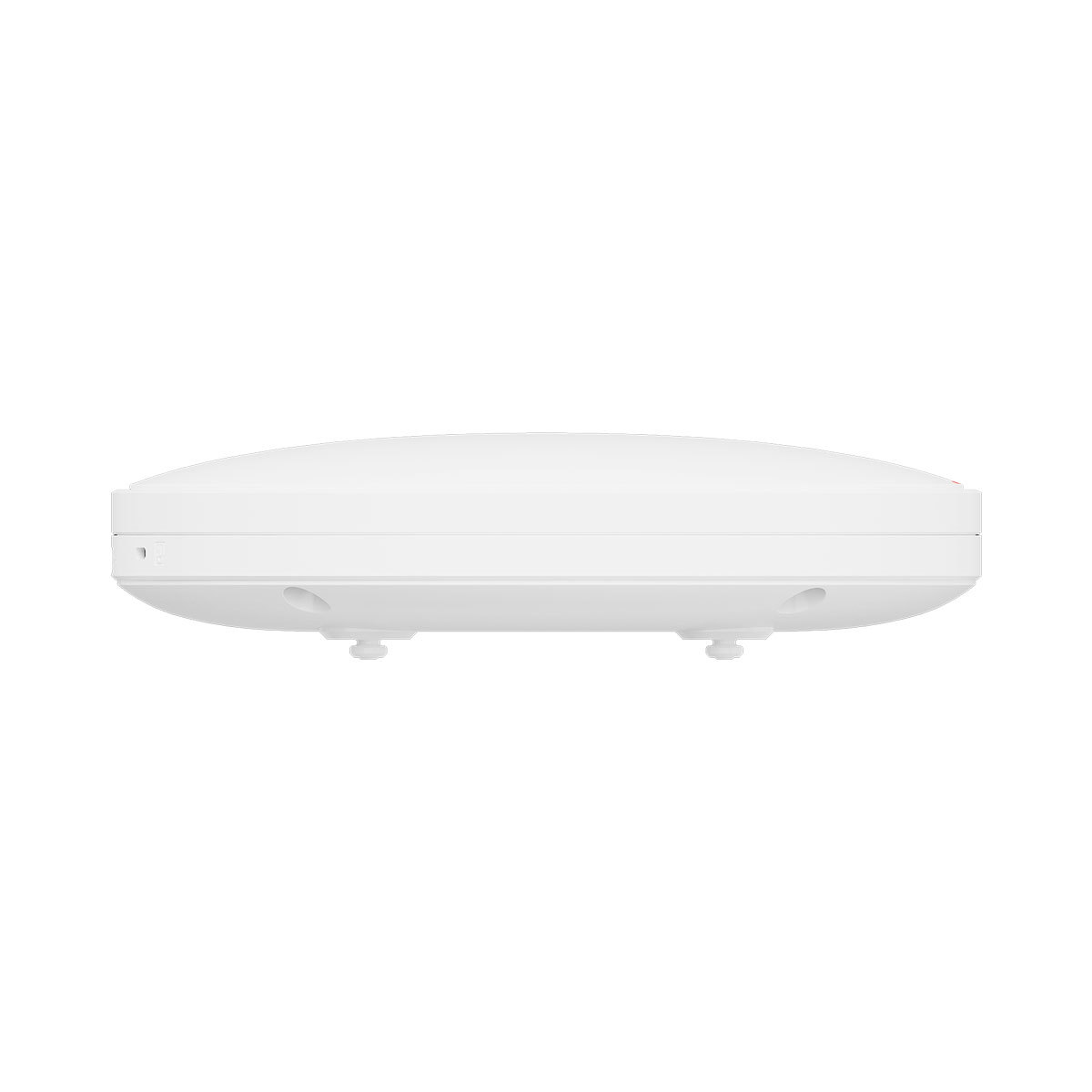

Front panel of the AirEngine 5761S-13
|

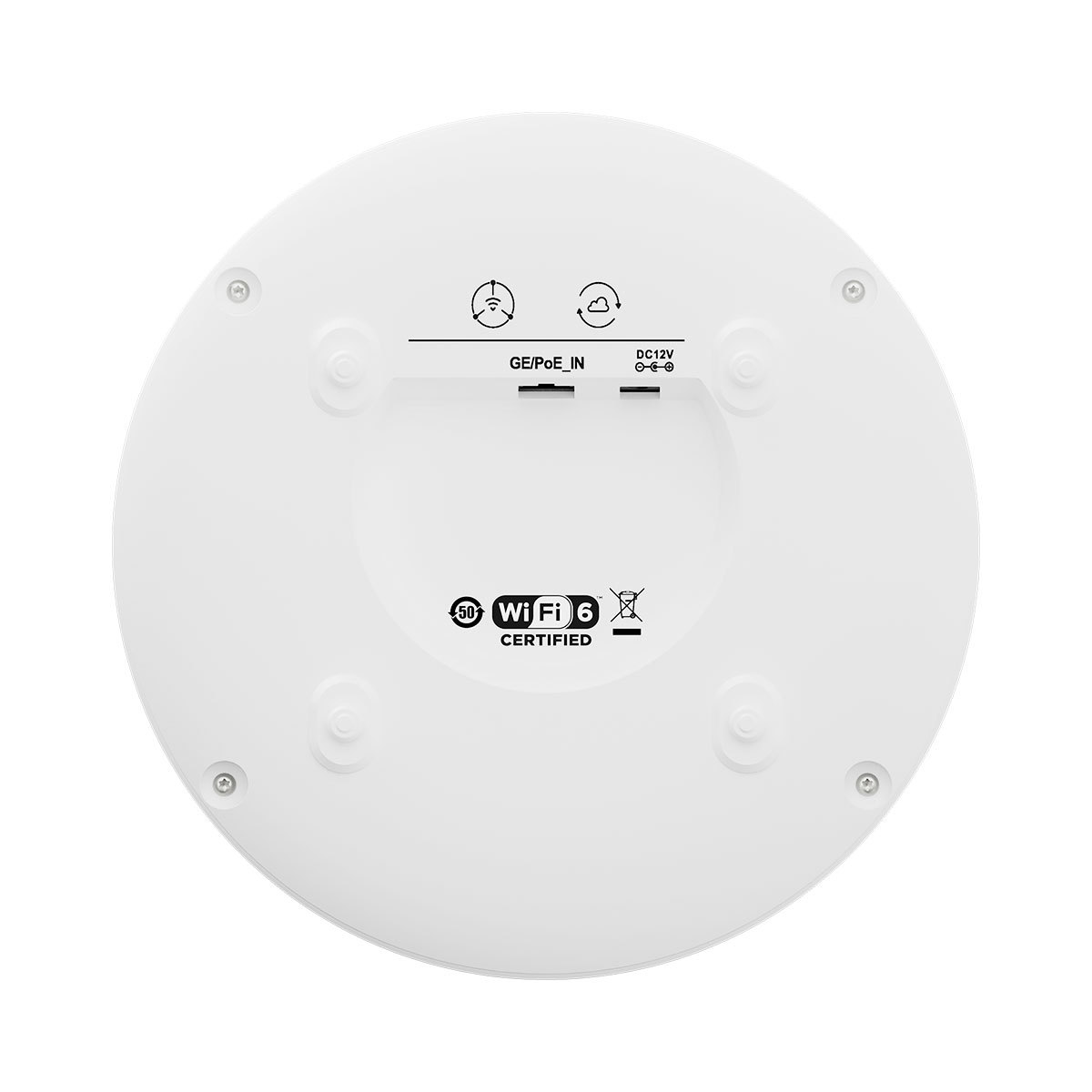

1 |
Security slot |
2 |
USB |
|
3 |
GE/PoE_IN |
4 |
DC 12V |
| Item | AirEngine 5761S-13 |
| Storage | NAND Flash 512 MB |
| Console port | Bluetooth console |
| Maximum power consumption [W] | 15.3 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 52.2 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
DC: 12 V ± 10% PoE: 802.3at/af |
| Service port surge protection |
PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.2 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain |
2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power |
2.4G: 24 dBm/chain 27 dBm (combined power) 5G: 24 dBm/chain 27 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] |
2.4G: -10 dBm to 24 dBm/chain 5G: -10 dBm to 24 dBm/chain |
| MTBF [year] | 134 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description |
Wi-Fi: 2.4 GHz (2x2)+5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz radio) and 22 dBm (5 GHz radio). Wired network port: No restriction is posed on wired network ports. Other ports: The USB port is unavailable. |
| DC power supply description | No function is limited. |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.) |
| Weight without packaging [kg(lb)] | 1.05 kg (2.31 lb) |
