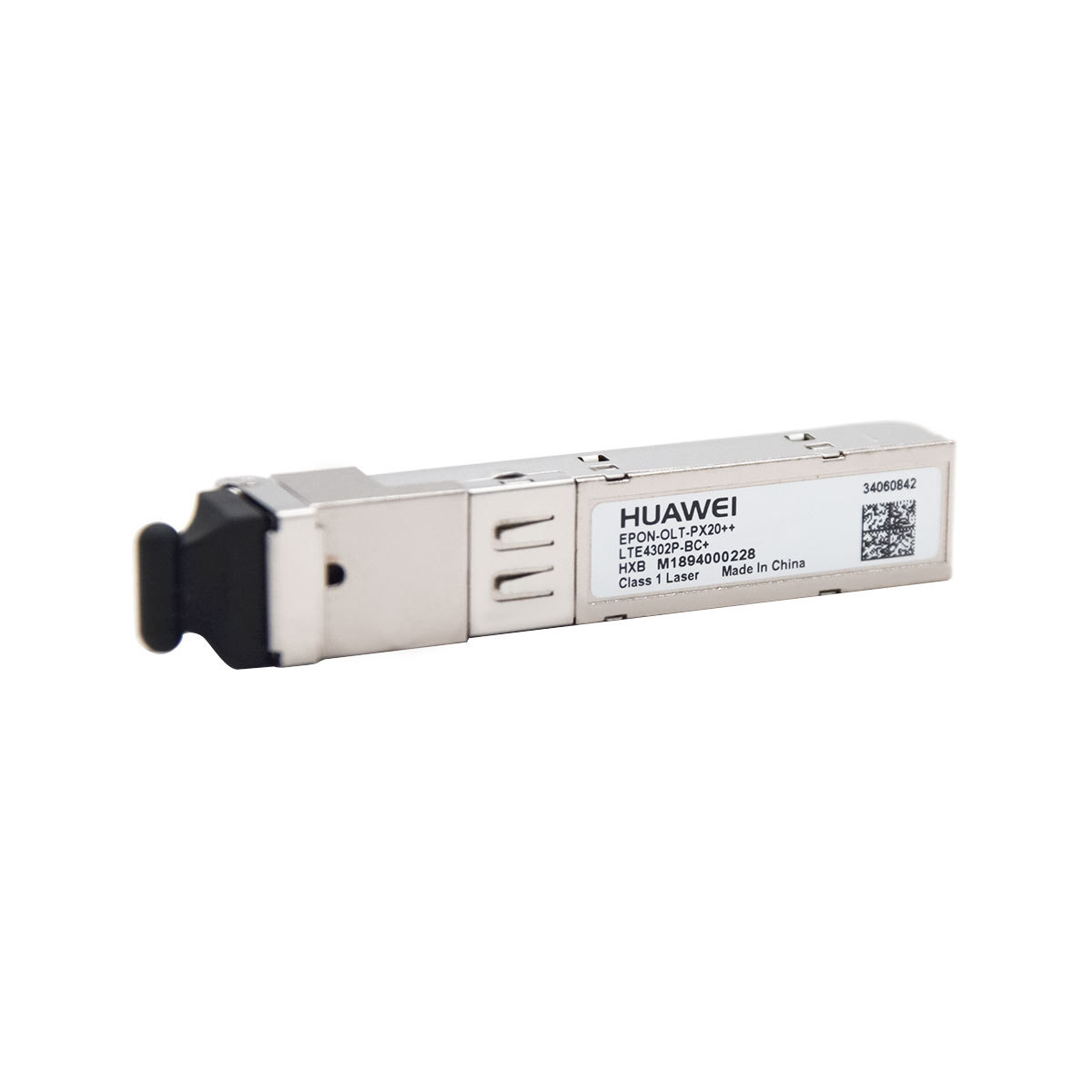

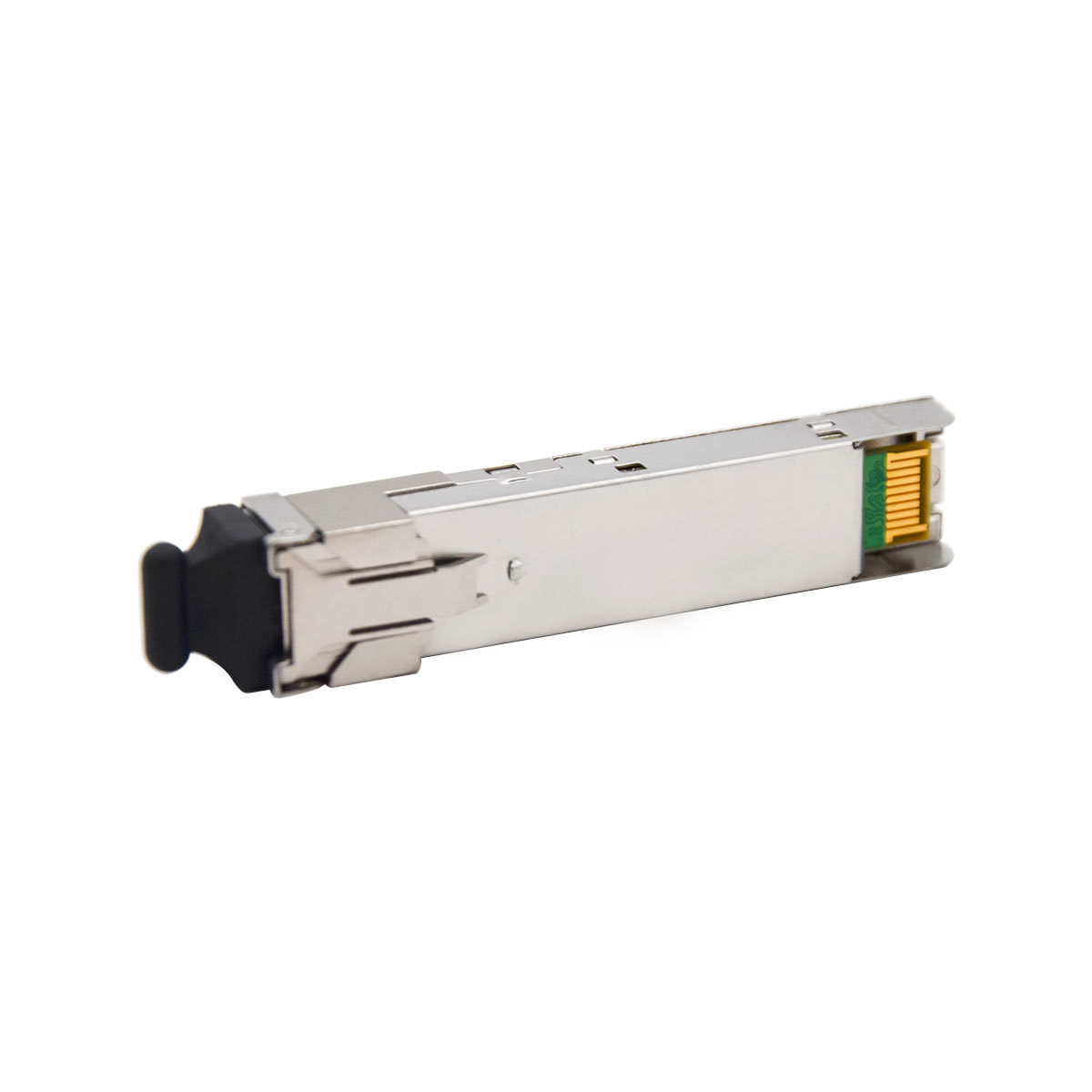

| EPON Transceiver Information | ||
| Type | One-fiber bi-directional optical module，PX20++ | |
| Operating Wavelength | Tx：1490nm
Rx：1310nm |
|
| Encapsulation Type | SFP | |
| Port Rate | 1.25Gbit/s | |
| Minimum Output Optical Power | 5dBm | |
| Maximum Output Optical Power | 9dBm | |
| Maximum Receiver Sensitivity | -34dBm | |

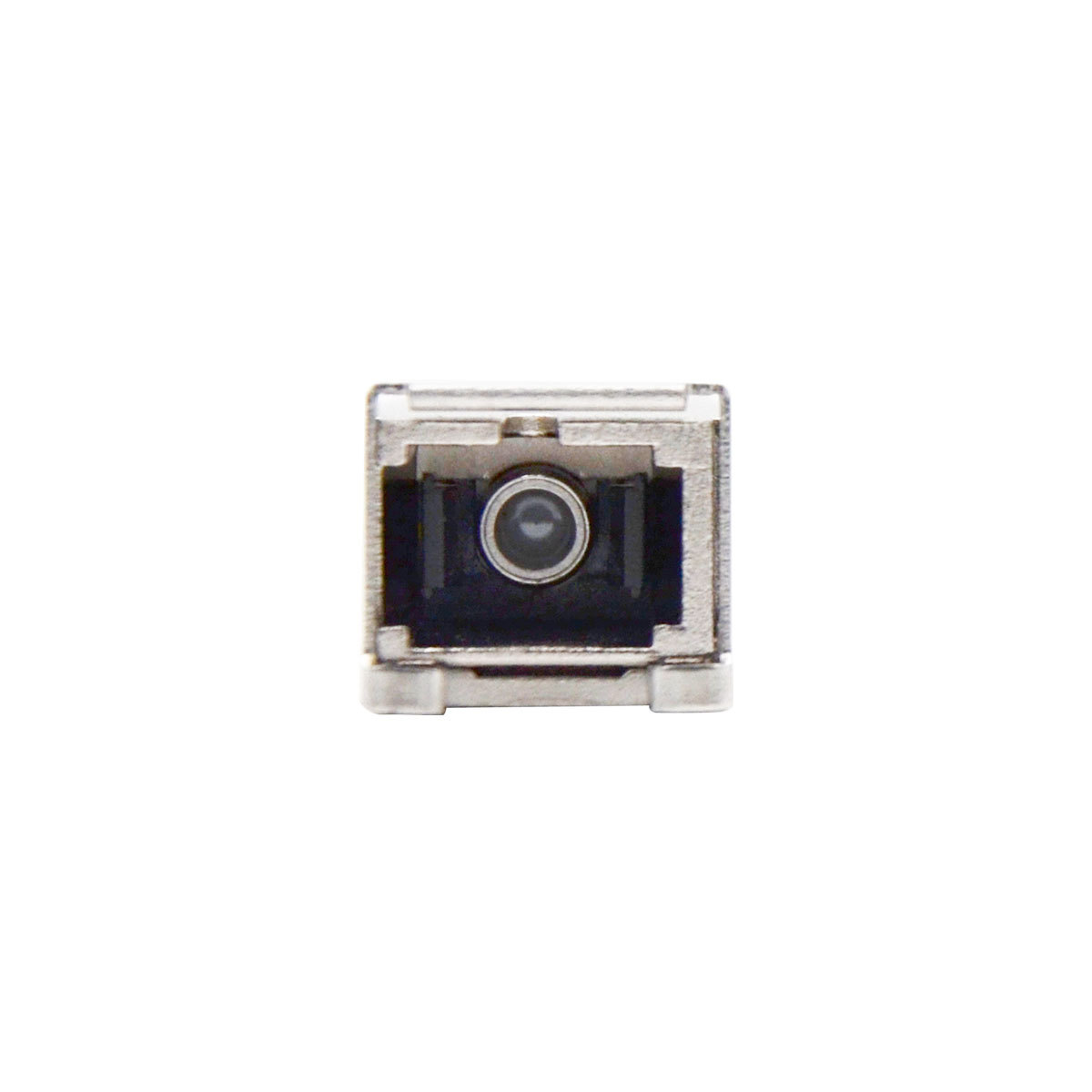

| Optical Connector Type | SC | |
| Optical Fiber Type | Single-mode | |
| Overload Optical Power | -10dBm | |
| Extinction Ratio | 9dB | |
