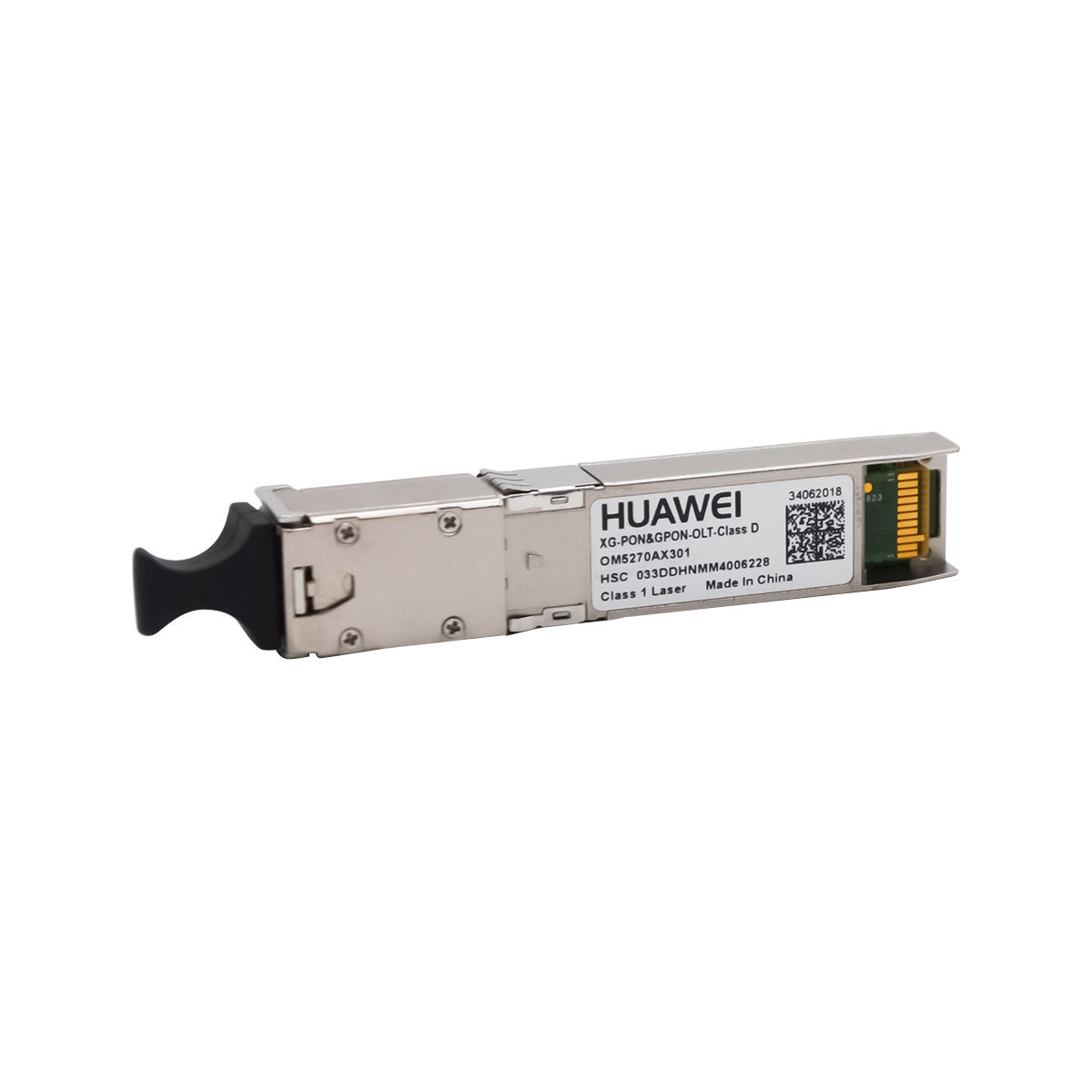

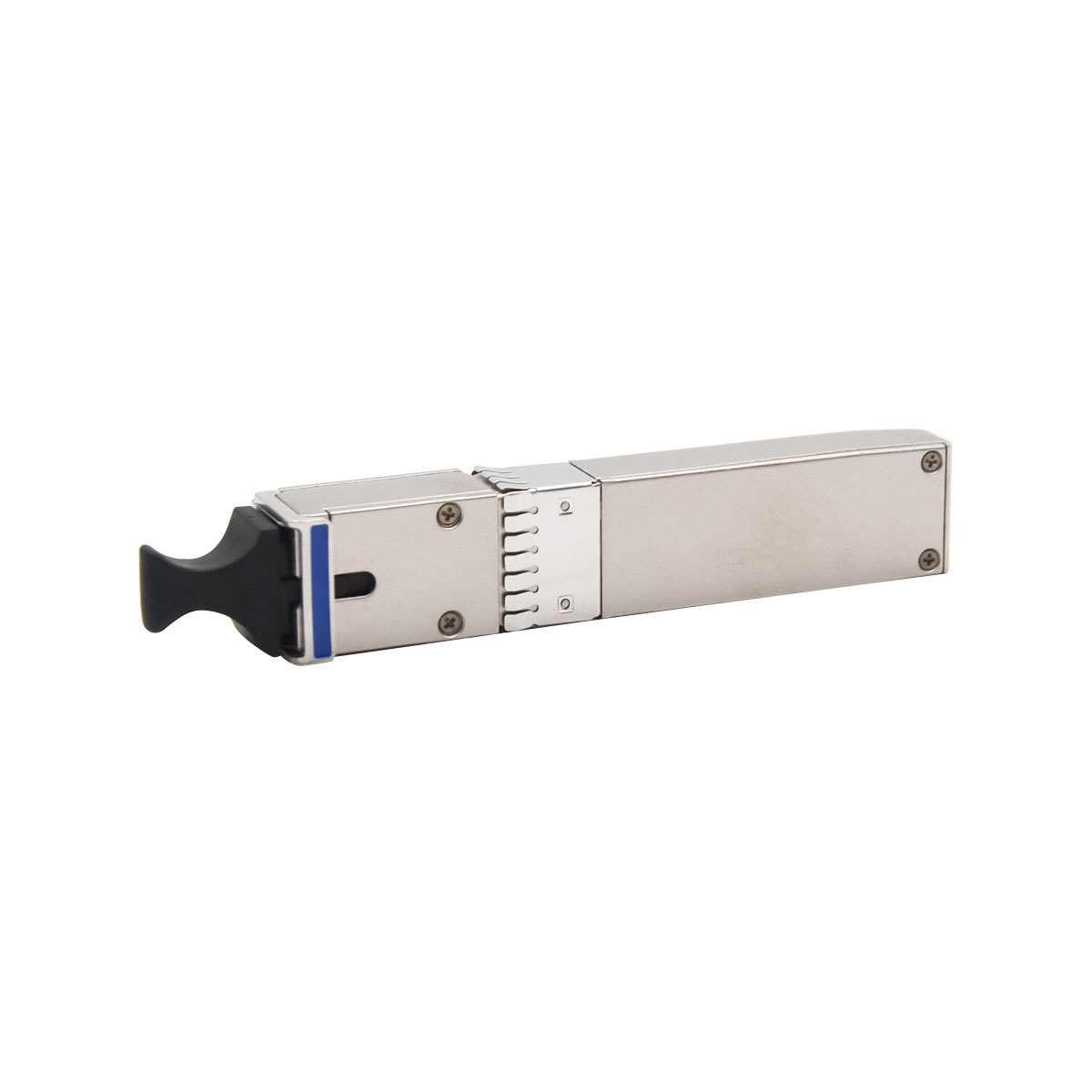

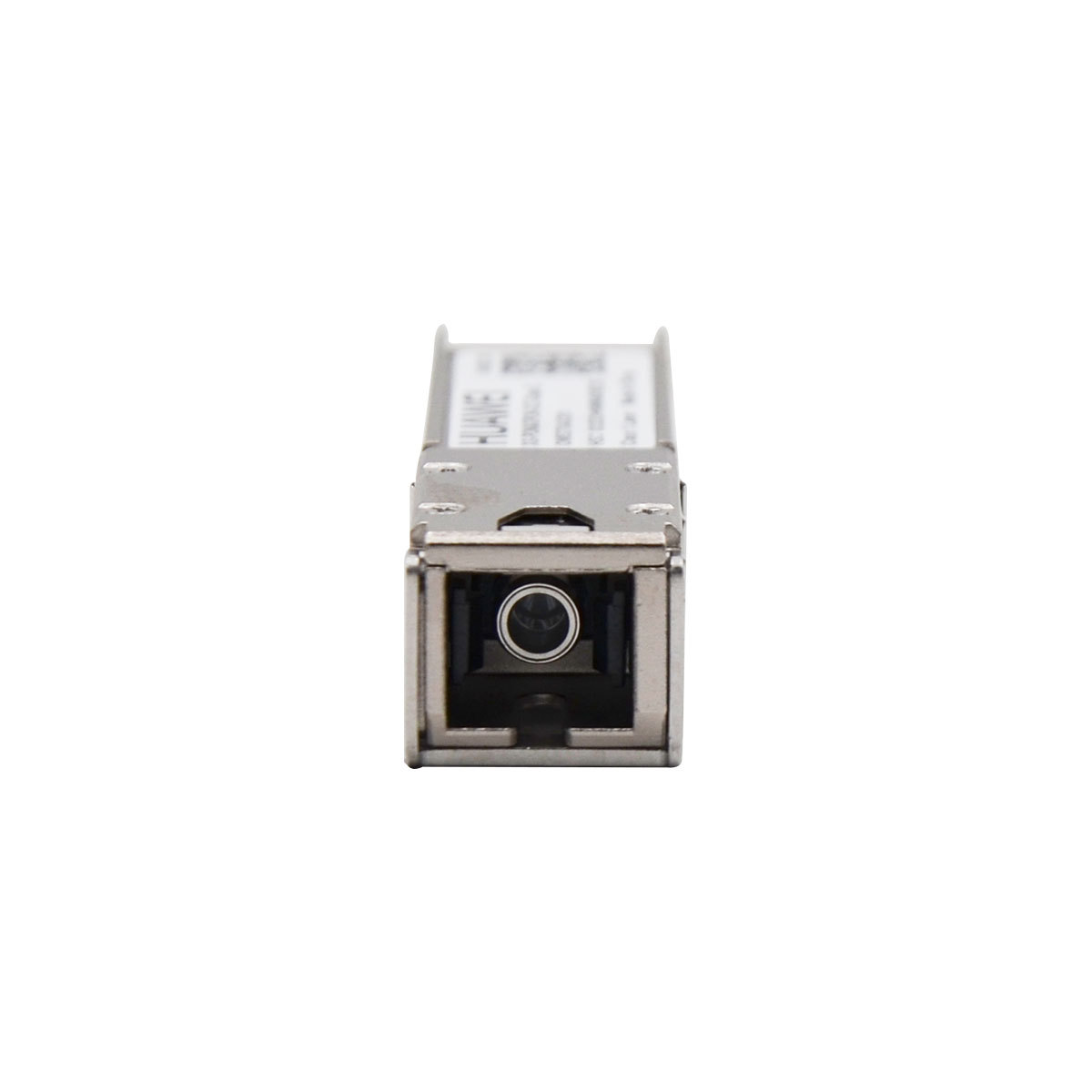

| XGPON & GPON Transceiver Information | |
| Type | One-fiber bidirectional optical module, class D |
| No. | 4 |
| Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm |
| XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
|
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
| XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
|
| Minimum Output Optical Power | GPON channel: 6 dBm |
| XG-PON channel: 8 dBm | |
| Maximum Output Optical Power | GPON channel: 10 dBm |
| XG-PON channel: 11 dBm | |
| Maximum Receiver Sensitivity | GPON channel: -35 dBm |
| XG-PON channel: -33.5 dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -15 dBm |
| XG-PON channel: -13 dBm | |
| Extinction Ratio | 8.2 dB |
