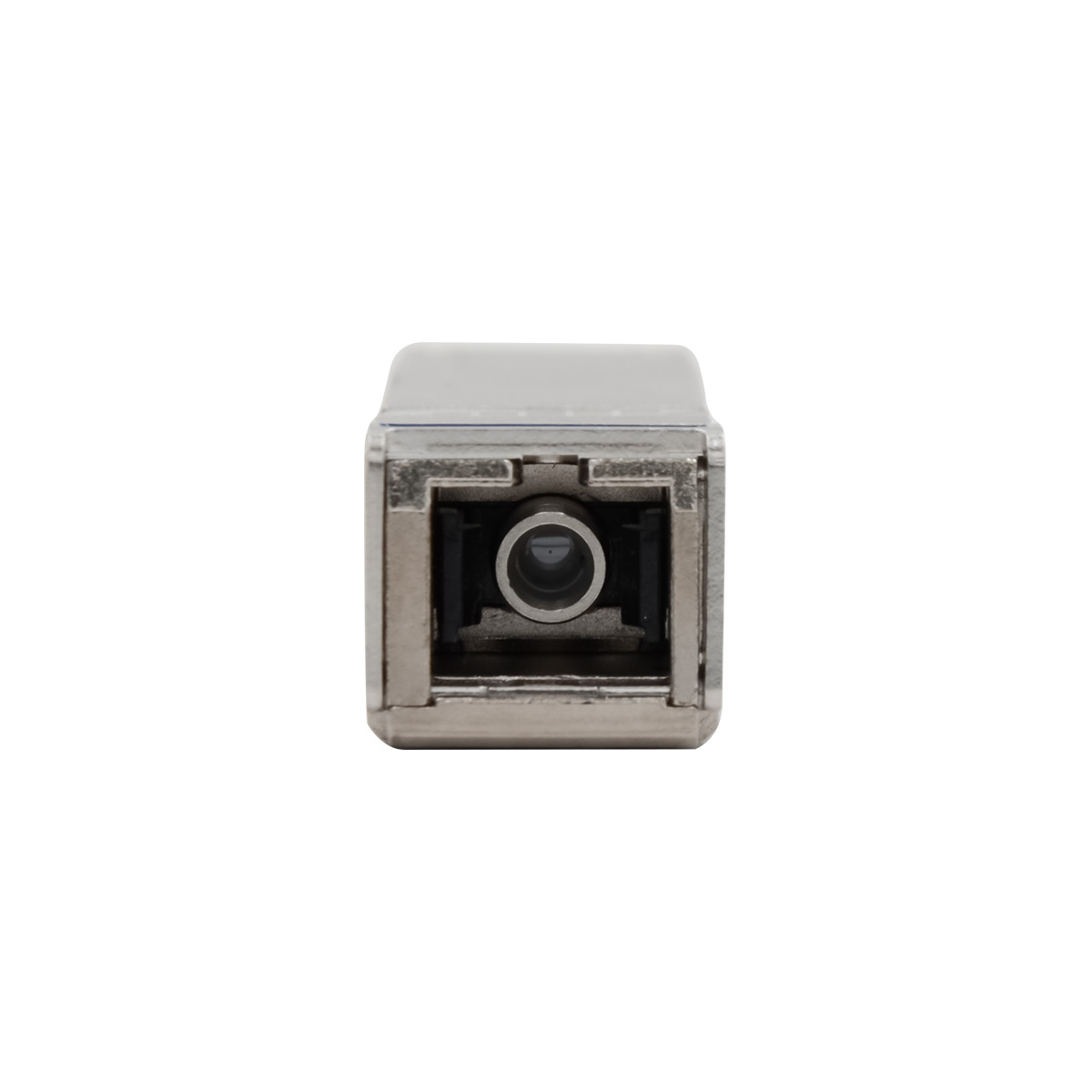

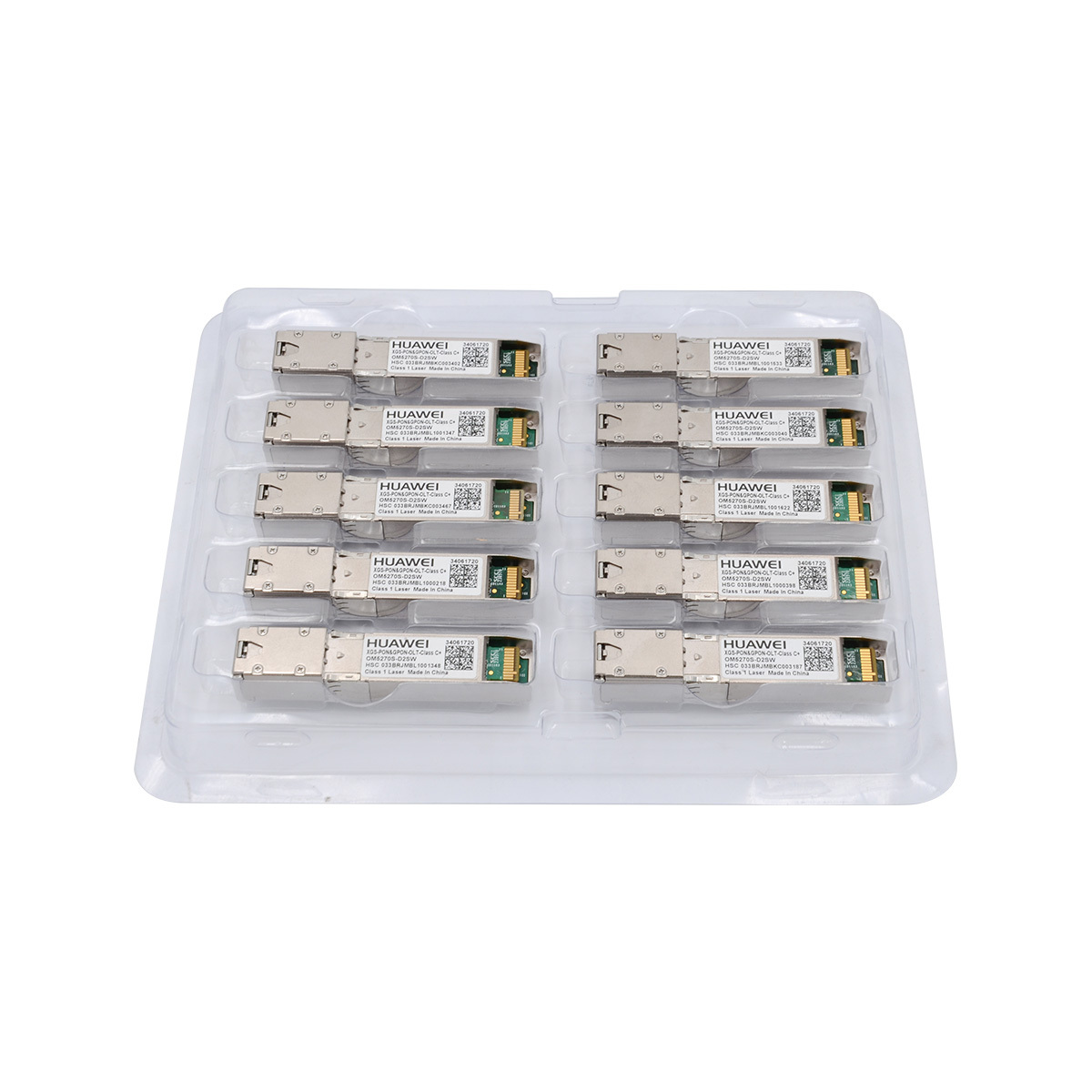

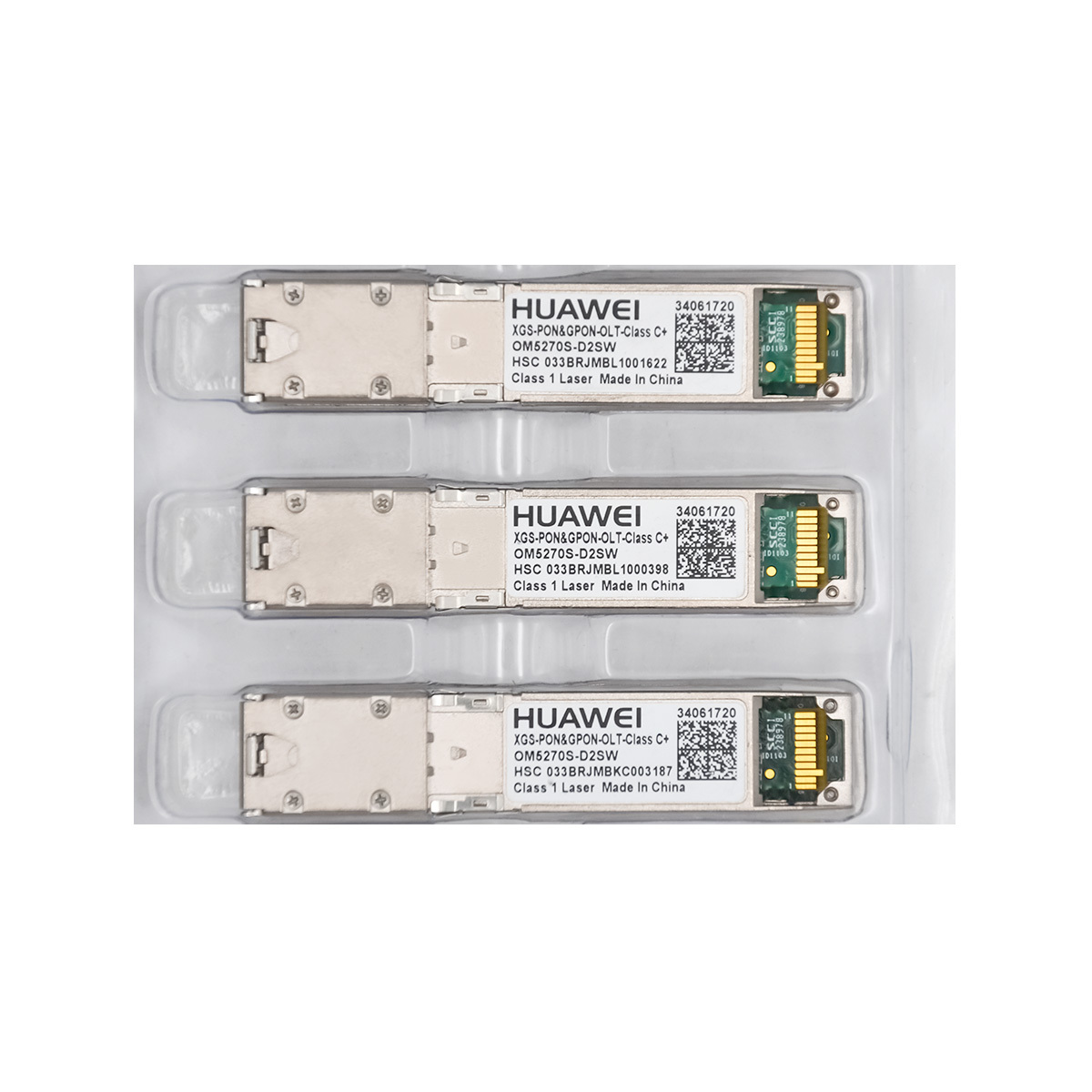

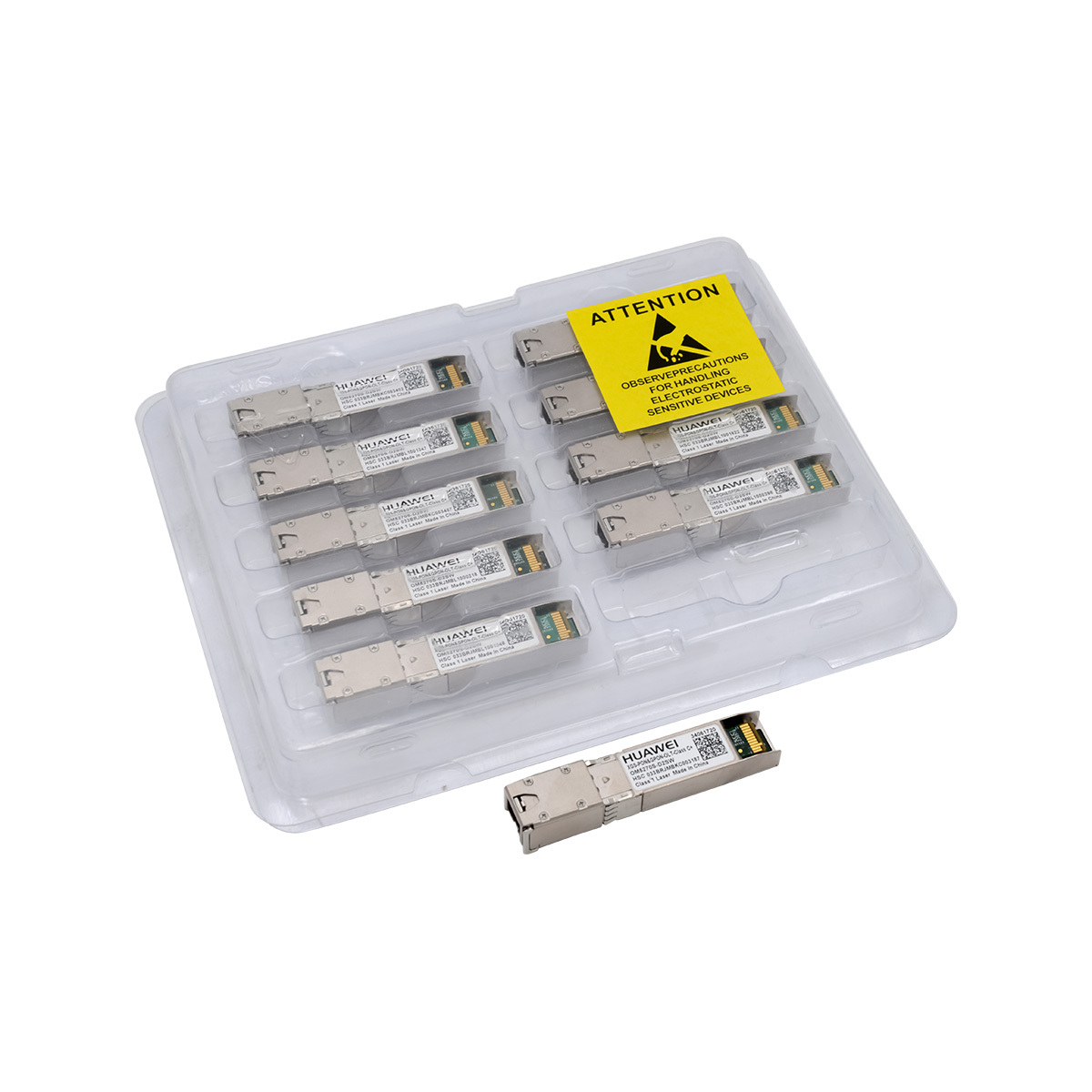

| XGS-PON & GPON Transceiver Information | ||
| Type | Class C+ | |
| Operating Wavelength | GPON Channel:
Tx:1490nm Rx:1310nm
XGS-PON Channel: Tx: 1577nm Rx:1270nm |
|
| Encapsulation Type | SFP+ | |
| Port Rate | GPON Channel:
Tx: 2.488Gbit/s Rx: 1.244Gbit/s
XGS-PON Channel: Tx: 9.953Gbit/s Rx: 9.953/2.488Gbit/s |
|
| Minimum Output Optical Power | GPON Channel: 3dBm
XGS-PON Channel: 5dBm |
|
| Maximum Output Optical Power | GPON Channel: 7dBm
XGS-PON Channel: 8dBm |
|
| Maximum Receiver Sensitivity | GPON Channel:-32dBm
XG-PON Channel: -30.5dBm XGS-PON Channel:-29dBm |
|
| Optical Connector Type | SC | |
| Optical Fiber Type | Single-mode | |
| Overload Optical Power | GPON Channel:-12dBm
XG-PON Channel: -10dBm XGS-PON Channel: -8dBm |
|
| Extinction Ratio | 8.2dB | |
