Name: ZTE HUVQ Uplink Card
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0043
Price: 300.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0043

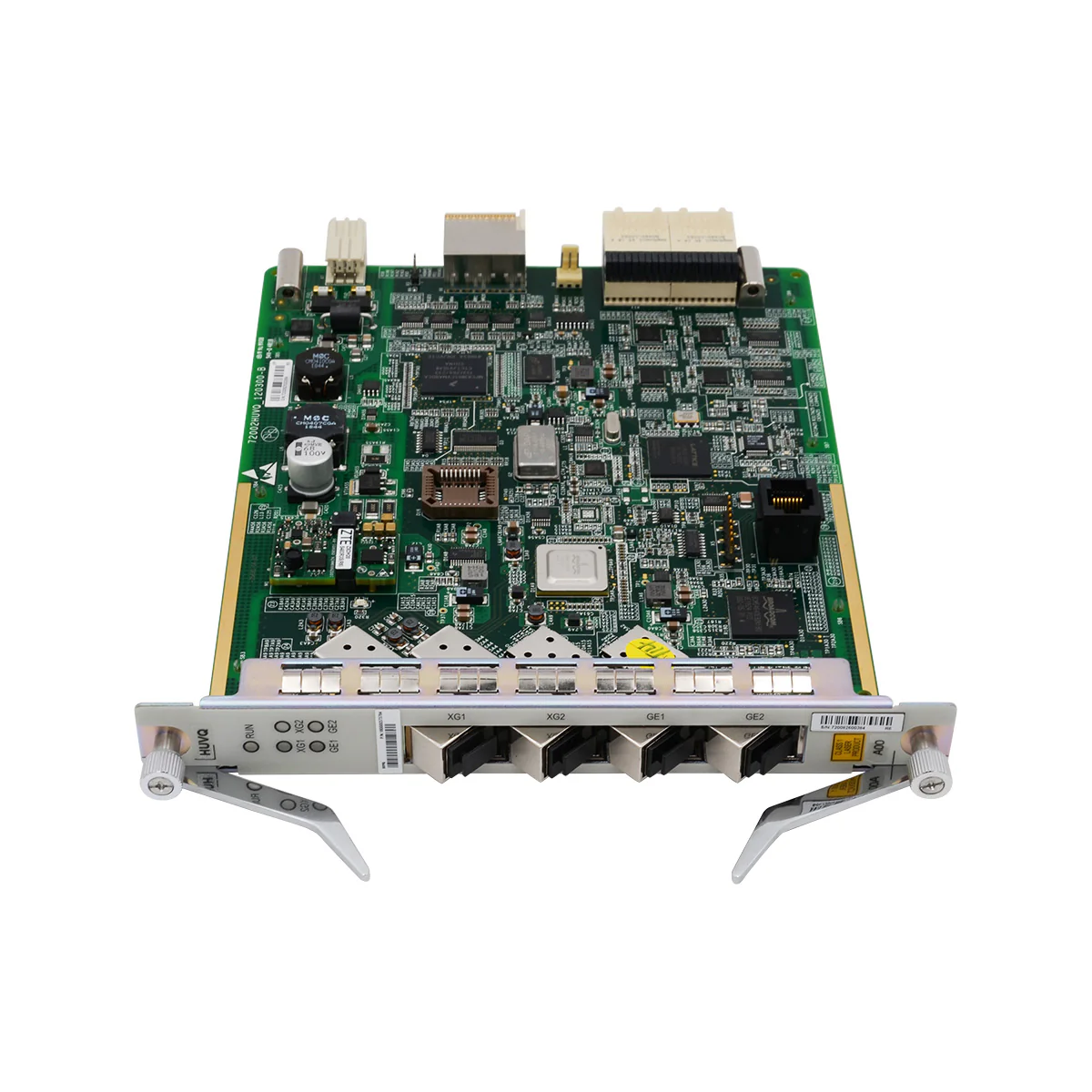

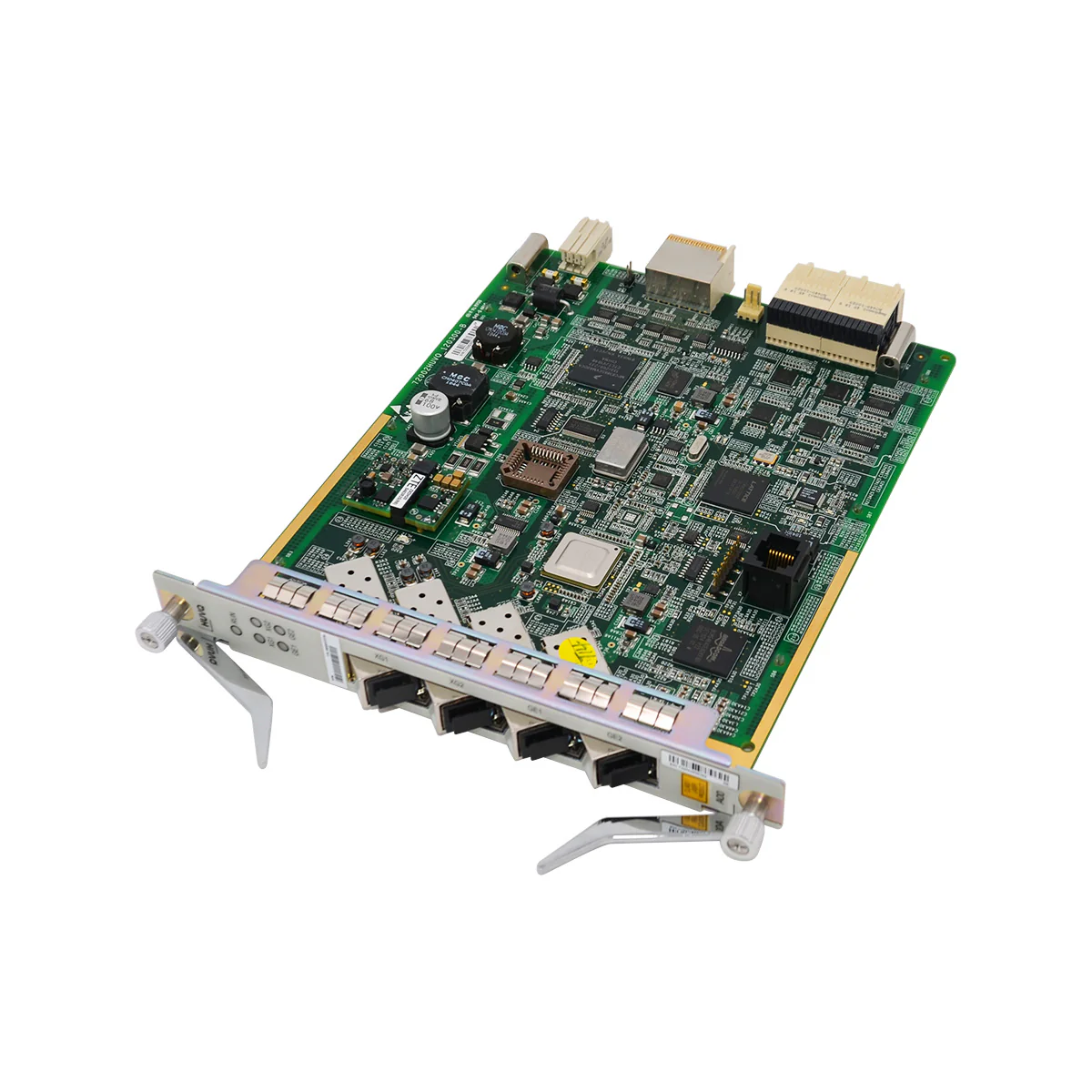

ZTE HUVQ 2-port 10GE and 2-port GE optical interface Ethernet uplink board for ZXA10 C350 C300

Packing Box Specifications

48*33*7cm

Gross Weight

2.5kgs

Condition

Original new

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description

ZTE HUVQ Overview

The ZTE HUVQ is a high-performance 10GE uplink card for ZTE's C300/C320 OLT platforms, offering features like dual 10GE and dual GE optical ports for high-capacity data transport, supporting 10GE synchronous Ethernet (SynE), IEEE 1588 TC (Timing and Sync), and optical power monitoring for reliable network evolution and demanding bandwidth requirements.

Product Features

High-Speed Uplink: Provides 2 x 10GE (SFP+) and 2 x GE (SFP) optical ports for fast data aggregation and forwarding.
Network Evolution: Designed for "large capacity and few offices" network architecture, supporting flat networks and high-density requirements, notes Alibaba.com, info.mrtlink.com.
Advanced Timing: Supports 10GE synchronous Ethernet (SynE) and IEEE 1588 Precision Time Protocol (PTP) for precise timing synchronization, crucial for mobile backhaul.
Carrier-Class Reliability: Includes optical power monitoring for link health and is engineered for continuous operation in diverse environments.
Versatile Application: Ideal for next-generation PON (Passive Optical Network) evolution, handling Triple Play services (voice, video, data) efficiently.

Application Scenarios

1. Urban 5G Backhaul & FTTH Integration in South Korea

A leading South Korean telecom operator deployed ZTE HUVQ uplink boards with ZXA10 C320 OLTs to upgrade urban network infrastructure. The HUVQ’s 100Gbps single-port uplink capacity and QSFP28 interface seamlessly integrate 5G base station backhaul with high-density FTTH services (serving 6,000+ households). Supporting 1588v2 precision clock sync and low latency, it ensures stable 4K/8K streaming and enterprise cloud access. Post-deployment, network bandwidth utilization increased by 40%, with 99.96% uptime, meeting the operator’s 5G+FTTH convergence goals.

2. Large Enterprise Data Center Interconnect in the Netherlands
A Dutch multinational enterprise adopted ZTE HUVQ uplink boards for its data center (DC) interconnect network. Paired with ZXA10 C350 OLTs, the HUVQ delivers 100Gbps high-speed uplink, enabling fast data replication between 3 regional DCs. Its hot-swappable design ensures non-stop operation, while compatibility with IPv4/IPv6 dual-stack supports future business expansion. The board’s low power consumption (typical 18W) reduced DC energy costs by 15%, and its stable performance guaranteed 99.99% data transmission reliability.

Downloadable resources

ZTE HUVQ Board Datasheet

Technical Specifications

ZTE HUVQ Board Datasheet
HUVQ	2-port 10GE and 2-port GE Ethernet uplink card
10GE 10GE interface uplink to 10GE network	10GE SFP+ interface, including four types of optical modules: 300 m, 10 km, 40 km, 80 km, LC/PC connector.
GE interface uplink to GE network	GE SFP interface, including five types of optical modules: 550 m, 10 km, 40 km, 80 km, 120 km, LC/PC connector.
Application	ZXA10 C300/C350 uplink link card slot
Function	• Supports two 10GE SFP+ interfaces and two GE SFP interfaces • Supports optical power monitoring. • Supports SynE. • Supports Ethernet uplink. Does not support Ethernet user access and cascading.
Card Dimensions (Height × Width × Depth)	197.75 mm × 25 mm × 225 mm
Card Weight	0.432 kg
Power Consumption (W)	Static: 13 maximum: 15, typical: 13

FAQ

Q: What is ZTE HUVQ?
A: ZTE HUVQ is a high-speed 100Gbps uplink board designed for ZXA10 C320/C350 OLTs.

Q: Which OLT models are compatible with HUVQ?
A: It is exclusively compatible with ZTE ZXA10 C320 and C350 OLTs, ensuring seamless integration with the platform’s hardware and software.

Q: What precautions are there for daily maintenance?
A: Keep the operating temperature between 0°C–45°C, regularly check the optical interface for dust (clean with professional tools if needed), and upgrade firmware per ZTE’s official guidelines.

Q: What is the warranty period for ZTE HUVQ?
A: Genuine ZTE HUVQ uplink boards come with a 12-month warranty covering manufacturing defects, supported by global technical after-sales service.

Q: What payment methods are accepted at MF-Telecom?

A: PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay are supported for secure transactions.
