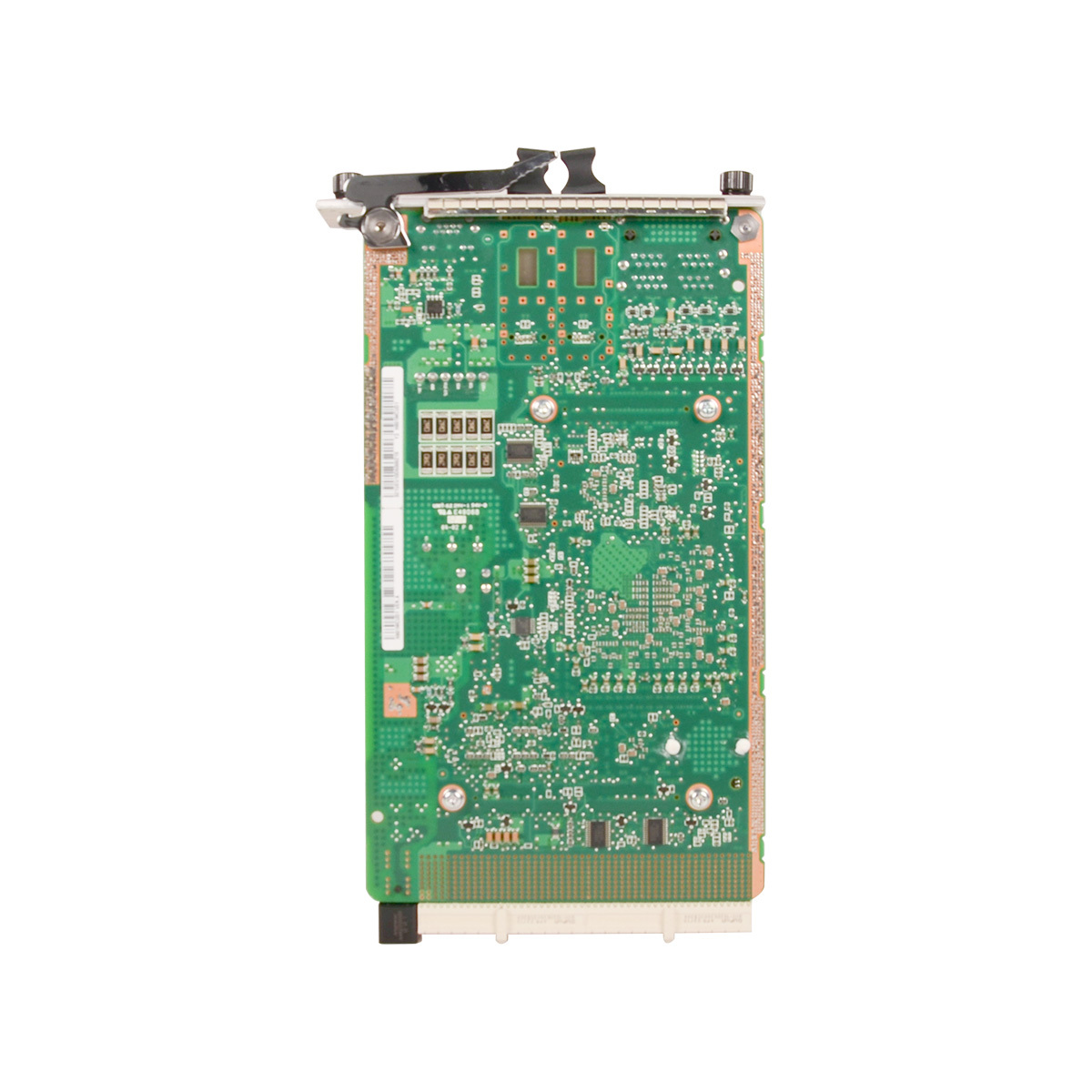

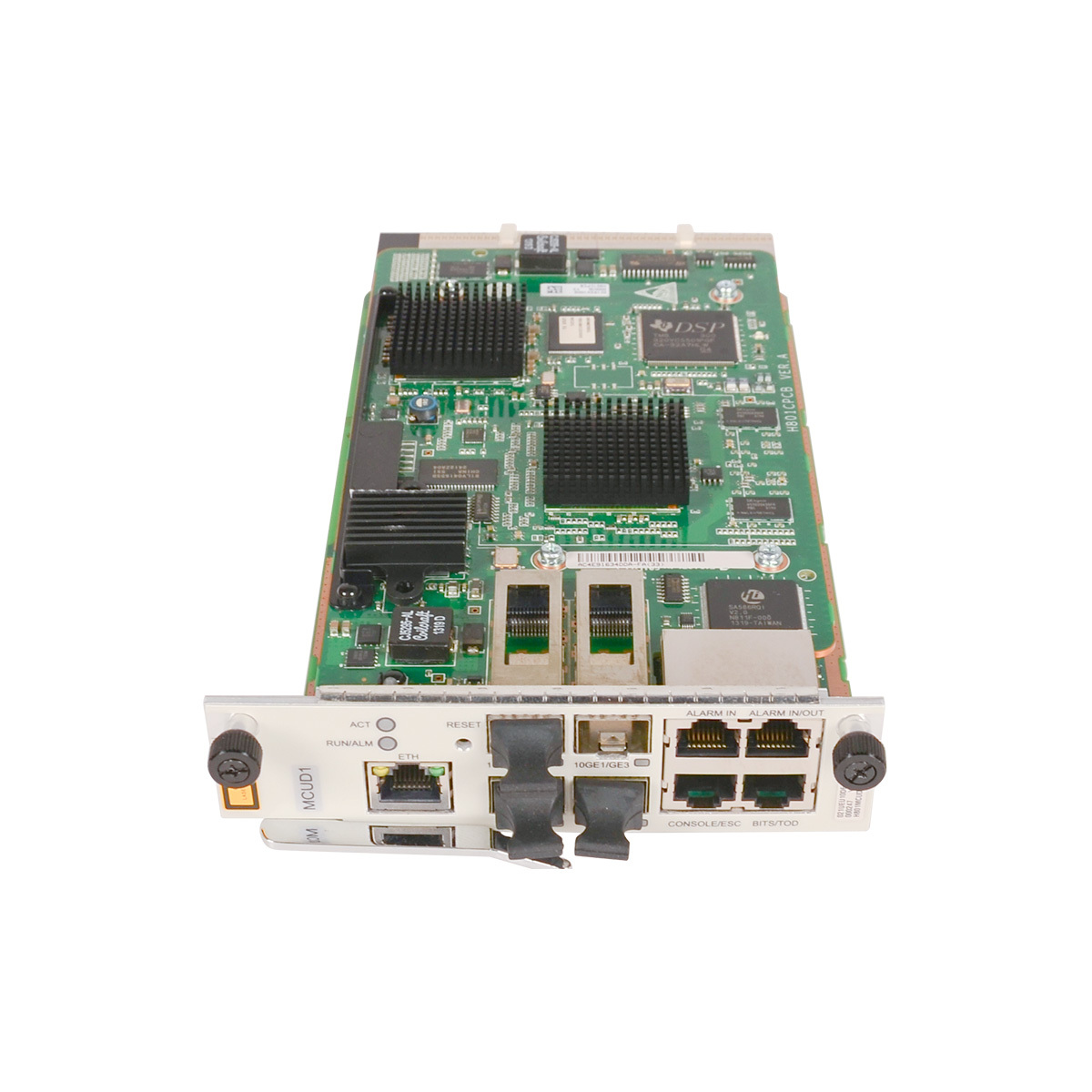

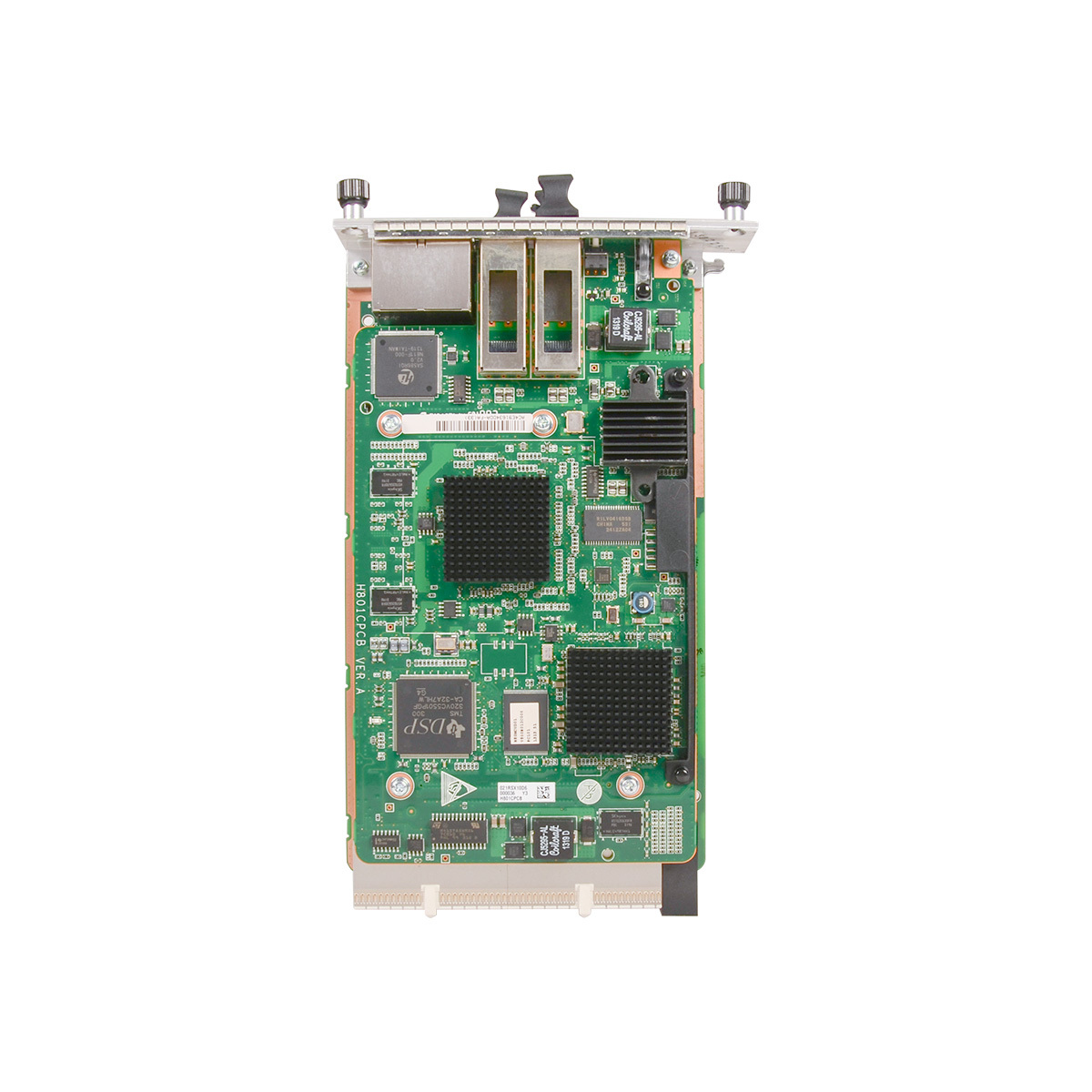

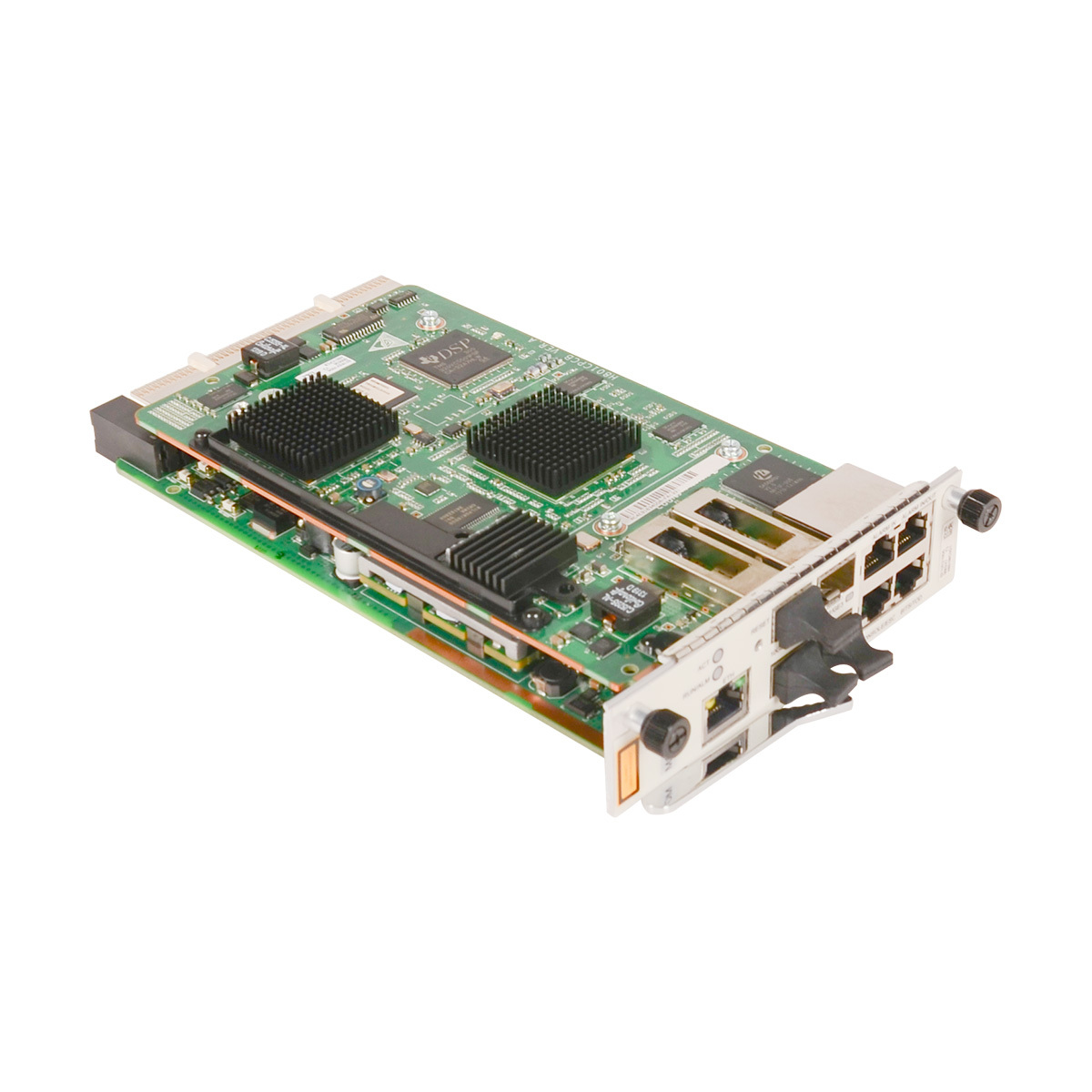

Huawei MCUD1 Overview
The Huawei MCUD1 is a high-performance main control/uplink board for the MA5608T OLT (Optical Line Terminal), offering 10GE uplink capabilities, system control, and service switching for Fiber-to-the-Home (FTTH) networks, featuring 2x 10GE SFP+ & 2x GE SFP ports, 256G switching capacity (or 512G in load sharing), ISSU, time sync (1588v2), and robust management interfaces for stable, scalable broadband delivery.
Product Features
- High-Speed Uplinks: Integrated 2 x 10GE SFP+ and 2 x GE SFP optical ports for fast data transmission.
- System Control & Switching: Provides core management, service switching, and aggregation, functioning as the brain for the MA5608T.
- Performance: Up to 256G switching capacity in active/standby, or 512G in load-sharing mode, supporting large subscriber bases (up to 2048).
- Reliability: Supports active/standby redundancy and ISSU (In-Service Software Upgrade) for non-disruptive updates.
- Time Synchronization: Includes support for Synchronized Ethernet, 3-stratum clock, and 1588v2 for precise timing.

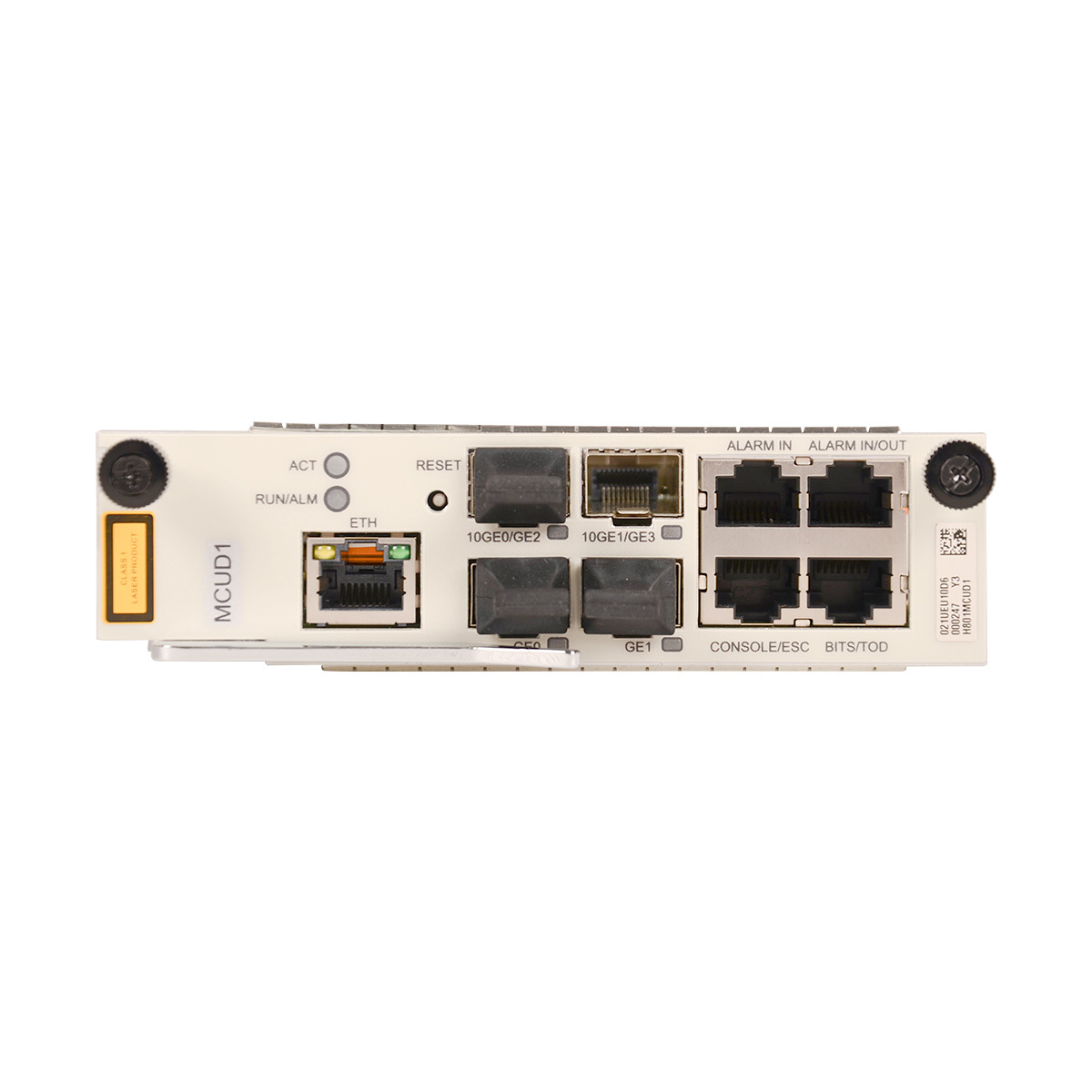

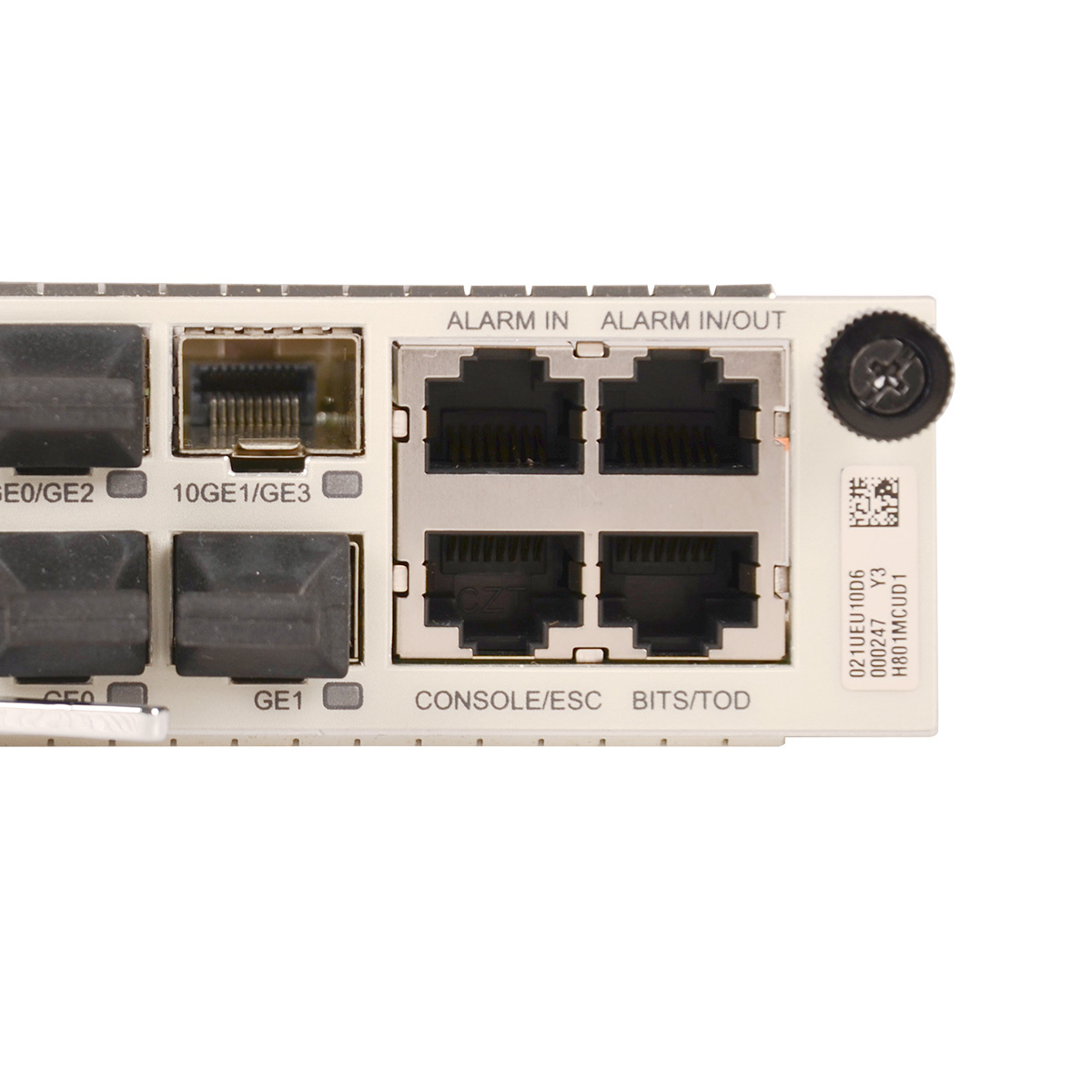

- Interface & Management: Comes with RJ45 ports for Alarm, Console, and BITS/TOD, plus LEDs for status.
Application Scenarios
Small-City FTTH Network Control for European Regional Operators
A regional telecom operator in Central Europe deployed Huawei MA5608T OLTs with MCUD1 units to build an FTTH network covering 40,000 urban and suburban households. Each OLT was configured with 2 MCUD1 boards in 1+1 backup mode: the active board managed 8 service slots (GPBD GPON boards) and aggregated user traffic via 2 GE uplinks to the regional backbone. The standby MCUD1 synchronized data in real time, ensuring zero service interruption during maintenance. Its -40°C~+65°C design adapted to the operator’s unheated rural machine rooms (winter low -20°C), and remote O&M reduced on-site workload by 40%. The solution achieved 99.99% service availability, supporting smooth operation of broadband and IPTV services for users.
Downloadable resources
Huawei MCUD1 Board Datasheet
|
| Front panel |
|
|
| LAN switch |
24 x GE + 4 x 10GE |
| Switching capacity |
256 Gbit/s (active/standby mode)
512 Gbit/s (load sharing mode) |
| andwidth per slot |
10 Gbit/s (active/standby mode)
20 Gbit/s (load sharing mode) |
| MAC address table |
32768 |
| Access user |
2048 |
| Multicast user |
2048 |
| Configurable multicast channel |
4096 |
| Concurrent multicast channel |
2000 |
| IPv4 routing table |
5120 |
| IPv6 routing table |
5120 |
| Service port |
20480 |
| ARP table |
8192 |
| ACL rule |
896 |
| Maximum Frame Size |
2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| VRF (L3 VPN) |
Supported |
| Operating temperature |
-25°C to +65°C |
| Power consumption |
Static: 29 W
Maximum: 33 W |
| Mechanical Specification |
| Dimensions(mm) |
233 (W) x 134 (D) x 34 (H) |
| Weight(kg) |
1 |
FAQ
Q: How many uplink ports does MCUD1 have, and what types are they?
A: It has 2 GE uplink ports, compatible with GE optical/electrical modules, enabling flexible connection to backbone networks or aggregation switches.
Q: Which Huawei OLT models are compatible with MCUD1?
A: It is compatible with Huawei MA5608T, MA5683T, MA5600T, and other mainstream OLT devices, with plug-and-play integration.
Q: What temperature range does MCUD1 support, and where can it be deployed?
A: It operates in -25°C~+65°C, suitable for indoor machine rooms, outdoor cabinets, remote mountainous sites, and other harsh environments.
Q: What’s the difference between MCUD1 and the standard MCUD?
A: MCUD1 is an enhanced compact version optimized for small-to-medium networks, offering lower power consumption and more cost-effective deployment while retaining core redundancy and control functions.
