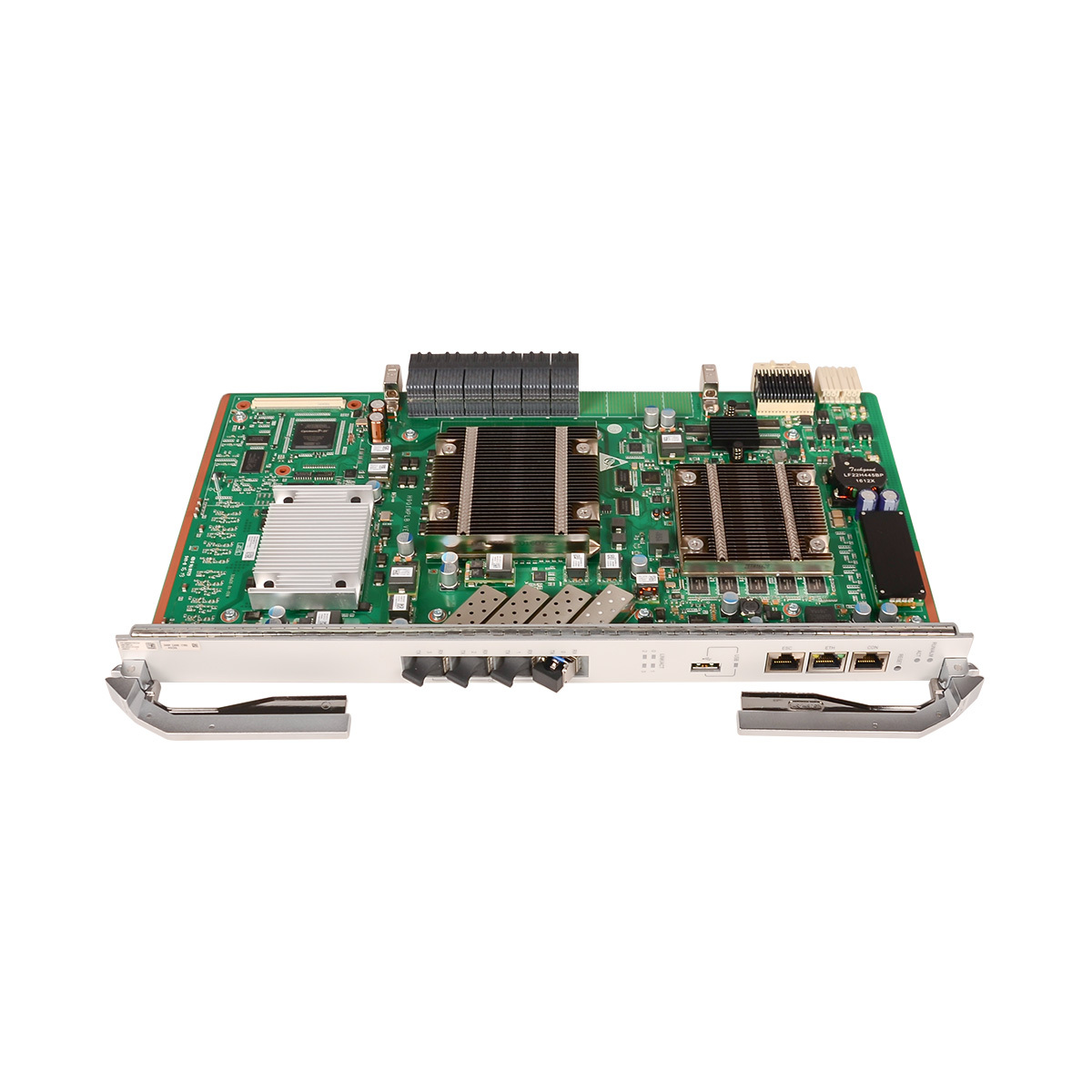

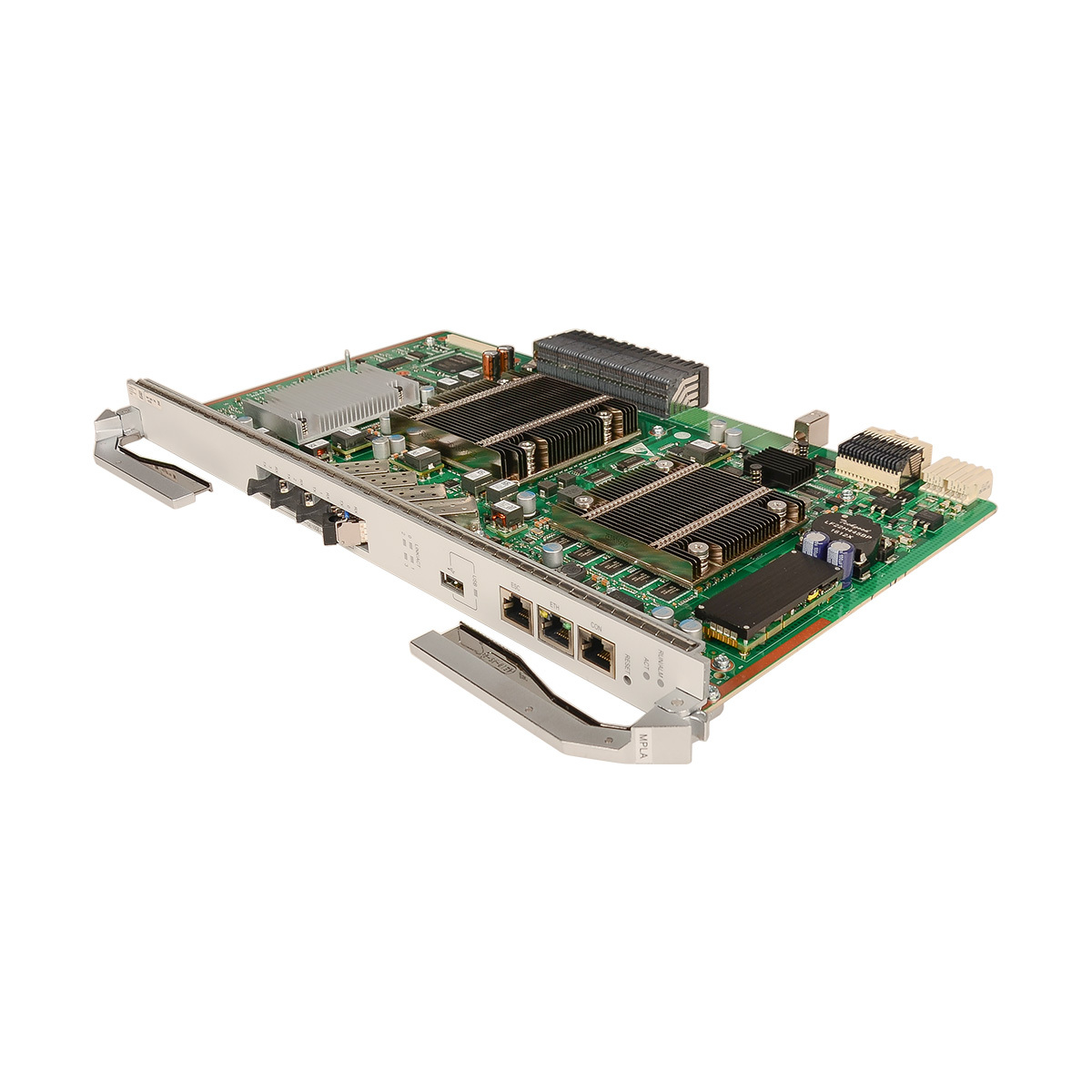

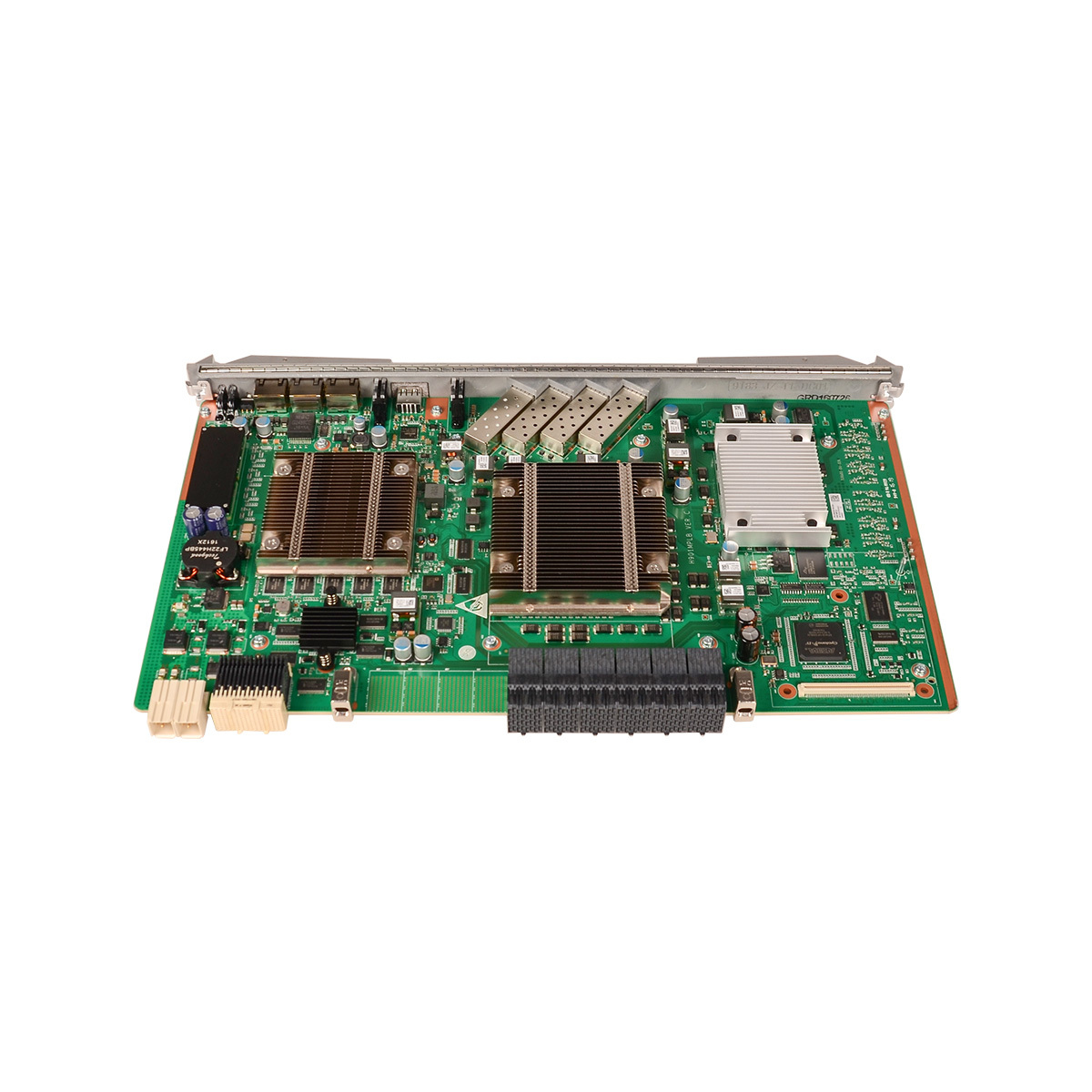

Huawei MPLA Control Board

Name: Huawei MPLA Control Board
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0085
Rating: 5 (1 reviews)

No.MF0085

Huawei MPLA main control board for MA5800-X7/X15/X17

Gross Weight

3kg

Port Number

SFP

GE SFP/10GE SFP+

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description

Huawei MPLA Overview

Huawei MPLA (Main Processing & Logic Board) boards are the core control units for Huawei MA5800 OLT platforms, offering high-capacity processing for unified management, service exchange, and advanced routing, supporting massive GPON/XG-PON/10GE services, high-density access (17k+ ONTs), large forwarding tables, and unified O&M for FTTH/Enterprise networks, featuring robust bandwidth (100G/200G per slot) and compatibility with various service boards for flexible network evolution.

Product Features

Core Control & Management: Centralized control, management, and service exchange for the entire OLT system, handling configuration and control.
High-Capacity Switching: Provides significant payload switching capacity (e.g., 3.6 Tbit/s for H901MPLA) with high bandwidth per slot (e.g., 100G/200G) in load-sharing mode.
Massive User & Service Support: Supports a large number of subscribers (e.g., 17,408+ ONTs/Multicast users) and concurrent services like 4K video.
Advanced Forwarding: Large MAC address tables (e.g., 262k+) and IPv4 routing tables (e.g., 65k+) for efficient traffic handling.
Unified & Open Architecture: Enables unified O&M, supports microservices, and provides open APIs for easy integration with third-party systems.
Simplified Network Architecture: Reduces complexity by handling various access types (GPON, XG-PON, 10GE) on one platform.

Application Scenarios

Large-Scale GE Uplink Aggregation for Suburban Broadband (Europe)

A regional telecom operator in Germany deployed MPLA uplink boards with MA5800-X7 OLTs to expand its suburban broadband network, covering 180,000 households and 20,000 SMEs across 12 cities. Each MPLA’s 8 GE ports aggregated traffic from GPON service boards, connecting OLTs to regional aggregation switches via 1Gbps copper links. The L2 VLAN function isolated residential and SME traffic, while QoS prioritized IPTV and video conferencing services. With 60 MPLA boards deployed, the operator achieved 480Gbps total uplink capacity, meeting peak demands for 4K streaming and remote work—all at 40% lower procurement costs than 10GE alternatives, perfectly matching the region’s bandwidth needs.

Downloadable resources

Huawei MPLA Board Datasheet

Technical Specifications

Huawei MPLA Board Datasheet
Functions and Features	Description
Bandwidth per slot	100 Gbit/s (load sharing mode)
Upstream or cascading port	4 x 10GE/GE
MAC address table	262143
Access ONTs	17408
Multicast users	17408
Static programs	H901MPLA: 4096 (earlier than V100R017C00); 8192 (V100R017C00 and later versions) H902MPLA: 8192 H903MPLA: 8192
Online programs	H901MPLA: 4000 (V100R016C00) IPv4: 4000; IPv6: 2000 (V100R016C10) IPv4: 8000; IPv6: 2000 (V100R017C10 and later versions) H902MPLA: IPv4: 8000; IPv6: 2000 H903MPLA: IPv4: 8000; IPv6: 2000
IPv4 routing table	65536
IPv6 routing table	16384
Service port	139264
ARP table	H901MPLA: 66048 (earlier than V100R017C10) 98816 (V100R017C10) 131072 (V100R018C00 and later versions) H902MPLA: 66048 (V100R017C00) 98816 (V100R017C10) 131072 (V100R018C00 and later versions) H903MPLA: 131072
ND table	16384
Maximum Frame Size	2052 bytes 9216 bytes (jumbo frame enabled)
Ethernet synchronization	Y
1588v2	Y
1588ACR	Y
ALM port	N
BITS/TOD port	N
Static power consumption [W]	H901MPLA: 62 W H902MPLA: 53 W H903MPLA: 48 W
Maximum power consumption [W]	H901MPLA: 89 W H902MPLA: 87 W H903MPLA: 85 W
