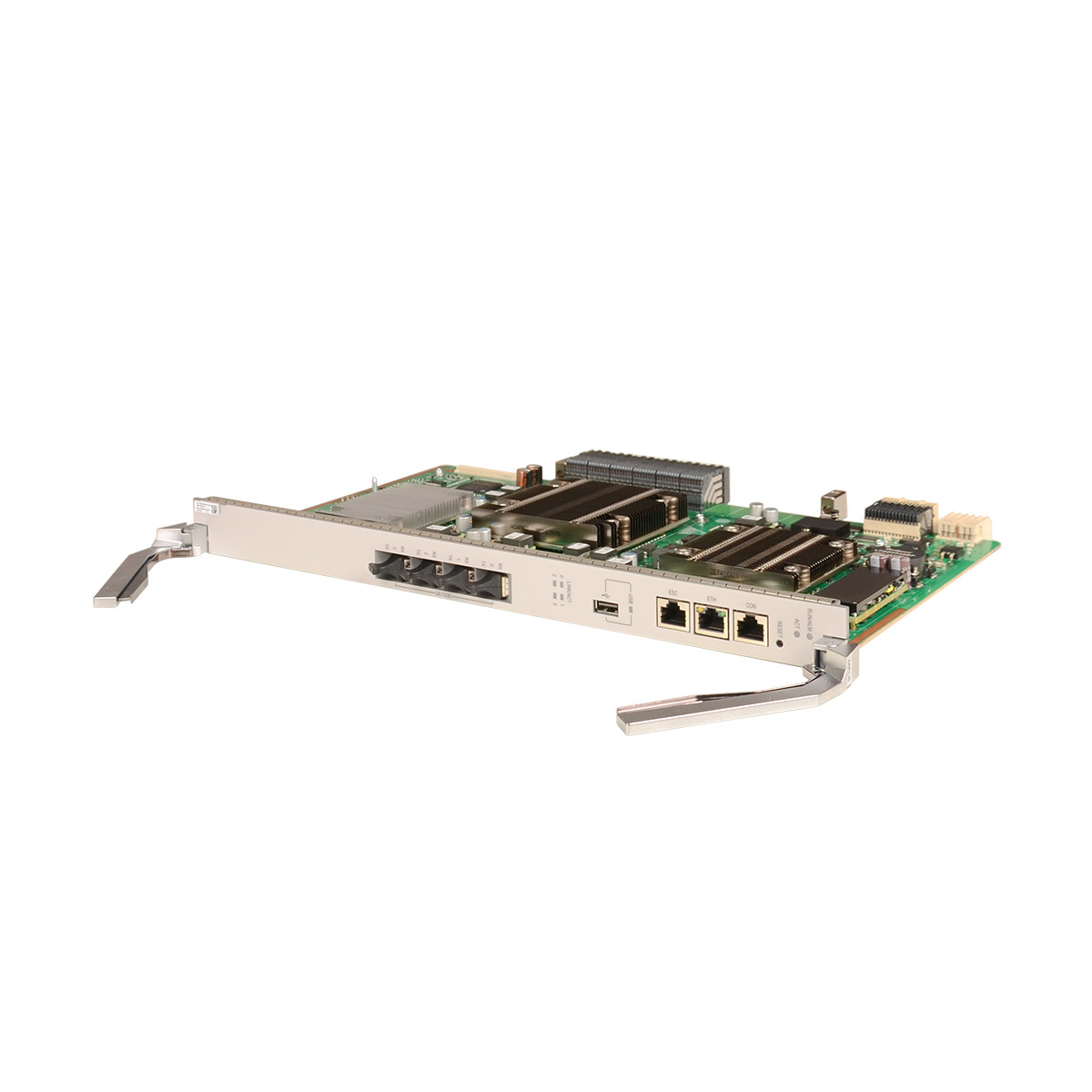

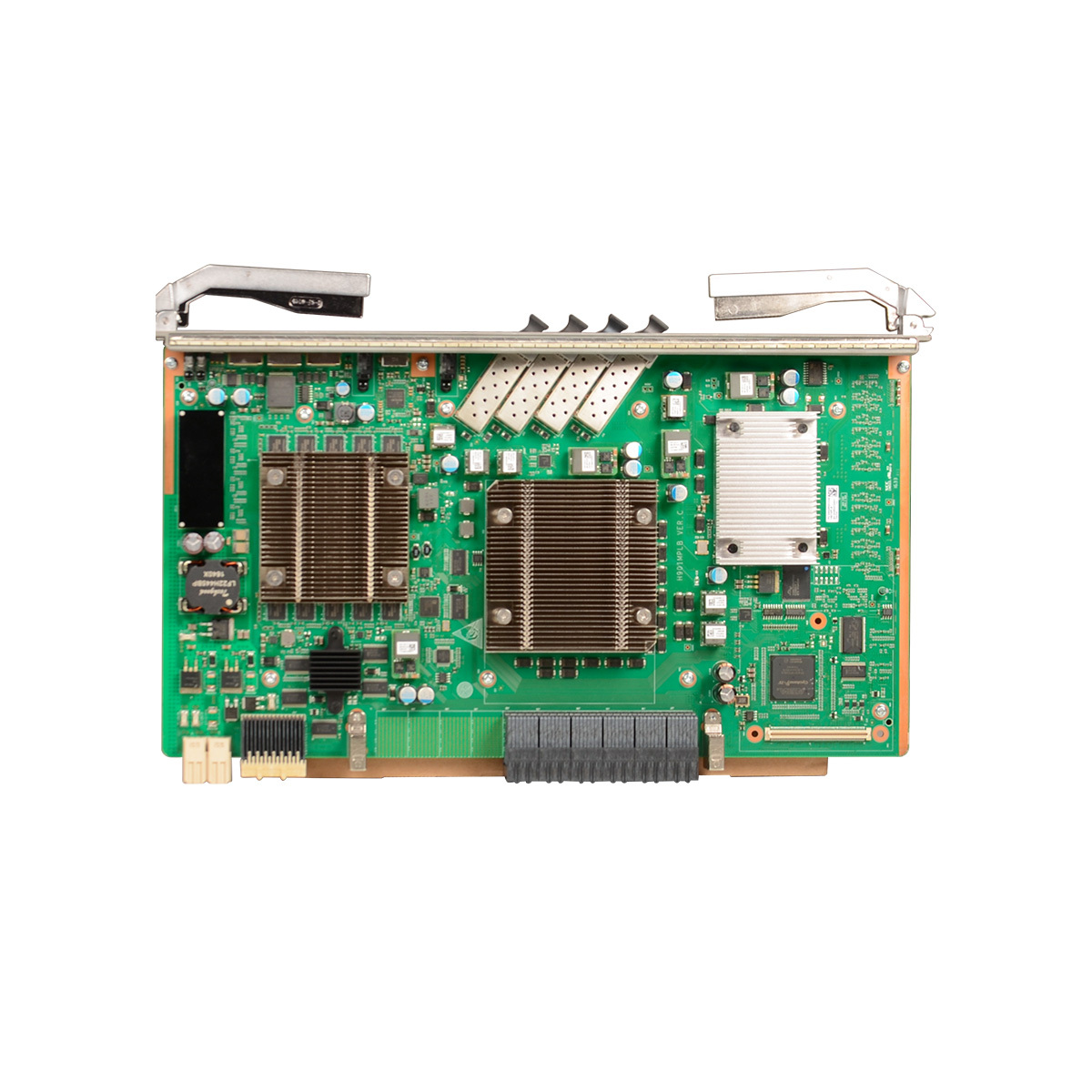

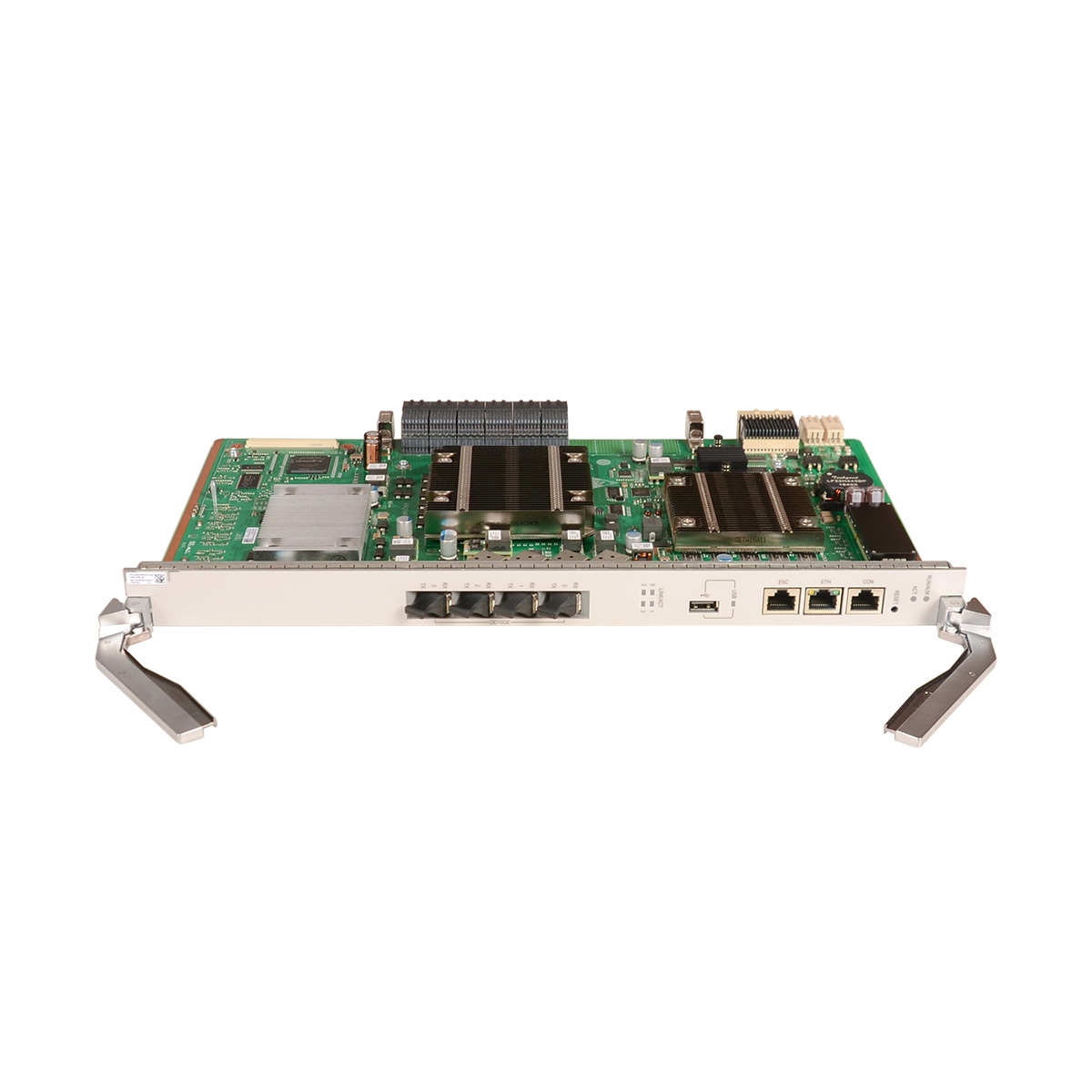

Huawei MPLB Overview
Huawei MPLB (Main Processing Board) features central system control, service switching, and traffic aggregation for Huawei MA5800 OLTs, offering high reliability with active/standby control plane switchover, performance via load sharing (up to 200Gbps/slot), and advanced functions like ISSU (In-Service Software Upgrade) for zero downtime, SyncE/1588v2/1588ACR for precision timing, and multiple 10GE/GE uplink ports for flexible connectivity.
Product Features
- System Control: Acts as the core for system management, service switching, and traffic aggregation.
- High Availability: Supports active/standby failover for the control plane and ISSU for seamless software updates.
- Management Ports: Includes CON (serial), ETH (Ethernet), and ESC (environmental monitoring) for local/remote maintenance.
- Energy Efficiency: Power Saving: Contributes to the MA5800's overall energy-saving design through intelligent power management.
Application Scenarios
A regional telecom operator in Canada deployed MPLB uplink boards with MA5800-X7 OLTs to upgrade its suburban and SME network, covering 70,000 households and 12,000 small-to-medium enterprises across 9 cities. Each MPLB’s 4 GE ports aggregated traffic from GPON service boards, connecting OLTs to regional aggregation switches via 1Gbps copper links. The L2 VLAN function isolated residential and SME traffic, while QoS ensured priority for enterprise video conferencing and cloud access. With 40 MPLB boards deployed, the operator achieved 160Gbps total uplink capacity, meeting peak demands for 4K streaming and remote work—all at 35% lower costs than high-density alternatives, perfectly matching the region’s medium-scale bandwidth needs.
Downloadable resources
Technical Specifications
| Huawei MPLB Board Datasheet |
| Functions and Features |
Description |
| Bandwidth per slot |
200 Gbit/s |
| Upstream or cascading port |
4 x 10GE/GE |
| MAC address table |
262143 |
| Access ONTs |
17408 |
| Multicast users |
17408 |
| Static programs |
H901MPLB:
4096 (earlier than V100R017C00)
8192 (V100R017C00 and later versions)
H902MPLB: 8192
H903MPLB-G01/H903MPLB-G02: 8192 |
| Online programs |
H901MPLB:
4000 (V100R016C00)
IPv4: 4000; IPv6: 2000 (V100R016C10)
IPv4: 8000; IPv6: 2000 (V100R017C10 and later versions)
H902MPLB: IPv4: 8000; IPv6: 2000
H903MPLB-G01/H903MPLB-G02: IPv4: 8000; IPv6: 2000 |
| IPv4 routing table |
65536 |
| IPv6 routing table |
16384 |
| Service port |
139264 |
| ARP table |
H901MPLB:
66048 (earlier than V100R017C10)
98816 (V100R017C10)
131072 (V100R018C00 and later versions)
H902MPLB: 131072
H903MPLB-G01/H903MPLB-G02: 131072 |
| ND table |
16384 |
| Maximum Frame Size |
2052 bytes
9216 bytes (jumbo frame enabled) |
| Ethernet synchronization |
Y |
| 1588v2 |
Y |
| 1588ACR |
H901MPLB/H902MPLB: Y
H903MPLB-G01/H903MPLB-G02: N |
| ALM port |
N |
| BITS/TOD port |
N |
| Static power consumption [W] |
H901MPLB: 62 W
H902MPLB: 73 W
H903MPLB-G01: 65 W |
| Maximum power consumption [W] |
H901MPLB: 117 W
H902MPLB: 120 W
H903MPLB-G01: 125 W |
| Dimensions |
130.36mm×35.28mm×258.15mm |
FAQ
Q: How many ports does the MPLB board have?
A: It has 4-port 10GE/GE optical uplink port.
Q: Which Huawei OLT models are compatible with the MPLB board?
A: It is fully compatible with Huawei MA5800-X2/X7/X15 OLTs, supporting plug-and-play deployment.
Q: What is the after-sales service period?A: We provide a one-year warranty and technical support.
Q: Is the Huawei MPLB a genuine product?
A: Absolutely. MF-Telecom sources 100% authentic Huawei equipment with traceable serial numbers and quality certification.
Q: What are its key models?
A: H901MPLB, H902MPLB, H903MPLB; H901 can be replaced by H902/H903.
