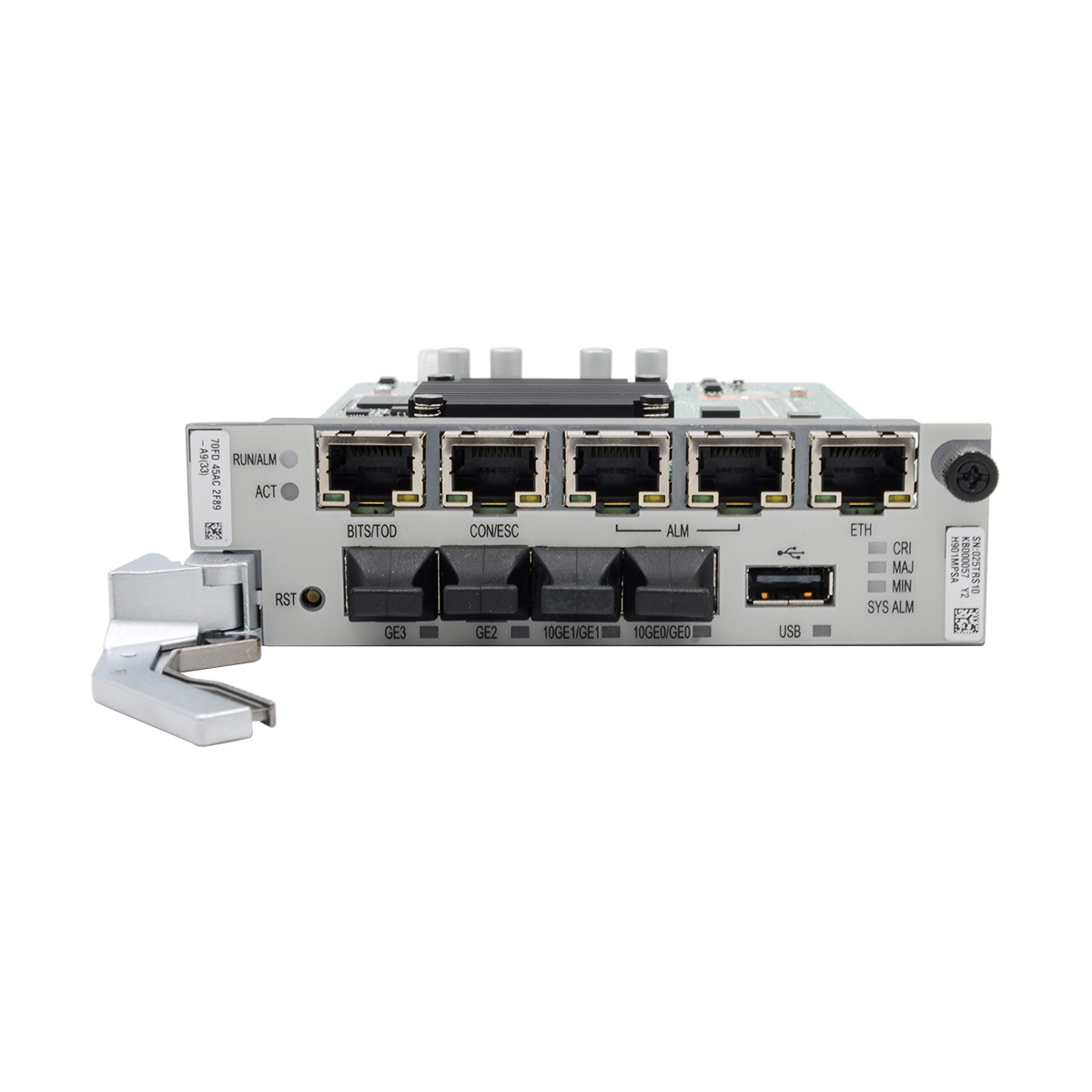

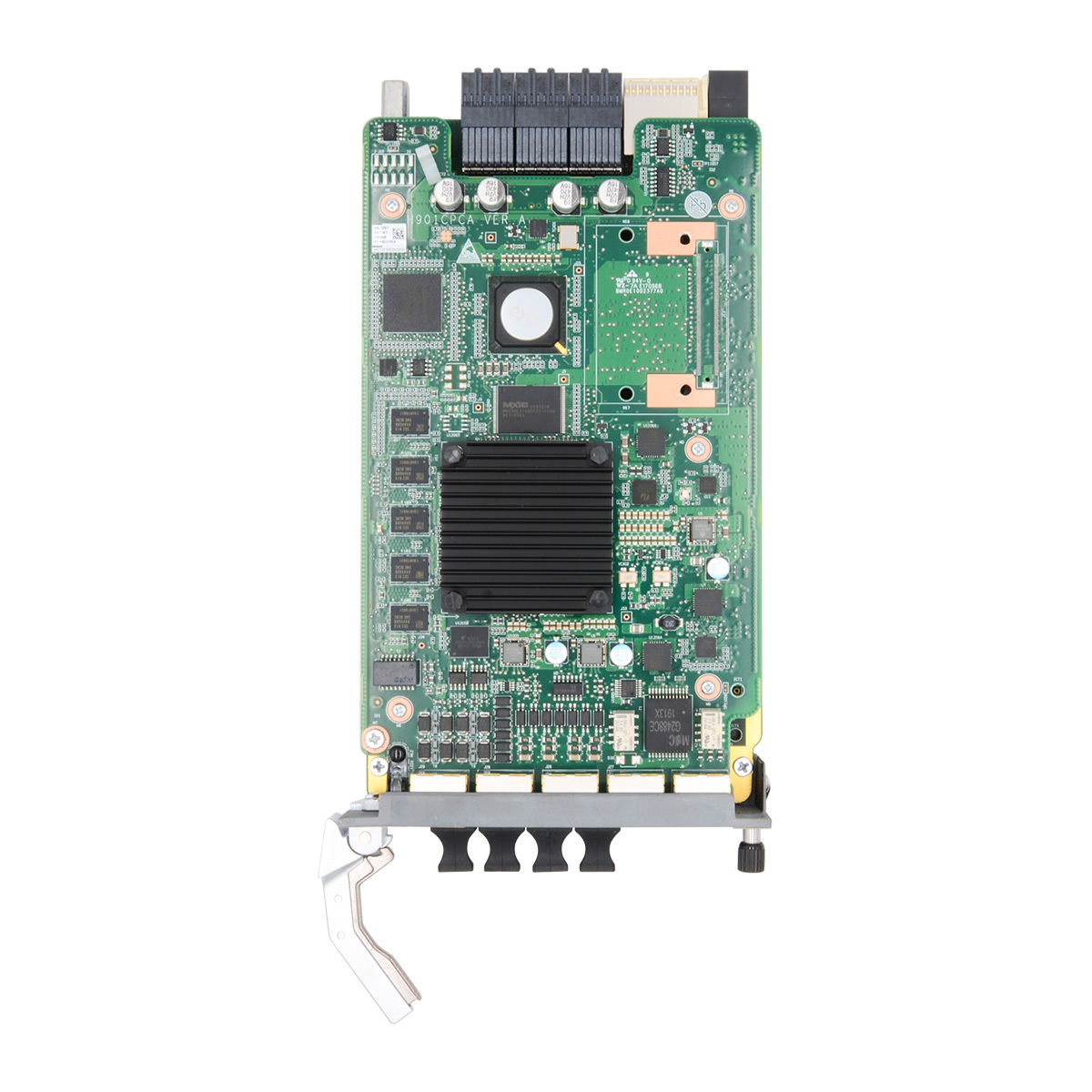

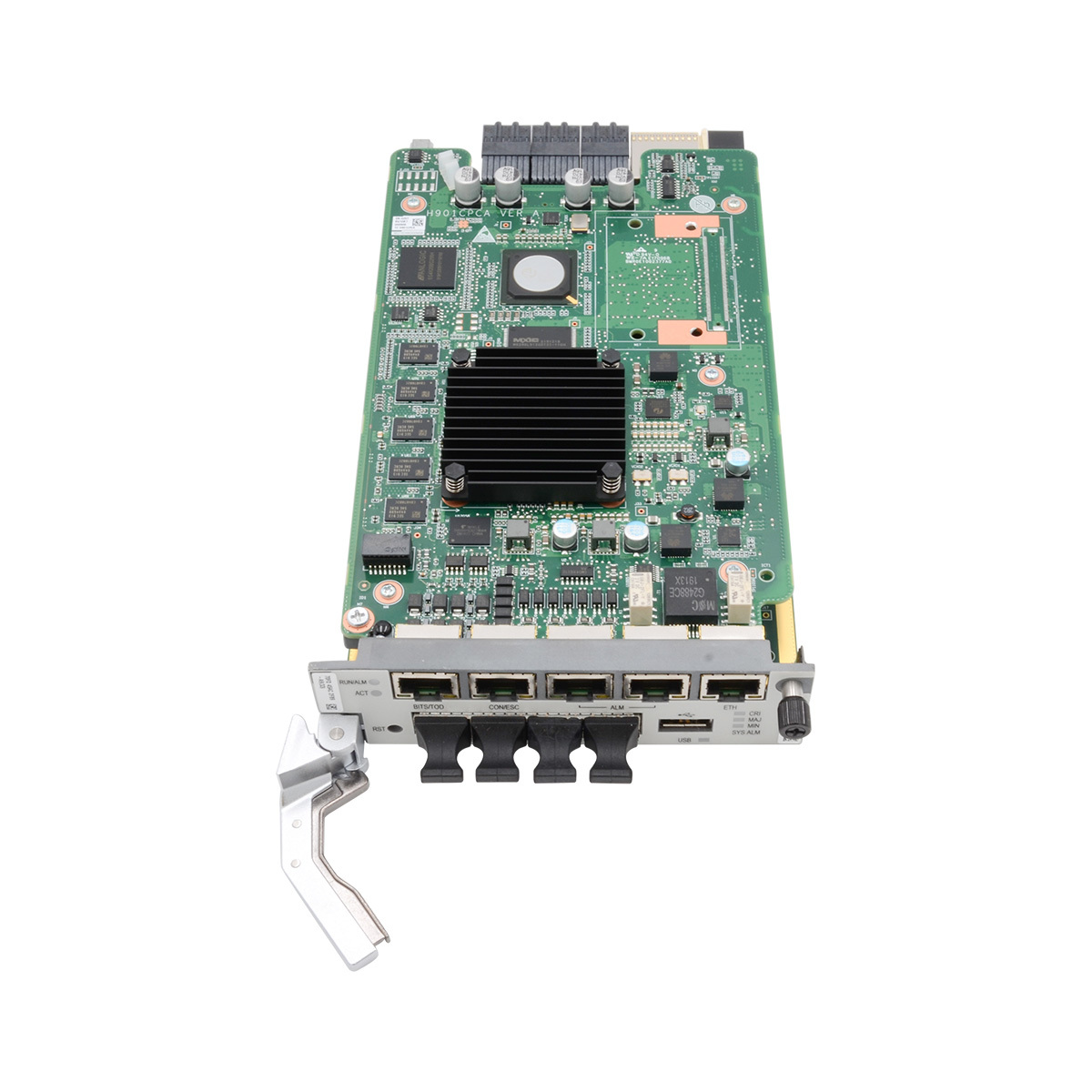

Huawei MPSA Overview
Huawei MPSA (H901MPSA) is a main control board for the SmartAX MA5800 OLT, featuring a distributed architecture for high throughput (e.g., 80Gbps/slot), massive subscriber/MAC/ARP capacity, advanced service support (like 4K/8K video, Flex-PON), ISSU for seamless upgrades, and energy-saving functions, acting as the core for control and switching in next-gen broadband networks.
Product Features
- Core Function: Central control and service switching for MA5800 OLTs.
- Distributed Architecture: Separates control and forwarding planes for high performance (e.g., 200Gbps per slot in newer platforms).
- High Capacity: Supports a large number of subscribers (e.g., 4096 ONTs), MAC addresses (e.g., 262,143), and ARP/routing entries (e.g., 65,536).
- Performance: Handles significant bandwidth (e.g., 80Gbps/slot in load sharing mode).
- Service Support: Optimized for next-gen services like 4K/8K video, VR, and supports unified access for fiber, copper, and cable.
- PON Evolution: Supports Flex-PON for smooth upgrades from GPON to XG(S)-PON.
Application Scenarios
A regional telecom operator in Southeast Asia deployed MPSA uplink boards with MA5800-X7 OLTs to upgrade its suburban and small enterprise network, covering 60,000 households and 8,000 small-to-medium enterprises (SMEs) across 8 cities. Each MPSA’s 4 10GE SFP+ ports aggregated traffic from XGS-PON/GPON service boards, connecting OLTs to regional aggregation switches via 10Gbps fiber links. The L2 VLAN function isolated residential and SME traffic, while QoS ensured priority for enterprise data services. With 35 MPSA boards deployed, the operator achieved 1.4Tbps total uplink capacity, meeting peak demands for 4K streaming, remote work, and SME cloud access—all at 30% lower procurement costs compared to high-density alternatives.
Downloadable resources
Technical Specifications
| Huawei MPSA Board Datasheet |
| Bandwidth per slot (load balancing mode) |
40 Gbit/s (load sharing mode) |
| Upstream or cascading port |
2 x 10GE/GE, 2 x GE ports |
| Maximum number of MAC addresses |
262143 |
| Access ONTs |
4096 |
| Multicast users |
4096 |
| Static programs |
8192 |
| Online programs |
IPv4: 8000
IPv6: 2000 |
| Service ports |
32768 |
| IPv4 routing table size |
65536 |
| IPv6 routing table size |
16384 |
| ARP table size |
32768 |
| ND table size |
16384 |
| Maximum Frame Size |
2052 bytes
9216 bytes (jumbo frame enabled) |
| Ethernet synchronization |
Y |
| 1588v2 |
Y |
| 1588ACR |
N |
| ALM port (Alarm digital parameters) |
Yes (7 Boolean value inputs and 1 Boolean value output) |
| BITS/TOD port |
Yes (1 external clock/time input and output) |
Dimensions without packaging
(H x W x D) [mm] |
130.36 mm x 35.28 mm x 258.15 mm |
| Weight without packaging [kg] |
0.71 kg |
| Static power consumption [W] |
30 W |
| Maximum power consumption [W] |
43 W |
| Maximum Frame Size of Boards (Default) [bytes] |
2052 bytes |
| Maximum Frame Size of Boards (jumbo frame enabled) [bytes] |
9216 bytes |
FAQ
Q: Which Huawei OLT models are compatible with the MPSA board?
A: It is fully compatible with Huawei MA5800-X2/X7/X15 OLTs, supporting plug-and-play deployment for flexible upgrades.
Q: What upstream/cascading ports does the MPSA board have?
A: It has 2×10GE/GE ports and 2×GE ports, supporting SFP (for GE) and SFP+ (for 10GE) modules.
Q: What is the bandwidth per slot of the MPSA board in load balancing mode?
A: The bandwidth per slot reaches 40 Gbit/s under load sharing mode.
Q: Is the Huawei MPSA a genuine product?
A: Absolutely. MF-Telecom sources 100% authentic Huawei equipment with traceable serial numbers and quality certification.
