Nokia FANT-F Overview

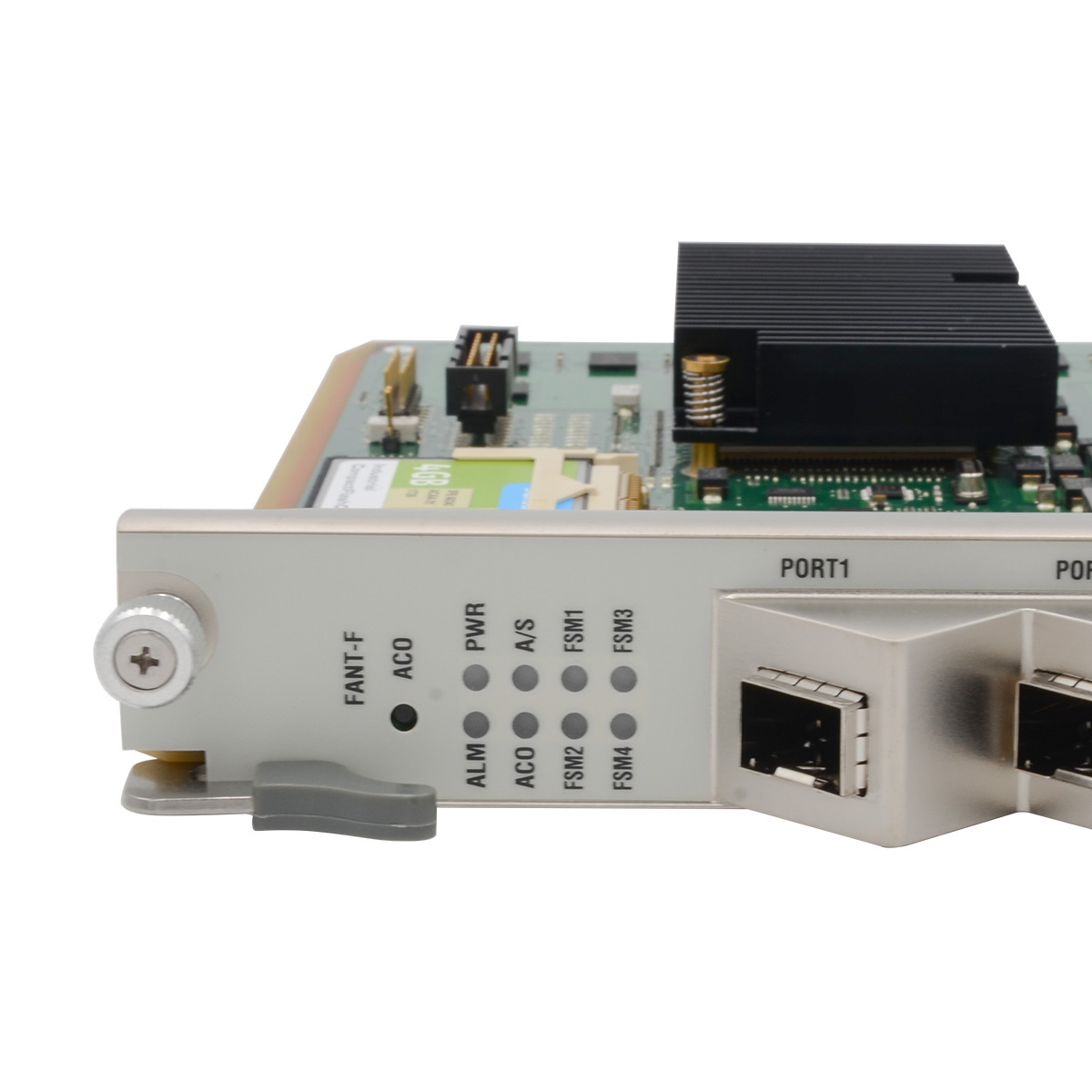

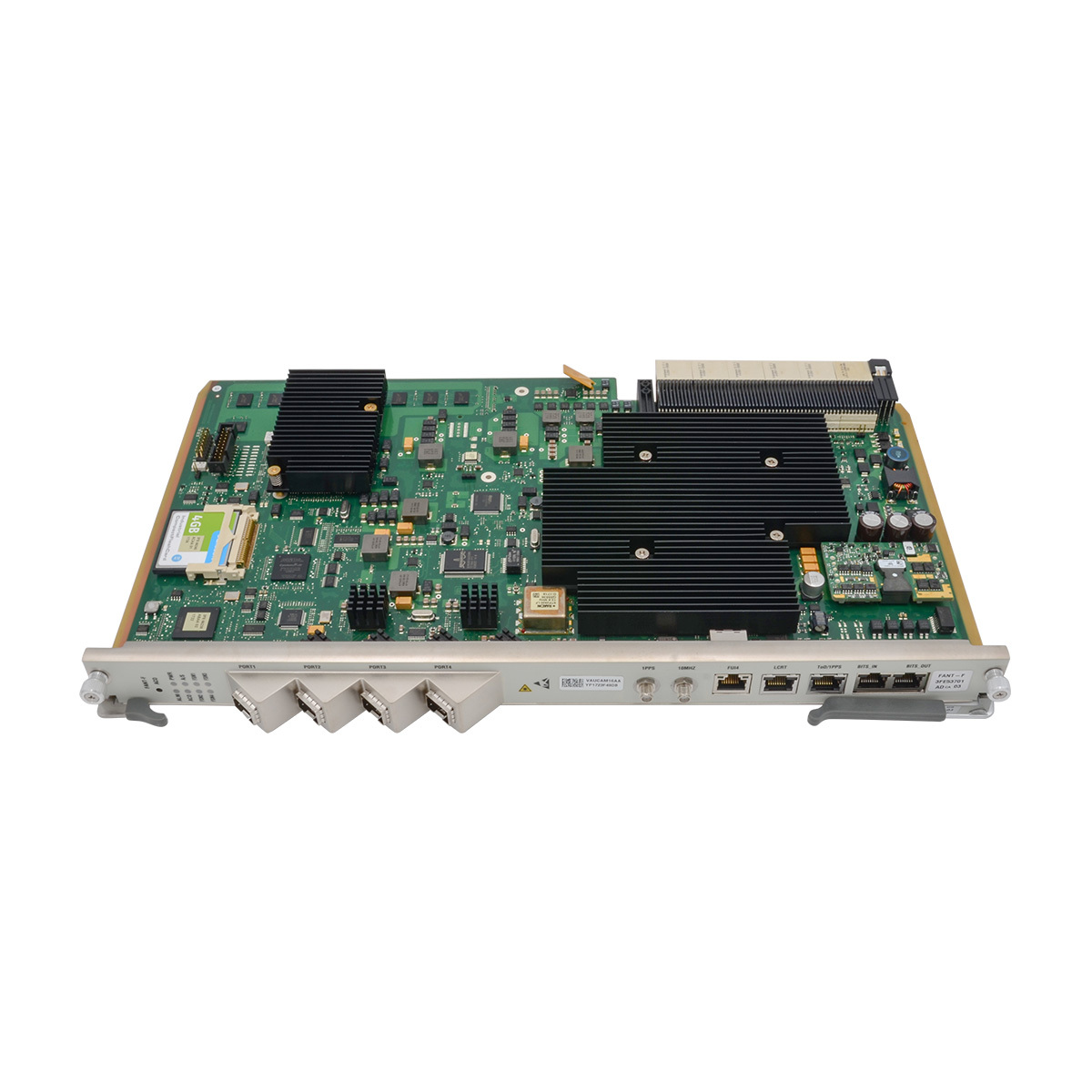

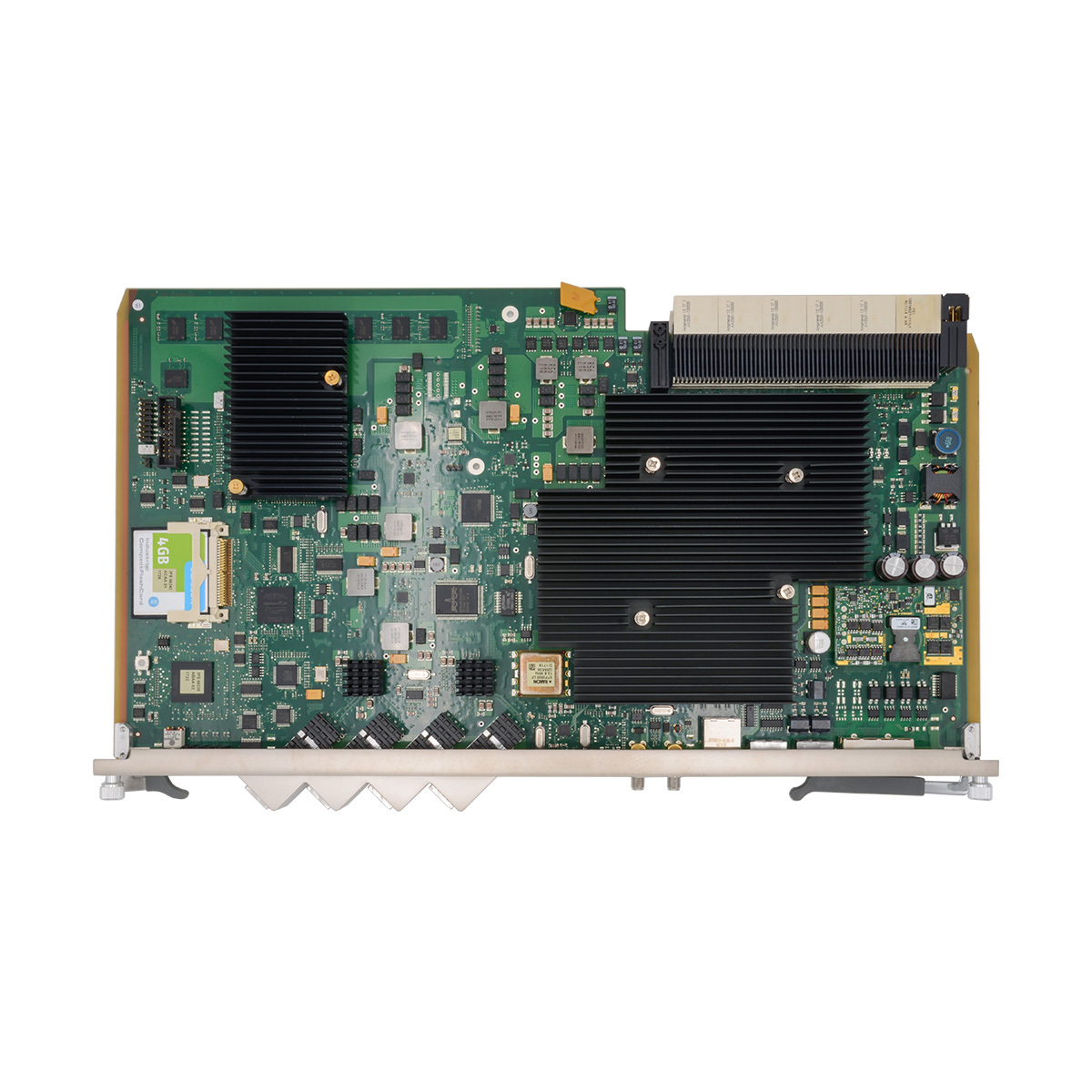

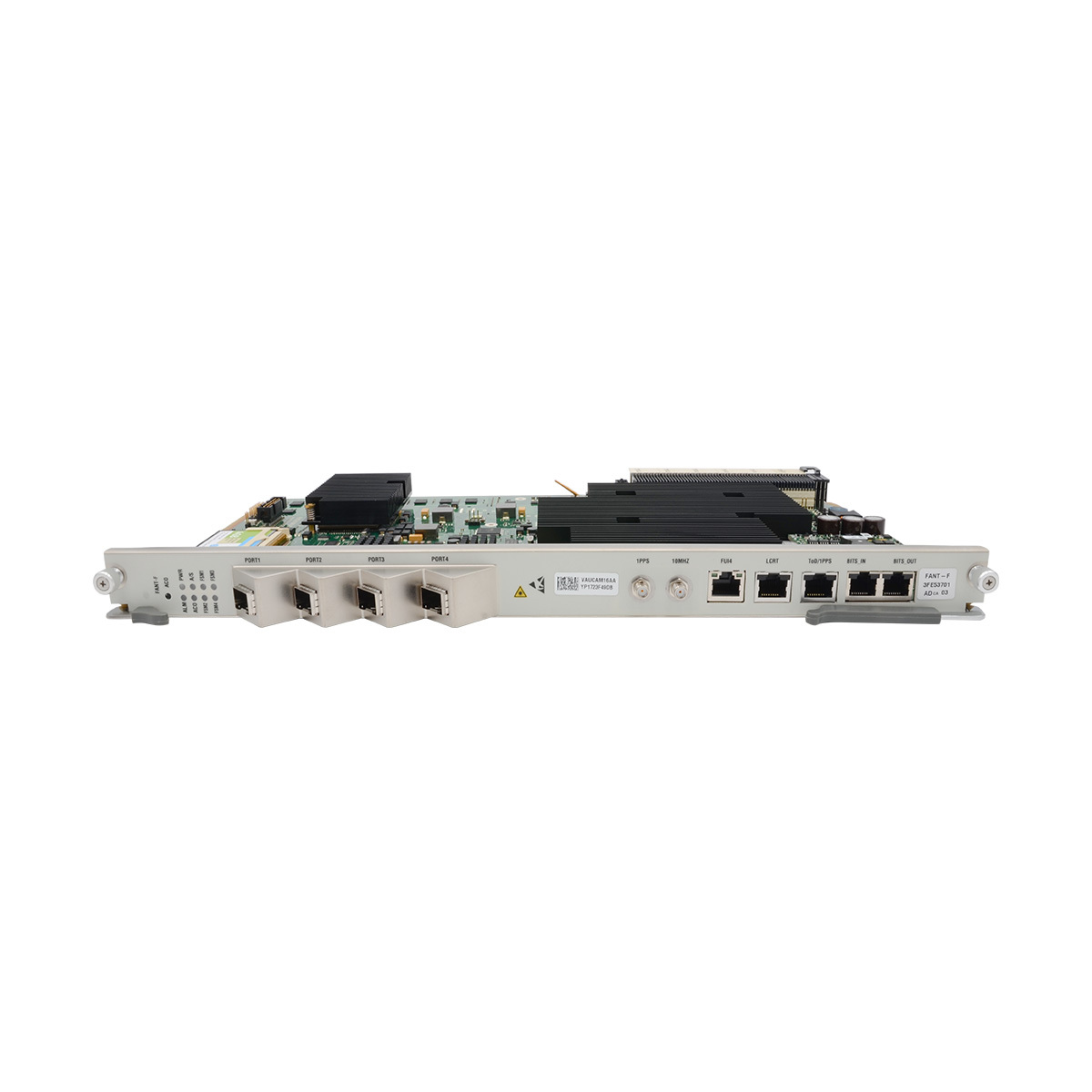

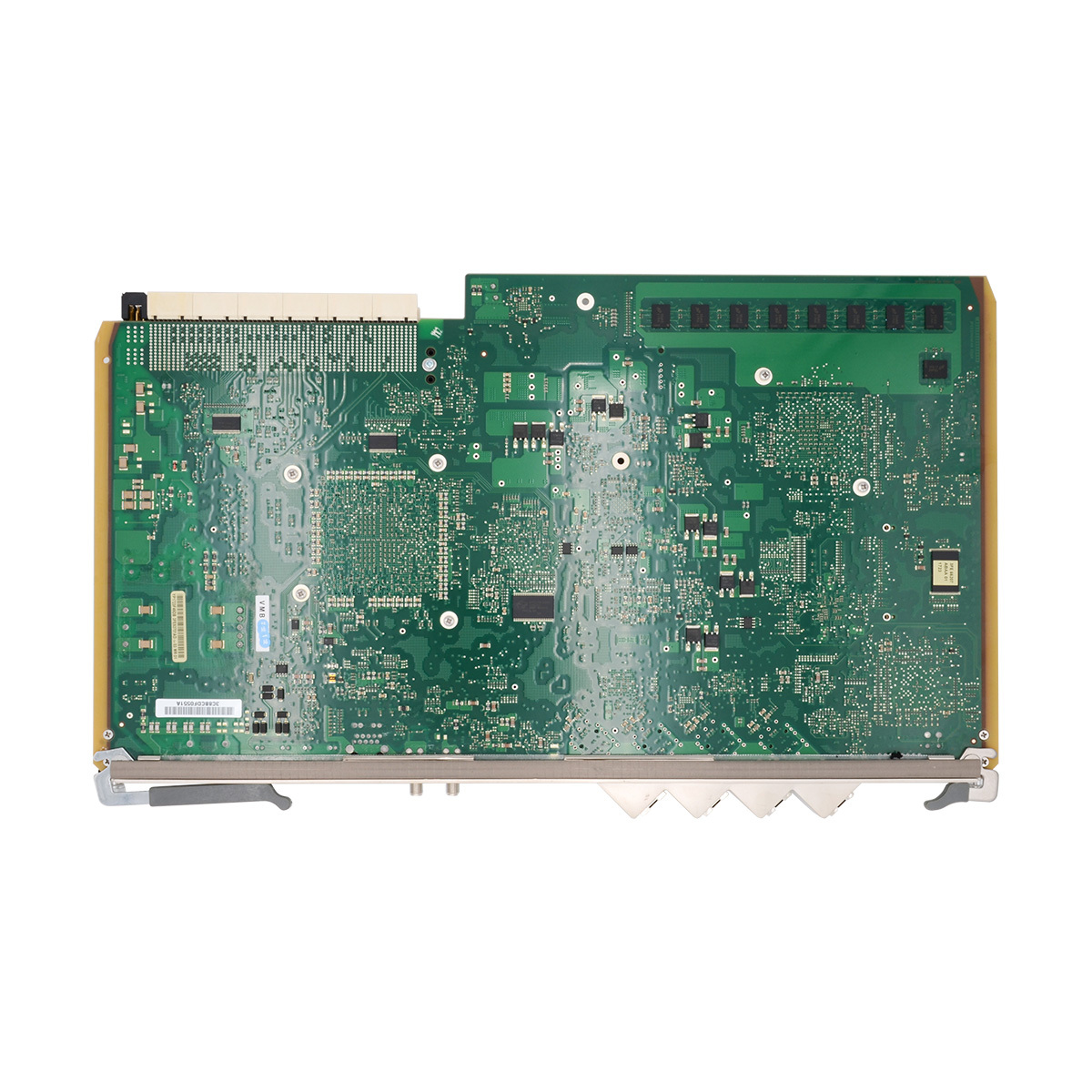

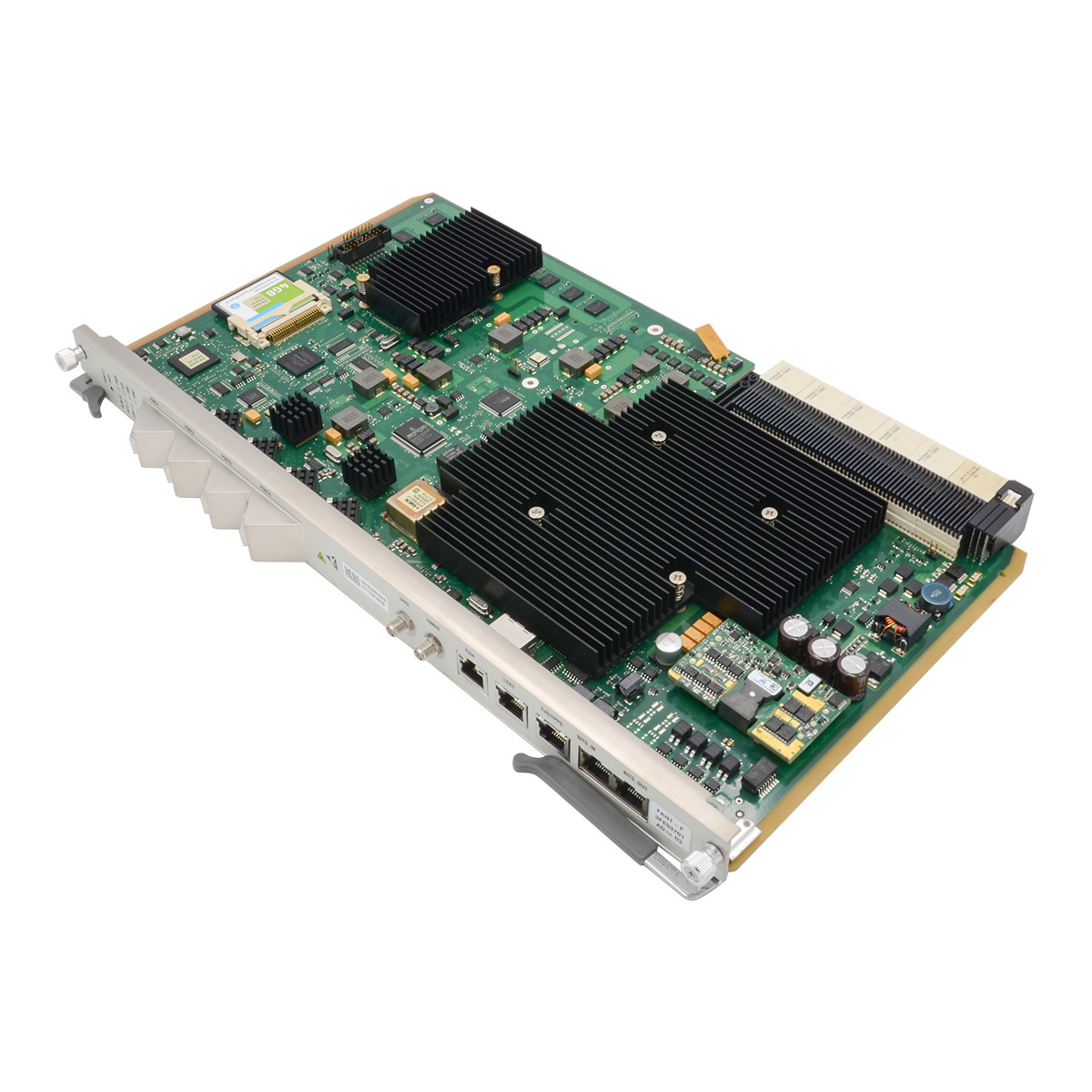

The Alcatel-Lucent Nokia 7360 ISAM FX Network Termination Board comes equipped with a 4-port 10GE/GE optical uplink interface.
As a core controller module for the Nokia 7360 ISAM FX OLT, the Alcatel-Lucent Nokia ISAM FANT-F Network Termination (NT) Board delivers critical service orchestration and network intelligence capabilities. Boasting a 480 Gb/s switching fabric and 40 Gb/s dedicated connectivity per line card, it is perfectly engineered to support high-bandwidth service deployments over fiber-optic networks.
Product Features
- High-Capacity Switching: 480 Gb/s bidirectional switching matrix.
- Network Interfaces: Four SFP+ cages for 10Gb/s or 1Gb/s optical links.
- Management: Local craft management (RS-232), SNMP, CLI (Telnet, SSH), TL1.
- Redundancy: Supports active/active redundancy for high availability.
- Timing & Sync: Optional BITS, SyncE, and ToD (Time of Day) interfaces for critical apps.
- Advanced Protocols: MPLS, IPv4/IPv6, OSPF, BGP, IS-IS, IGMP.
Application Scenarios
FANT-F Board: European Urban Fiber Upgrade Case Study
In 2024, a leading German telecom provider deployed the Nokia ISAM FANT-F as the core controller for its 7360 ISAM FX OLTs, upgrading fiber networks across Berlin, Munich and Hamburg.
Powered by the FANT-F’s 480 Gb/s switching matrix and 4-port 10GE/GE uplink, the provider delivered gigabit/10-gigabit broadband to 500,000+ users and low-latency 5G backhaul. Active-active redundancy ensured 99.999% uptime for enterprise services, with post-deployment results showing 40% higher network capacity, 30% lower latency, and zero unplanned outages over six months.
Downloadable resources
Nokia FANT-F Board Datasheet
Technical Specifications
|
Nokia FANT-F Board Datasheet
|
|
Throughput
|
480 Gb/s switching matrix (bidirectional)
|
|
Maximum number of MAC addresses (FDB)
|
128 k
|
|
ARP table size: IPv4
|
16K
|
|
ARP table size: IPv6
|
8K
|
|
Maximum number of IP routes: IPv4
|
16K
|
|
Maximum number of IP routes: IPv6
|
8K
|
|
Maximum number of ONTs
|
16 k
|
|
Maximum number of UNIs
|
16 k
|
|
External interfaces
|
4-port optical 10 Gb/1 Gb interface
|
|
Optical and electrical connection through SFP and SFP+ standards
|
|
1-port electrical 10/100/1000Base-T (RJ-45 connector)
|
|
2-port BITS interface: only on BITS variant; 1 port in, 1 port out, using ITU-T G.703 (ANSI interfaces available on a separate generic flow control [GFC] unit)
|
|
Weight
|
2kg
|
|
Dimensions (W x D x H)
|
405 mm x 225mm x 30 mm
|
FAQ
Q: Which Nokia OLT platforms is the FANT-F board compatible with?
A: It is fully compatible with Nokia ISAM 7360 FX-8 and ISAM 7360 FX-4 OLT systems, supporting seamless integration into existing PON networks.
Q: How can I purchase the FANT-F from MF-Telecom?
A: Contact our sales team via [email/contact form] for bulk pricing, technical specifications, and global shipping options—we offer genuine products with 1-year warranty.
Q: What is the after-sales service period?A: We provide a one-year warranty and technical support.Q: How many ports does the Nokia FANT-F board have?
A: The board is configured with
4-port 10GE/GE ports.
Q: What are its key specs?
A: 480 Gb/s switching matrix, 40 Gb/s per line card, and 4-port 10GE/GE optical uplink.
Q: What is the Nokia FANT-F board?
A: It’s a uplink interface for the Nokia 7360 ISAM FX OLT, used to power fiber broadband and 5G backhaul services.
