FGLT-A Board: Latin American GPON Network Expansion Case
In 2025, a leading telecom operator in Brazil deployed the FGLT-A GPON line termination board across its 7360 ISAM FX subracks to expand broadband access in São Paulo, Rio de Janeiro, and Brasília. Targeting underserved residential and small-business markets, the project required compliant, high-capacity solutions meeting ETSI/ANSI standards.
Leveraging the FGLT-A’s 1.28 Tb/s switching matrix and 16 GPON ports (2.488 Gbps down/1.244 Gbps up), the operator connected 300,000+ new users with stable gigabit broadband. Its pluggable SFP modules simplified deployment, while CO-focused design ensured seamless integration. Post-launch, network throughput increased 85%, with zero service disruptions, fulfilling growing demand for remote work and streaming services.
|

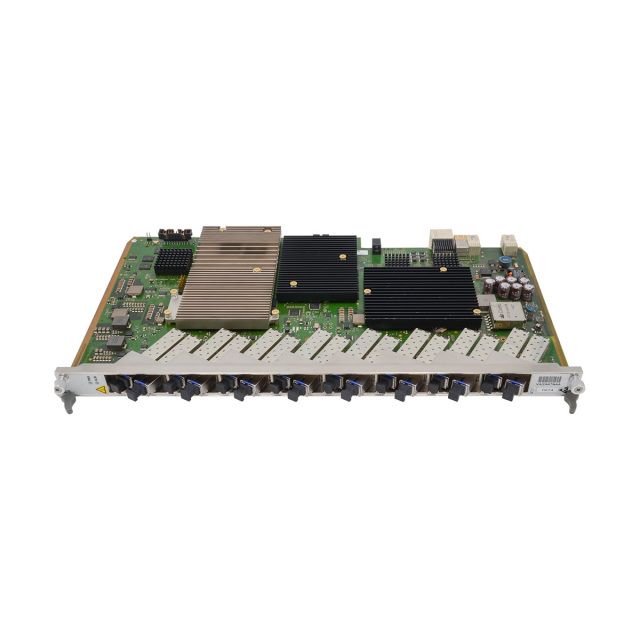

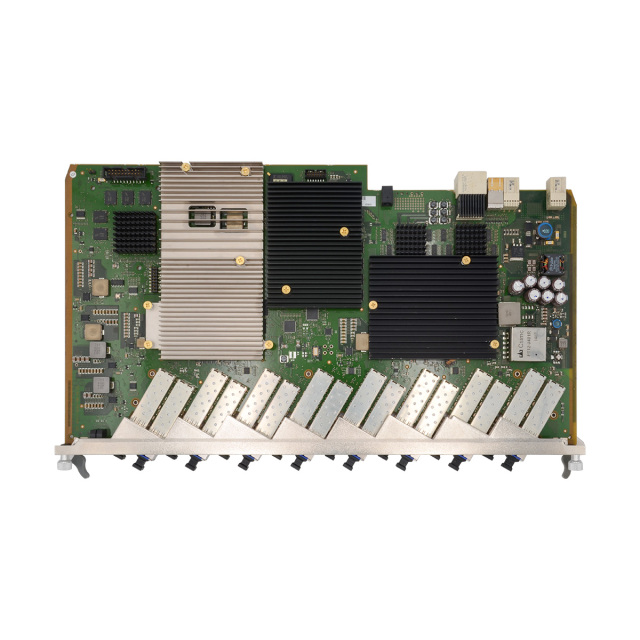

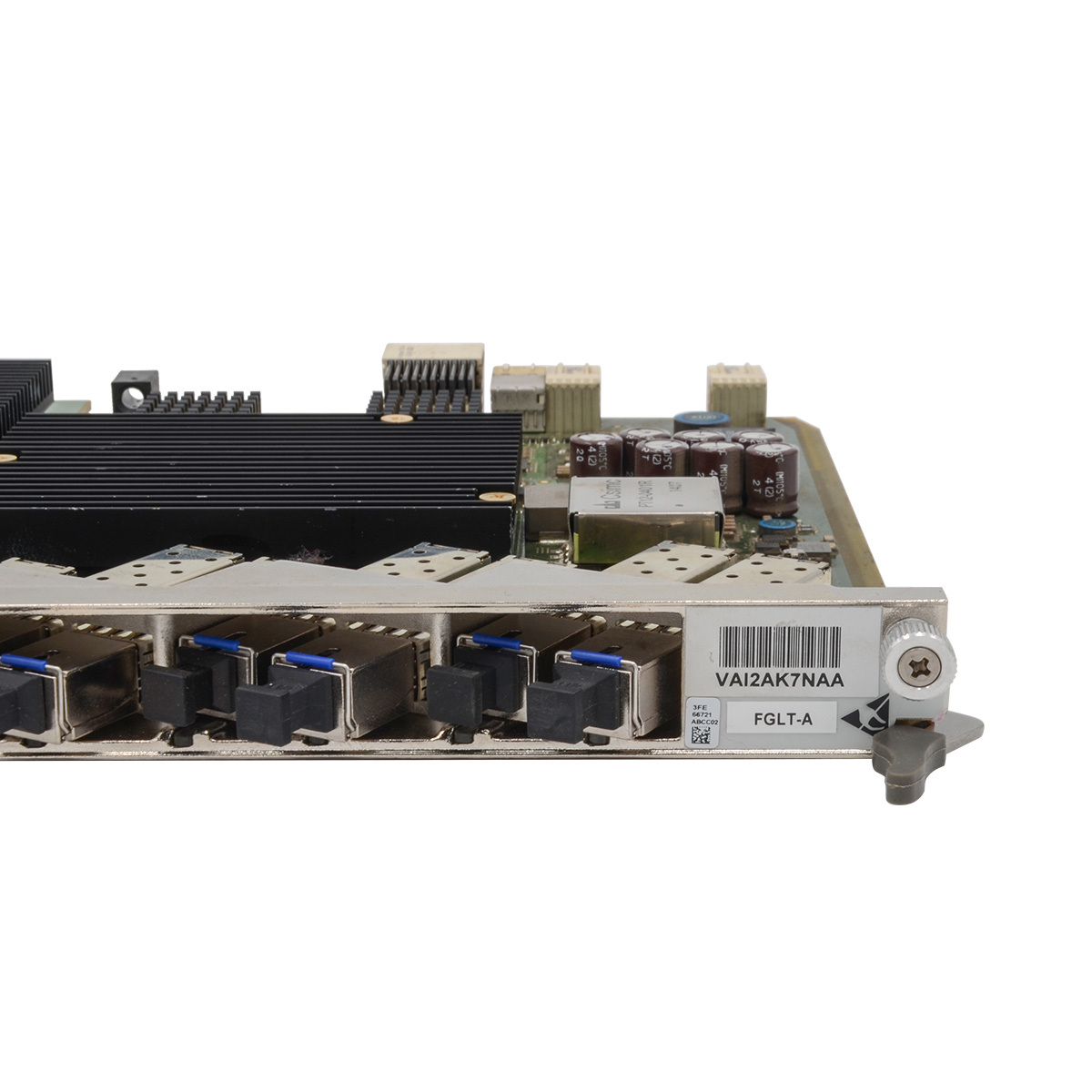

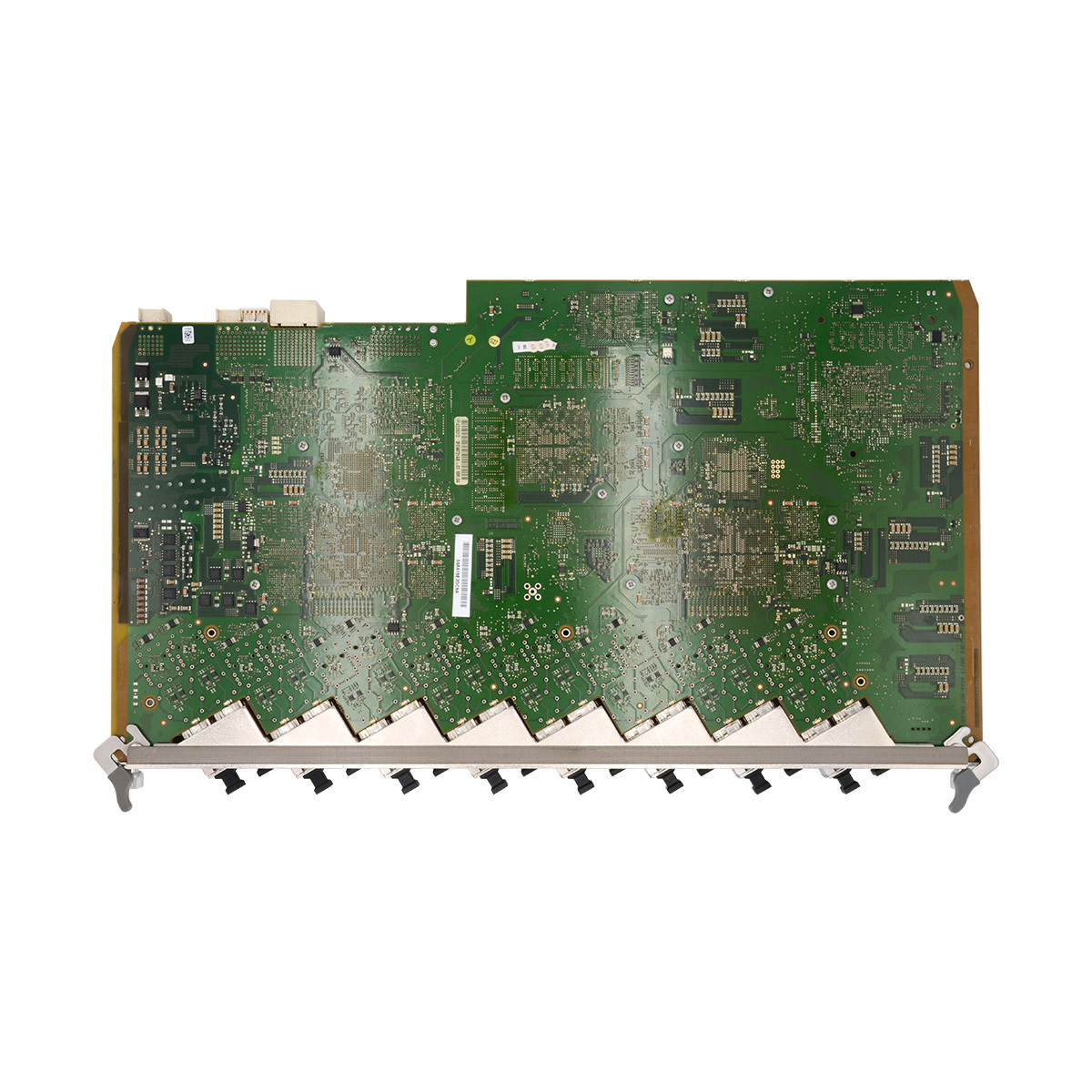

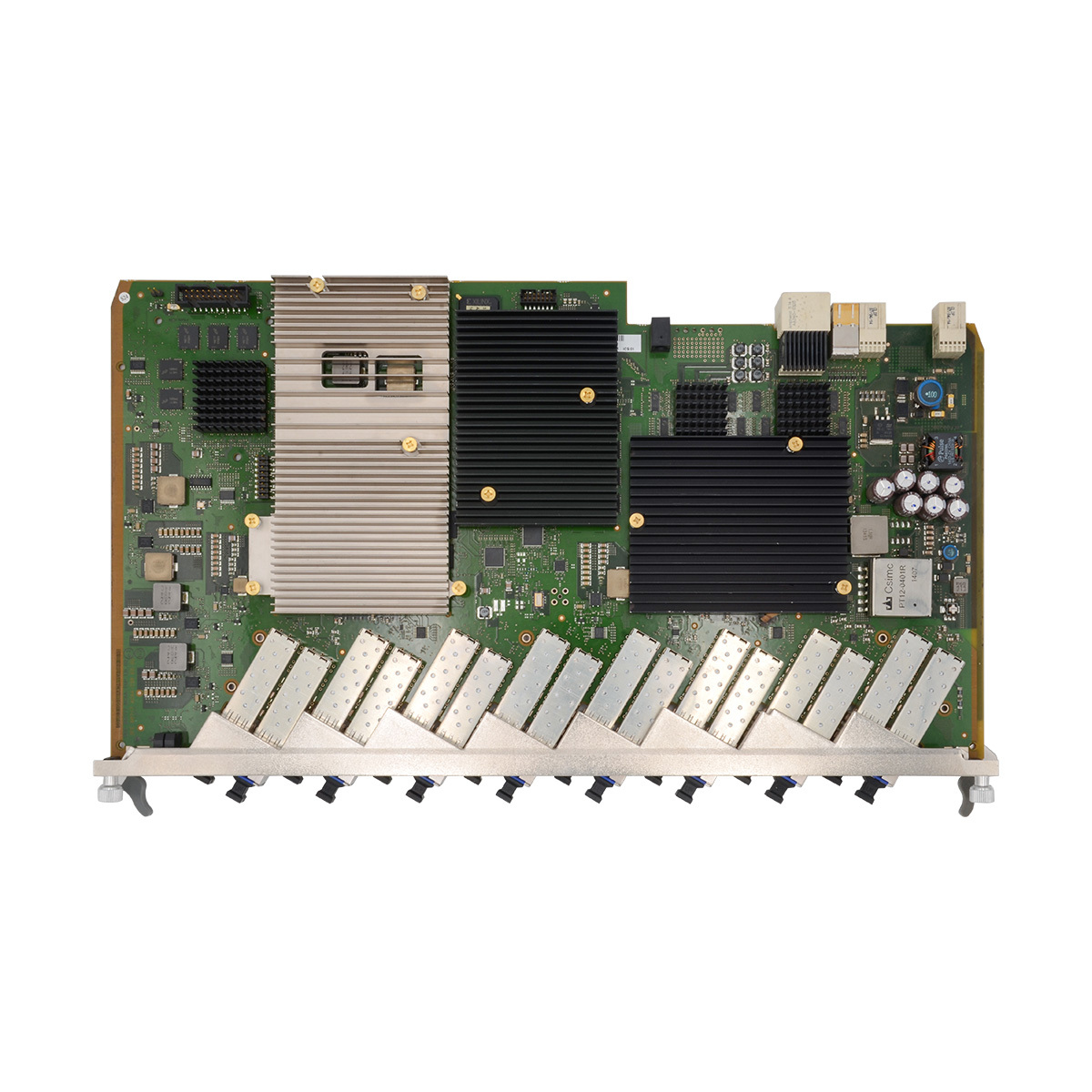

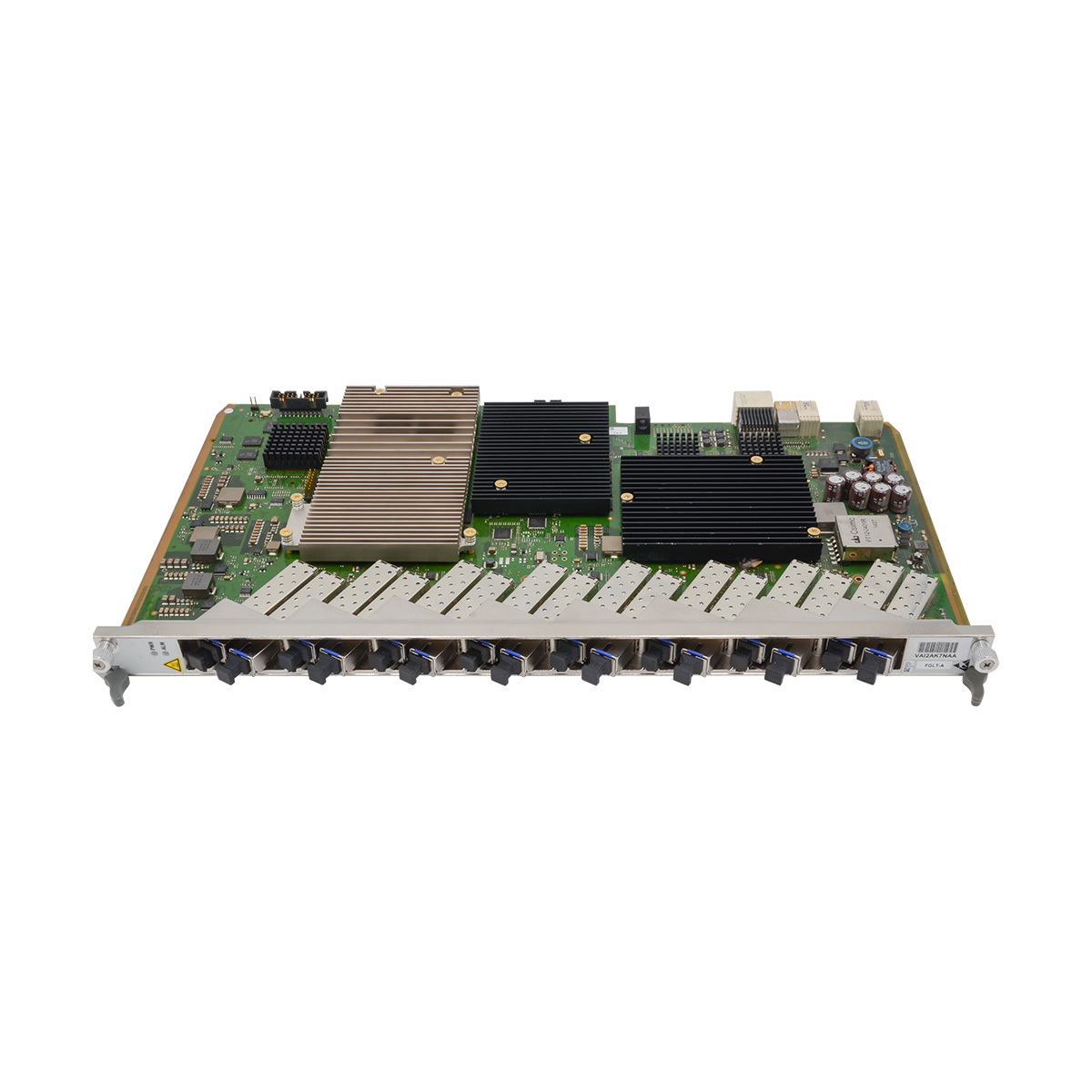

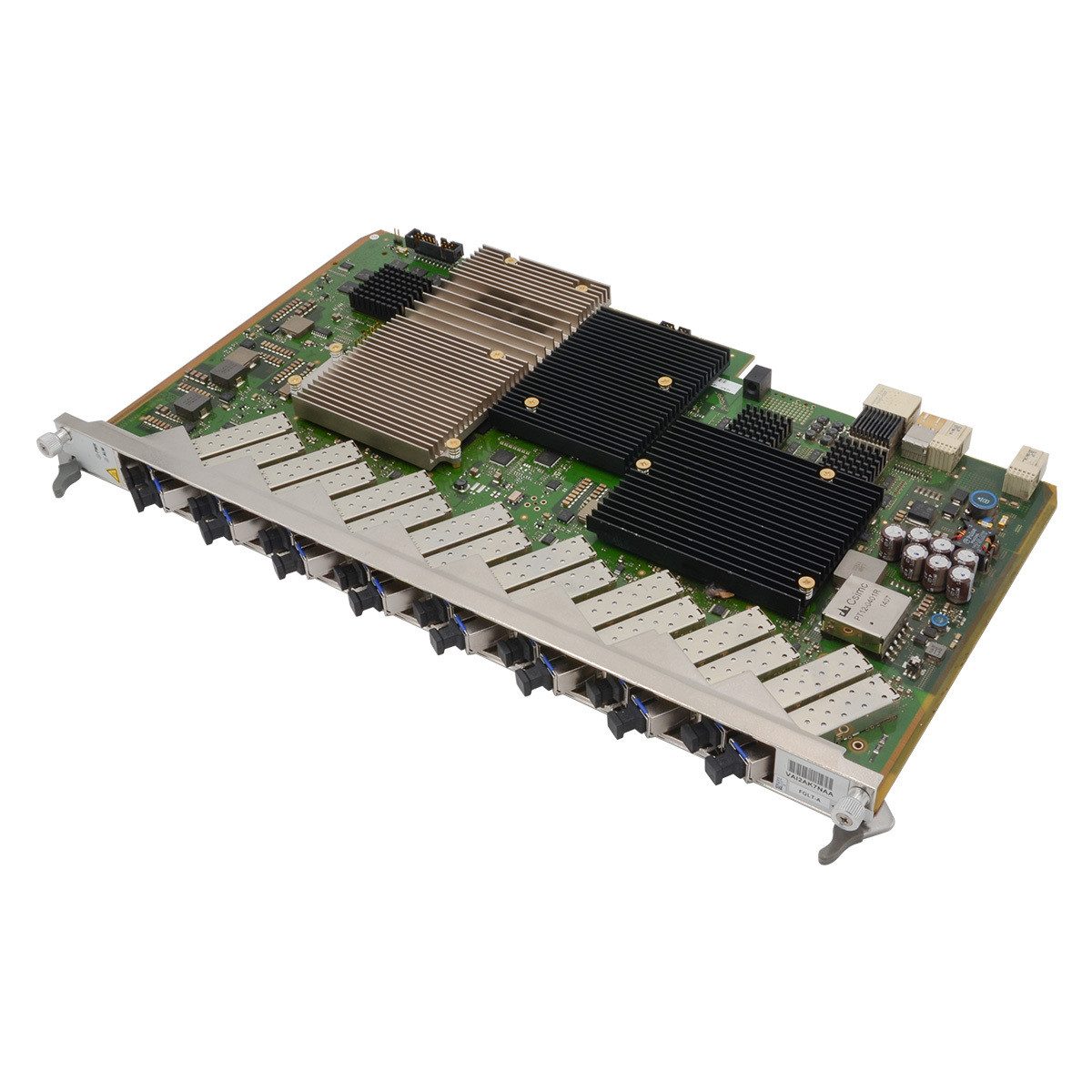

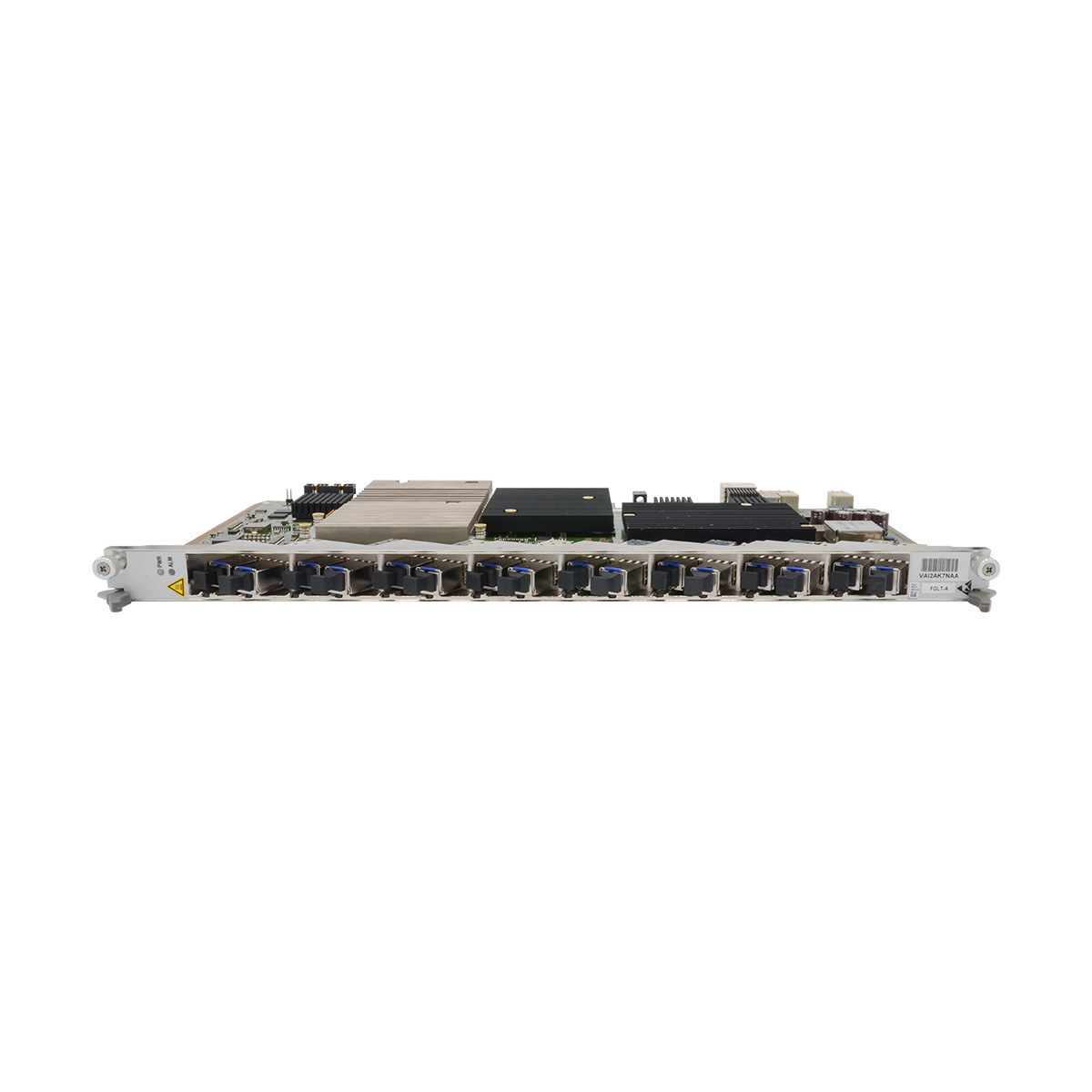

Nokia FGLT-A Board Datasheet |
|
|
GPON Port |
16-GPON Port |
|
Type |
C+ Module: Single Fiber Bidirectional Optical Module, Class C+ |
|
Operating Wavelength |
Tx: 1490 nm, Rx: 1310 nm |
|
Encapsulation Type |
SFP |
|
Port Rate |
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
|
Minimun Output Optical Power |
C+ Module : 3.00 dBm |
|
Maximum Output Optical Power |
C+ Module : 7.00 dBm |
|
Maximum Receiver Sensitivity |
C+ Module : -32.00 dBm |
|
Optical Connector Type |
SC/PC |
|
Optical Fiber Type |
Single-mode |
|
Reach |
30km/60km (18.6mi/37.3mi) |
|
Overload Optical Power |
C+ Module : -12.0 dBm |
|
Extinction Ratio |
8.2 dB |
|
Weight |
1.4kg |
|
Dimensions (W x D x H) |
405 mm x 225mm x 25 mm |
