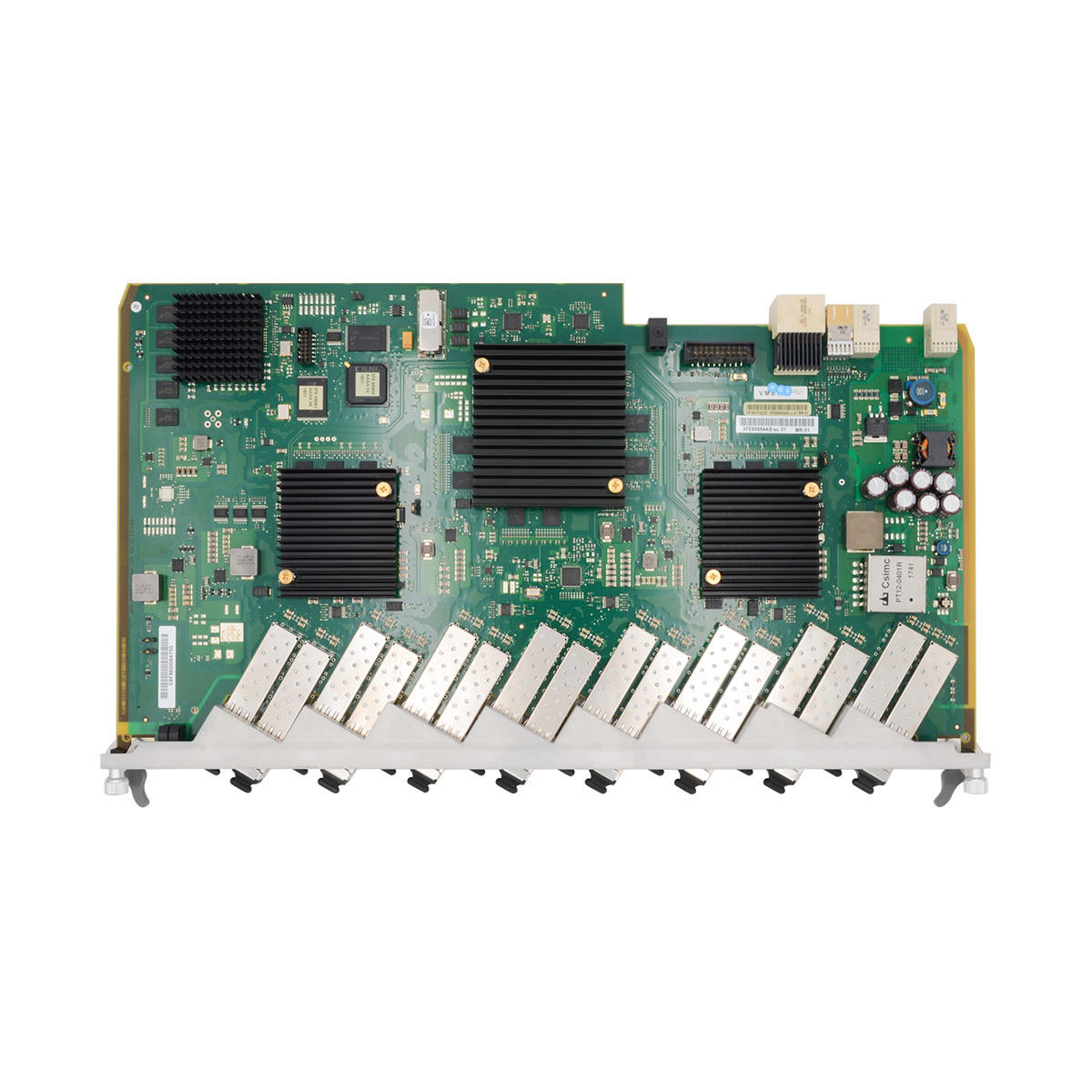

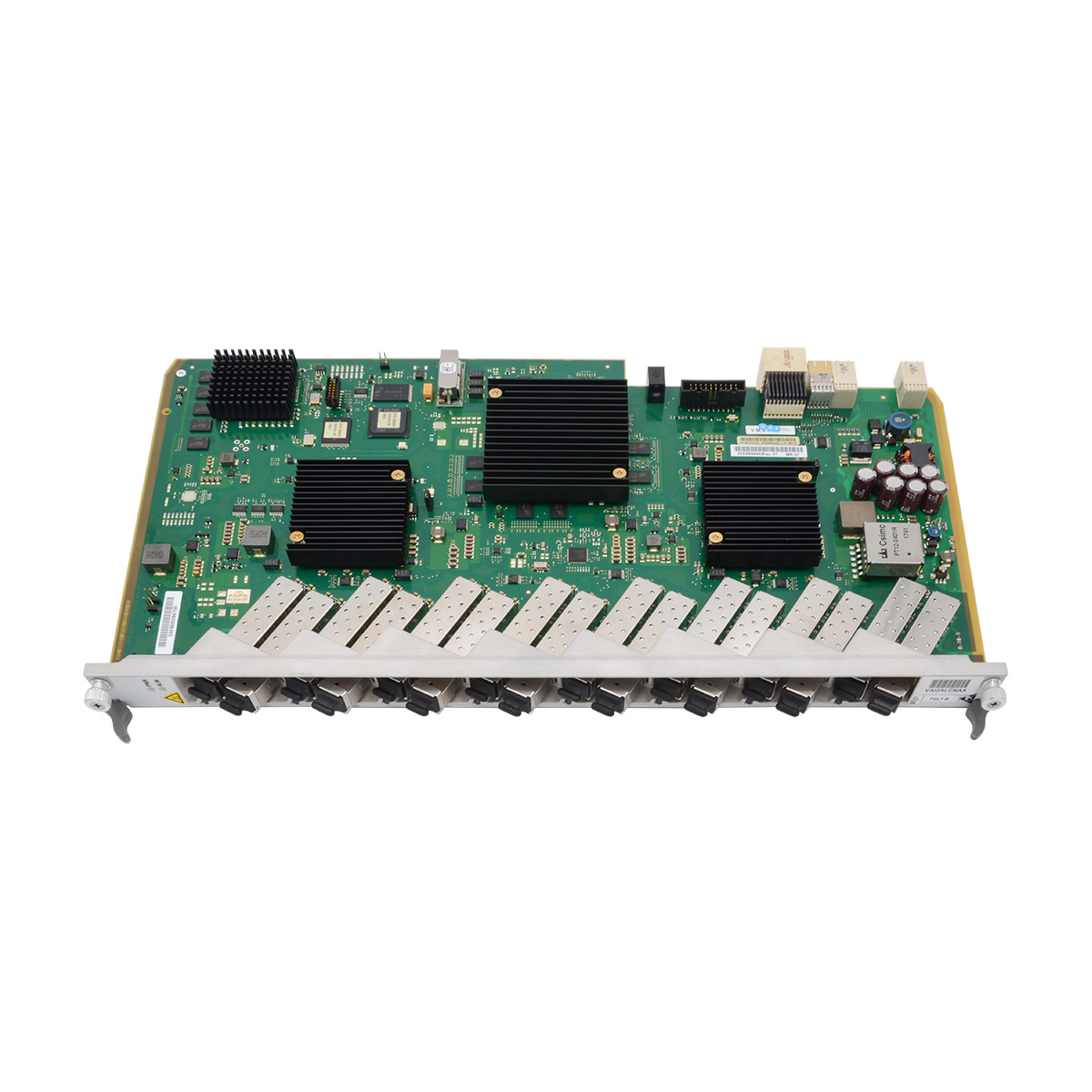

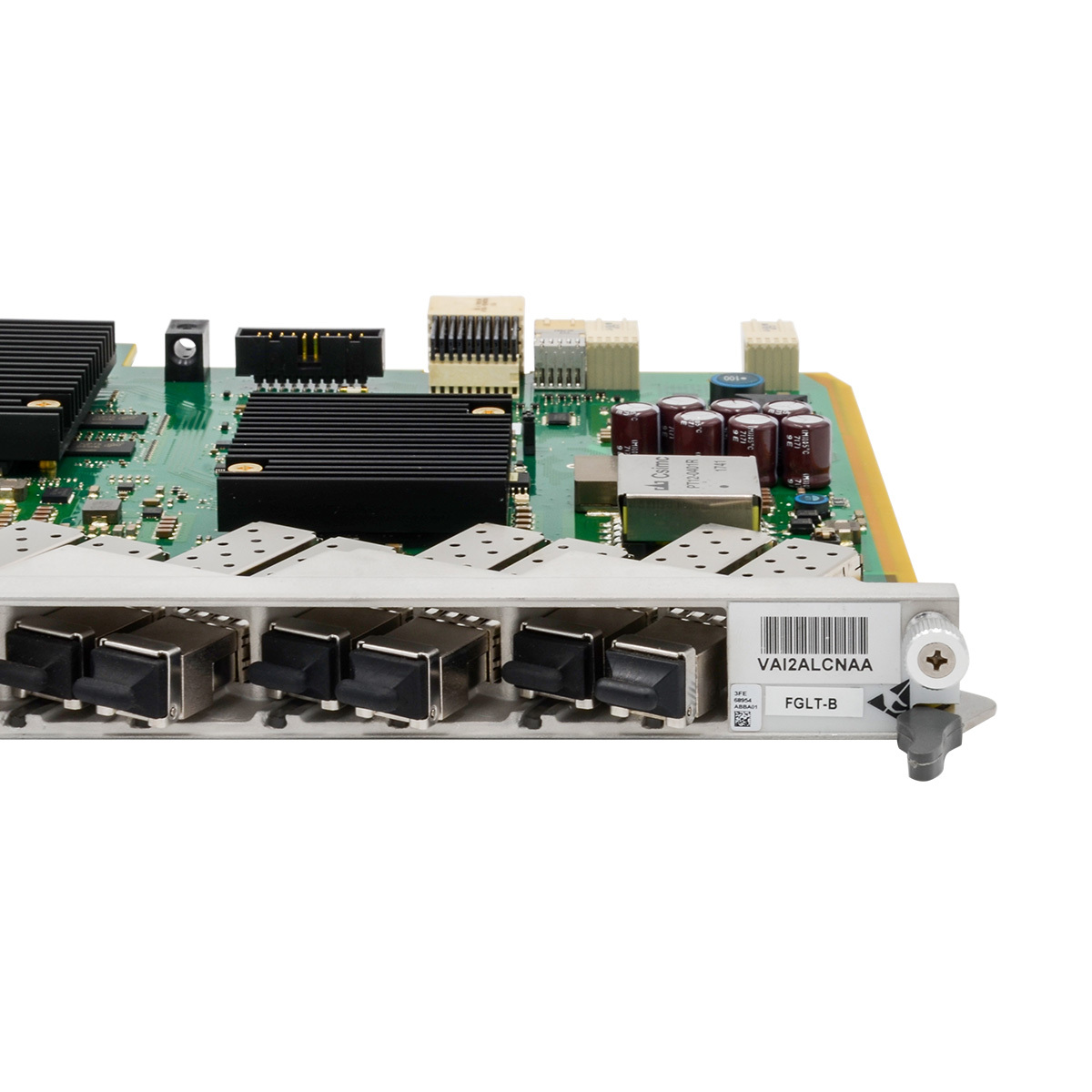

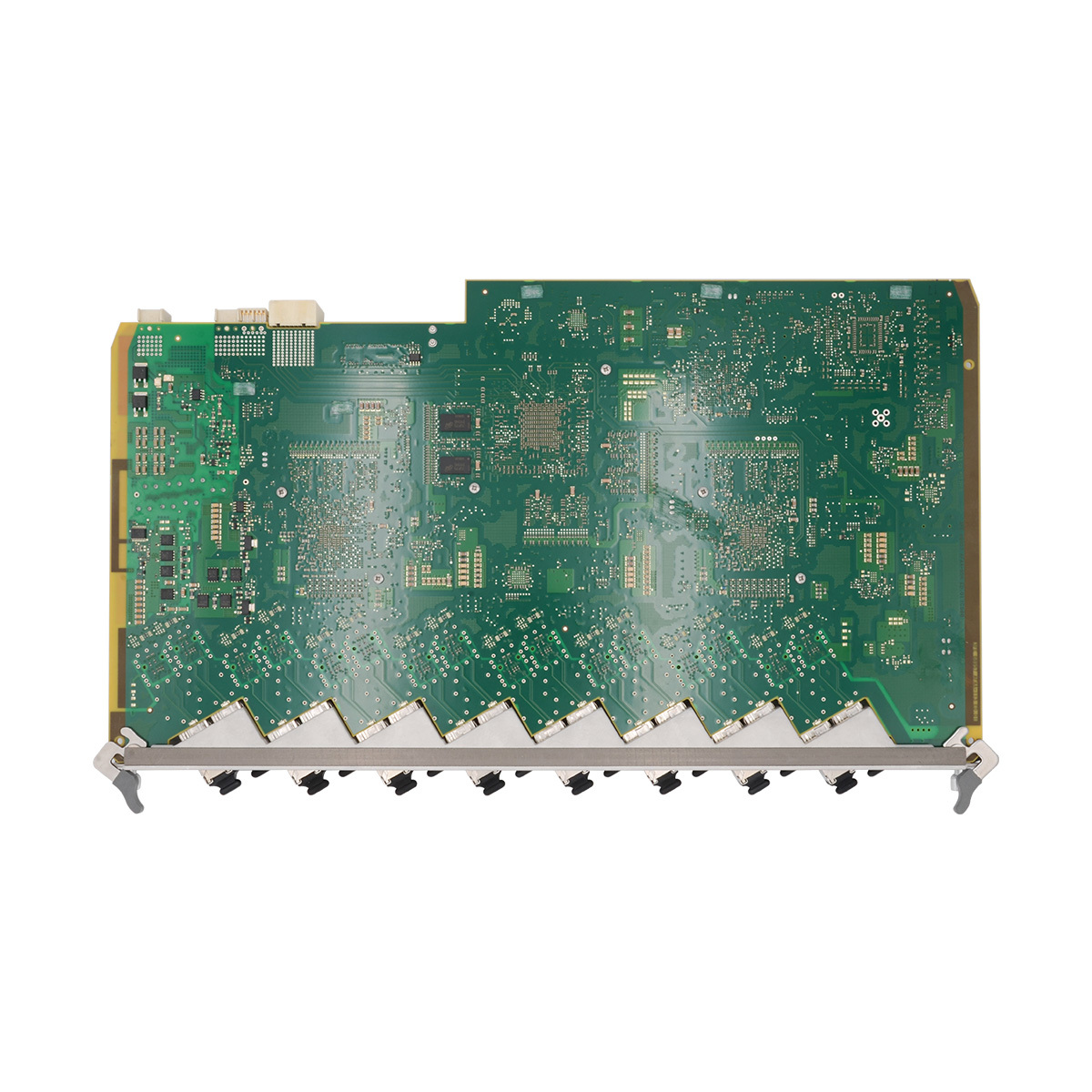

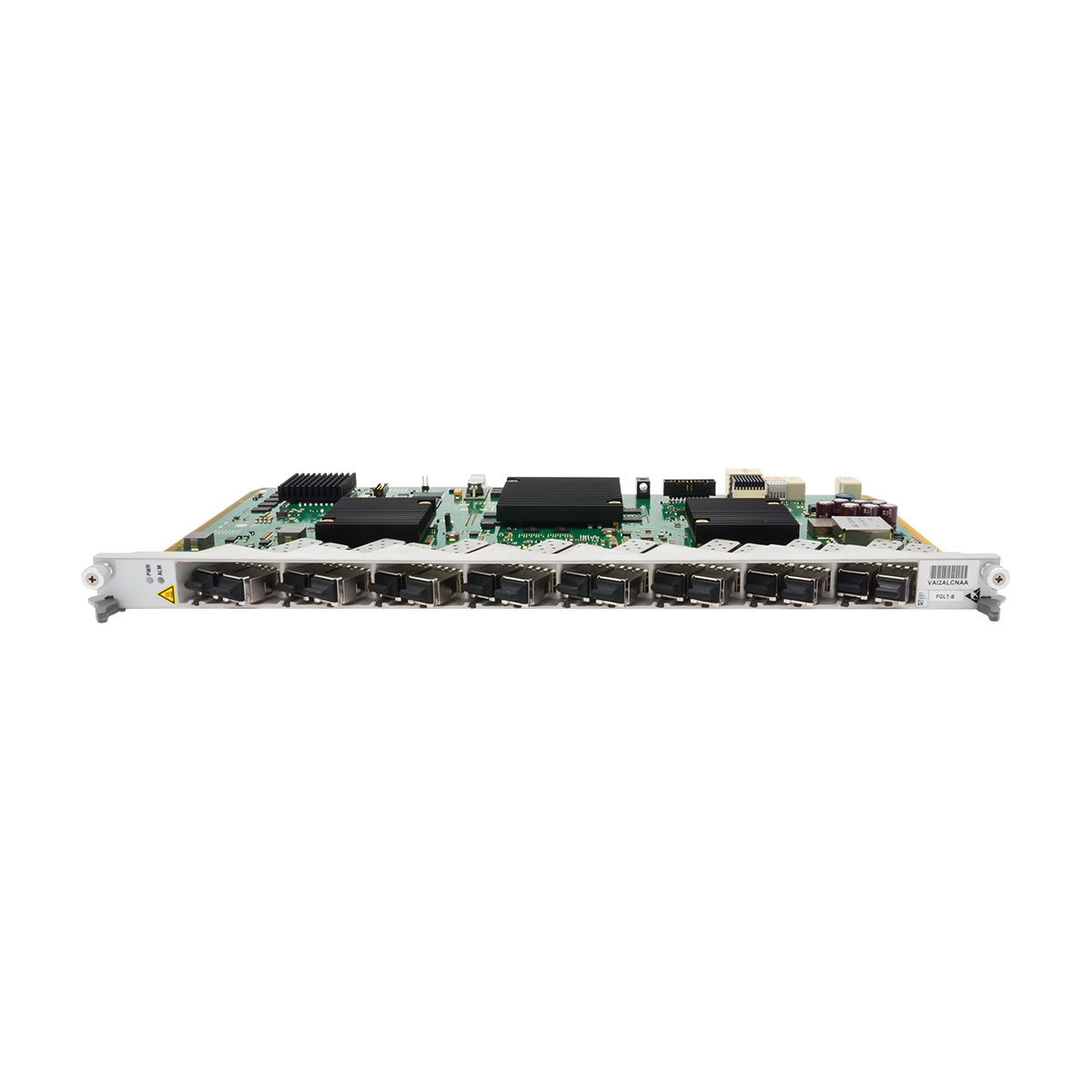

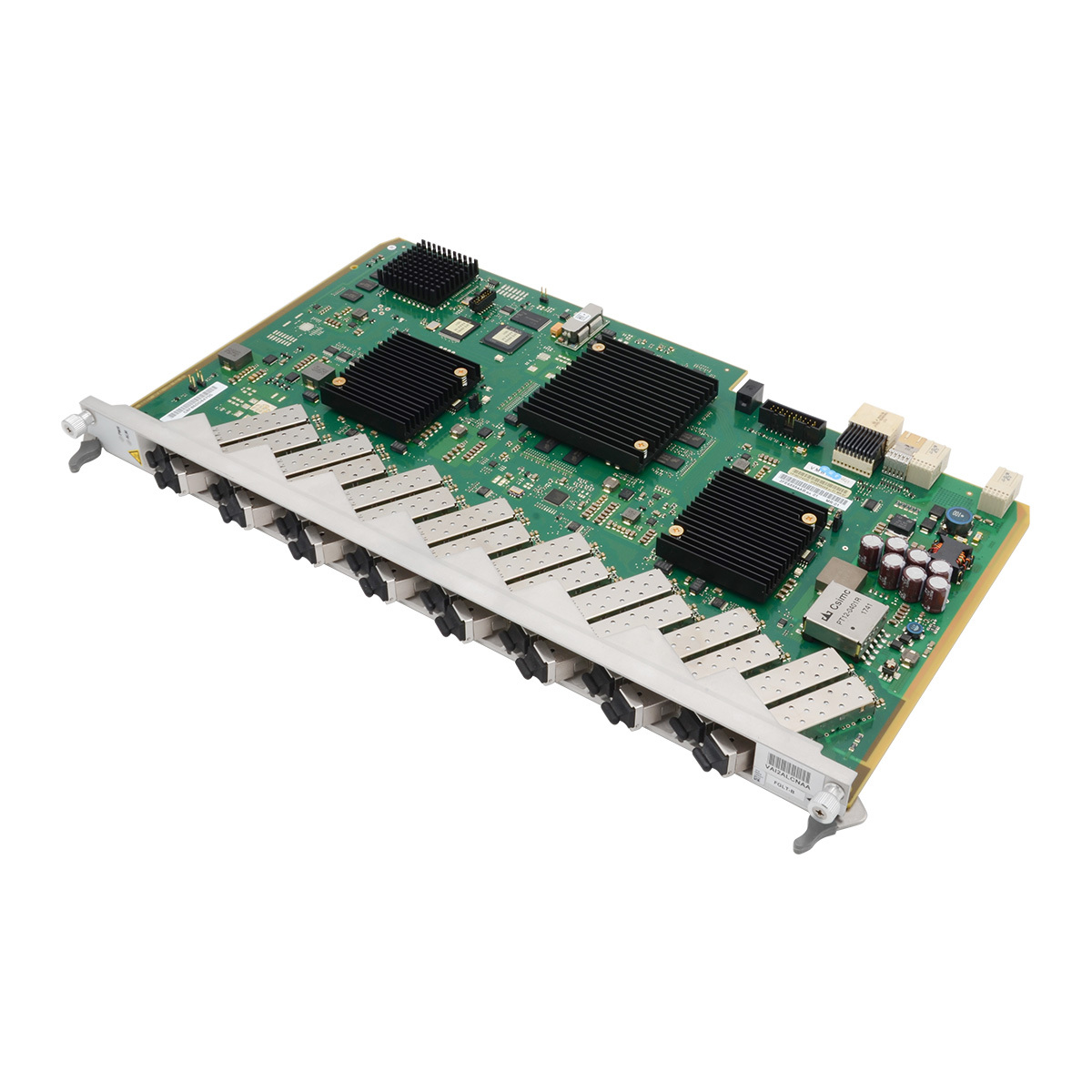

Nokia FGLT-B Overview
The FGLT-B is a dedicated GPON line termination board designed for installation in the 7360 ISAM FX subrack. Compliant with ETSI and ANSI standards, it is specifically engineered for central office (CO) deployment within ISAM FX equipment ecosystems.
Featuring a 1.28 Tb/s switching matrix, the FGLT-B offers termination for 16 GPON ports—supporting 2.488 Gbps downstream and 1.244 Gbps upstream rates—with compatibility for pluggable SFP GPON optical modules.
Product Features
- High Density: 16 GPON interfaces per card, supporting a massive number of subscribers (over 2,000 per card).
- GPON Technology: Uses Passive Optical Network for efficient fiber sharing.
- High Bandwidth: Delivers 2.488 Gbps downstream and 1.244 Gbps upstream speeds per port.
- Service Versatility: Supports IPTV, RF overlay, and various voice/data services (via connected ONTs).
- Advanced Management: Includes QoS (Quality of Service), VLANs, Multicast, Jumbo Frames, and remote management capabilities.
- Compatibility: Designed for Nokia Alcatel-Lucent 7360 ISAM FX OLT platforms.
Application Scenarios
FGLT-B Board: Australian Rural Broadband Expansion Case
In 2025, a major Australian telecom provider deployed the FGLT-B GPON line termination board in 7360 ISAM FX subracks to bridge the digital divide across rural New South Wales and Queensland. The project required ETSI/ANSI-compliant, high-capacity solutions for central office (CO) setups, targeting underserved towns and farms.
Powered by the FGLT-B’s 1.28 Tb/s switching matrix, the board delivered 16 GPON ports (2.488 Gbps down/1.244 Gbps up) with pluggable SFP modules, connecting 250,000+ rural users to stable gigabit broadband. Its long-reach compatibility (up to 60km) simplified deployment across vast distances, while seamless subrack integration reduced setup time. Post-launch, network capacity surged 90%, enabling remote work, telehealth, and agritech applications with zero service outages.
Technical Specifications
|
Nokia FGLT-B Board Datasheet
|
|
GPON Port
|
16-GPON Port
|
|
Type
|
C+ Module: Single Fiber Bidirectional Optical Module, Class C+
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
|
Minimun Output Optical Power
|
C+ Module : 3.00 dBm
|
|
Maximum Output Optical Power
|
C+ Module : 7.00 dBm
|
|
Maximum Receiver Sensitivity
|
C+ Module : -32.00 dBm
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
30km/60km (18.6mi/37.3mi)
|
|
Overload Optical Power
|
C+ Module : -12.0 dBm
|
|
Extinction Ratio
|
8.2 dB
|
|
Weight
|
1.1kg
|
|
Dimensions (W x D x H)
|
405 mm x 225mm x 25 mm
|
FAQ
Q: Which Nokia OLT platforms is the FGLT-B board compatible with?
A: It is fully compatible with Nokia ISAM 7360 FX-8 and ISAM 7360 FX-4 OLT systems, supporting seamless integration into existing PON networks.
Q: How can I purchase the FGLT-B from MF-Telecom?
A: Contact our sales team via [email/contact form] for bulk pricing, technical specifications, and global shipping options—we offer genuine products with 1-year warranty.
Q: What is the after-sales service period?A: We provide a one-year warranty and technical support.Q: How many ports does the Nokia FGLT-B board have?
A: The board is configured with
16 GPON ports.
Q: What is the Nokia FGLT-B board?
A: It’s is a GPON line termination board.
