Huawei CE6881-48S6CQ-K Switch

Nokia FGUT-A Board

Name: Nokia FGUT-A Board
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF1315
Price: 32.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF1315

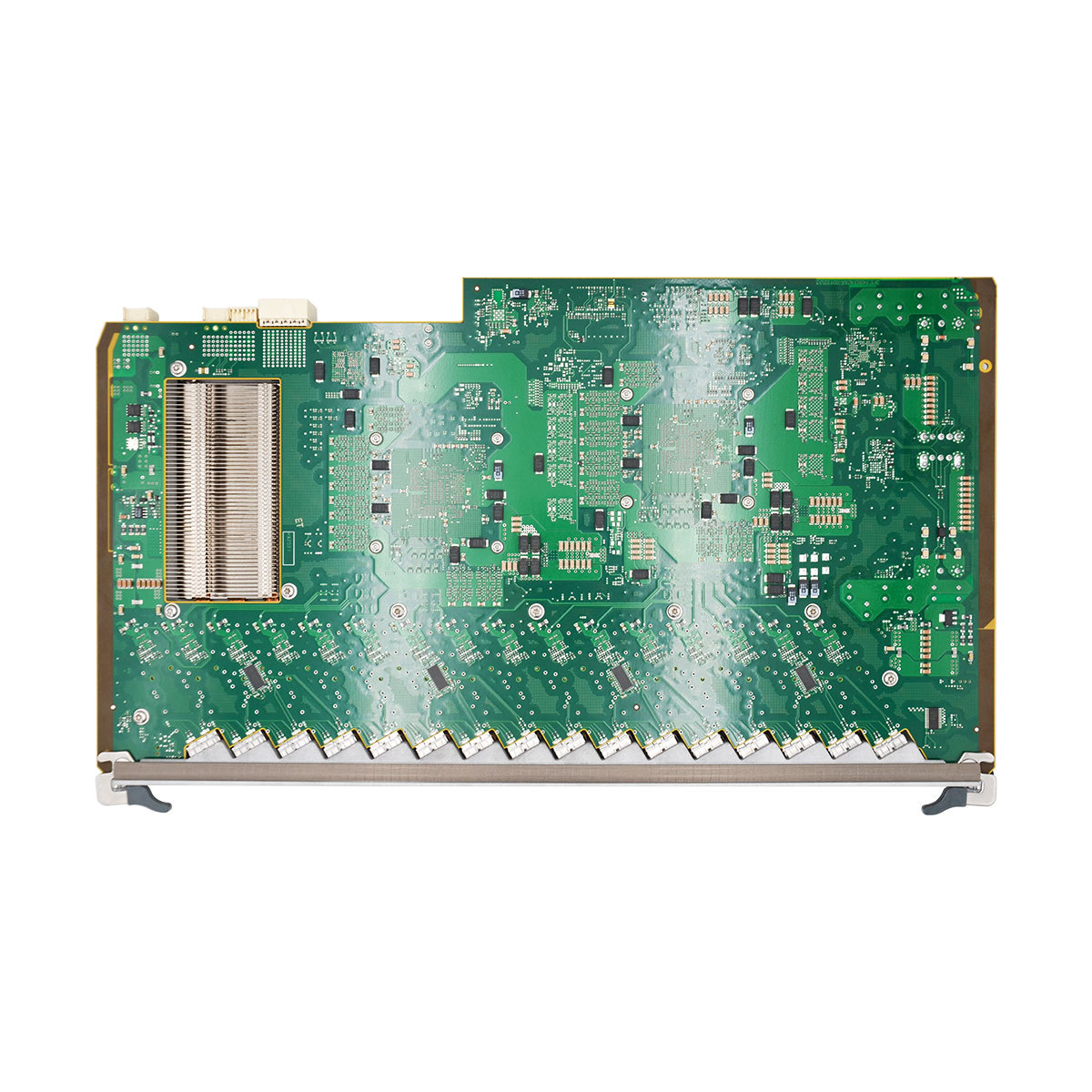

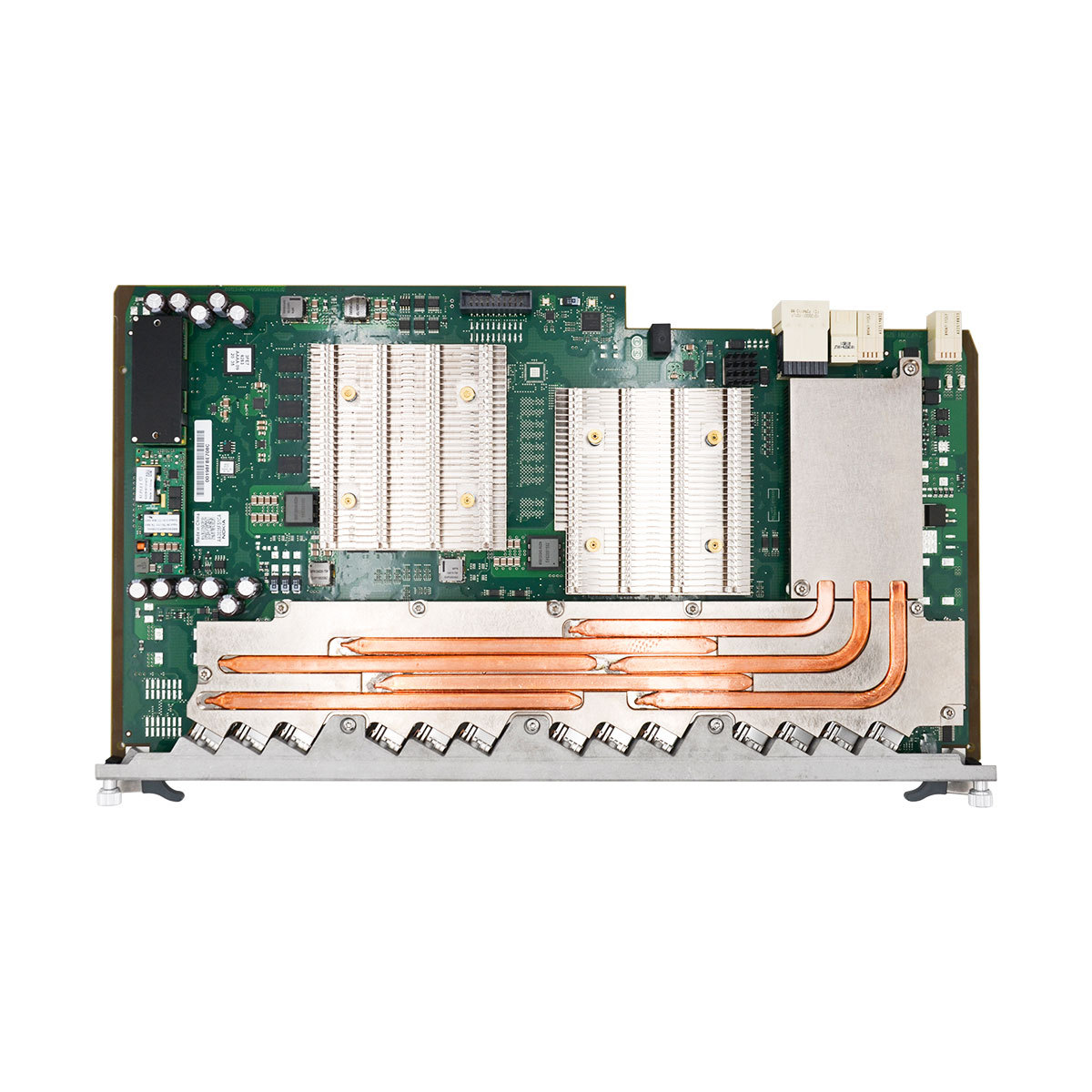

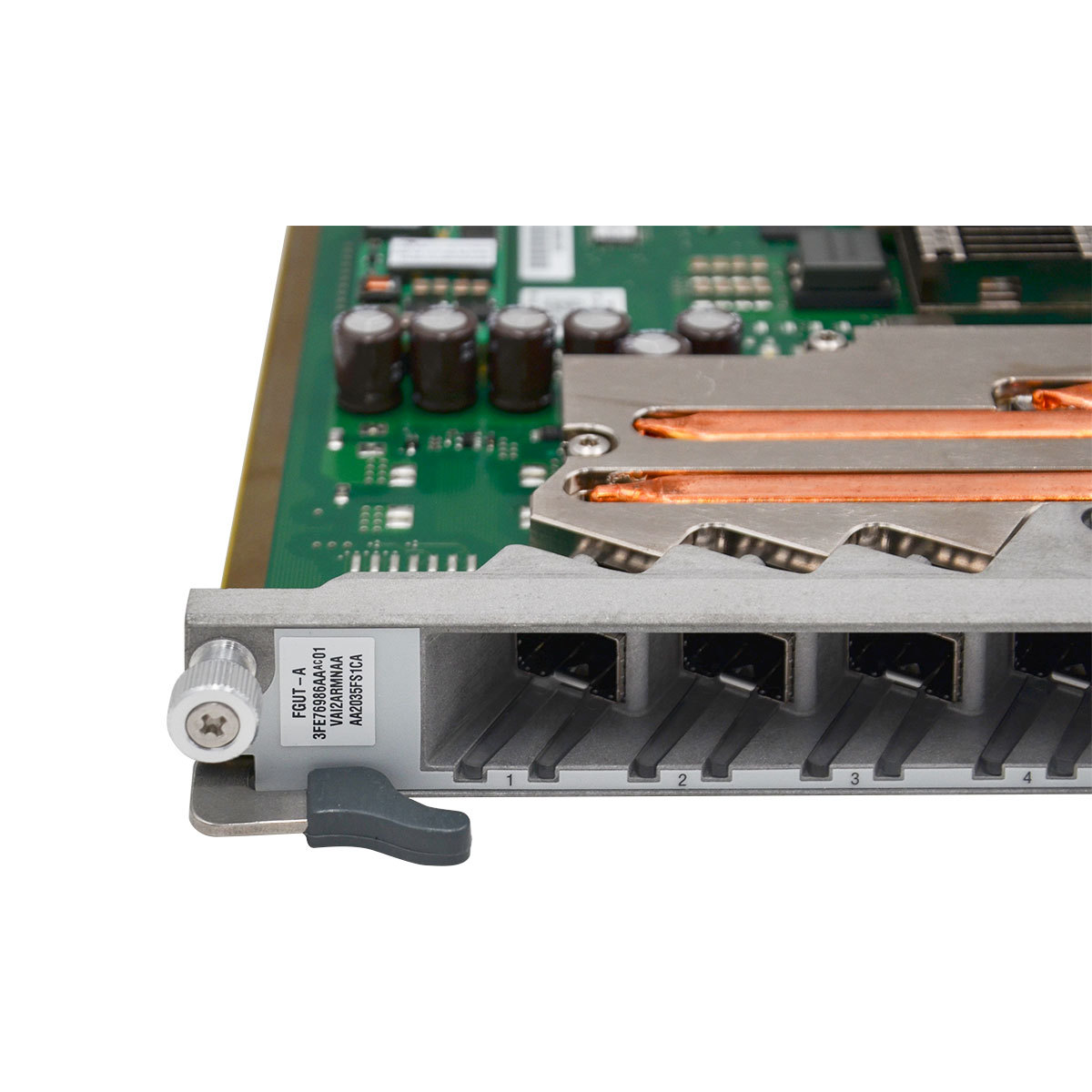

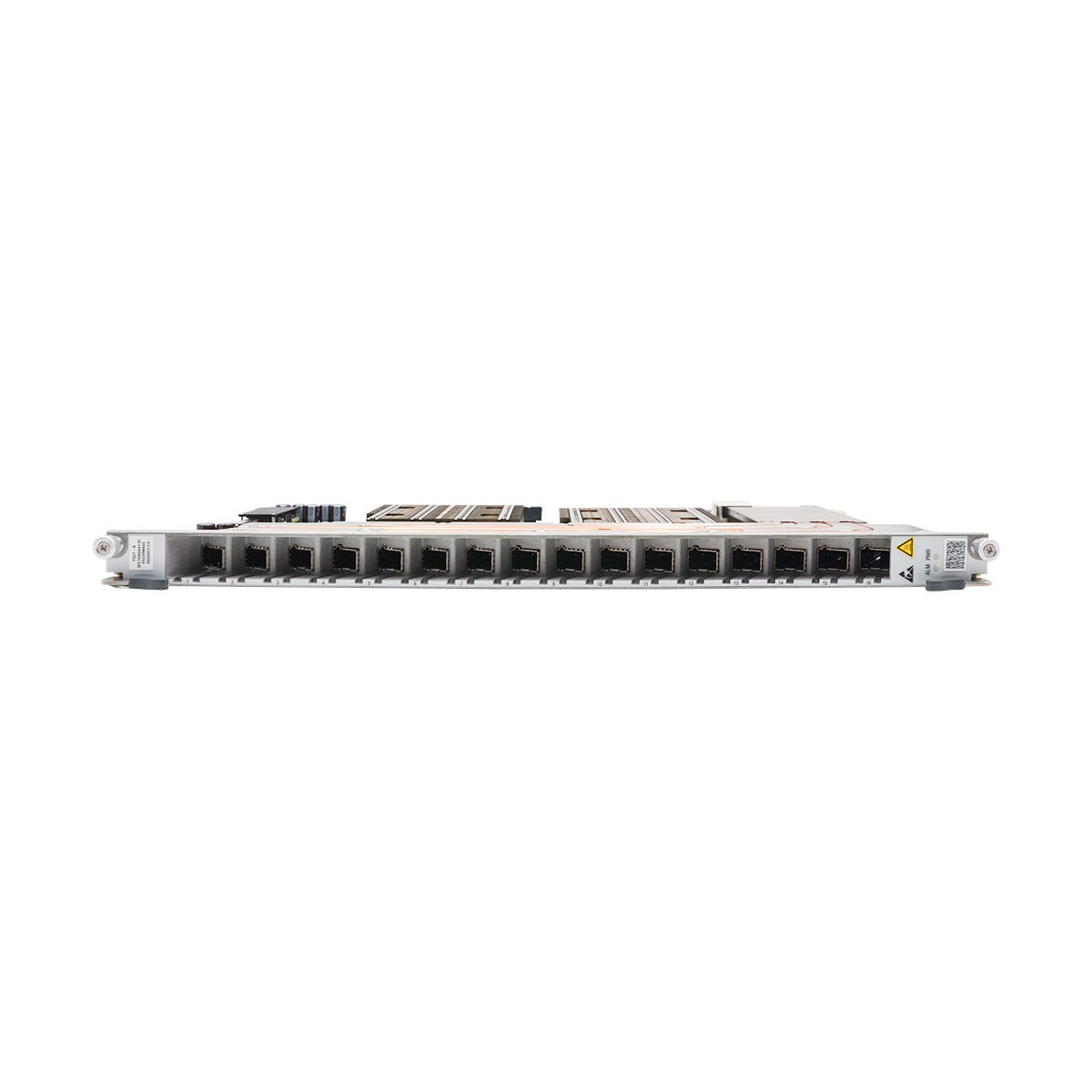

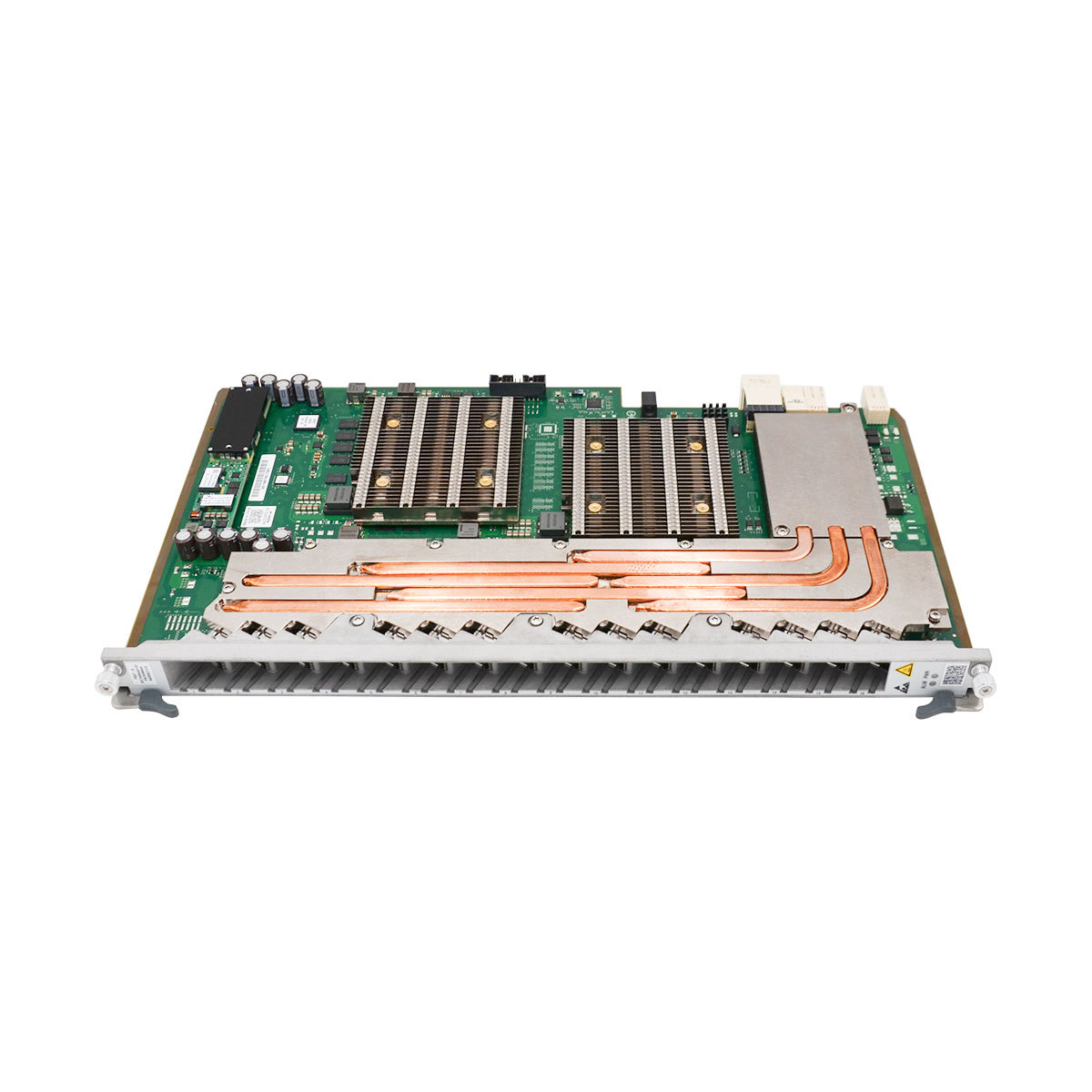

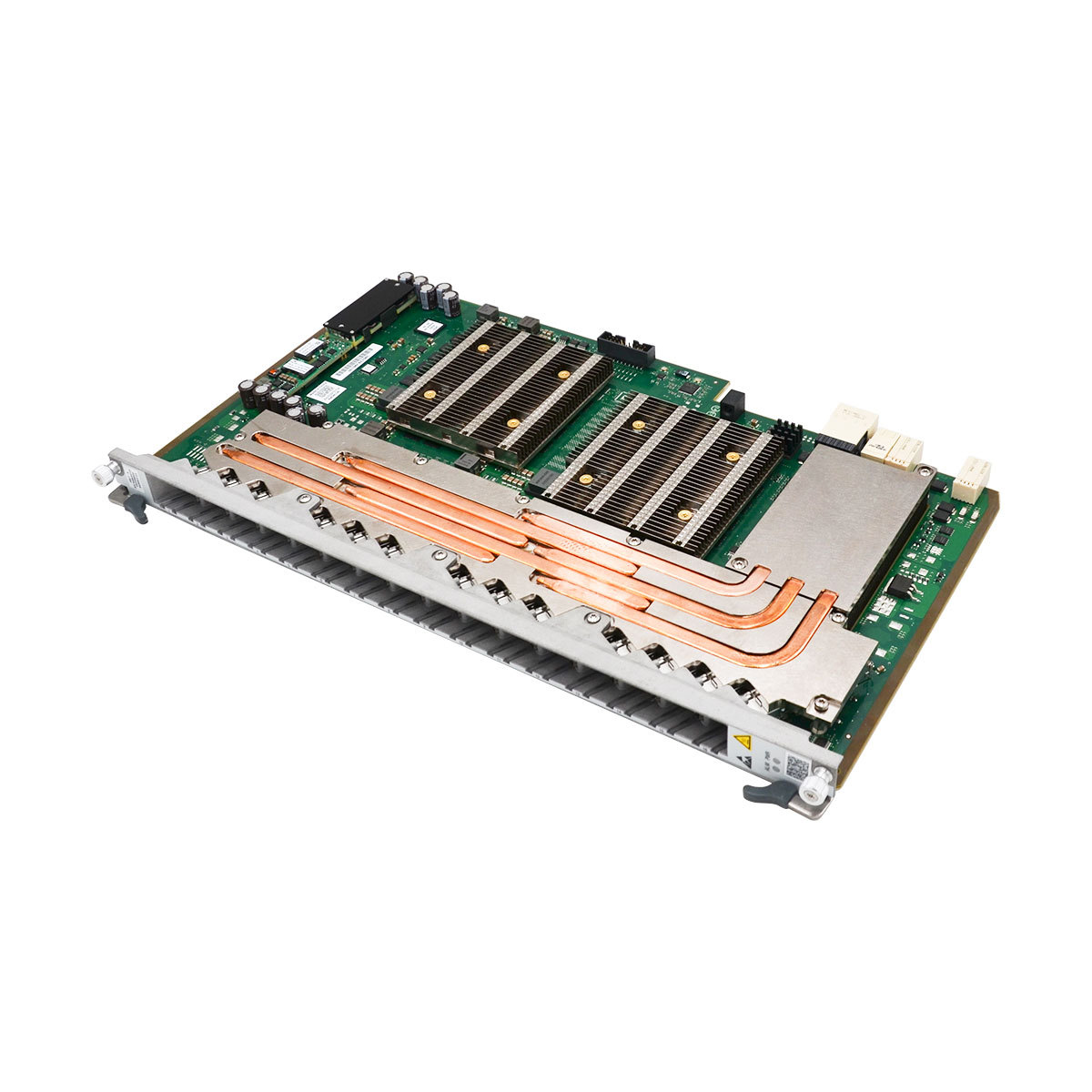

Nokia Alcatel-lucent FGUT-A ISMA FX series 16-port XGS-PON and GPON combo OLT Interface Board with XGS-PON & GPON C+

Packing Box Specifications

40 x 22 x 3cm

Gross Weight

2kg

Port Number

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description

Nokia FGUT-A Overview

The Alcatel-Lucent FGUT-A is a 16-port symmetric 10G XGS-PON and GPON combo OLT interface board, compatible with Nokia Alcatel-Lucent 7360 ISAM FX-4 and 7360 ISAM FX-8 platforms. Working in tandem with optical network units (ONUs), it delivers both XGS-PON and GPON access services, featuring a 1.28Tb/s switching matrix, a maximum split ratio of 1:256, and SC interface type. Equipped with N1/C+ modules (with optional SFP+ modules N2a/D), its GPON channel supports 2.488 Gbit/s downstream and 1.244 Gbit/s upstream, while the XGS-PON channel offers 9.953 Gbit/s downstream and 9.953/2.488 Gbit/s upstream transmission rates.

Product Features

Dual-Mode PON: Supports both XGS-PON (10G) for high-bandwidth services and GPON (2.5G) for legacy compatibility on a single card, allowing for mixed deployments.
High Performance: Delivers up to 10 Gbps downstream and 2.5 Gbps upstream for XGS-PON, and 2.5 Gbps downstream/1.25 Gbps upstream for GPON.
Scalability: Features 16 PON ports per card, allowing extensive connectivity for many users.
Advanced QoS: Includes Quality of Service features, VLAN tagging, and Q in Q for efficient traffic management and service prioritization.
Network Management: Supports SNMP, CLI, and integrates with Nokia's Element Management System (EMS) for remote monitoring, fault detection, and configuration.
Security: Offers Access Control Lists (ACLs) and firewall protection.

Application Scenarios

Nokia FGUT-A Board: U.S. Urban 10G Broadband Upgrade Case
In 2025, a top U.S. telecom operator deployed the Nokia FGUT-A board in 7360 ISAM FX-4/FX-8 OLTs across New York, Los Angeles, and Chicago. Targeting 10G symmetric broadband and enterprise cloud needs, the project leveraged the FGUT-A’s 1.28Tb/s switching matrix for high-capacity data routing.
With 16 XGS-PON/GPON combo ports, the board delivered 9.953Gbit/s symmetric XGS-PON and legacy GPON services, supporting a 1:256 split ratio. Its SC interfaces and C+ modules (optional N2a/D SFP+) seamlessly integrated with existing infrastructure, connecting 500,000+ users. Post-deployment, network capacity doubled, latency dropped 35%, and the operator efficiently scaled services without hardware overhauls.

Downloadable resources

Nokia FGUT-A Board Datasheet

Technical Specifications

Nokia FGUT-A Board Datasheet
Service ports
GPON Port	16 XGS-PON & GPON ports
XGS-PON&GPON Combo PON Class C+ Module
Type	One-fiber bi-directional optical module
Operating Wavelength	GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON & XGS-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type	SFP+
Port Rate	GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488Gbit/s
Minimum Output Optical Power	GPON channel: 3 dBm XGS-PON channel: 5 dBm
Maximum Output Optical Power	GPON channel: 7 dBm XGS-PON channel: 8 dBm
Maximum Receiver Sensitivity	GPON channel: -32 dBm XG-PON channel: -30.5 dBm XGS-PON channel: -29 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Overload Optical Power	GPON channel: -12 dBm XG-PON channel: -10 dBm XGS-PON channel: -8 dBm
Extinction Ratio	8.2 dB
Function
Forwarding capability	200 Gbit/s
Rate mode	Symmetric rate
T-CONTs per PON port	GPON: 1024 XG(S)-PON: 2048
Service flows per PON board	16352
Maximum frame size	2052 bytes 9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses	131072
Maximum distance difference between two ONUs under the same PON port	40 km
Device Specifications
Dimensions (W x D x H)	23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption	Static: 48 W Maximum: 98 W
Operating temperature	-40°C to +65°C

FAQ

Q: Which OLTs work with the 1.28Tb/s switching capability?

A: Nokia Alcatel-Lucent 7360 ISAM FX-4 and FX-8 platforms.

Q: Which Nokia OLT platforms is the FGUT-A board compatible with?
A: It is fully compatible with Nokia ISAM 7360 FX-8 and ISAM 7360 FX-4 OLT systems, supporting seamless integration into existing PON networks.

Q: How can I purchase the FGUT-A from MF-Telecom?

A: Contact our sales team via [email/contact form] for bulk pricing, technical specifications, and global shipping options—we offer genuine products with 1-year warranty.

Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.

Q: How many ports does the Nokia FGUT-A board have?
A: The board is configured with 16 GPON ports.

Q: What is the Nokia FGUT-A board?

A: It’s is a GPON line termination board.
