Huawei NXED Overview

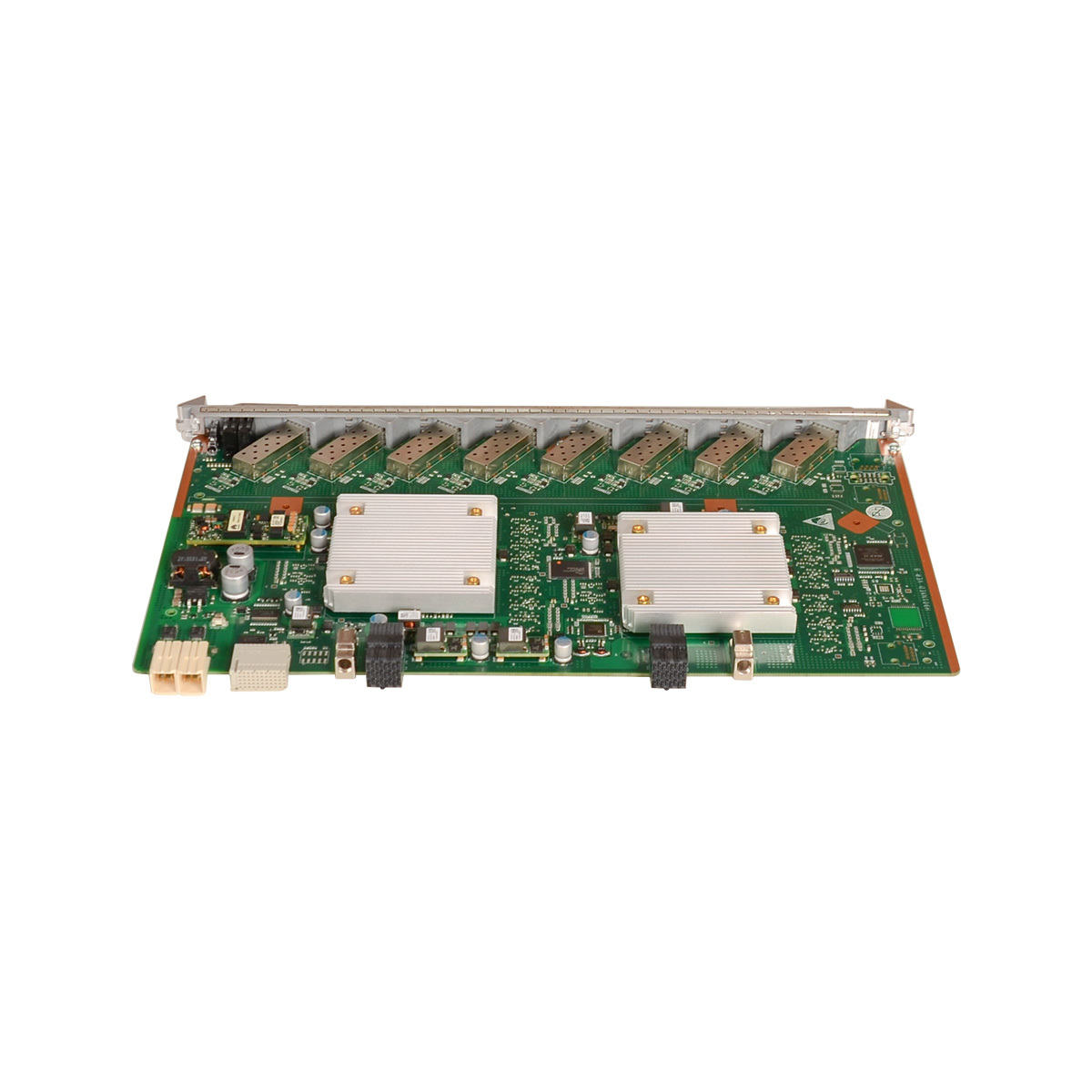

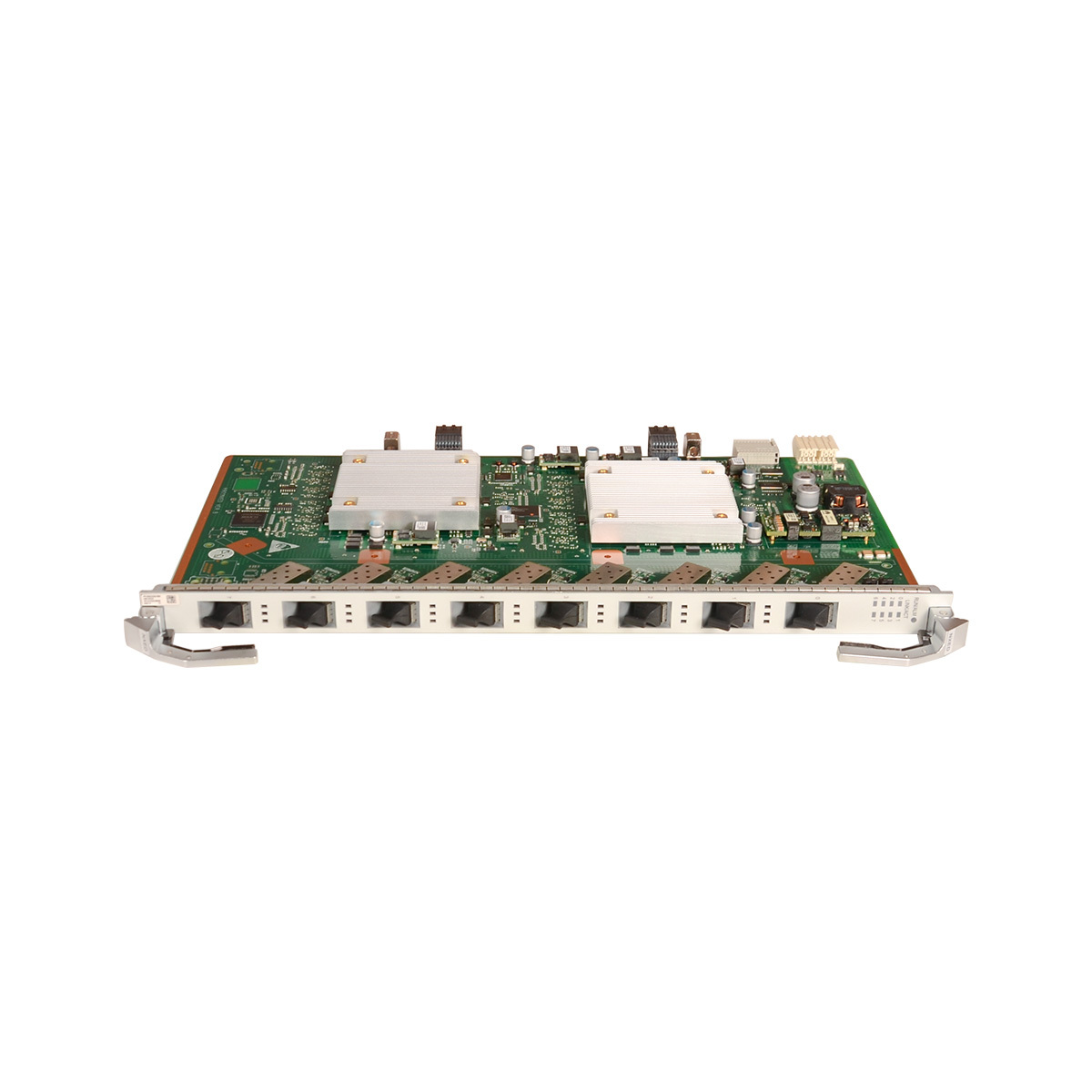

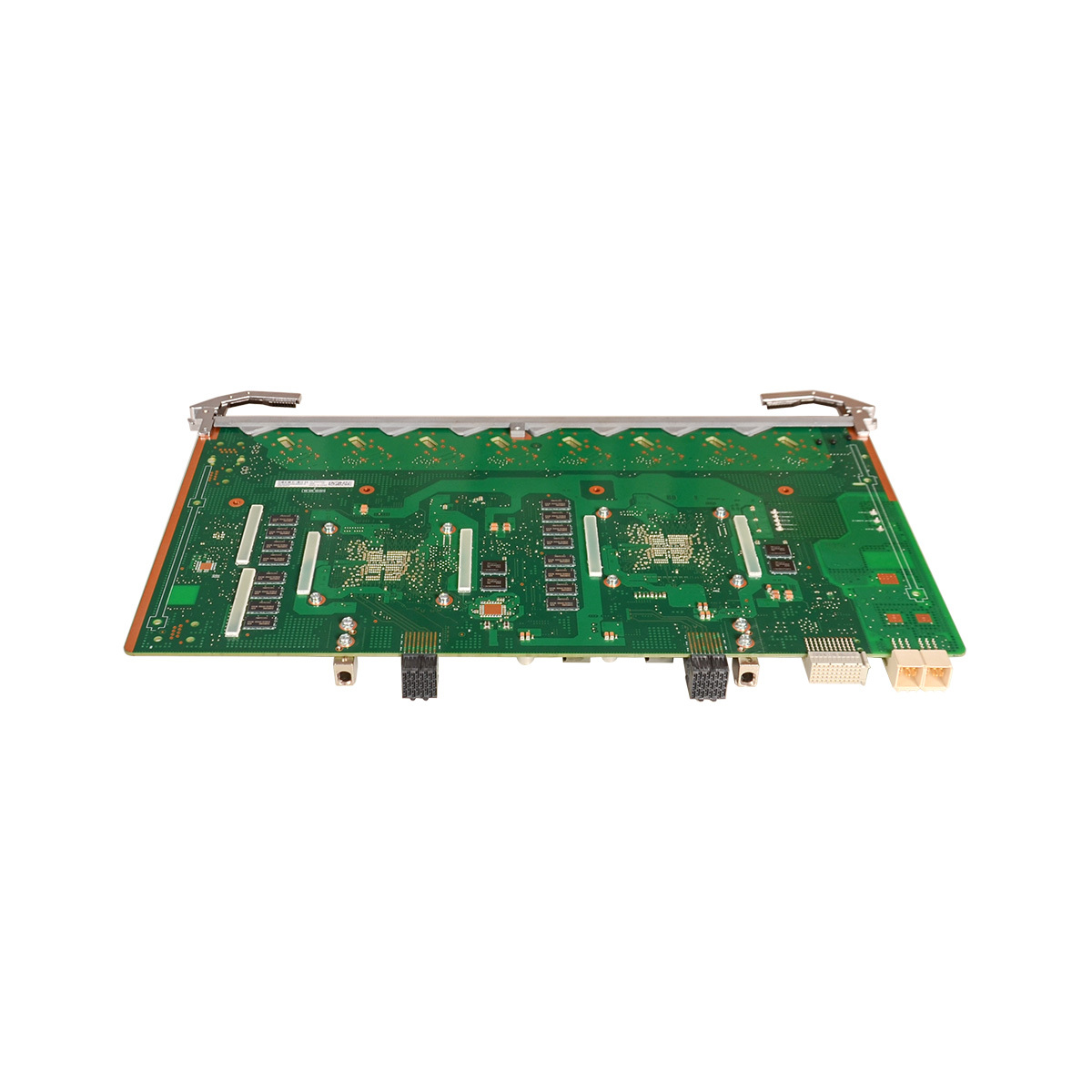

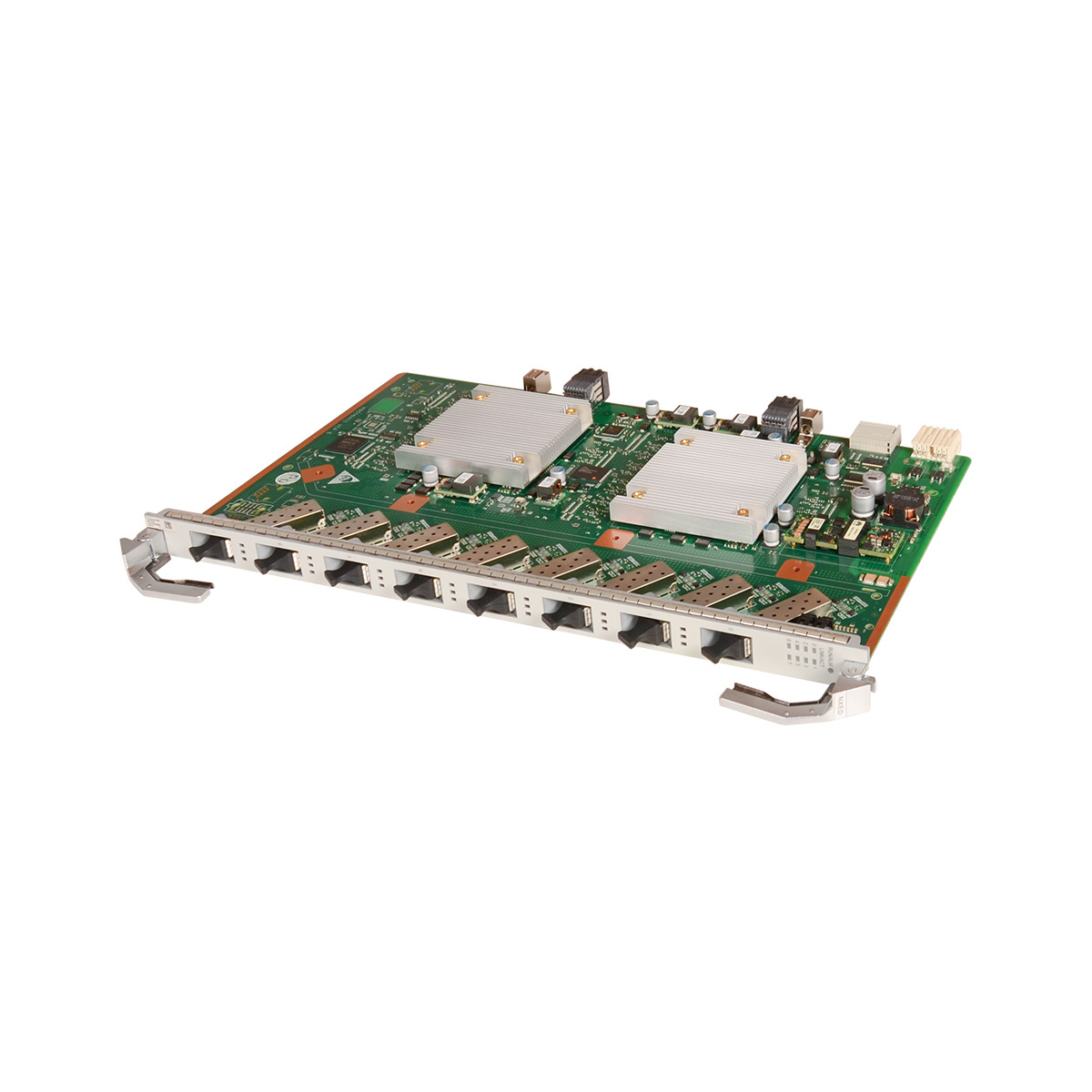

The Huawei NXED (H901NXED) is a high-capacity 10GE/GE Optical Uplink Board for Huawei's MA5800 series OLTs, featuring 8 SFP ports for 10 Gigabit/Gigabit Ethernet, supporting non-converged uplinks up to 80G, Ethernet clock synchronization (IEEE 1588v2), advanced OAM (802.1ag, Y.1731), traffic management (shaping, WRED), and high-temp protection, crucial for expanding bandwidth in access networks.
Product Features

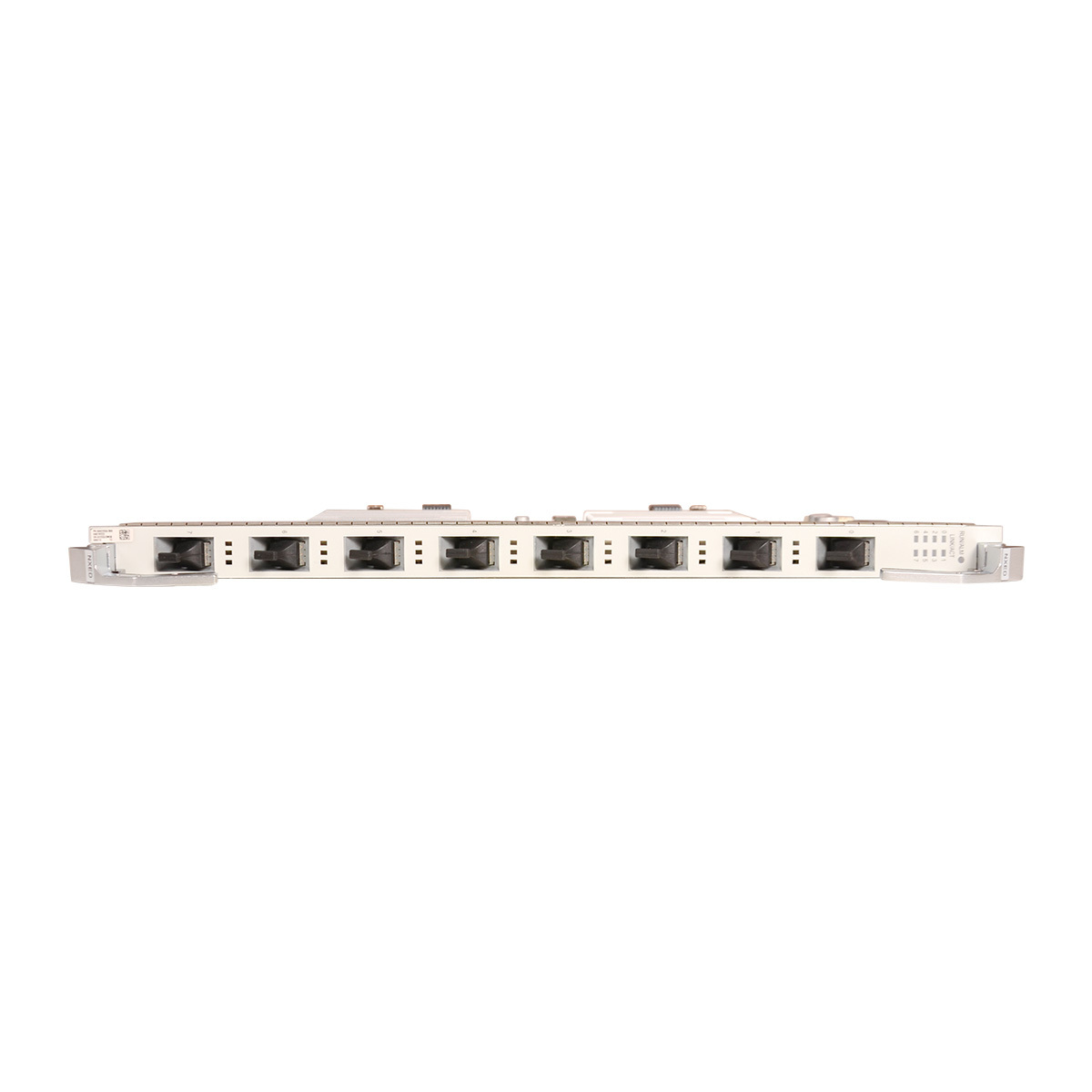

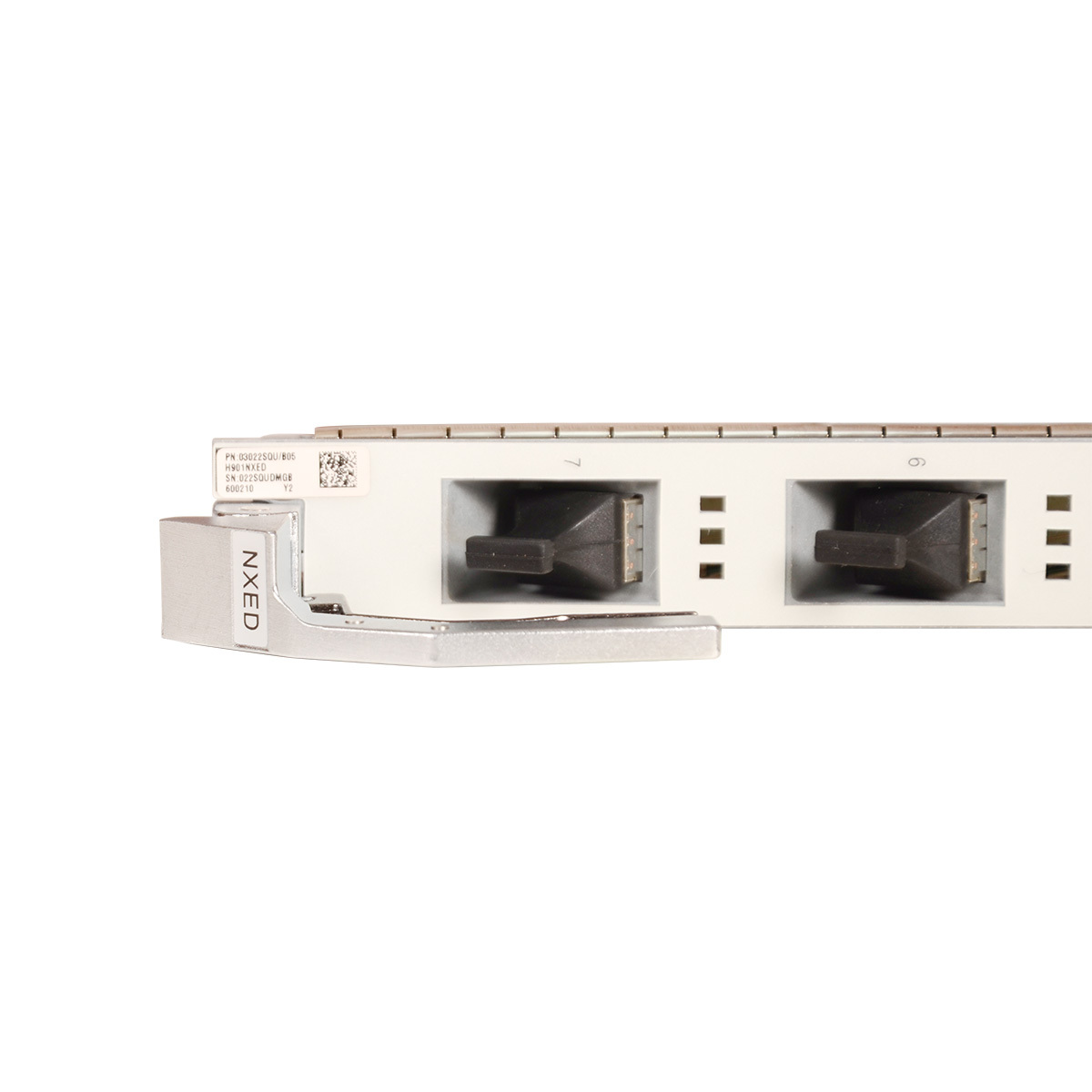

- High-Density Uplink: 8 SFP ports supporting 10GE or GE optical modules for fast, high-bandwidth connections.
- Non-Converged Uplink: Supports up to 80G total bandwidth without needing complex aggregation, simplifying upstream network connections.
- Ethernet OAM: Implements IEEE 802.1ag and ITU-T Y.1731 for frame loss, delay, and delay variation measurements.
- Time Synchronization: Supports IEEE 1588v2 and ITU-T G.8275.1 for precise time and frequency sync.
- Traffic Management: Includes traffic shaping (PIR/CIR), prioritized queuing, WRED, and tail drop.
- Diagnostic Capabilities: Offers inband DCN channels and PHY/MAC layer loopbacks.
Application Scenarios
A leading telecom operator in South Korea deployed NXED interface boards with MA5800-X15 OLTs to roll out 10G symmetric broadband across Seoul’s urban communities, covering 120,000 households and 15,000 SMEs. Each NXED’s 8 XGS-PON ports connected to user-side XGS-PON ONTs, delivering 10Gbps symmetric bandwidth for 8K video streaming, cloud collaboration, and low-latency gaming. The L2 VLAN function isolated residential and enterprise traffic, while QoS prioritized critical services. With 60 NXED boards deployed, the operator achieved 4.8Tbps total access capacity, meeting the region’s surging demand for high-speed bidirectional broadband.
Downloadable resources
Technical Specifications
| Huawei NXED Board Datasheet |
 |
| Specifications |
| MAC address number |
262143 |
| 1588v2 |
Supported |
| 1588ACR |
Supported |
| Sync ETH clock |
Supported |
| Dimensions (mm) |
23.30 (W) x 257.90 (D) x 399.20 (H) |
| Weight (kg) |
0.99 |
| Power Consumption (W) |
Static: 40
Maximum: 53 |
| Maximum Frame Size |
2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported |
| Operating temperature |
-40°C to +65°C |
FAQ
Q: Does the Huawei NXED board include SFP+ modules by default?
A: No, SFP+ modules are not pre-installed.
Q: Which Huawei OLT models are compatible with the NXED board?
A: It works seamlessly with MA5800-X2, X7, X15, X17.
Q: What is the maximum power consumption of the NXED board?
A: Static power consumption is 40W, with a maximum of 53W when all ports are fully loaded.
Q: What is the lead time for ordering from mf-telecom.com?
A: Standard lead time is 1-3 working days for in-stock units, with global shipping available.
Q: Is technical support provided for the NXED board?
A: Yes, mf-telecom offers remote configuration assistance and 1-year hardware warranty for authentic Huawei products.
