Product Overview

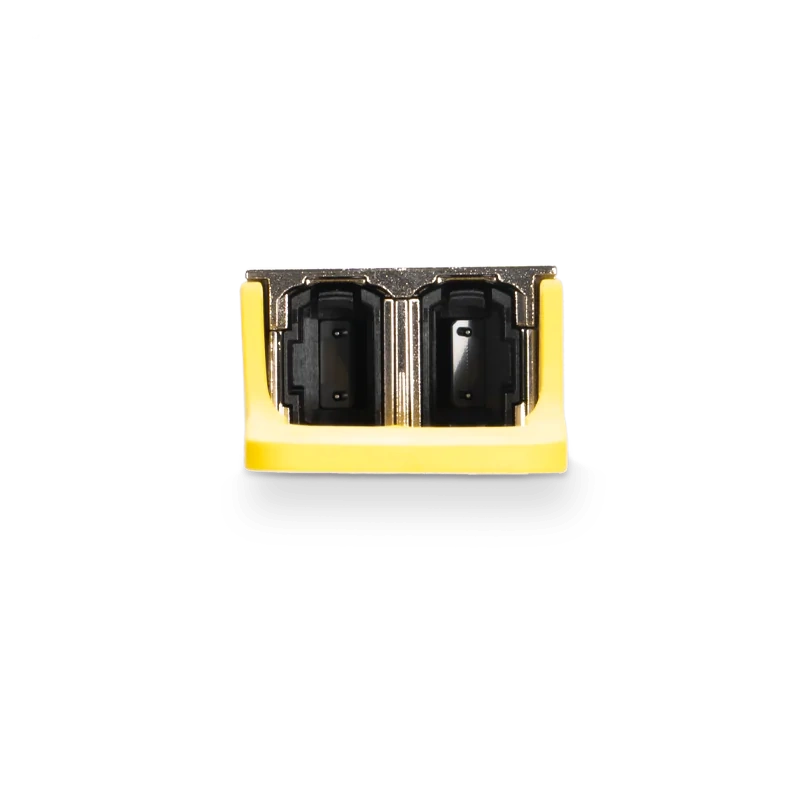

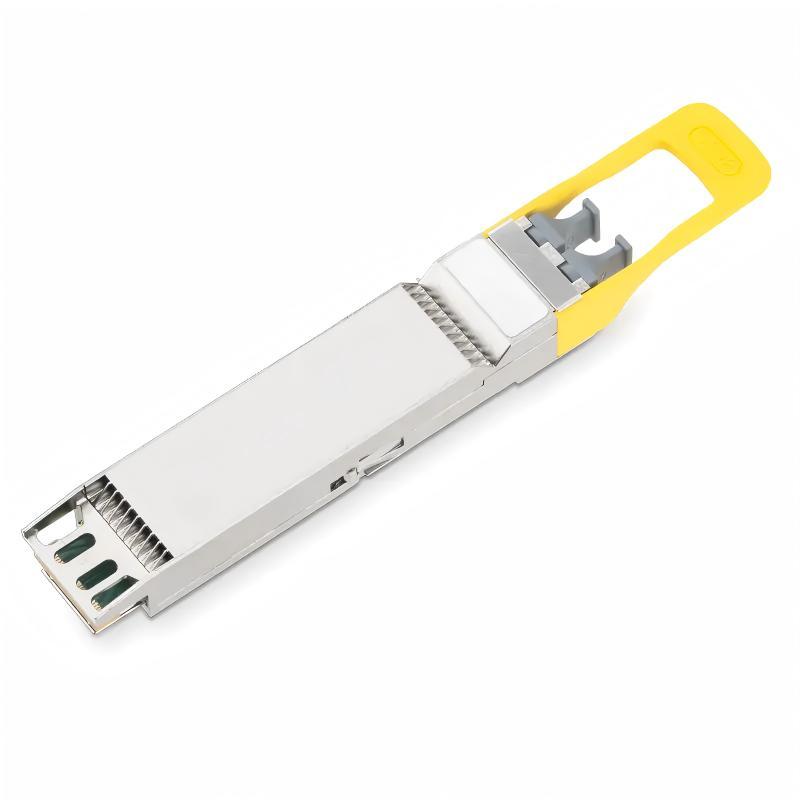

The OSFP-800G-DR8 is a high-performance 800G optical transceiver designed for medium‑reach data center interconnection, high‑performance computing, and enterprise core networks. It operates at 1310nm with 8×100G channels, supporting transmission distance up to 500m over multi‑mode fiber via an MPO‑12 APC connector.
This module delivers stable performance, low power consumption, and wide operating temperature range. It complies with IEEE 802.3, OSFP MSA, and supports DDM for real‑time monitoring.
MF-Telecom provides 100% tested OSFP-800G-DR8 modules with full compatibility, competitive bulk pricing, fast global delivery, and professional after‑sales support. We are your trusted global supplier for 800G optical solutions.
Key Features
- 800G aggregate data rate, OSFP form factor
- 8‑channel 1310nm wavelength, 500m transmission
- MPO‑12 APC optical interface
- Built‑in DDM for real‑time monitoring
- Hot‑pluggable, plug‑and‑play, easy deployment
- Low power consumption, high reliability
- Wide operating temperature range
- Metal housing for better heat dissipation & EMI reduction
- Fully compatible with Cisco, Huawei, H3C, Ruijie, ZTE, etc.
- RoHS compliant, environment‑friendly
- 3‑year warranty + lifetime technical support
- Logo & label customization available for bulk orders
Technical Specifications
| Item |
Details |
| Form Factor |
OSFP |
| Data Rate |
800G (8×100G) |
| Wavelength |
1310nm |
| Optical Interface |
MPO-12 APC |
| Transmission Distance |
500m |
| DDM Function |
Supported |
| Operating Temperature |
0°C ~ +70°C (Commercial) |
| Power Supply |
3.3V |
| Power Consumption |
Low power design |
| Fiber Type |
Multi-mode fiber (MMF) |
| Compliance |
IEEE 802.3, OSFP MSA, RoHS |
| Compatibility |
Fully compatible with mainstream switches & routers |
| Warranty |
3 Years |
Applications
- Data center medium‑reach high‑speed interconnection
- 800G Ethernet switches & routers
- High‑performance computing (HPC) clusters
- Enterprise core network & backbone
- Cloud computing & large‑scale storage systems
- High‑speed server interconnection
- Carrier‑class metro & core networks
Why Choose MF-Telecom?
MF-Telecom is a professional global supplier of optical transceivers, optical fibers, and data center interconnection solutions. We focus on stable quality, competitive cost, and efficient service.
- 100% full testing before shipment
- Strong compatibility with major brands
- Wholesale & bulk orders supported
- Fast global delivery & stable logistics
- Professional 24/7 technical support
- 3‑year warranty for all transceivers
- Custom logo, label, and packaging available
FAQ
-
Is the OSFP-800G-DR8 compatible with my switch?
Yes, it is fully compatible with Cisco, Huawei, H3C, Ruijie, ZTE, and other mainstream 800G switches and routers.
-
What fiber type and connector does it use?
It uses multi‑mode fiber (MMF) with an
MPO‑12 APC connector.
-
What is the transmission distance?
It supports transmission up to
500 meters at 1310nm.
-
Does it support DDM function?
Yes, it supports full DDM (Digital Diagnostic Monitoring) for real‑time monitoring of temperature, voltage, bias current, Tx/Rx power.
-
Is it hot‑pluggable?
Yes, it supports hot‑swapping for easy installation and replacement without powering off the device.
-
What is the warranty period?
We provide a
3‑year warranty for all our optical transceivers.
-
Do you support logo customization?
Yes, we offer custom logo, label, and packaging for bulk orders.
-
Do you accept wholesale and bulk orders?
Absolutely. MF-Telecom specializes in wholesale and bulk supply with competitive pricing and fast global delivery.
Order & Inquiry
Looking for OSFP-800G-DR8 800G transceivers?
Contact MF-Telecom sales team now for the latest bulk price, stock status, and customization details.
We provide stable supply, fast delivery, and professional solutions for global distributors, integrators, and enterprise customers.
