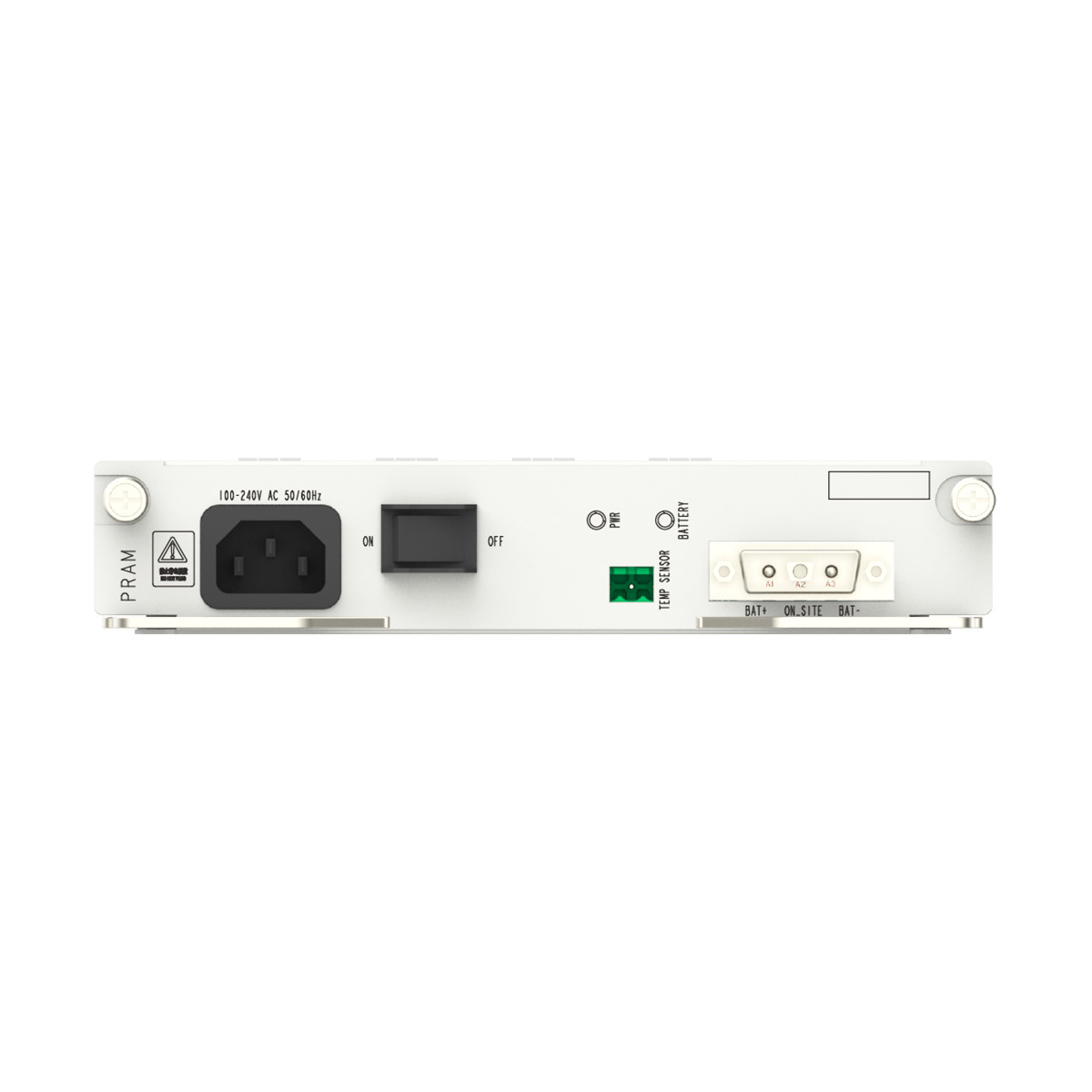

The ZXA10 C320 Shelf Configuration includes the PRAM AC power card, which is exclusively installed into slot 3 of the ZTE ZXA10 C320 OLT; this card accepts 110 V or 220 V AC power input via its 1 dedicated AC power interface, features 1 battery interface and 1 temperature sensor interface to support storage battery connection and battery temperature monitoring respectively, and provides stable power supply to each card within the chassis, while also supporting DC power output for the heat exchanger and EPM in outdoor cabinets and being equipped with a convenient power-on switch for operational control.
1. Urban FTTH Deployment in Thailand
A Thai telecom operator deployed ZTE PRAM AC power boards in ZXA10 C320 OLTs for downtown Bangkok FTTH networks. The PRAM, installed in slot 3, supports 110V/220V AC input and features a backup battery interface, critical for stable power amid frequent grid fluctuations. It efficiently powers GPON service cards serving 3,000+ households, enabling 4K streaming and remote work. With hot-swap functionality and 320W max output, it ensured 99.9% power reliability, aligning with the operator’s network quality commitments.
2. Suburban Enterprise Zone in Italy
An Italian infrastructure firm adopted ZTE PRAM boards for ZXA10 C320 OLTs in a suburban enterprise park. The PRAM’s ability to convert AC to -48V DC powered multi-service cards (e.g., HUTQ, SCXM) for 50+ SMEs. Its temperature sensor interface and power-on switch simplified monitoring and management. Compact and energy-efficient, it fit small cabinet spaces and reduced operational costs, maintaining uninterrupted power for business-critical services like cloud access and video conferencing.
|
ZTE PRAM Board Datasheet |
|
| EMI/lightning-proof/surge protection | Implements the power input EMI (Electromagnetic Interference) filter, lightning-proof, and surge protection. |
| Over-voltage/under-voltage protection | Implements the power input over-voltage/under-voltage protection. |
| PFC module | Implements PFC (Power Factor Correction) function. |
| 54 V module | Implements the conversion from AC voltage to 54 V DC voltage. |
| Over-temperature protection | Implements over-temperature protection, protecting the card from high temperature. |
| 3.4 V module | Implements 3.4 V DC power output. |
| Current-limiting module | Implements the charge management and power-off management. |
| Power consumption | PRAM: 13.2 W |
| Dimensions | PRAM: 200.25 mm × 37 mm × 225 mm (Height × Width × Depth) |
| Weight | PRAM: 1.346 kg |
FAQ
Q: What is ZTE PRAM?
A: ZTE PRAM is a dedicated AC power board for ZXA10 C320 OLTs.
Q: Which OLT models are compatible with PRAM?
A: It is exclusively designed for ZTE ZXA10 C320 OLTs.
Q: What are the core specifications of PRAM?
A: Key specs include 110V/220V AC input, -48V DC output, 320W max power, 1 AC interface, 1 battery interface, 1 temperature sensor interface, and hot-swappable functionality.
Q: What is the warranty period for ZTE PRAM?
A: Genuine ZTE PRAM power boards come with a 12-month warranty covering manufacturing defects, supported by global technical after-sales service.
