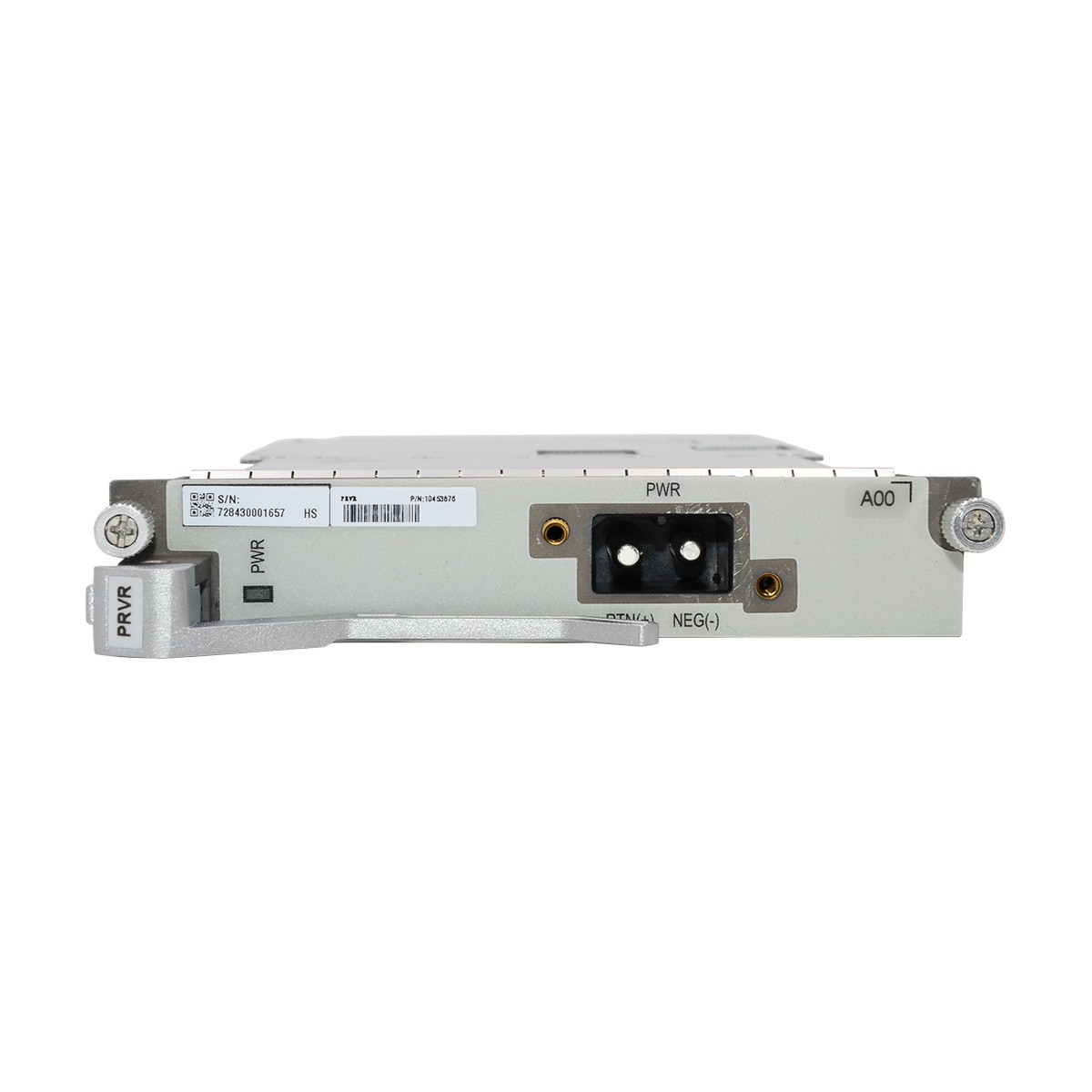

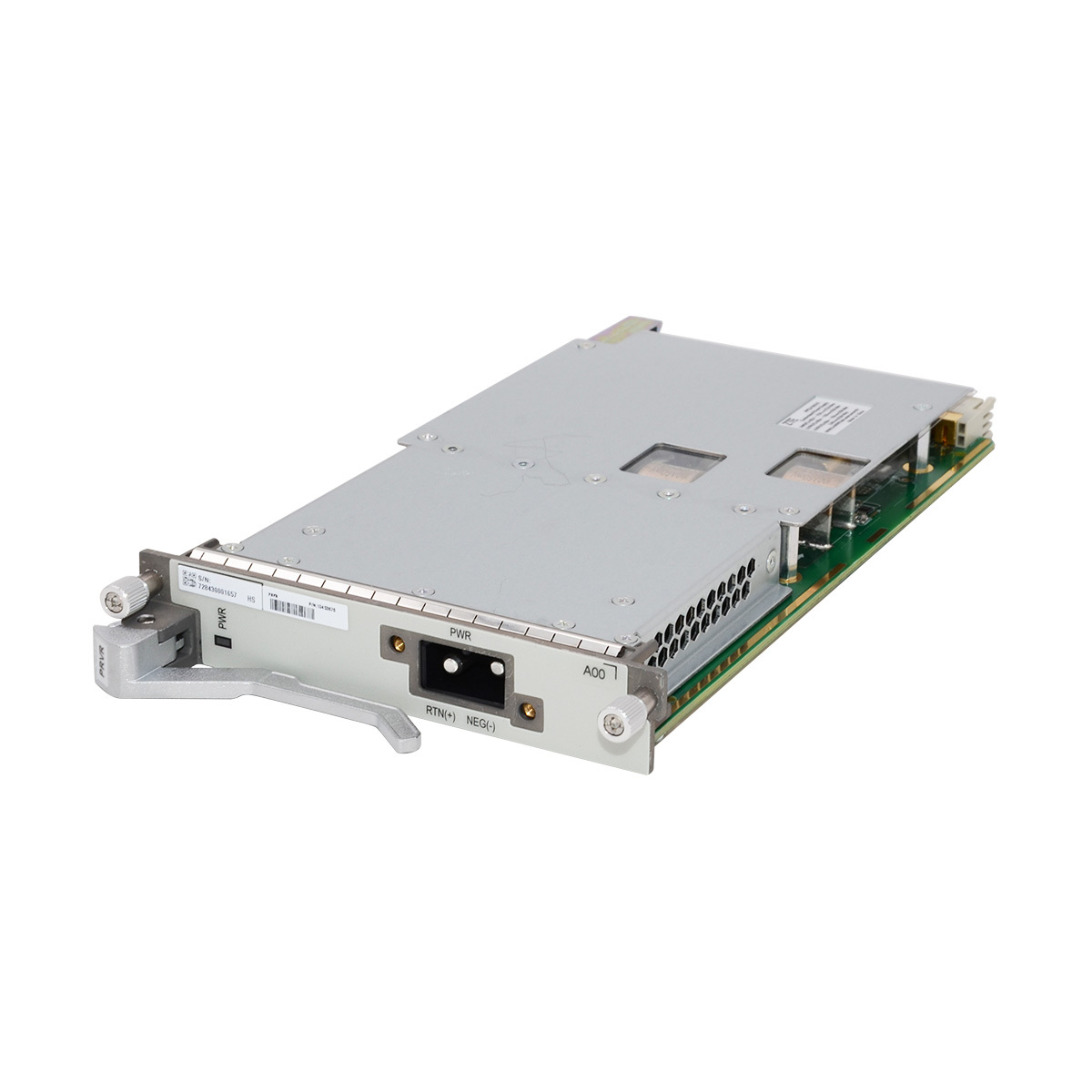

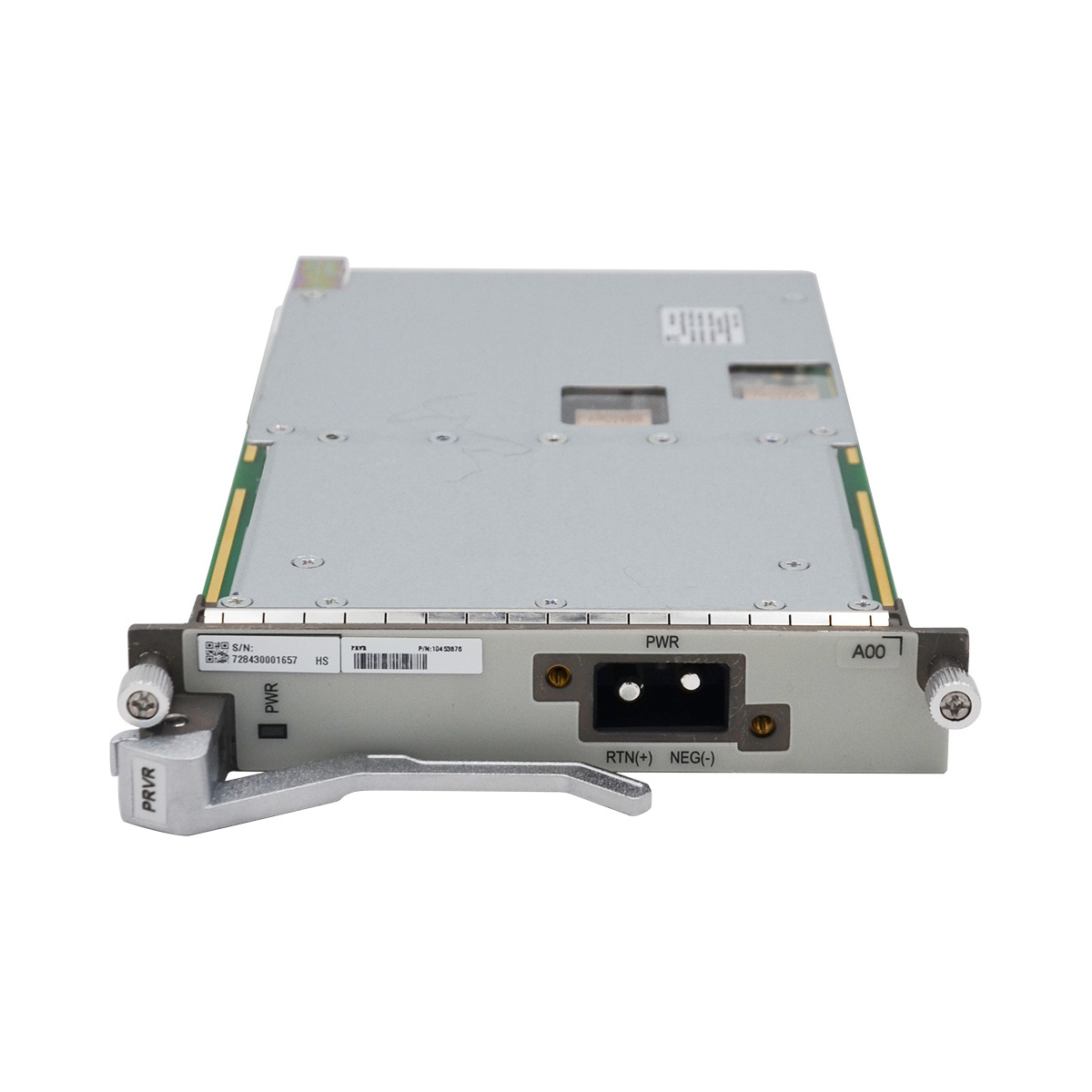

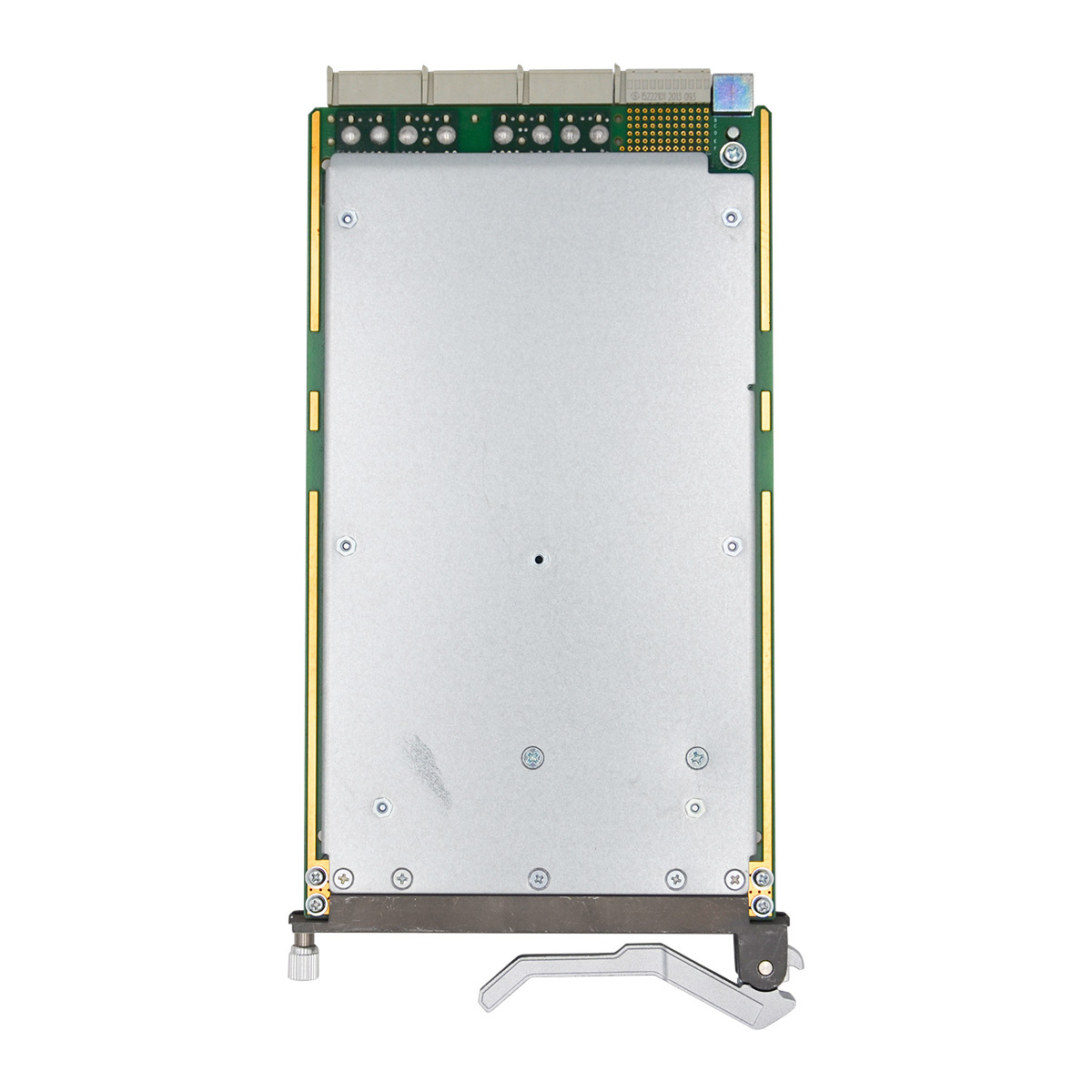

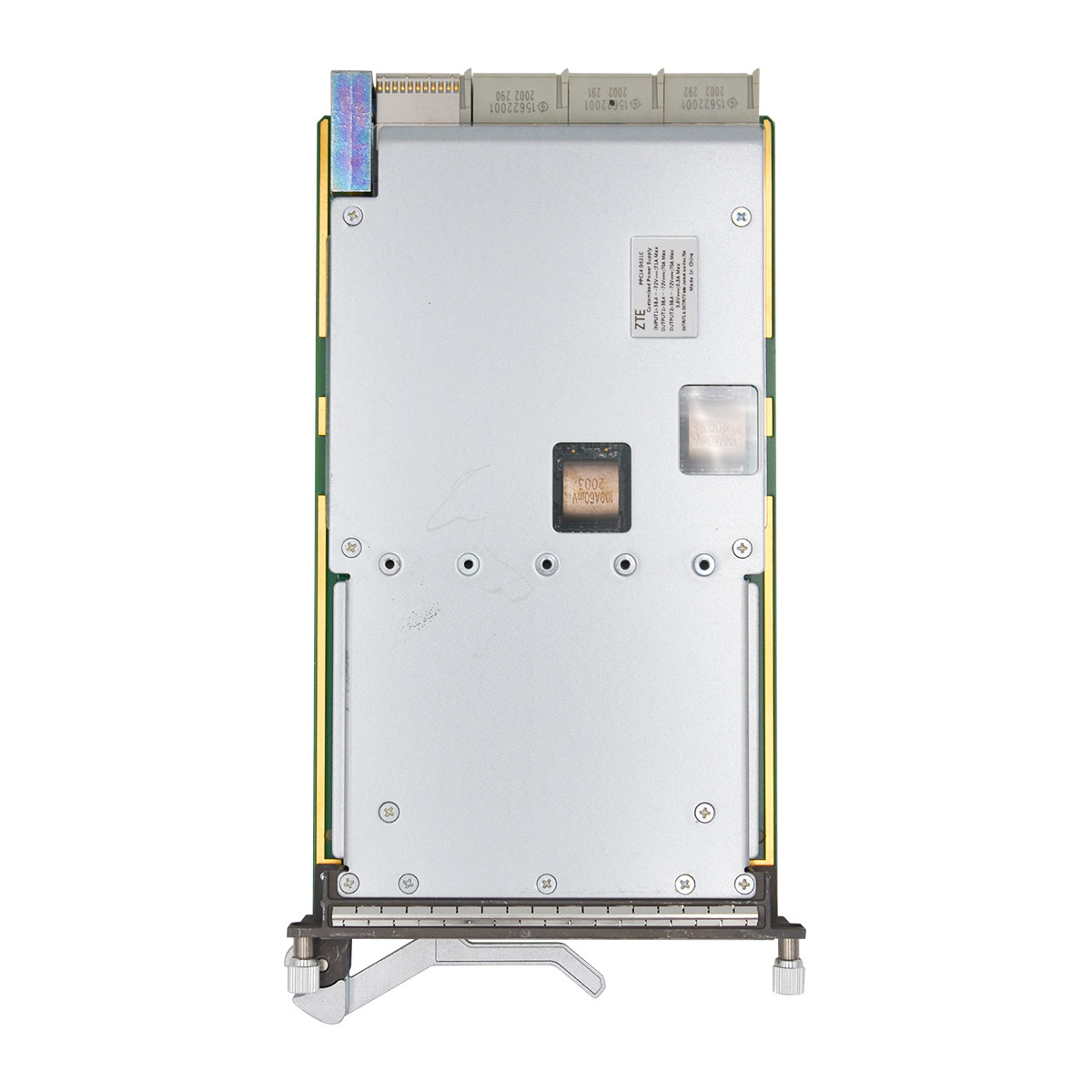

The PRVR is a ZXA10 power board applicable to ZTE OLT ZXA10 C600/C650, where the C600/C650 models support two power cards that operate in load sharing mode if their input voltages are consistent, while the ZXA10 C620 supports two DC power supply cards or one AC power supply card; specifically, the PRVR/PRVR(C) provides one –48V DC input interface to power the cards of ZXA10 C600/C650 with each channel supporting a maximum current of 60A and supporting hot swapping, the PRSF provides one –48V/–60V DC input interface to power the cards of ZXA10 C620 with a maximum supported current of 15A, and the PRAF supports 220V/110V AC input to power the cards of ZXA10 C620, along with a backup battery interface (including a battery temperature sensor interface) and a power input control switch; in addition, the GFTL is a 16-port XGS-PON OLT interface board compatible with N1/N2a modules, which can be applied to ZTE ZXA10 C600/C650/C680 OLTs and features a maximum optical split ratio of 1:256, along with support for optical power monitoring, the ALS function of optical modules and hot swapping to ensure efficient and reliable network operation and maintenance.
Product Features
High Reliability: Designed for 24/7 telecom environments with features like overvoltage/current protection and alarm indicators.
Stable Power: Converts \(-48V\) to \(-60V\) DC input for consistent power to the OLT chassis.
Redundancy: Supports load sharing when two PRVR cards are installed, enhancing system resilience.
System Monitoring: Includes built-in temperature sensors and monitors voltage, current, and power.
Space Efficiency: Compact horizontal design saves space for other service cards.
Application Scenarios
1. Telecom Network Reliability in Australia
A major Australian ISP deployed ZTE PRVR DC power boards on ZXA10 C650 OLTs across rural and urban exchange sites. Configured in dual-card load sharing mode (same input voltage), the PRVR boards delivered stable –48V DC power to PON service cards, supporting 60A maximum current per channel. Hot-swappable design allowed non-disruptive maintenance, while load sharing ensured uninterrupted broadband for 50,000+ users during peak hours. The deployment enhanced network uptime in remote areas prone to power fluctuations, aligning with the ISP’s 99.99% service reliability commitment.
2. 5G Backhaul Power Support in Germany
A German telecom adopted ZTE PRVR power boards on ZXA10 C600 OLTs to power 5G backhaul infrastructure in Berlin. The dual-card redundant setup (load sharing mode) provided consistent power to XGS-PON and combo service cards, including the GFTL 16-port XGS-PON board. With –48V DC input and 60A channel capacity, the PRVR boards supported high-bandwidth 5G data transmission, while hot-swapping minimized downtime during upgrades. This ensured reliable connectivity for enterprise cloud services and residential 10Gbps broadband, supporting Germany’s digital infrastructure expansion.
FAQ
Q: What is the ZTE PRVR Board? A: It is a –48V DC power board designed for ZTE ZXA10 C600/C650 OLTs.
Q: How does the PRVR’s load sharing mode work? A: When two PRVR cards are installed in C600/C650 OLTs with the same input voltage, they operate in load sharing mode to distribute power evenly and enhance system reliability.
Q: Is the PRVR compatible with ZXA10 C680 OLTs? A: The PRVR is primarily designed for ZXA10 C600/C650 OLTs/C680.
