- High-Capacity Switching: Supports 800 Gbps non-blocking switching capacity for massive data throughput.
- MAC Address Table: Features a large 32K MAC address table for efficient forwarding.
- Redundancy & Protection: Offers board redundancy and hot-swappable capabilities with support for Type B/C PON protection and uplink protocols like RSTP, ERPS, LACP.
- Advanced Synchronization: Provides precise clock/time synchronization via BITS, 1PPS+ToD, IEEE 1588v2, and Synchronous Ethernet.
- Robust QoS: Implements H-QoS (Hierarchical QoS) based on provider, user, and service, along with E-OAM functions for efficient management.
- Triple-Play Services: Enables delivery of voice, video, and data services over a single platform.
Application Scenarios
A German national telecom operator deployed ZTE SCXL control & switch cards with ZXA10 C300 OLTs for downtown FTTH upgrades. Boasting 800 Gbps switching capacity and a 32 K MAC table, the SCXL efficiently handles high-density traffic from 4,000+ households and enterprises. It seamlessly integrates with XG-PON service boards, supporting 4K streaming, cloud access, and 5G backhaul. With non-blocking switching and stable system control, the card maintained 99.93% uptime, meeting the operator’s strict SLA requirements for urban digital infrastructure.
2. Large-Scale Campus Network in the UK
A top UK university adopted ZTE SCXL cards in ZXA10 C300 OLTs to build a campus-wide fiber network. The SCXL’s 800 Gbps capacity and 32 K MAC table easily cope with concurrent traffic from classrooms, labs, and dormitories (serving 8,000+ users). Compatible with multi-service line cards, it supports data, video conferencing, and academic research connectivity. Its reliable performance ensured 99.91% network availability, while the plug-and-play design simplified deployment and future expansion, aligning with the university’s digital teaching goals.
Downloadable resources
Technical Specifications
| ZTE SCXL Board Datasheet |
| Switching Capacity |
800 Gbps |
| Vadid Slot |
ZXA10 C300 slot 10/11 |
| Interface |
• 1 out-of-band NM interface
• 1 serial interfac
• 1 SD card interface |
| Function |
• Provides one out-of-band NM interface, one debugging interface, one SD card interface.
• Support active standby 1:1 work mode. |
| Power Consumption (W) |
Static: 60, maximum: 90, typical: 75 |
| Dimensions |
395.5 mm × 25 mm × 225 mm |
| Weight |
1.141 kg |
FAQ
Q: What is ZTE SCXL?

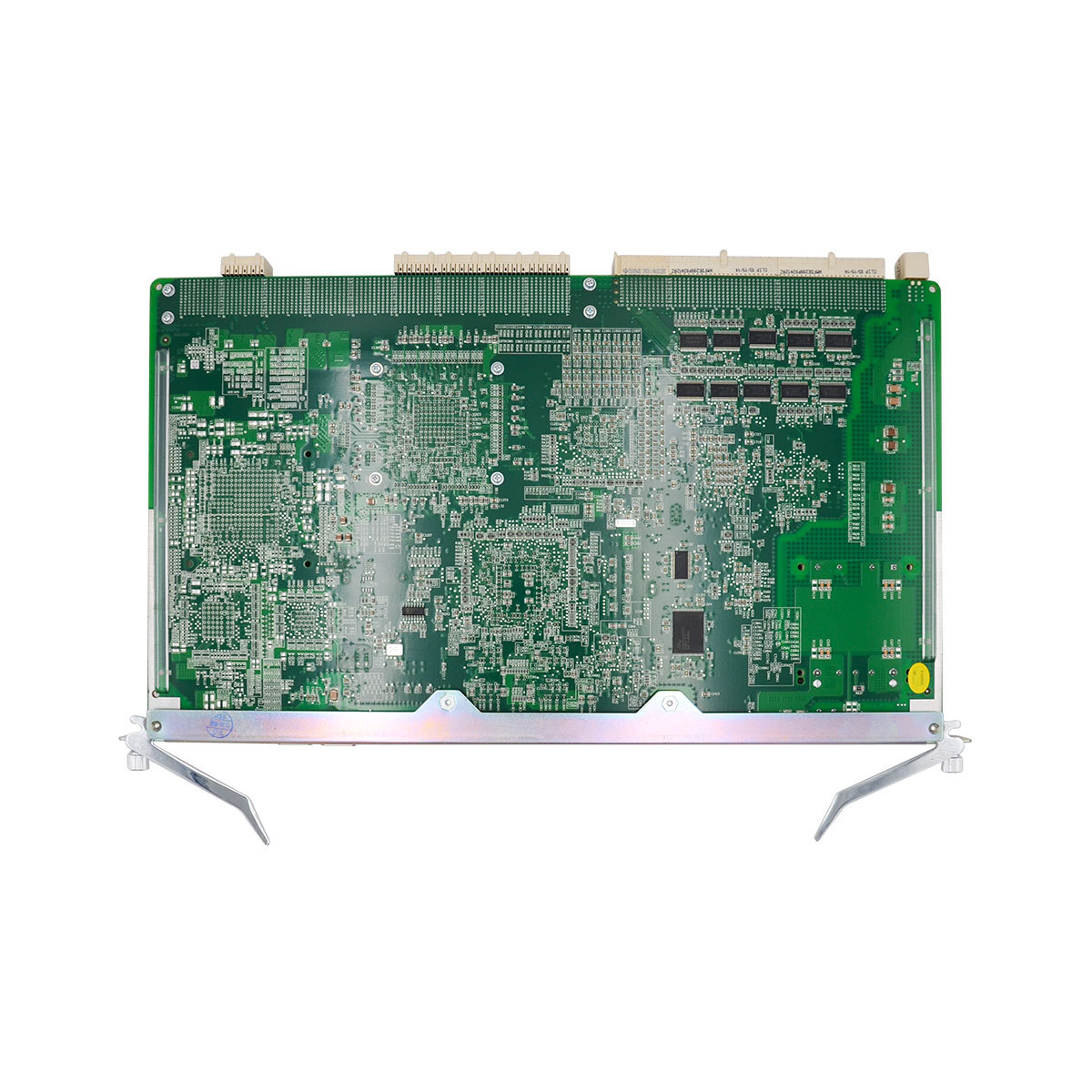

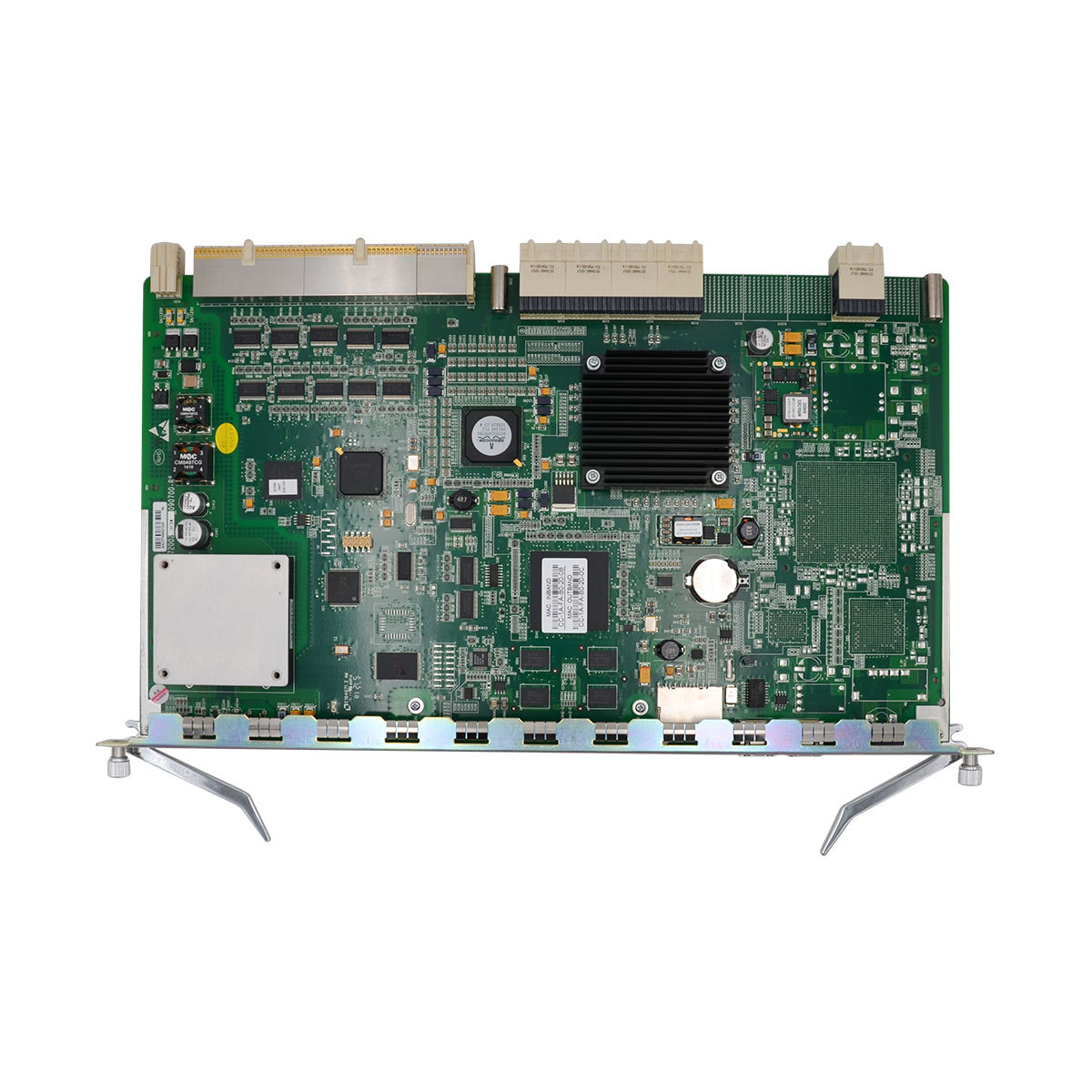

A: ZTE SCXL is a high-performance control & switch card exclusively for ZTE ZXA10 C300 OLT. It provides 800 Gbps non-blocking switching capacity and a 32 K MAC table, supporting stable multi-service transmission.
Q: Which OLT model is SCXL compatible with?
A: It is specifically designed for ZTE ZXA10 C300 OLT, ensuring seamless integration with the platform’s hardware and software ecosystem.
Q: What precautions are there for daily maintenance?
A: Maintain the operating temperature between 0°C–40°C, regularly check card connections and backup system configurations, and upgrade firmware per ZTE’s official guidelines.
Q: What is the warranty period for ZTE SCXL?
A: Genuine SCXL cards come with a 12-month warranty covering manufacturing defects, supported by global technical after-sales service.
