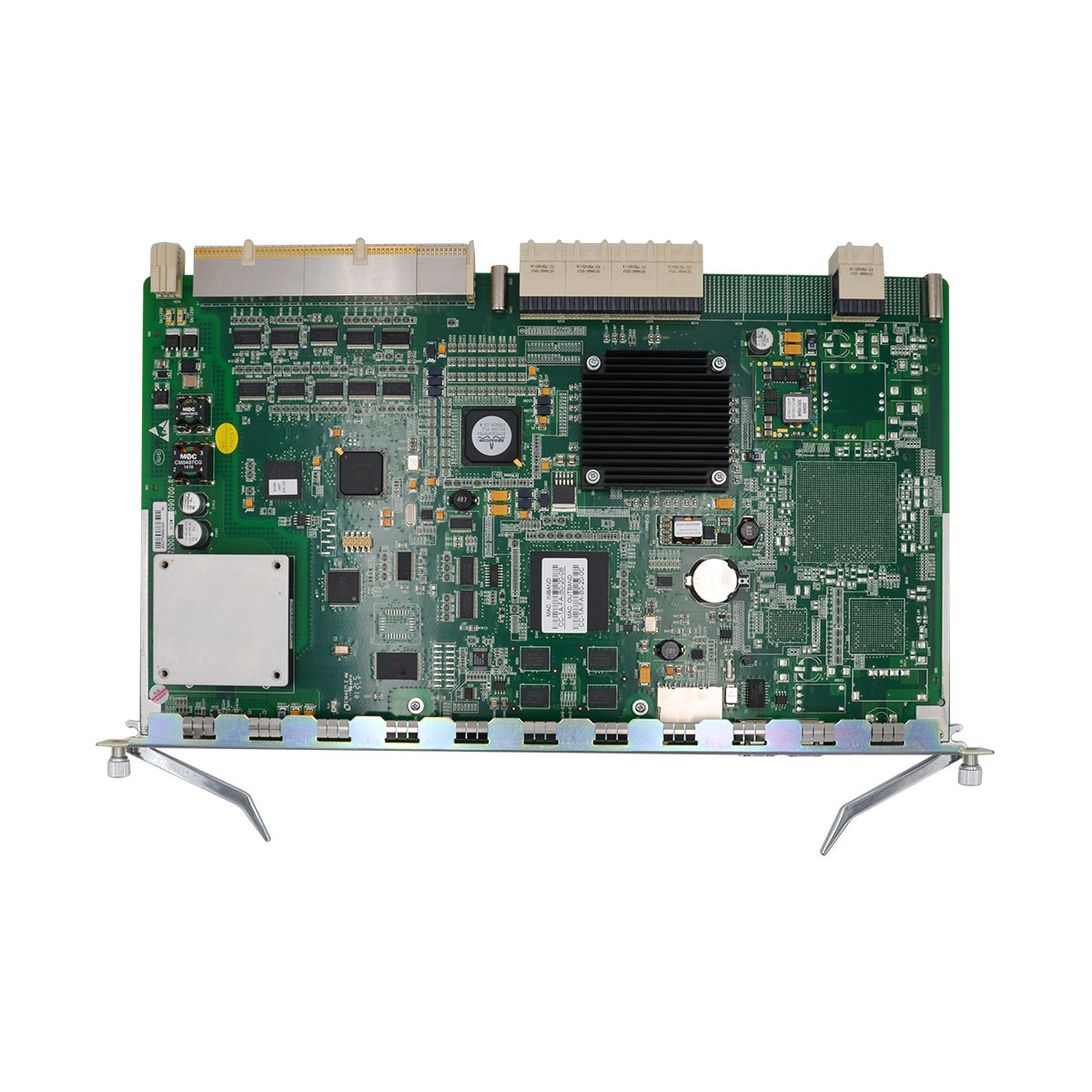

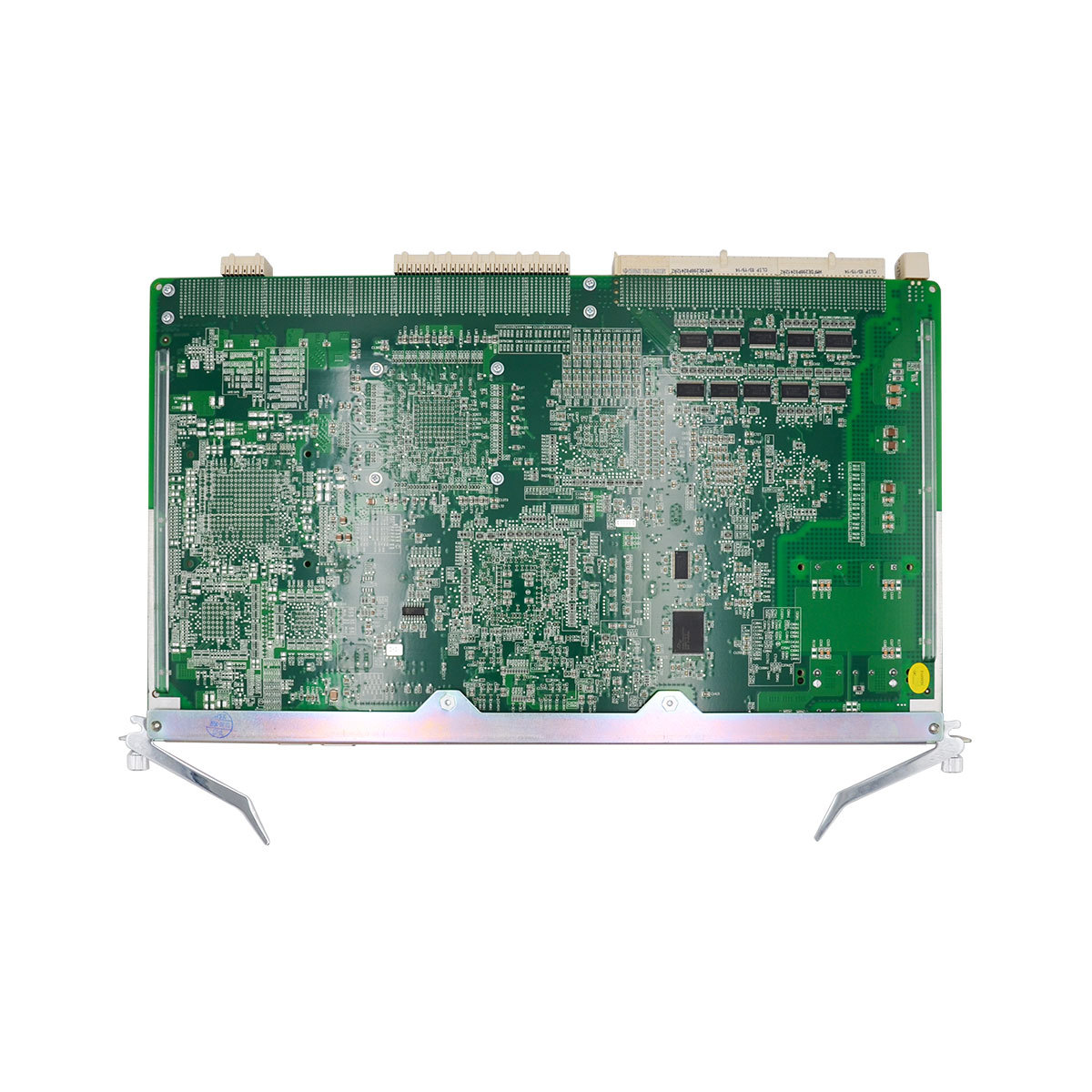

Name: ZTE SCXN Control Card
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0056
Price: 150.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0056

ZTE SCXN Control Card is control and switch card for C300 supporting 16 port GPON cards, 4x GE uplink interface, 2x management interface

Packing Box Specifications

48*33*7cm

Gross Weight

2.5kgs

Condition

Original new

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description

ZTE SCXN Overview

ZTE ZXA10 C300 OLT, hailed as the world’s first future-proof and highest-capability optical access platform, is engineered for large-scale optical access deployment with cost-effectiveness in mind, boasting robust functions and superior performance. At its core lies the ZXA10 SCXN control & switch card, which monitors and controls the entire system while enabling non-blocking switching of all line cards; it supports 480 Gbps switching capacity, a 64 K MAC address table, and VoIP functionality when paired with a dedicated VoIP daughter-card. Complementing it are other compatible control cards for the C300: the SCXL, offering 800 Gbps switching capacity and a 32 K MAC address table, and the SCXM, which provides 480 Gbps switching capacity and a 32 K MAC address table, together delivering flexible configuration options to meet diverse network demands.

Product Features

Core Function: Serves as the switching center and management control center for the ZXA10 C300 OLT system, managing all line cards.
Performance: Provides a system switching capacity of 480 Gbps and supports a large MAC address table (e.g., 64k), ensuring high throughput.
Data Services: Implements core data functions including Ethernet, VLAN, multicast, IP routing, and Quality of Service (QoS).
VoIP Support: Can support Voice over IP (VoIP) services when equipped with a specific VoIP daughter-card.
System Control: Handles system clock, time synchronization (ITU-T compliant), and provides interfaces for hardware/software management, card download, and fan control.
Hardware Interfaces: Features GE/10GE optical interfaces for uplink and management ports (RS-232 for CLI, monitoring), allowing for versatile network connections.

Application Scenario

1. Urban FTTH Deployment in Italy
An Italian telecom operator adopted ZTE SCXN control & switch cards with ZXA10 C300 OLTs to upgrade downtown FTTH networks. As the C300’s core, the SCXN delivers 480 Gbps non-blocking switching, a 64 K MAC table, and VoIP support (via daughter-card)—perfect for serving 3,000+ households and small offices. It seamlessly integrates with GPON/XG-PON boards, enabling 4K streaming and enterprise cloud access. Post-deployment, network uptime reached 99.9%, with the SCXN’s stable control ensuring smooth service delivery, while its scalability supports future bandwidth growth.

2. Enterprise Campus Network in Australia
A leading Australian university deployed ZTE SCXN cards in ZXA10 C300 OLTs for its campus-wide fiber network. The SCXN’s 480 Gbps capacity and 64 K MAC table efficiently handle high-density traffic from classrooms, labs, and administrative buildings. Paired with a VoIP daughter-card, it enables unified communication services for 5,000+ users. Compatible with multi-service line cards, it supports data, voice, and video transmission simultaneously. The card’s reliable system monitoring and non-blocking switching ensured 99.92% uptime, meeting the university’s strict connectivity requirements for teaching and research.

Downloadable resources

ZTE SCXN Board Datasheet

Technical Specifications

ZTE SCXN Board Datasheet
Switching Capacity	480 Gbps
Vadid Slot	ZXA10 C300 slot 10/11 ZXA10 C350 slot 6/7
Interface	• 1 out-of-band NM interface • 1 serial interfac • 1 SD card interface • 4 GE uplink interfaces
Function	• Provides one out-of-band NM interface, one debugging interface, one SD card interface. • Provides 4 SFP GE optical uplink interfaces • Support load balance work mode.
Power Consumption (W)	65 W (static), 80 W (maximum), 75 W (typical)
Dimensions	395.5 mm × 25 mm × 225 mm (Height × Width × Depth)
Weight	1.145 kg

FAQ

Q: What is ZTE SCXN?
A: ZTE SCXN is the core control and switch card dedicated to ZXA10 C300 OLT. It monitors and controls the entire system, enables non-blocking switching of all line cards, and supports VoIP functionality with a dedicated daughter-card.

Q: Which ZTE OLT models is SCXN compatible with?

A: It is exclusively designed for ZTE ZXA10 C300 OLT, ensuring seamless integration with the platform’s infrastructure.

Q: Can SCXN work with other ZTE service boards?

A: Yes, it is fully compatible with ZTE GPON/EPON service boards (e.g., GTGO, GTGH), enabling flexible FTTH/FTTB/FTTX network deployment.

Q: What is the warranty period for ZTE SCXN?
A: It comes with a 12-month warranty covering manufacturing defects, supported by MF-Telecom’s professional after-sales service.

Q: Is technical support available globally for SCXN?
A: Yes, MF-Telecom provides global technical support for genuine ZTE SCXN, including installation guidance and fault troubleshooting.
