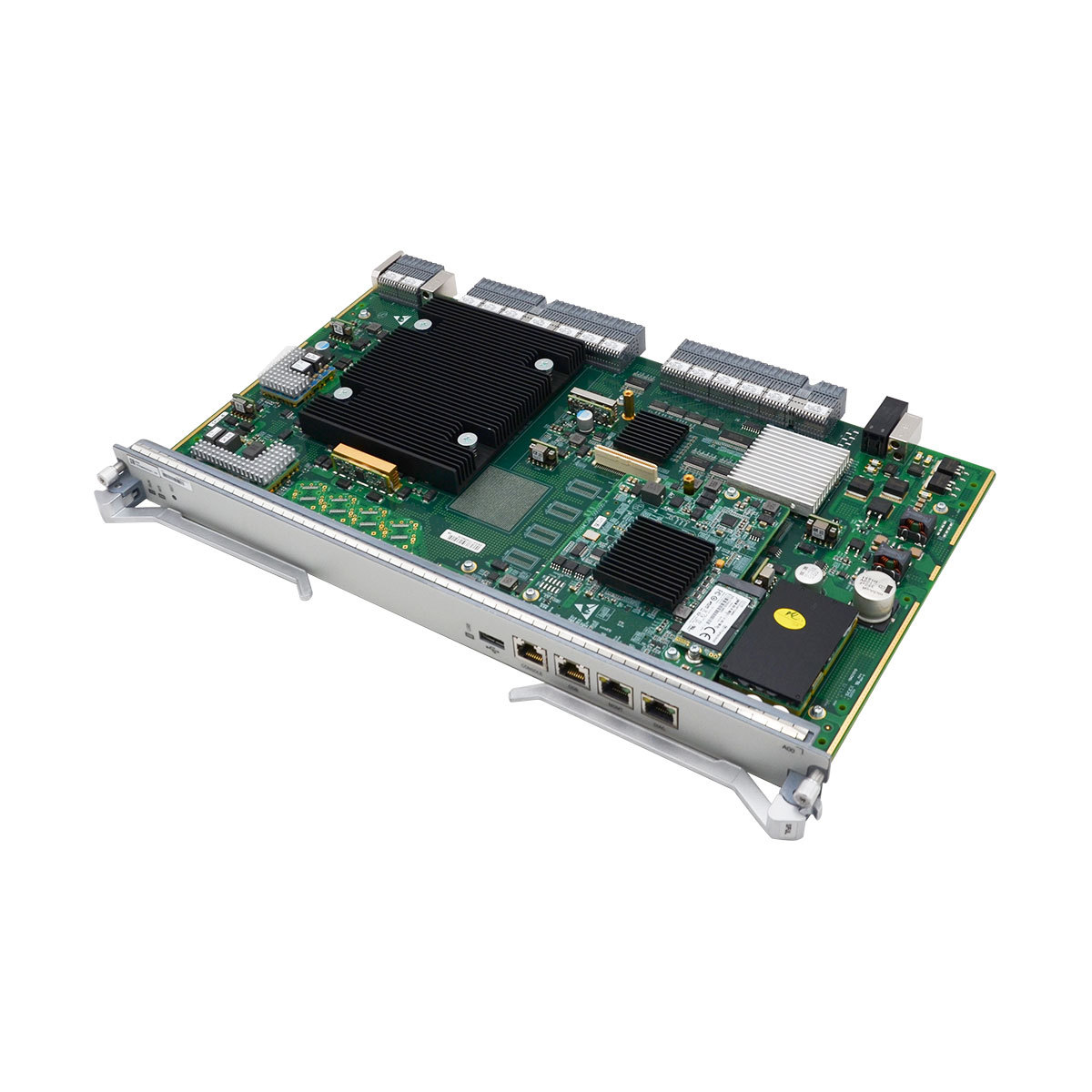

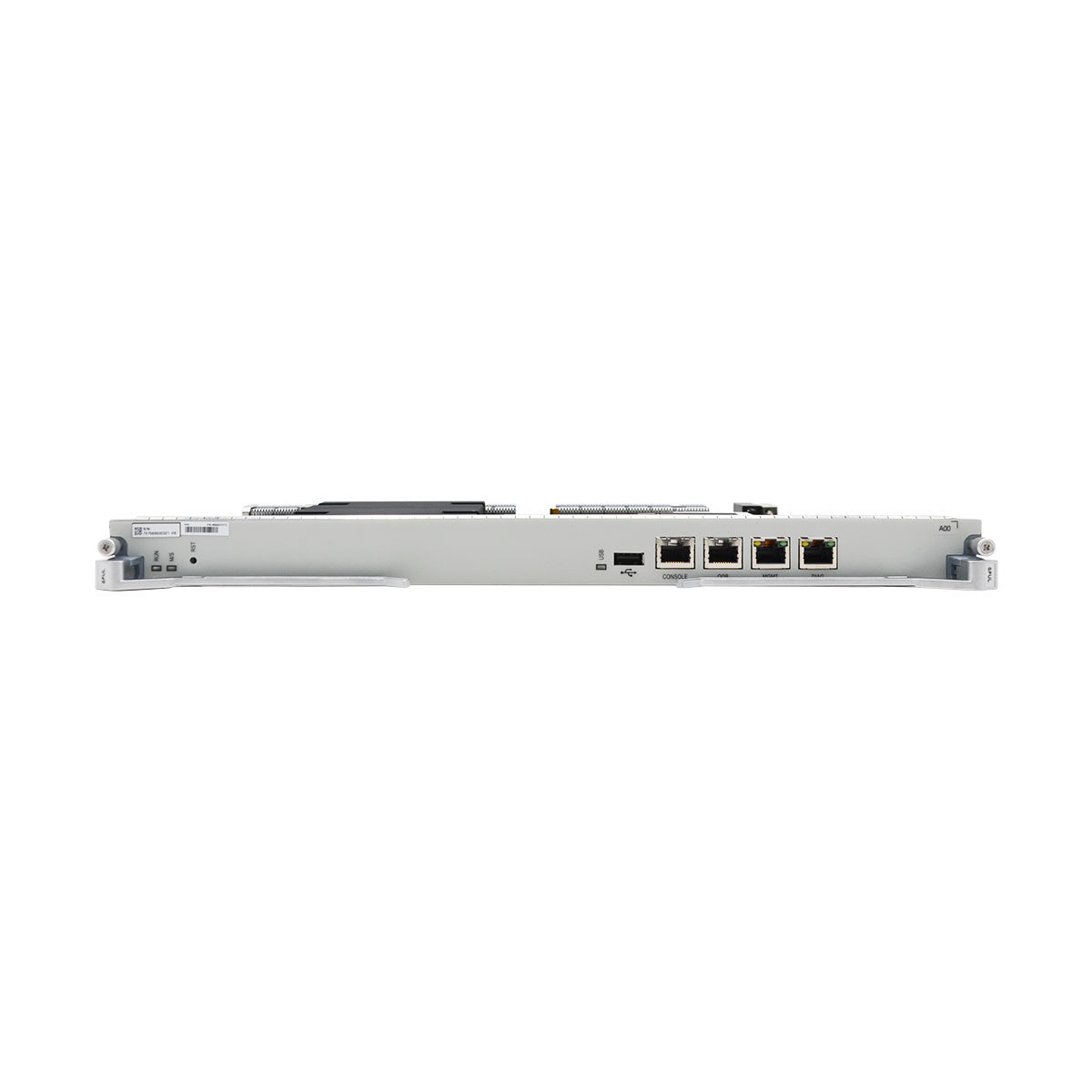

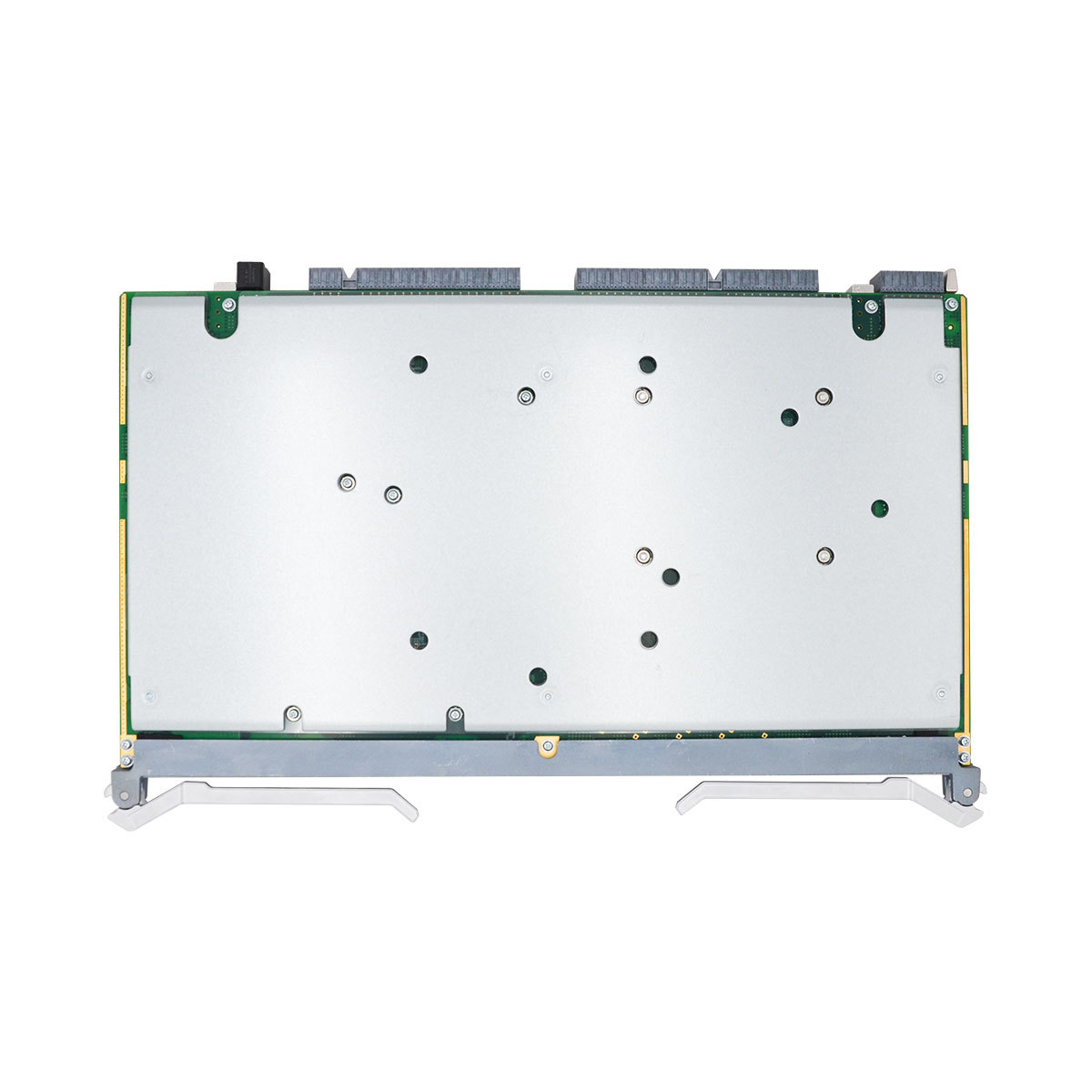

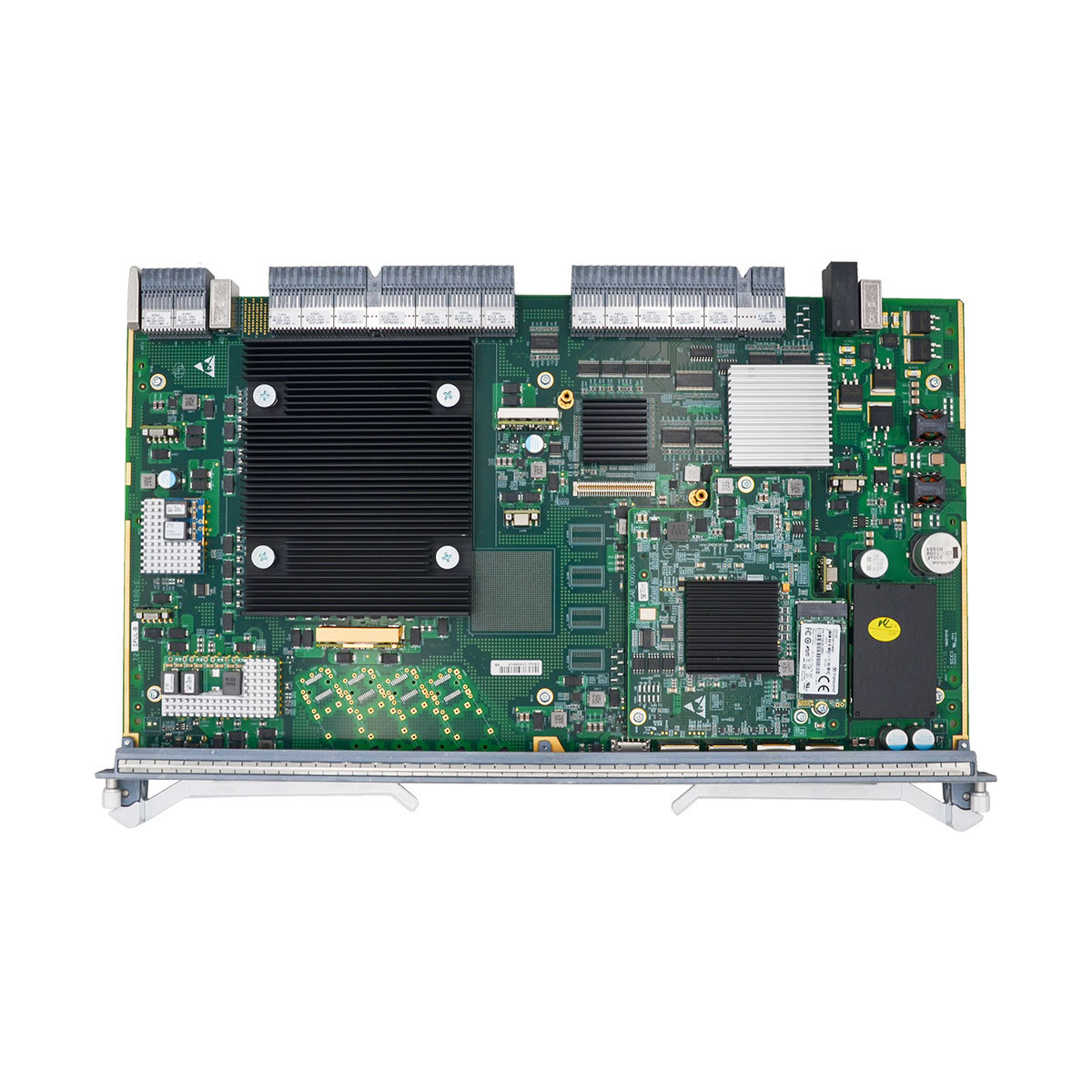

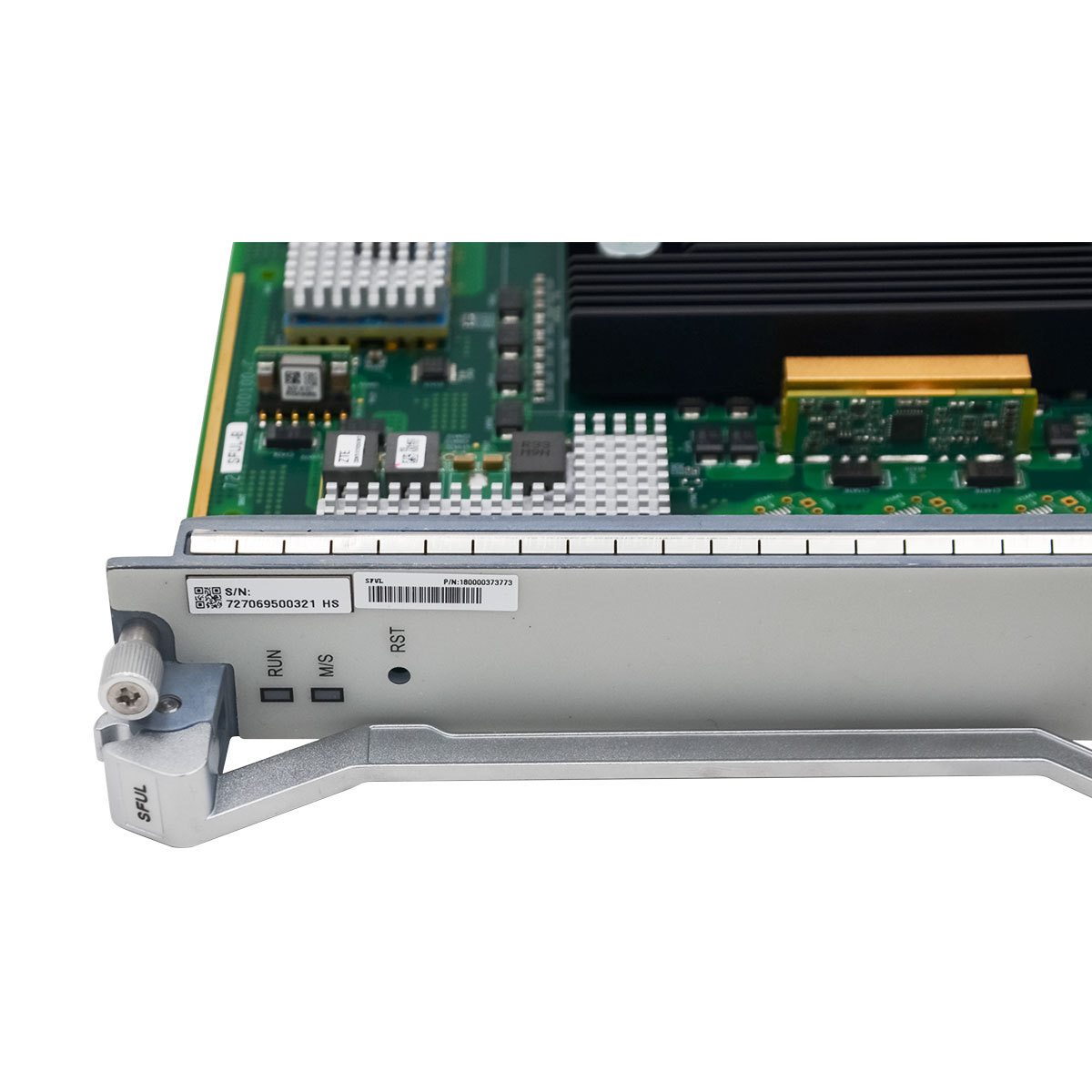

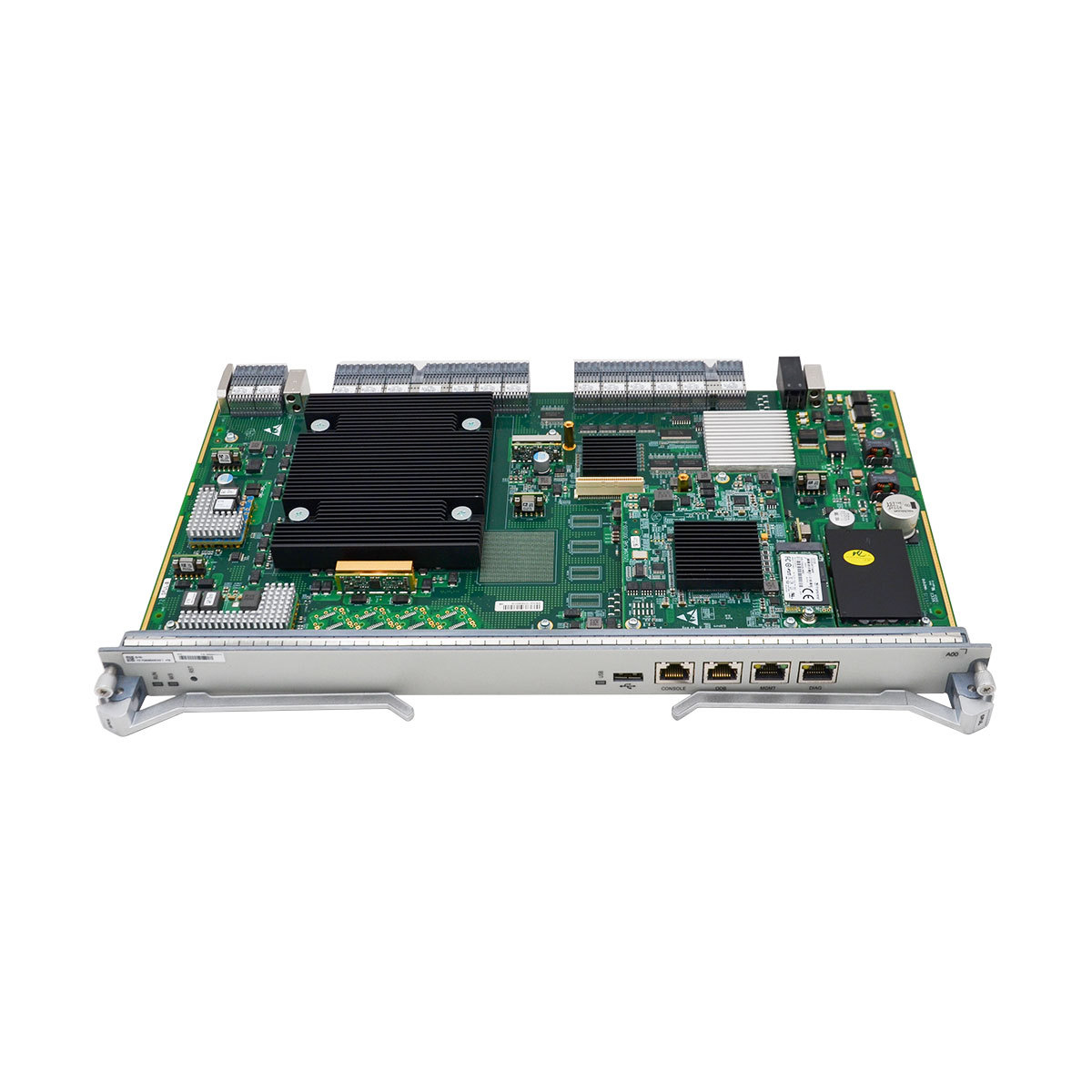

ZTE SFUL Control Card

ZTE SFUL Overview

The switching and control cards for ZXA10 C600/C650 OLTs—including two main series: Enhanced SFUL/SFUP/SFUH/SFUQ and SPUF/SPUFS—are hot-swappable and support load sharing/load balancing modes, 4 OLT slices, system control and management functions, and non-blocking data switching between all line cards; specific interface configurations vary by model, with Enhanced SFUL/SFUP/SFUH/SFUQ providing 1 out-band management (MGMT) interface, 1 maintenance serial (Console) interface, 1 USB interface, 1 mirroring diagnosis network (DIAG) interface, and 1 line card debugging serial (ODB) interface, while SPUF/SPUFS offer 1 out-of-band management (MGMT) interface, 1 maintenance serial (Console) interface, 1 environmental detection serial (Monitor) interface (supporting 3 digital input and 1 digital output interfaces), and 1 line card debugging serial (ODB) interface; additionally, Enhanced SFUH/SFUQ support four 10GE/GE uplink interfaces, SPUF/SPUFS provide four 10GE/GE Ethernet optical interfaces, and SPUFS exclusively supports the IEEE 1588 function.

Product Features

• High Performance: Offers a 3.6 Tbit/s switching capacity, crucial for large-scale network aggregation, with non-blocking forwarding.
• Reliability & Redundancy: Supports load-sharing and has separated control/forwarding planes, ensuring carrier-grade reliability.
• Management & Maintenance: Includes out-of-band management (MGMT), console port (CONSOLE), and diagnostic (DIAG) ports for easy configuration and monitoring.
• Future-Proofing: Supports Any-PON (GPON, 10G PON) and is SDN/NETCONF/YANG ready, allowing for flexible evolution and automation, according to www.zte.com.cn/global/home_and_enterprise/zte-launches-new-generation-50g-pon-integrated-optical-business-gateway-and-lightweight-outdoor-pon-olt.html and msgrouptech.com.
• Advanced Software: Runs on a robust OS with features like process restart, NSR (Non-Stop Routing), and telemetry for efficient O&M.

Application Scenarios

1. Urban FTTH Network Upgrade in Mexico

A Mexican telecom operator deployed ZTE SFUL Control Boards in ZXA10 C600 OLTs for urban FTTH expansion. As the core switching and control unit, the SFUL supported 4 OLT slices and non-blocking data switching, enabling seamless connectivity for 50,000+ residential users. Its hot-swappable design allowed maintenance without service downtime, while load sharing mode ensured stable 4K streaming and broadband access. Paired with dedicated uplink boards, the SFUL optimized network resource allocation, meeting the operator’s high-density user coverage needs.

2. Enterprise Campus Network in Spain

A Spanish university adopted ZTE SFUL Control Boards with ZXA10 C650 OLTs to upgrade its campus network. The SFUL’s system control and management functions unified the network of classrooms, labs, and administrative buildings, supporting 10,000+ concurrent devices. Its rich interfaces (MGMT, Console, DIAG) simplified remote monitoring and debugging, and load balancing capability prevented congestion during peak usage. The board’s compatibility with ZTE’s PON cards ensured future scalability, aligning with the university’s long-term digital transformation plans.

Downloadable resources

ZTE SFUL Board Datasheet

Technical Specifications

FAQ


Q: What is ZTE SFUL Control Board?
A: It is a core switching and control card for ZTE ZXA10 C600/C650 OLTs, providing system control, management functions, and non-blocking data switching between boards.

Q: Which OLT models are compatible with the SFUL Control Board?
A: It is fully compatible with ZTE ZXA10 C600 and C650 OLTs, designed to fit their dedicated control card slots.
