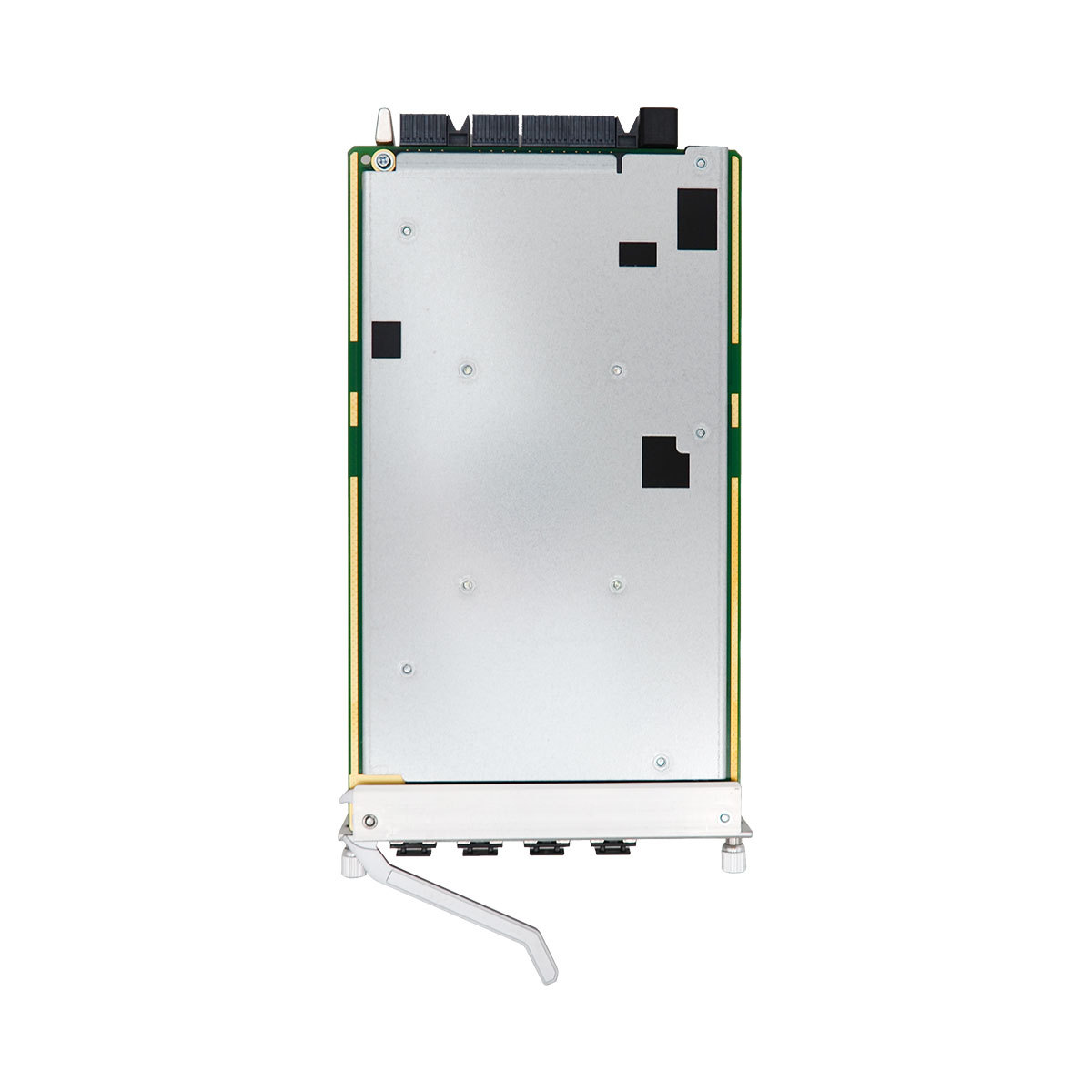

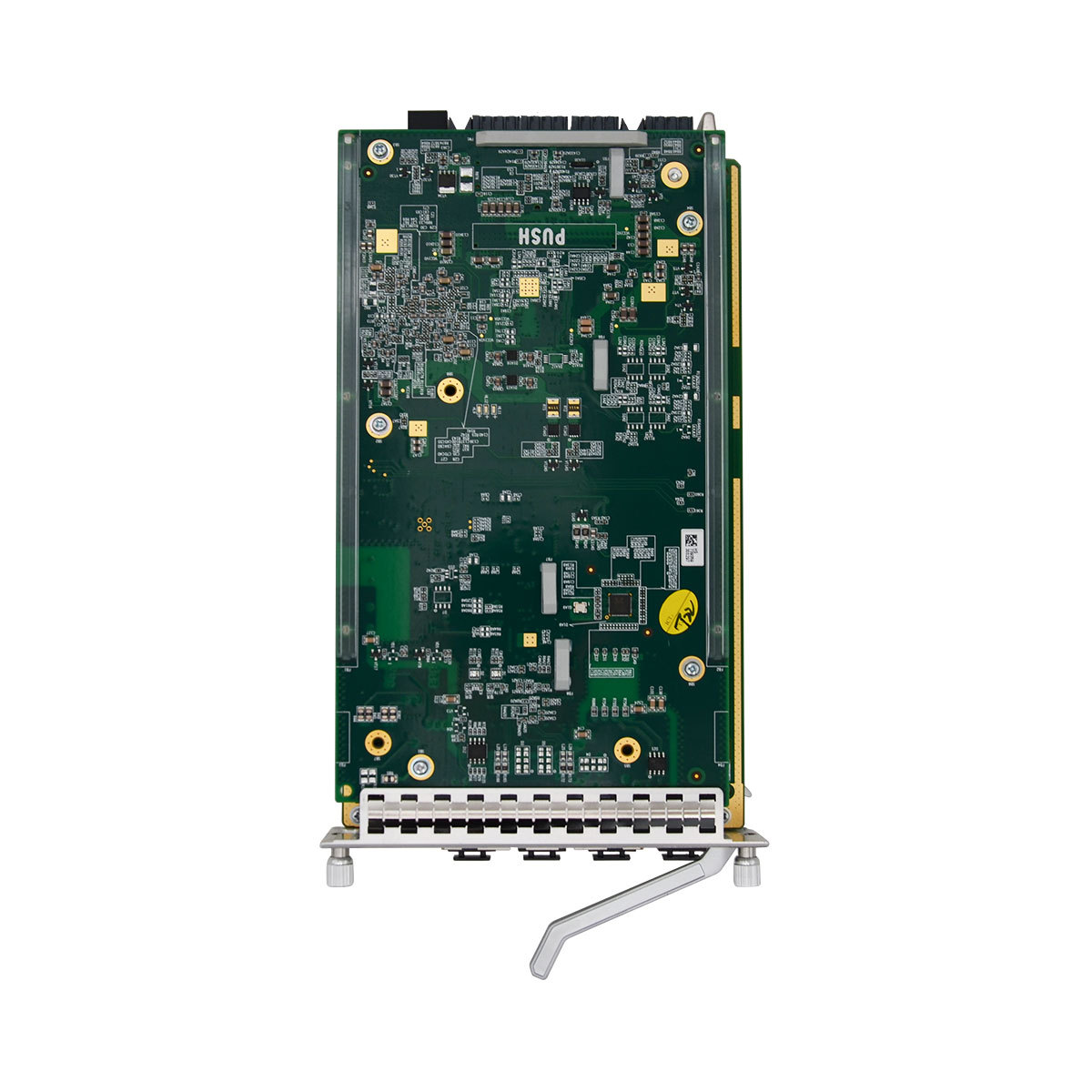

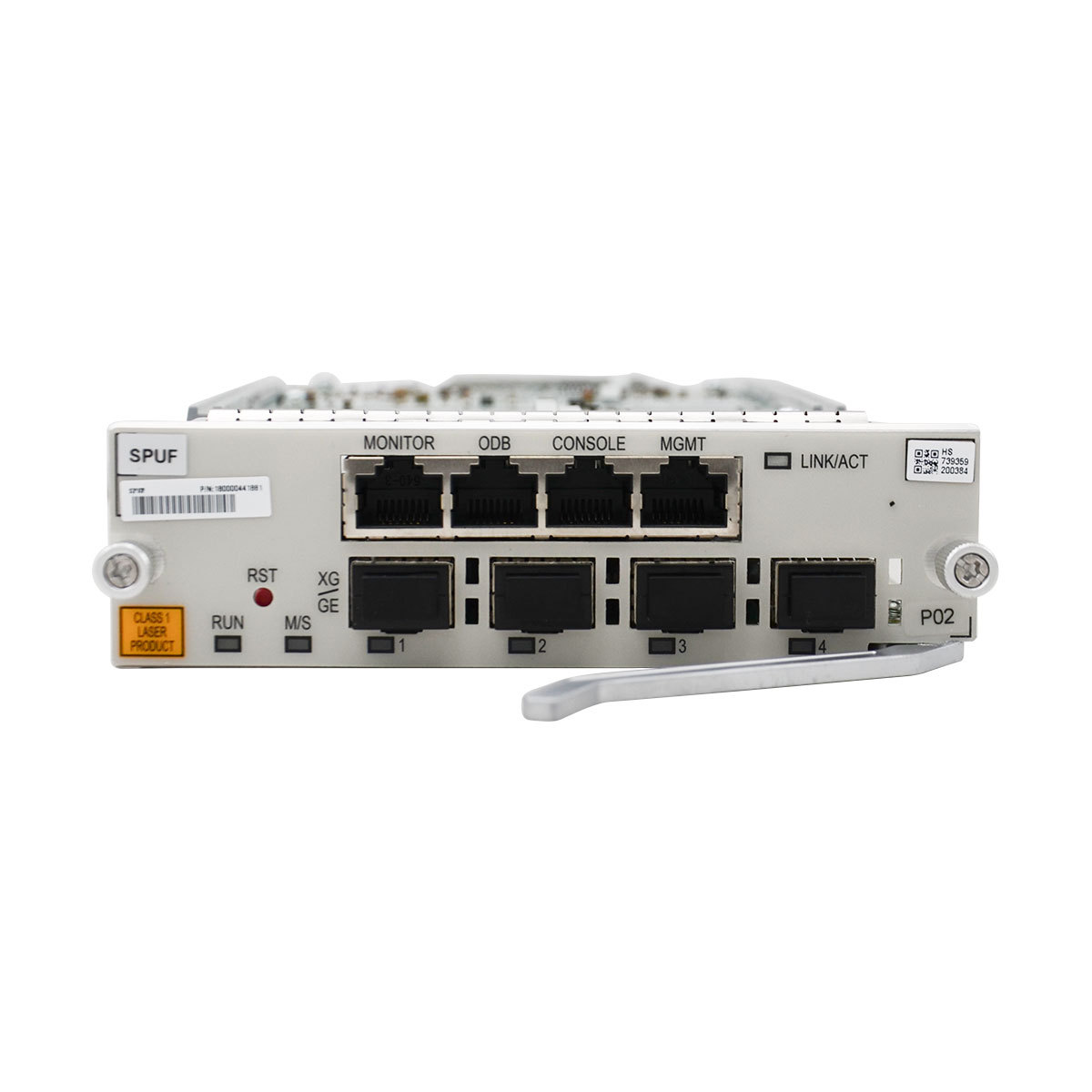

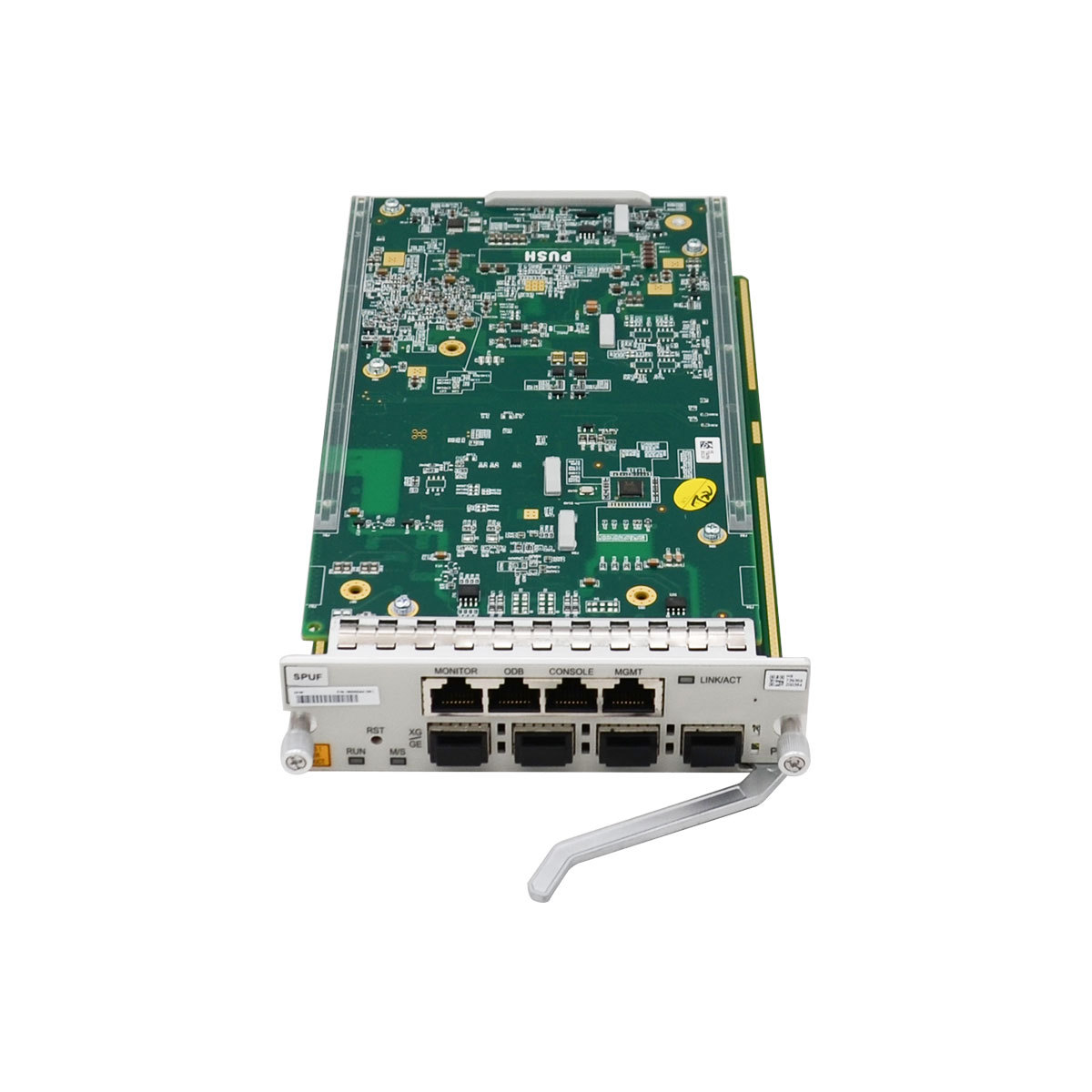

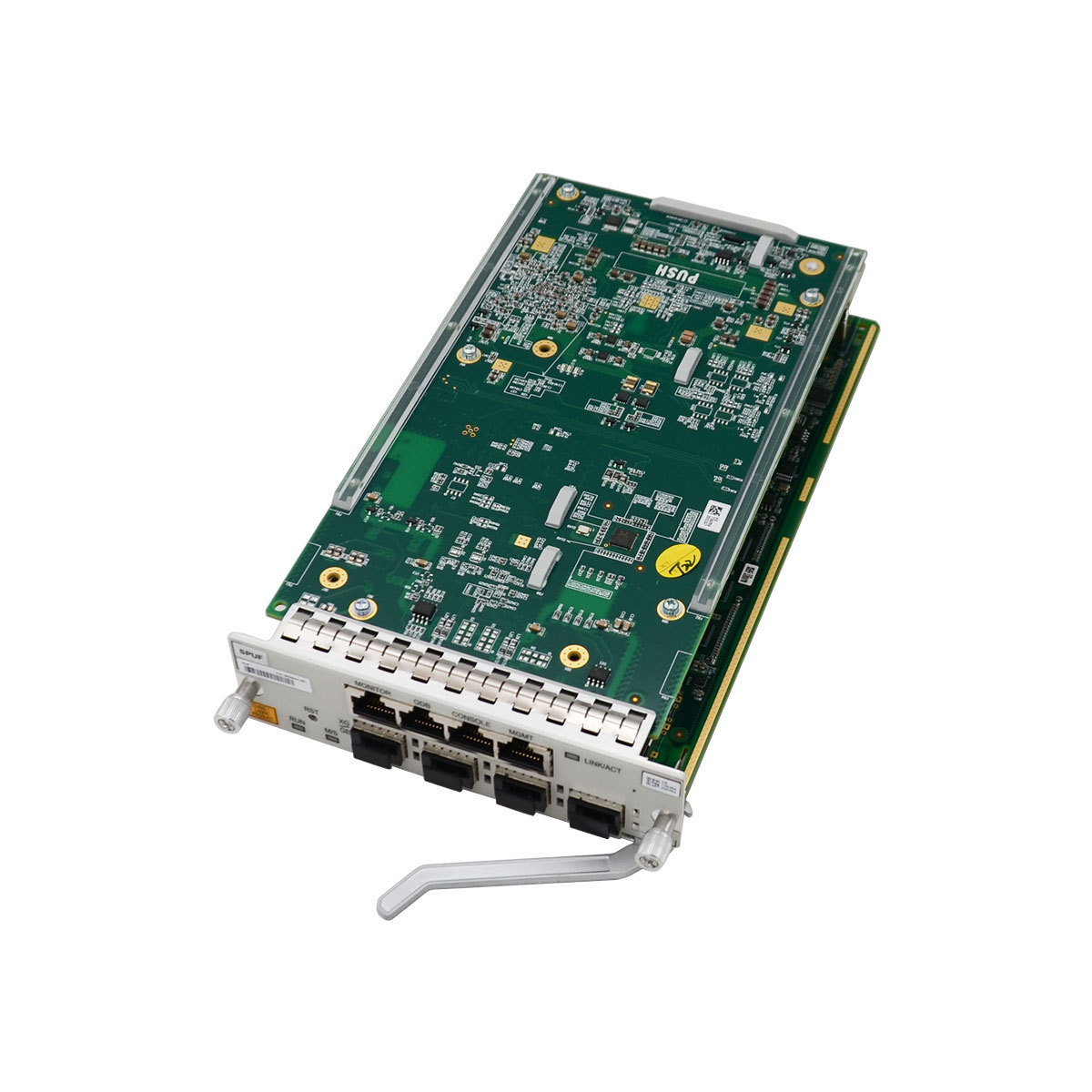

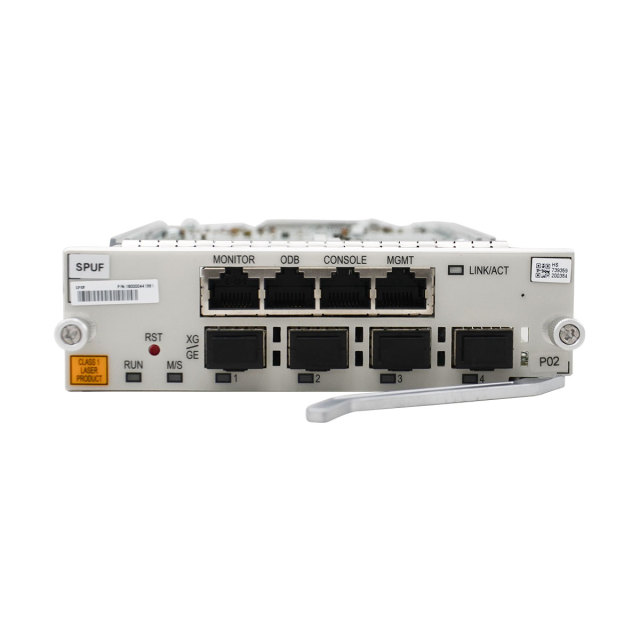

SPUF / SPUFS is the switch & control card of ZXA10 C620. SPUF / SPUFS provides one out-of-band management (MGMT) interface, one maintenance serial interface (Console), one Environmental detection serial interface (Monitor, supporting 3 digital input interfaces and 1 digital output interface) and one line card debugging serial interface (ODB).
1. Rural FTTH Coverage in Indonesia
An Indonesian regional operator deployed ZTE SPUF Control Boards in ZXA10 C620 OLTs to expand fiber access in remote villages. The SPUF’s compact design fit small outdoor cabinets, while its -40℃~+65℃ operating range adapted to tropical heat. With 4×10GE/GE interfaces, it enabled stable backhaul, and the environmental monitoring (Monitor) interface tracked cabinet temperature/humidity—critical for harsh conditions. Hot-swappable capability allowed maintenance without downtime, serving 3,000+ users and advancing Indonesia’s rural connectivity goals.
2. Smart Office Park in Romania
A Romanian real estate firm adopted ZTE SPUF boards with ZXA10 C620 OLTs for a Bucharest office park. The SPUF provided core control for 20+ SMEs, supporting VPNs and real-time data transmission via 4×10GE uplinks. Its rich L2/L3 features (VLAN, static routing) optimized network efficiency, and load balancing prevented congestion. The board’s compatibility with ZTE’s GPON/XGS-PON cards ensured future scalability, aligning with Romania’s digital office transformation trends.
|
ZTE SPUF Board Datasheet |
|
| Forwarding capability | 40 Gbit/s |
| MAC number | 128K |
| Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| VLAN forwarding | VLAN+MAC |
| Shaping in outband management | Supported |
| L3 forwarding | IPv4/IPv6 ARP table supported IPv4/IPv6 routing supported |
| Clock synchronization | 1588V2, 1588ACR, SyncE |
| Y.1731 | Supported |
| Link aggregation | Supported at Inter-board and Intra-board |
| MSTP ring network protection | Supported |
| G.8032 ring network protection | Supported |
| Operating temperature | -40°C to +65°C |
| Power consumption | GE mode:
|
| Dimensions (mm) | 128.9 × 36.5 × 225.7 |
| Weight(kg) | 0.77 |
FAQ
Q: What is ZTE SPUF Control Board?
A: It is a dedicated switching and control card for ZTE ZXA10 C620 OLTs, providing system control, 4×10GE/GE Ethernet optical interfaces.
Q: Which OLT models are compatible with the SPUF Control Board?
A: It is primarily designed for ZXA10 C620 OLTs, fitting their dedicated control card slots and working seamlessly with the C600 series’ user-side line cards.
