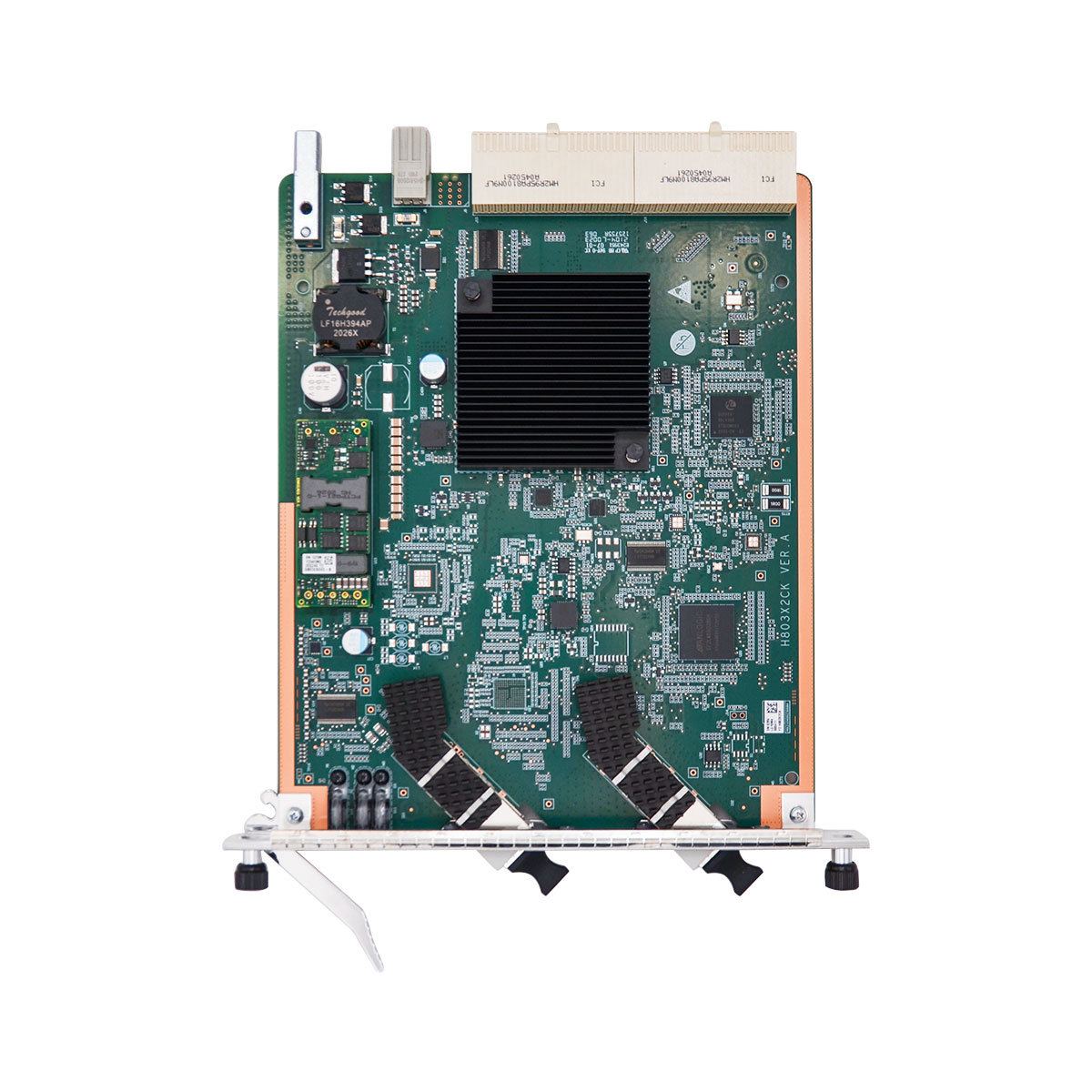

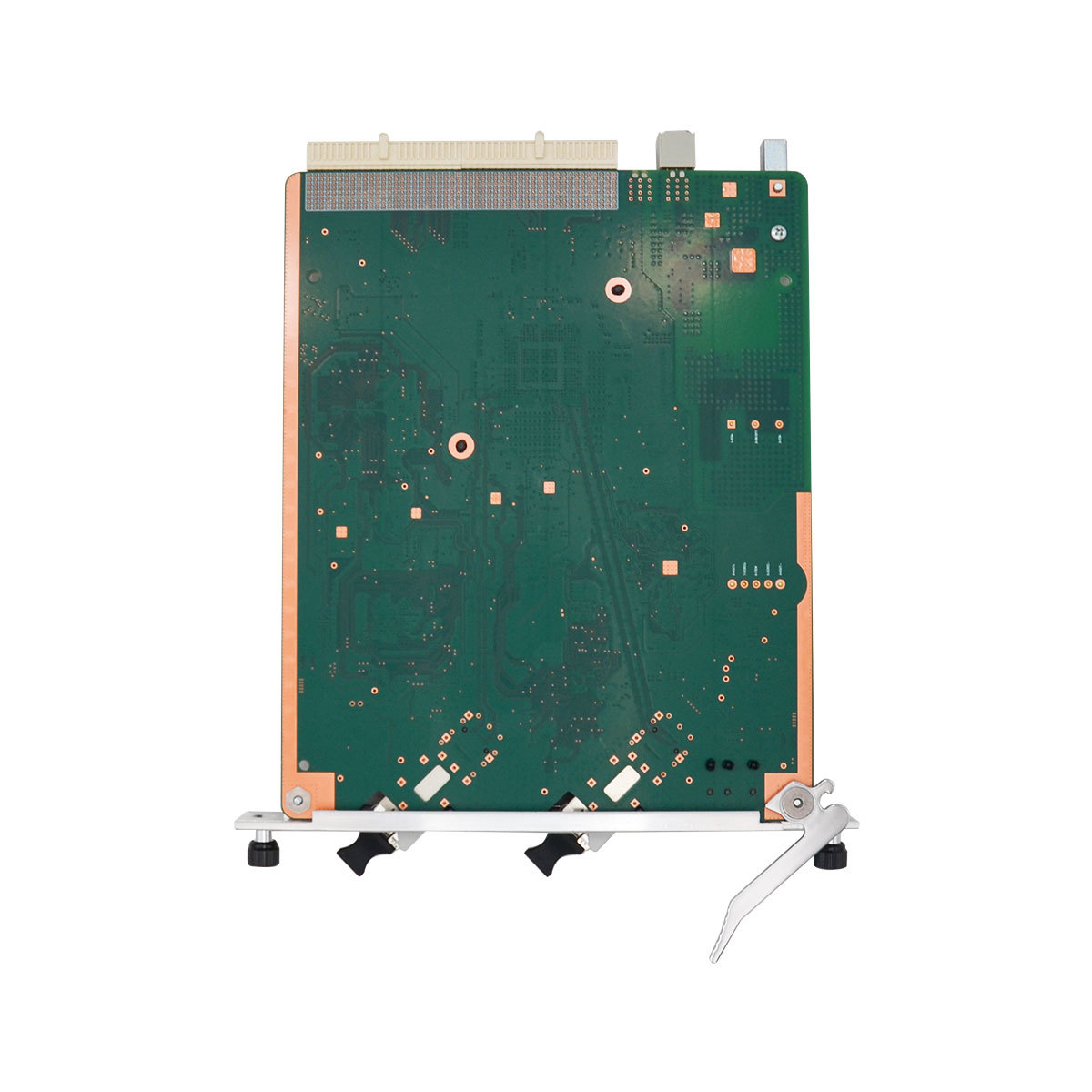

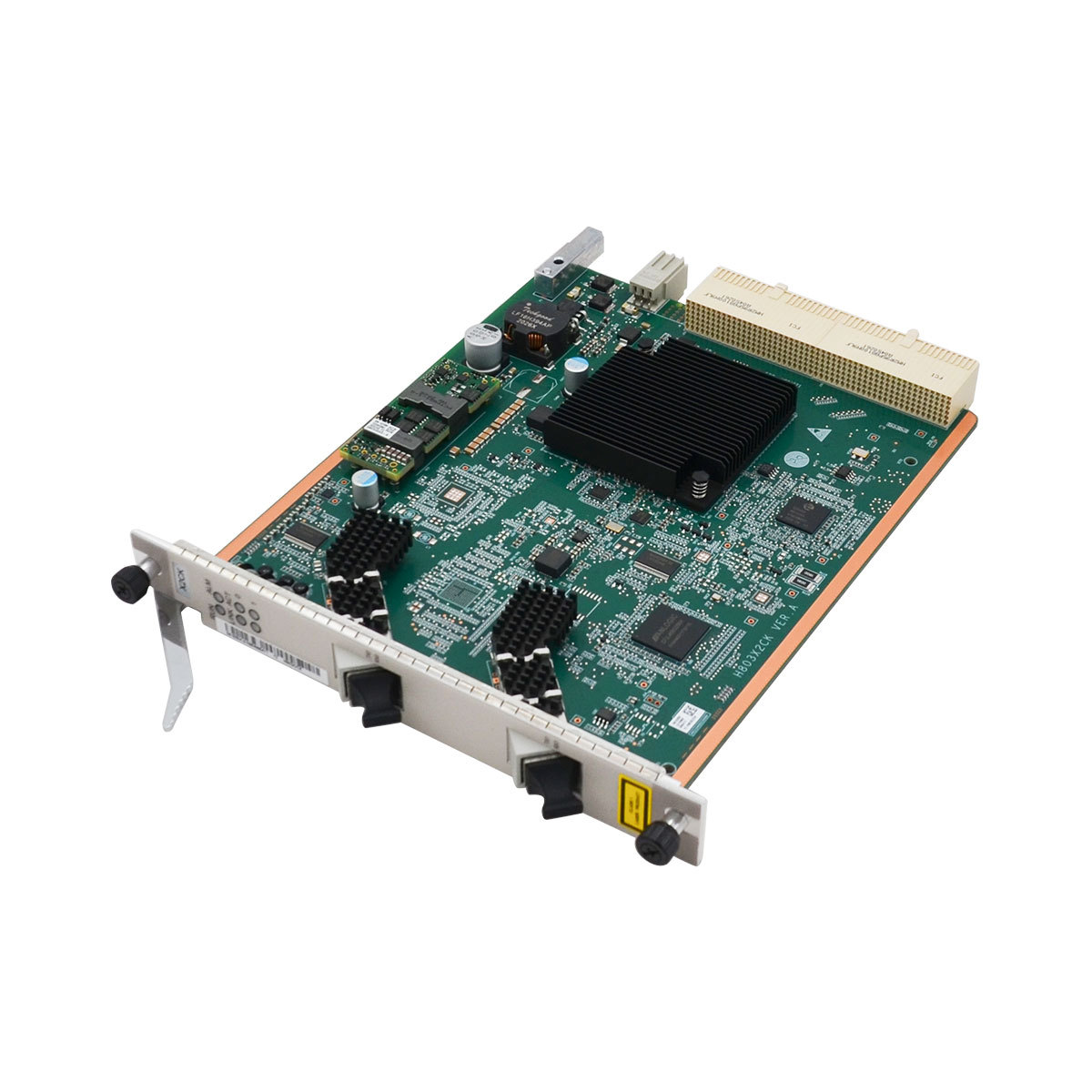

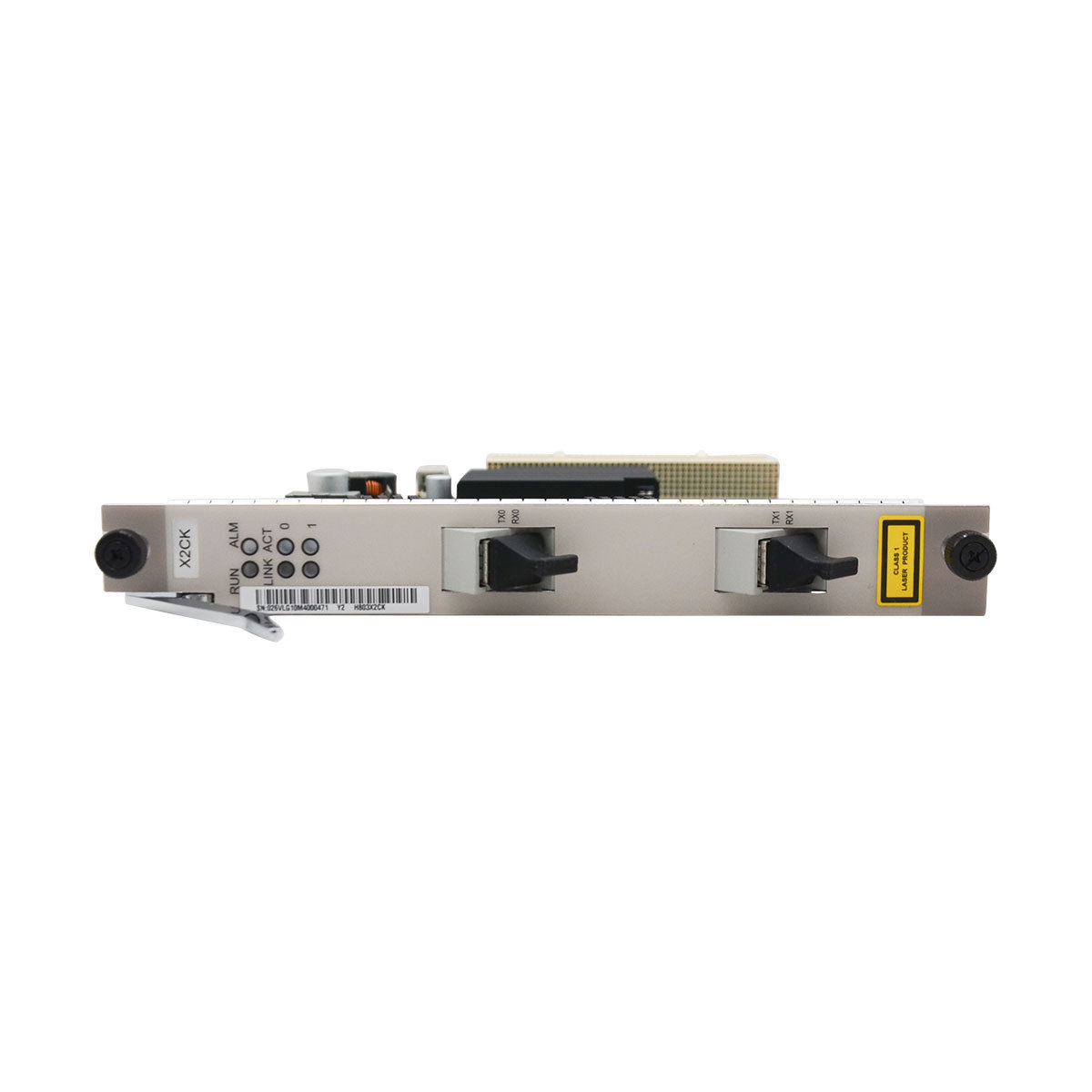

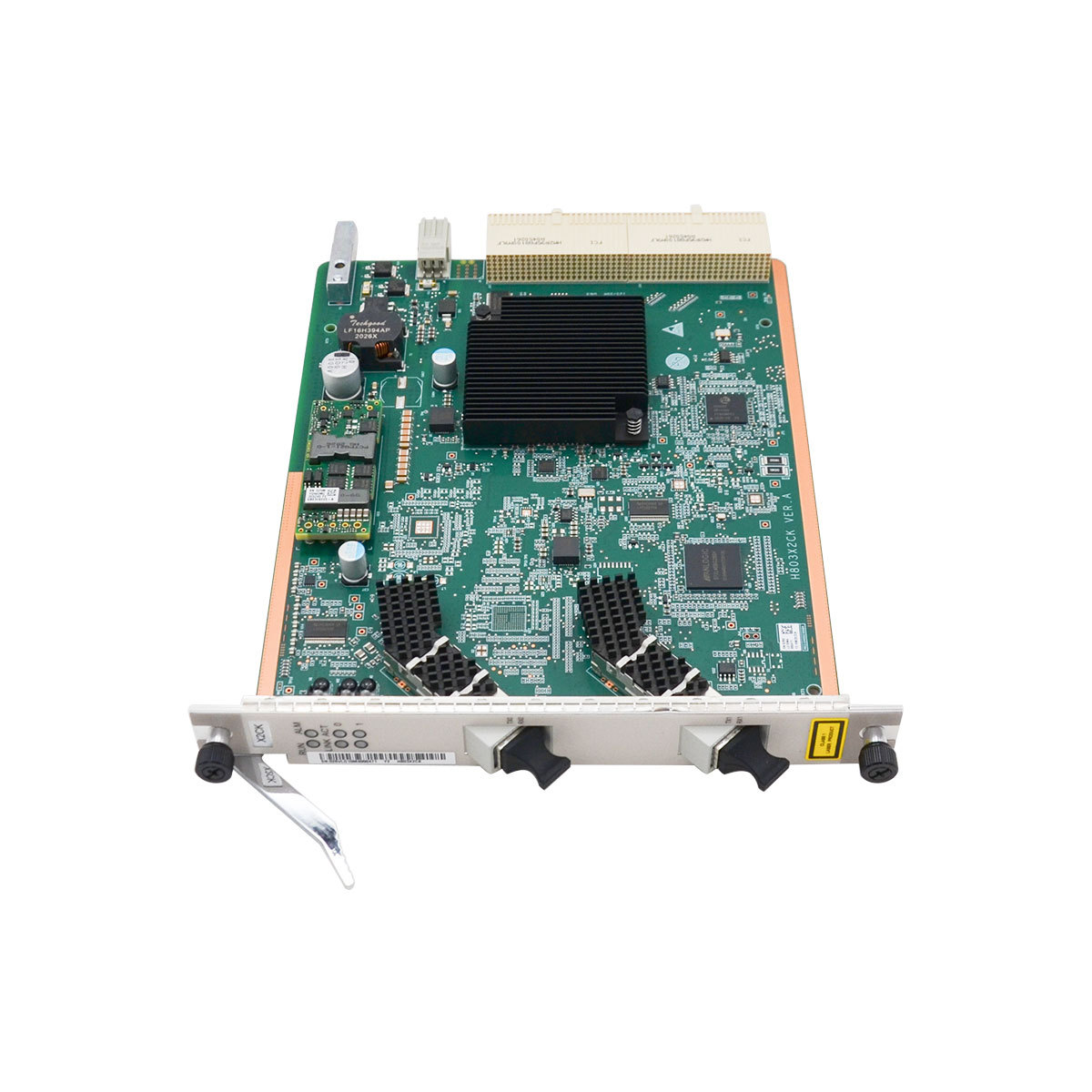

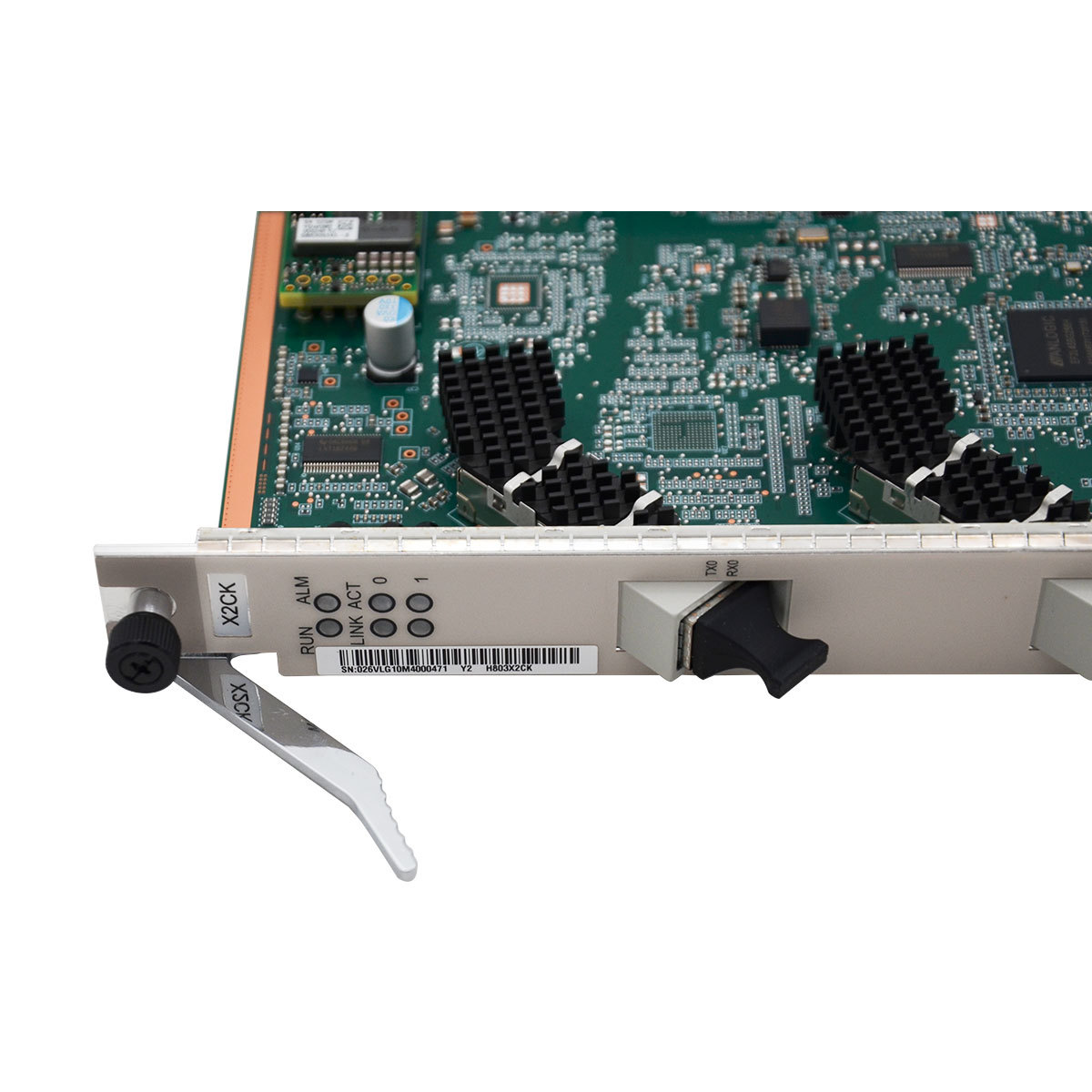

Huawei X2CK Overview
The Huawei X2CK is a 2-port 10GE/GE Uplink Interface Card for Huawei MA5600T/MA5680T OLT platforms, providing high-speed, reliable network connectivity for Fiber to the Home (FTTH) systems and large networks, supporting advanced features like 10G PON evolution, high split ratios (up to 1:128), and efficient network management with optical module monitoring and board-level power control, crucial for carrier-grade broadband delivery.
Product Features
- High-Speed Uplink: Offers two 10GE/GE ports for upstream traffic, crucial for dense user environments.
- PON Technology: Supports high split ratios (up to 1:128) and enables evolution from GPON to 10G PON without major hardware changes, protecting investments.
- Optical Module Management: Provides detailed monitoring of optical modules (temp, power, etc.) and controls signal transmission for better network health.
- Network Protocol Support: Compatible with Ethernet, TCP, and potentially wireless LAN/WiFi protocols, offering broad device compatibility.
- Reliability & Security: Features advanced security like ARP inspection and supports redundant configurations for high availability.
- Easy Management: Designed for user-friendly installation and maintenance, reducing operational burden and downtime for ISPs.
Application Scenarios
European ISP Network Expansion
A leading telecom provider in Spain deployed Huawei X2CK (H803X2CK) boards in its MA5683T OLT infrastructure to upgrade broadband backhaul capacity. The dual 10GE ports enabled seamless cascading between OLT nodes, supporting 40% more concurrent users while maintaining synchronization via SYNC-E. MF-Telecom’s timely delivery (3-day lead time) and pre-deployment compatibility checks ensured smooth integration—reducing network downtime to zero during the upgrade.
Downloadable resources
| Huawei X2CK Board Datasheet |
| Board |
X2CK |
| Clock Feature |
10GE/GE synchronous Ethernet |
| 1588v2 (with CKMC or CKMD) |
| 1588ACR (with CKMD) |
| Port |
Two 10GE/GE ports |
| Pluggable Optical Module |
SFP/SFP+ |
| Pluggable Electrical Module |
SFP |
FAQ
Q: What is the Huawei X2CK board?
A: It is a core service board designed for Huawei OLT platforms, providing high-performance optical access functionality.
Q: How many ports does X2CK have?
A: It has 2 GE/10GE SFP+ ports.
Q: Which Huawei OLT models can X2CK be used with?
A: It is fully compatible with Huawei MA5800, MA5683T, MA5608T, and other mainstream OLT chassis, with plug-and-play integration.
Q: How does MF-Telecom support the GPBH purchase?A: We provide genuine Huawei hardware, 1-year warranty, global shipping (3-5 days).
Q: What temperature range does X2CK support, and where can it be deployed?
A: It operates in -25°C~+65°C, suitable for indoor machine rooms, outdoor cabinets, industrial sites, and other harsh environments.
