Huawei X2CS Overview

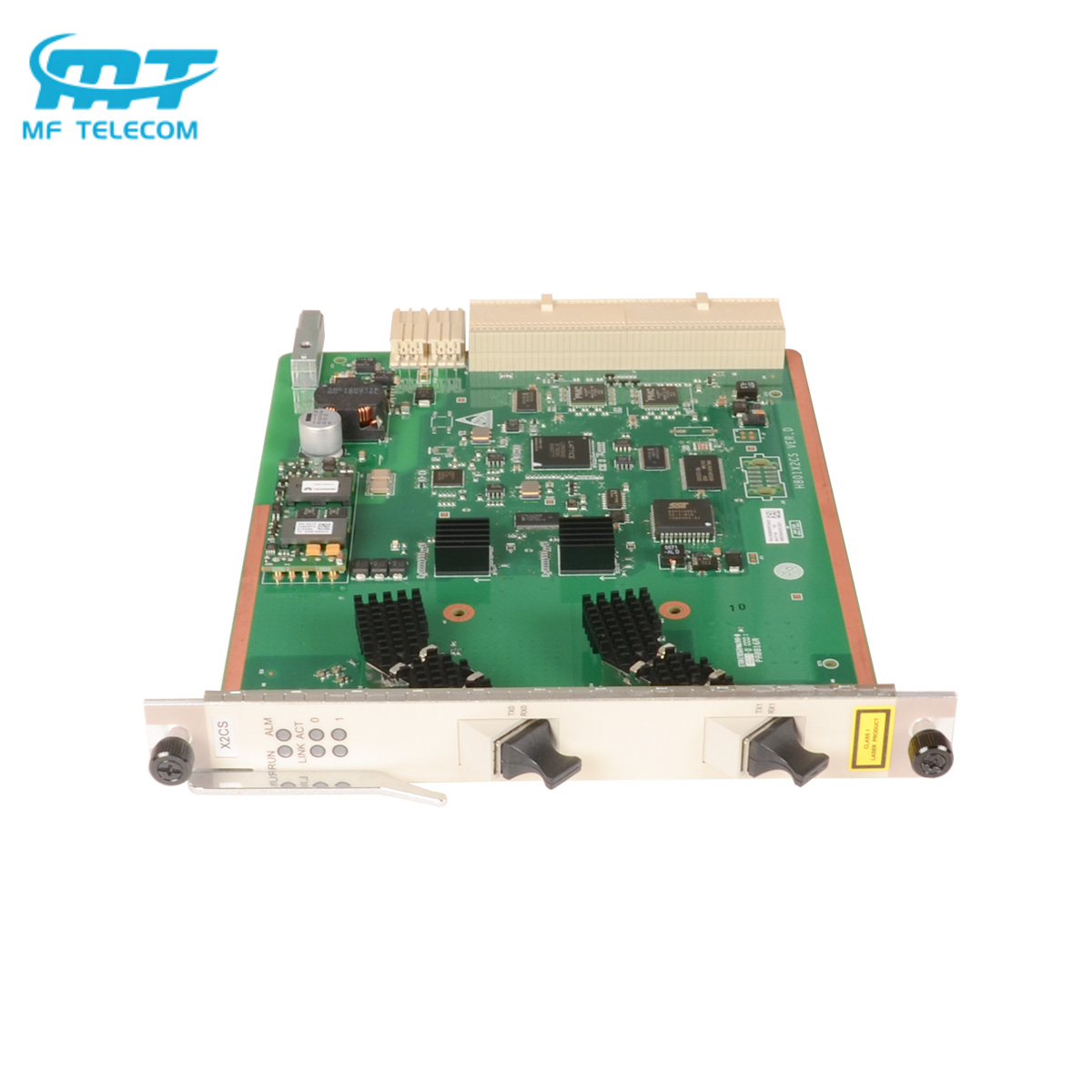

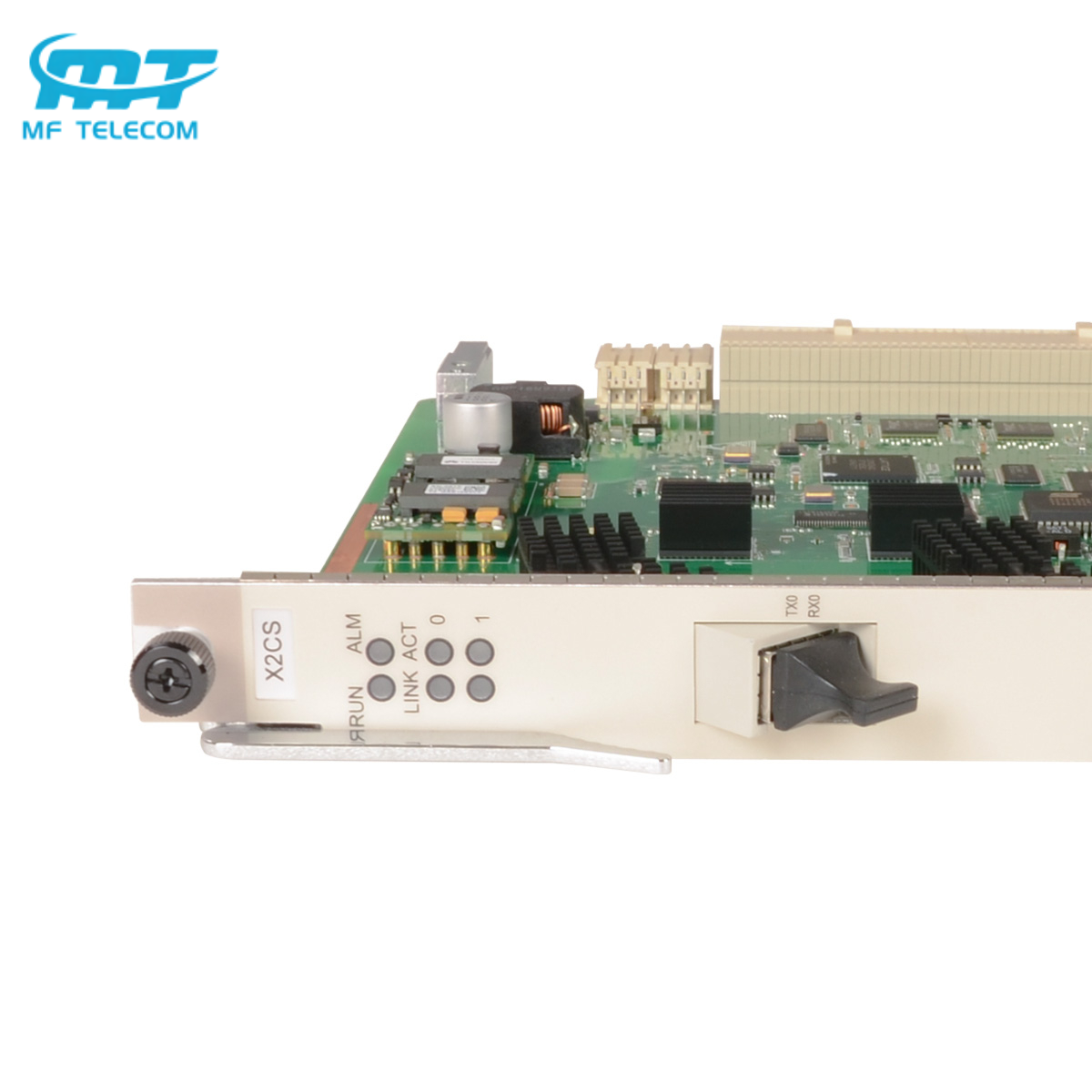

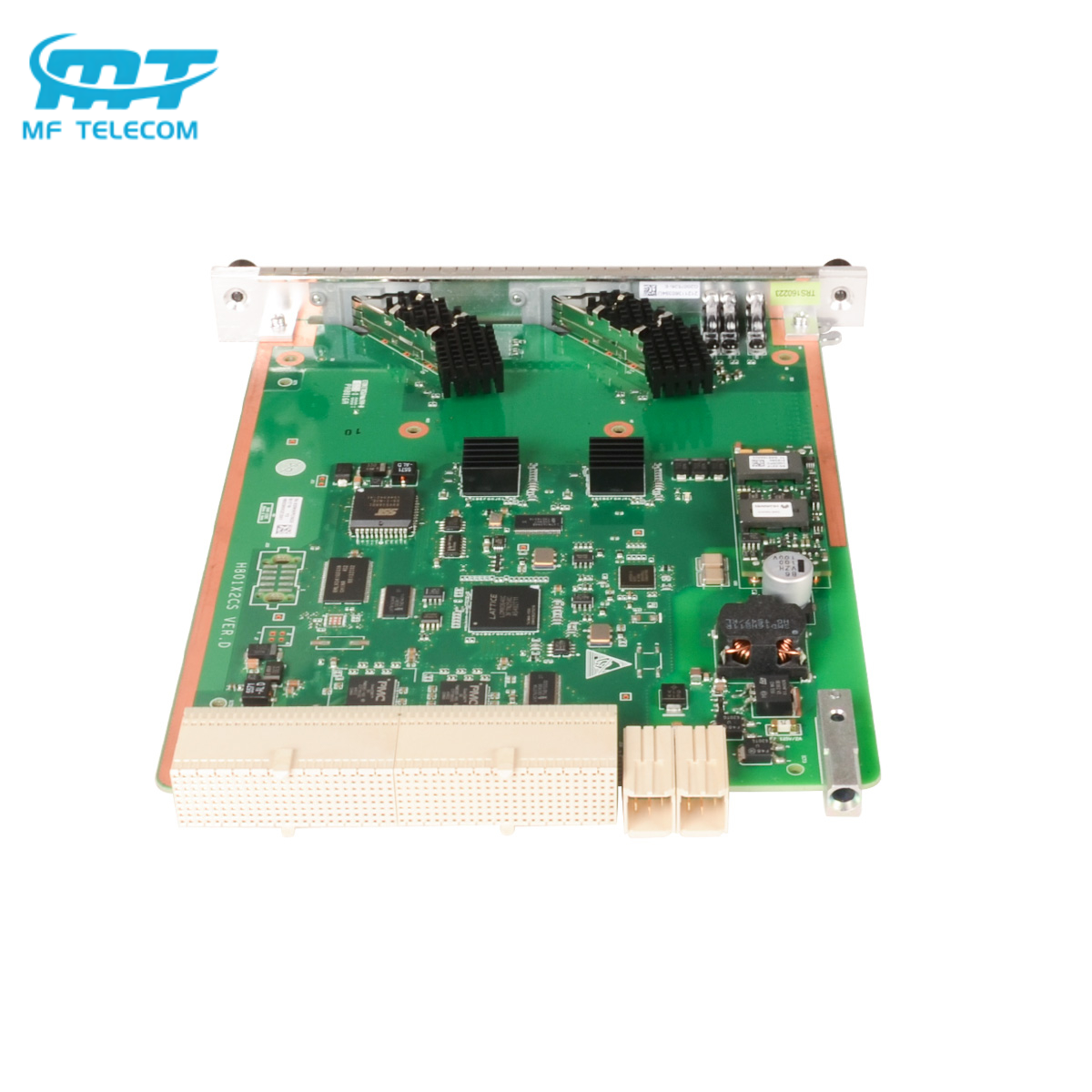

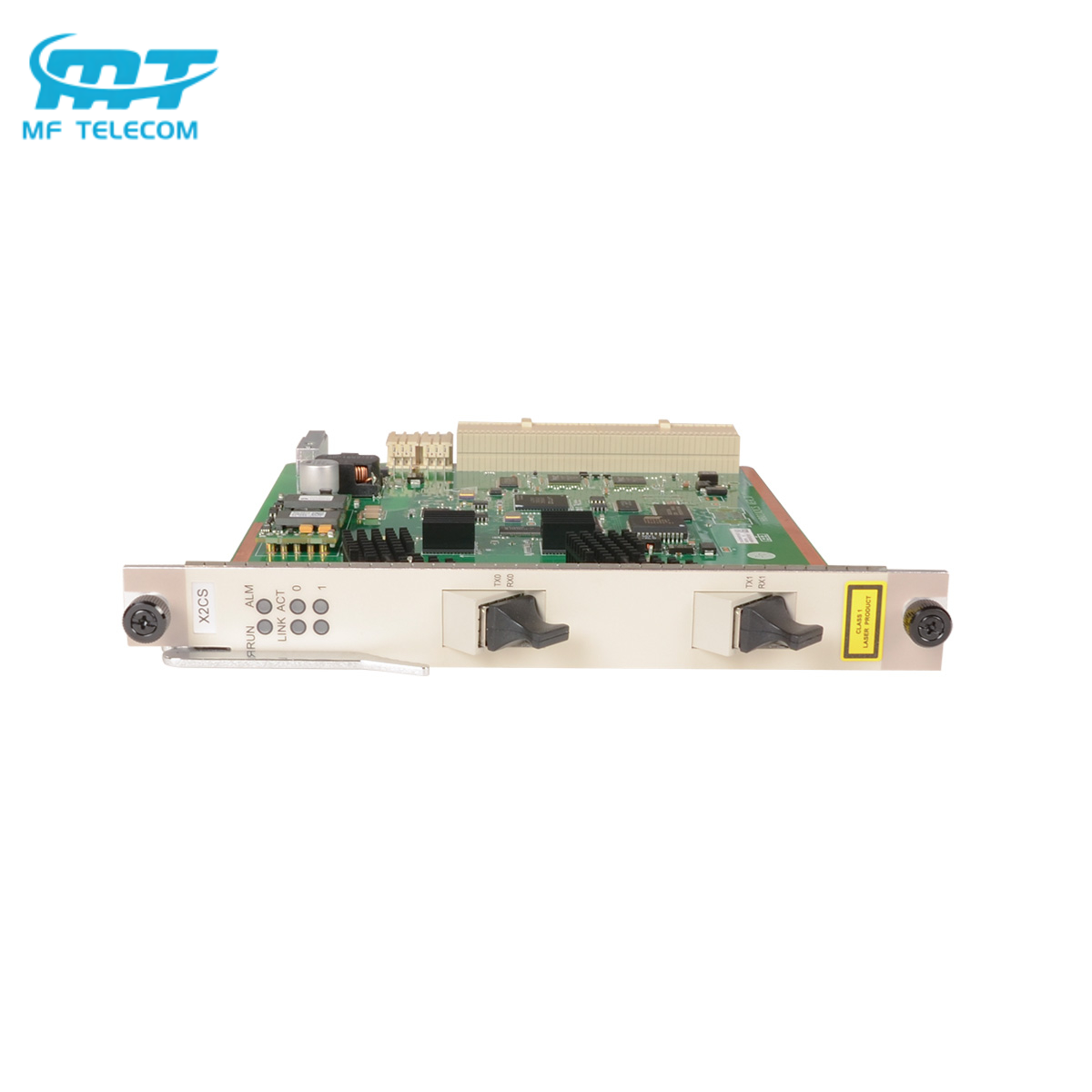

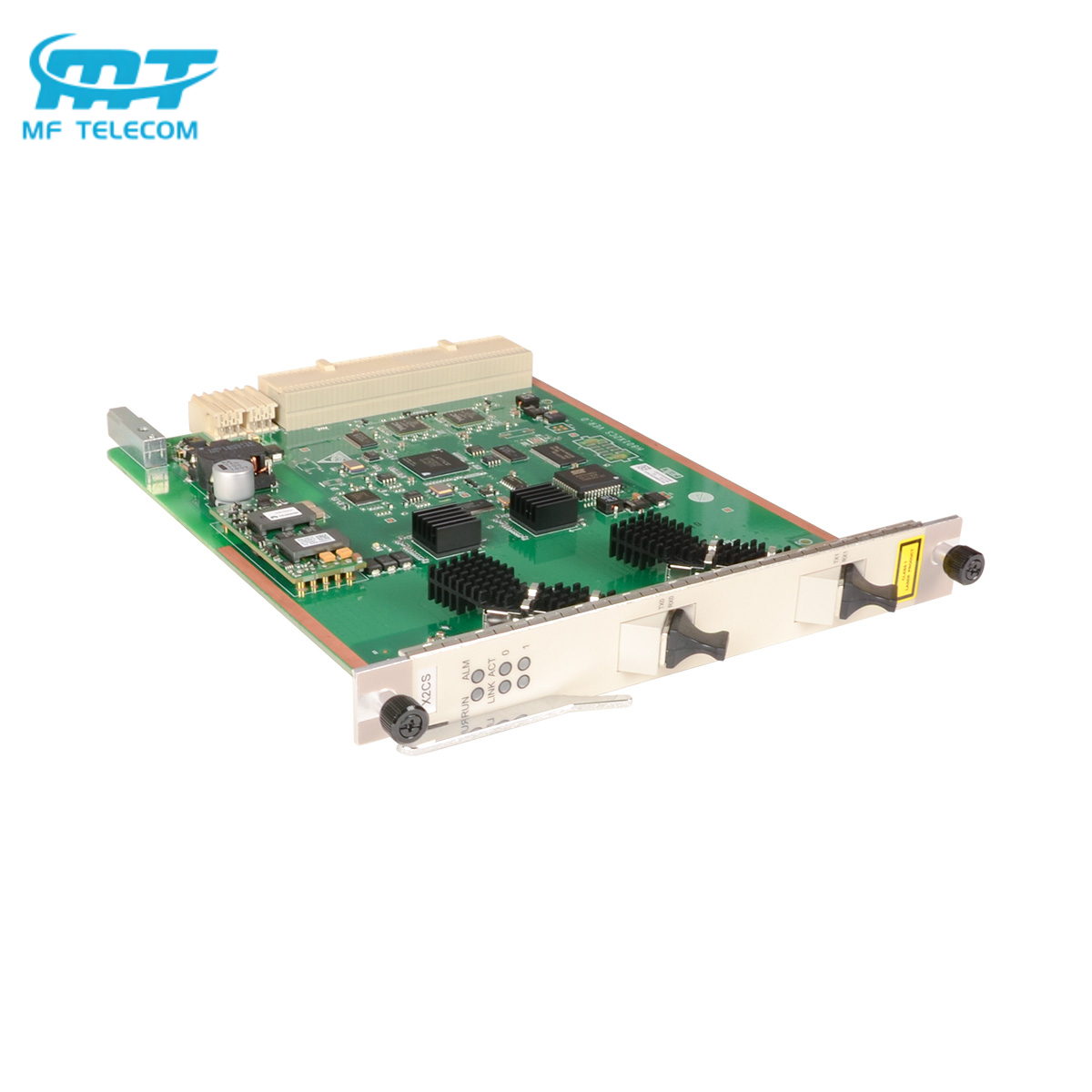

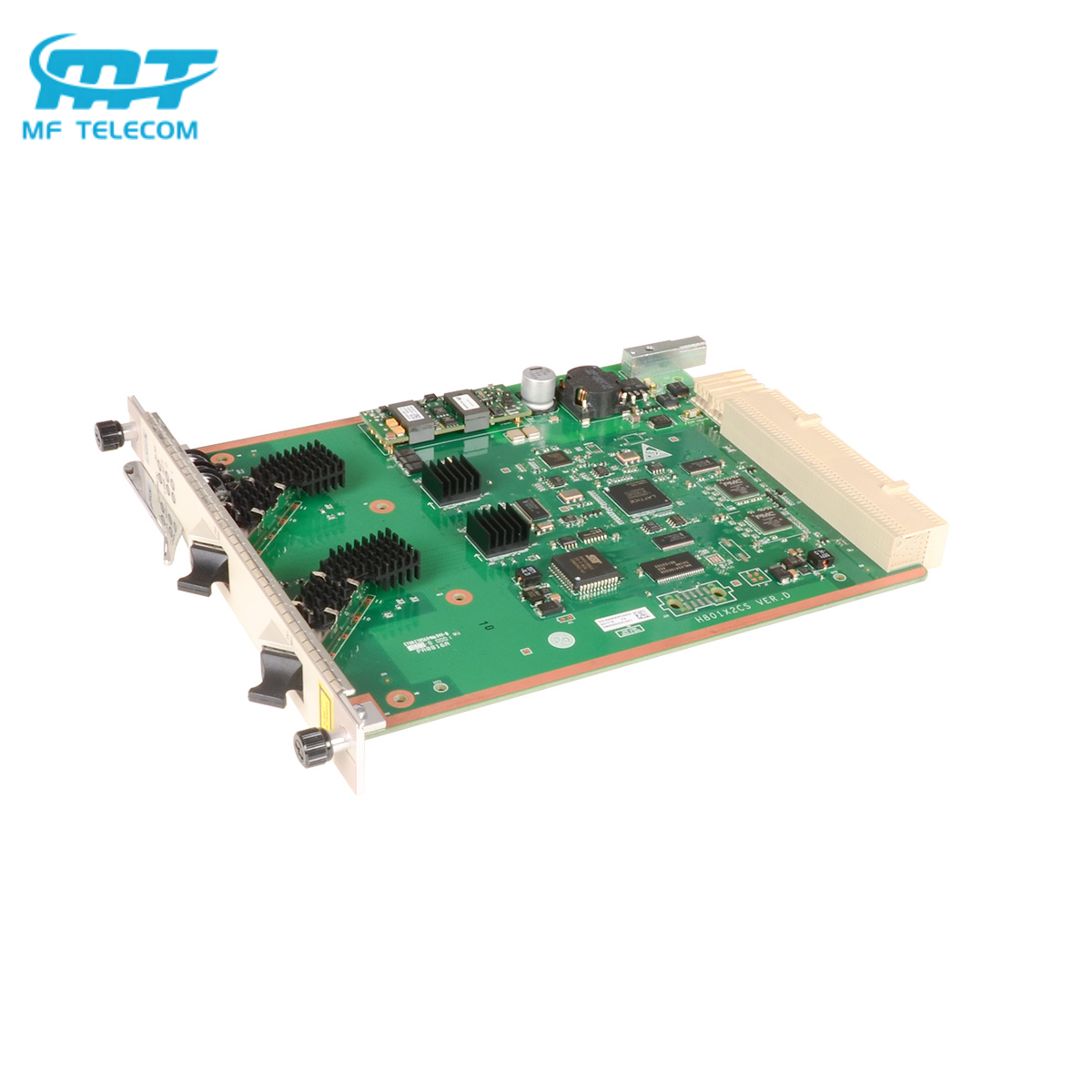

The original Huawei X2CS Upstream Board is a critical 10GE optical uplink card designed for Huawei MA5680T/MA5683T OLT systems. Featuring 2 uplink ports (SFP+ module-ready) and SYNC-E support, it enables high-speed upstream/cascading connectivity for FTTx networks. With 18W max power consumption, 9216-byte jumbo frame compatibility, and wide temperature adaptability, it delivers stable performance for telecom operators. MF-Telecom offers in-stock units, 1-year warranty, and pre-sales compatibility support—ideal for reliable network upgrades.
Product Features
- High-Speed Uplink: Provides two 10 Gigabit Ethernet (10GE) optical ports for connecting to the core network or for OLT cascading.
- Synchronous Ethernet (SyncE): Extracts and synchronizes clock signals from the 10GE interface, crucial for carrier-grade network timing.
- Module-Based Design: Works with SFP+ modules (not included by default) to support different fiber types and distances, enhancing flexibility.
- Integrated Functionality: Includes dedicated modules for power, control, and clock management, ensuring stable operation.
- OLT Integration: Designed for Huawei's SmartAX OLT platforms (MA5680T, MA5683T) to provide access services (GPON, 10G GPON, EPON, 10G EPON).
- Network Performance: Offers low forwarding delay and supports features like jumbo frames (up to 9216 bytes) for efficient data handling.
Application Scenarios
Southeast Asia Telecom Network Upgrade
A major Indonesian operator deployed Huawei X2CS boards in its MA5683T OLT network to enhance broadband backhaul capacity. The 10GE uplink capability enabled seamless integration with existing FTTx infrastructure, reducing latency by 30% and improving customer satisfaction—supported by MF-Telecom’s timely stock delivery and technical consultation.
Downloadable resources
| Huawei X2CS Board Datasheet |
| Port |
2 10GE Uplink Ports |
| Pluggable Module |
SFP+ Module |
| Corresponding Control Board |
SCUF/SCUN/SCUL/SCUH |
| Device Specifications |
| Dimensions (mm) |
25.40 (W) x 237.00 (D) x 197.20 (H) |
| Power Consumption and Maximum Frame Size |
| Power Consumption |
Static: 17.6 W
Maximum: 18 W |
| Maximum Frame Size |
2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported |
| Operating temperature |
-25°C to +65°C |
FAQ
Q: What is the core function of Huawei X2CS?
A: It is an OLT uplink interface board that provides high-speed 10GE uplink ports.
Q: How many ports does X2CS have?
A: It has 2-port GE/10GE SFP+ ports.
Q: Which Huawei OLT models can X2CS be used with?
A: It is compatible with Huawei MA5608T, MA5683T, MA5800, and other mainstream OLT devices.
Q: What temperature range does X2CS support, and where can it be deployed?
A: It operates in -25°C~+65°C, suitable for indoor machine rooms, outdoor cabinets, and harsh industrial environments.
Q: How does MF-Telecom support the GPBH purchase?
A: We provide genuine Huawei hardware, 1-year warranty, global shipping (3-5 days).
