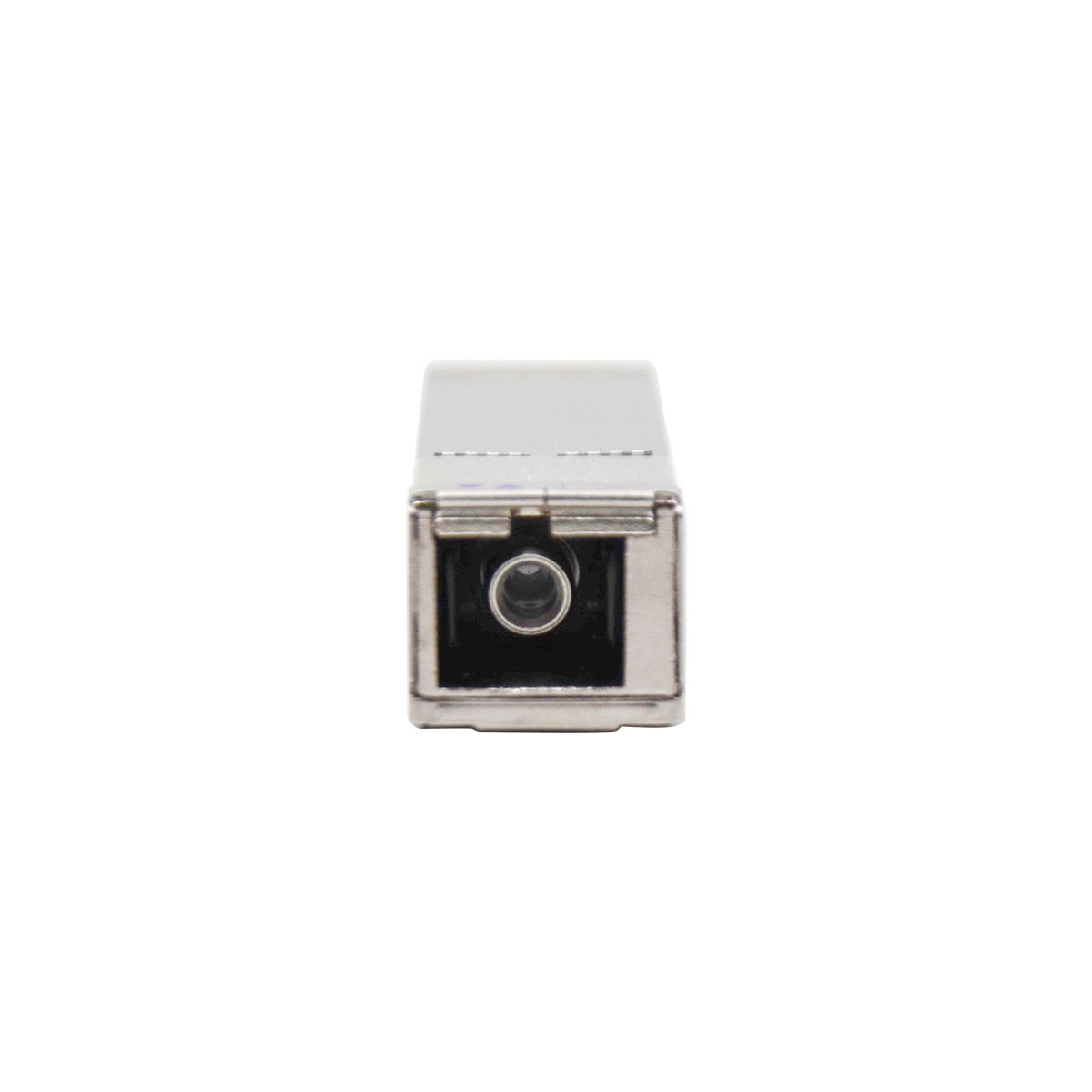

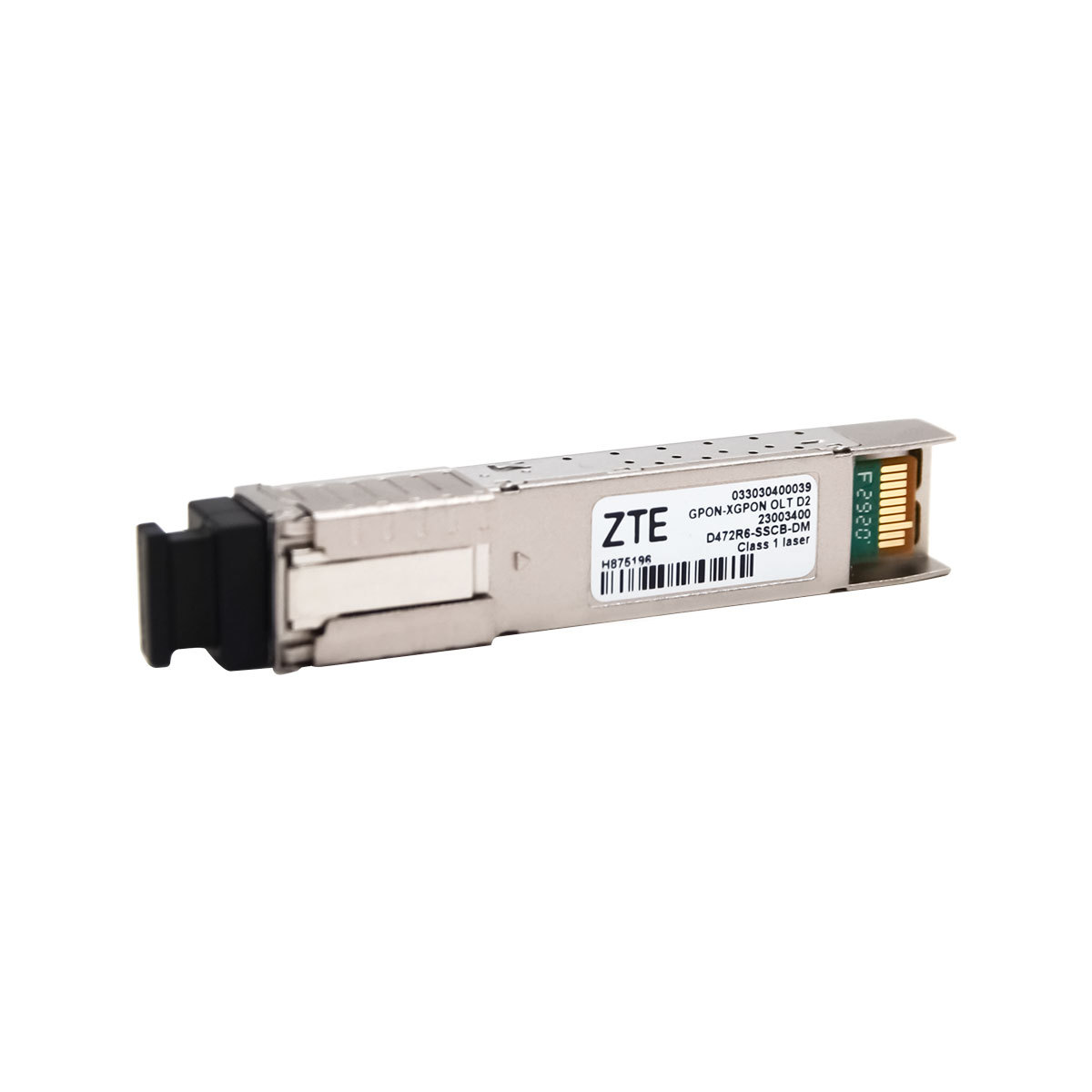

ZTE OLT GPON&XGPON D2 Module

ZTE GPON XGPON COMBO OLT D2 Module.
The ZTE 033030400039 is a combination of XG-PON OLT and GPON OLT optical transceiver in an SFP+ housing. It is designed to support both the new ITU-T G.987.2 XG-PON and the legacy ITU-T G.984.2 GPON specifications over a single fiber via coarse wave division multiplexing. The XG-PON bidirectional link is configured with 1270nm/1577nm optics and the GPON link is configured with 1310nm/1490nm optics. The 1270nm and 1310nm optical burst mode receivers incorporate APD/TIA optics for maximum sensitivity. The 10G transmitter incorporates a 1577nm EML laser assembly and the 2.5G transmitter incorporates a 1490nm DFB laser assembly. The transmitters can be controlled by the LVTTL Tx_DISABLE function and the receivers incorporates the LVTTL Rx_SD output.
