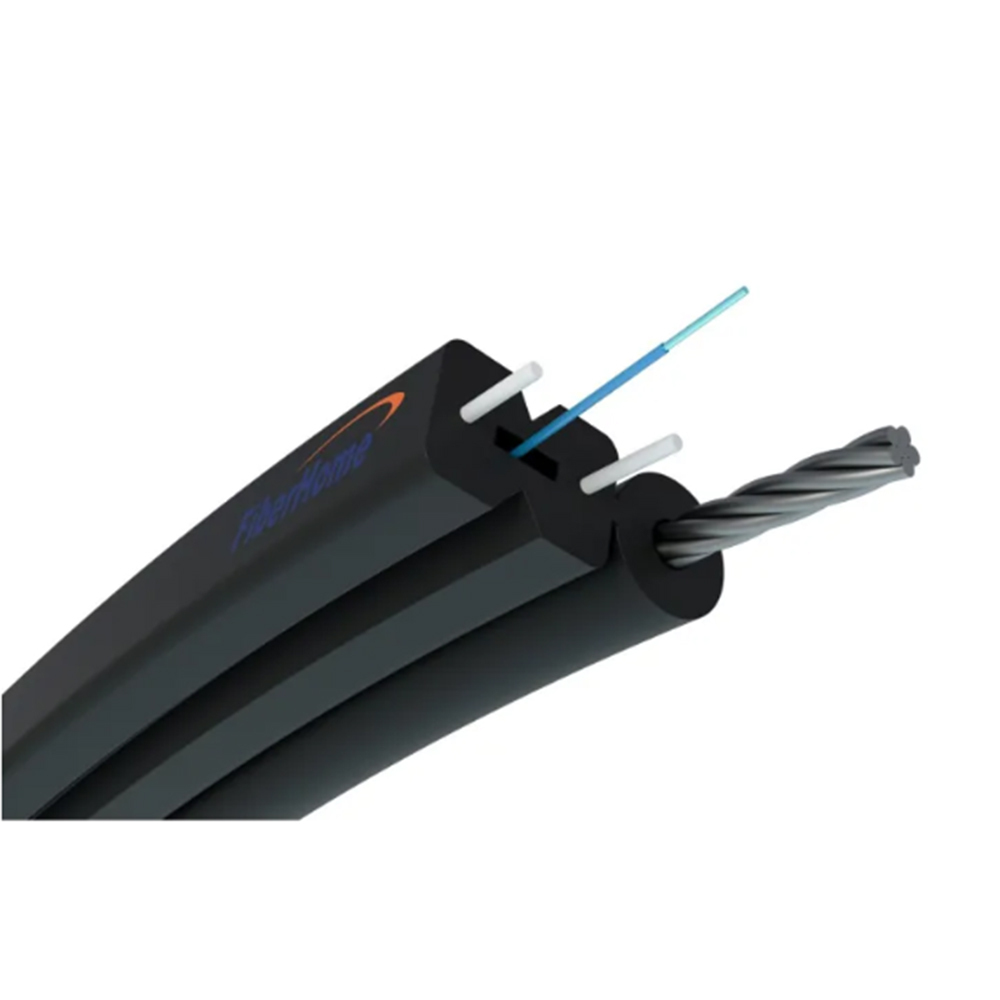

The 1F S-NOTKSP overhead fiber optic cable is a fiber optic cable designed mainly for overhead installations for use in short distances. It is constructed using one G.657A1 fibre, directly in the sheath. Two aramid yarn FRP rods embedded in the outer sheath are a reinforcing element, providing the required tensile strength of the cable.
1F EXTRALINK S-NOTKSP
The supporting element is a steel rod. The external LSZH sheath which protects the cable against external aggressions is UV resistant and halogen free.
Key features
G.657A1 fibre
Tensile strength 600 N
Outer sheath LSZH
Two FRP reinforcing bars
Diameter ~ 5.2 mm (± 5%) * (2.0 mm * 3.0 mm (± 5%))
Flat cable
