NOKIA 7360 ISAM FX-8 Overview

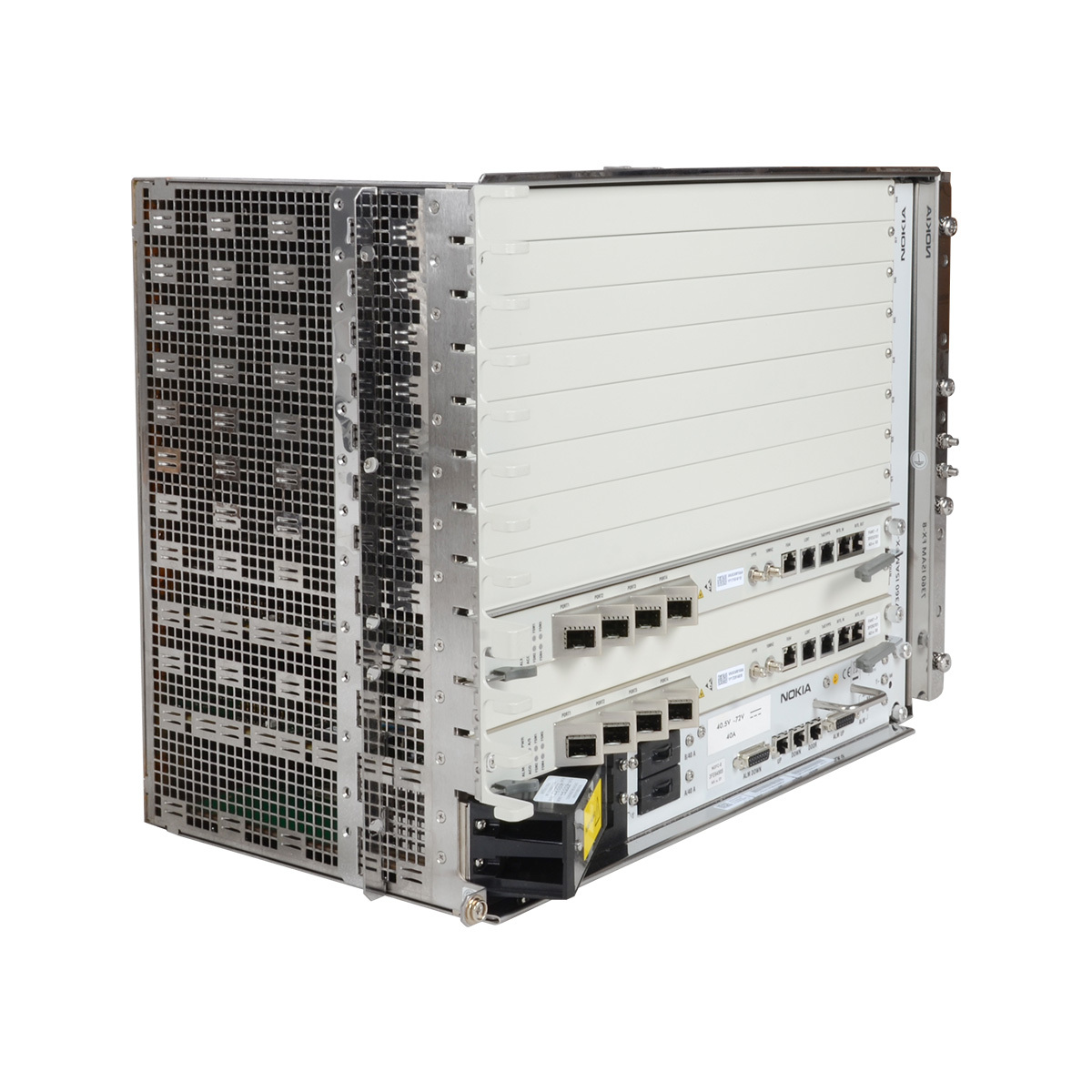

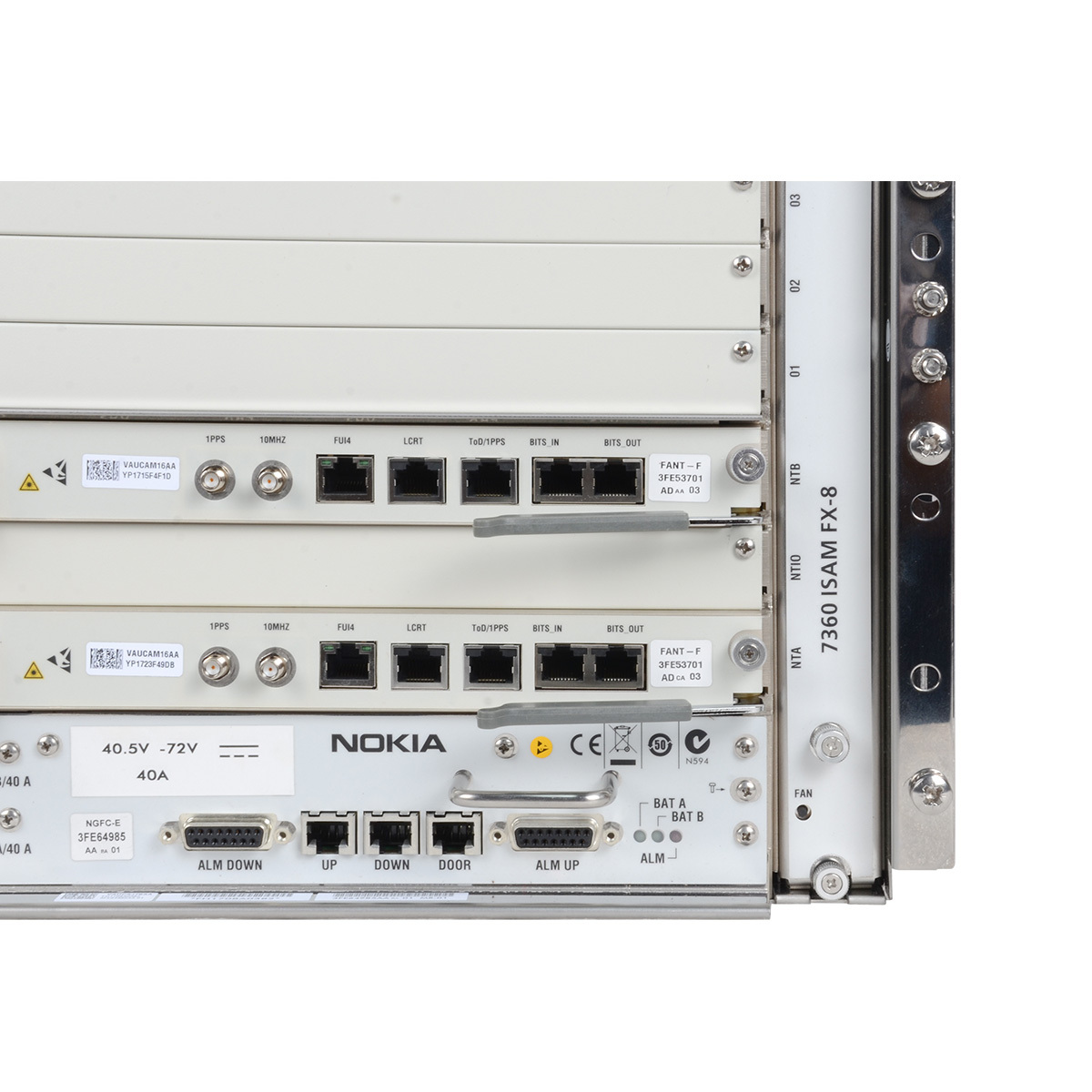

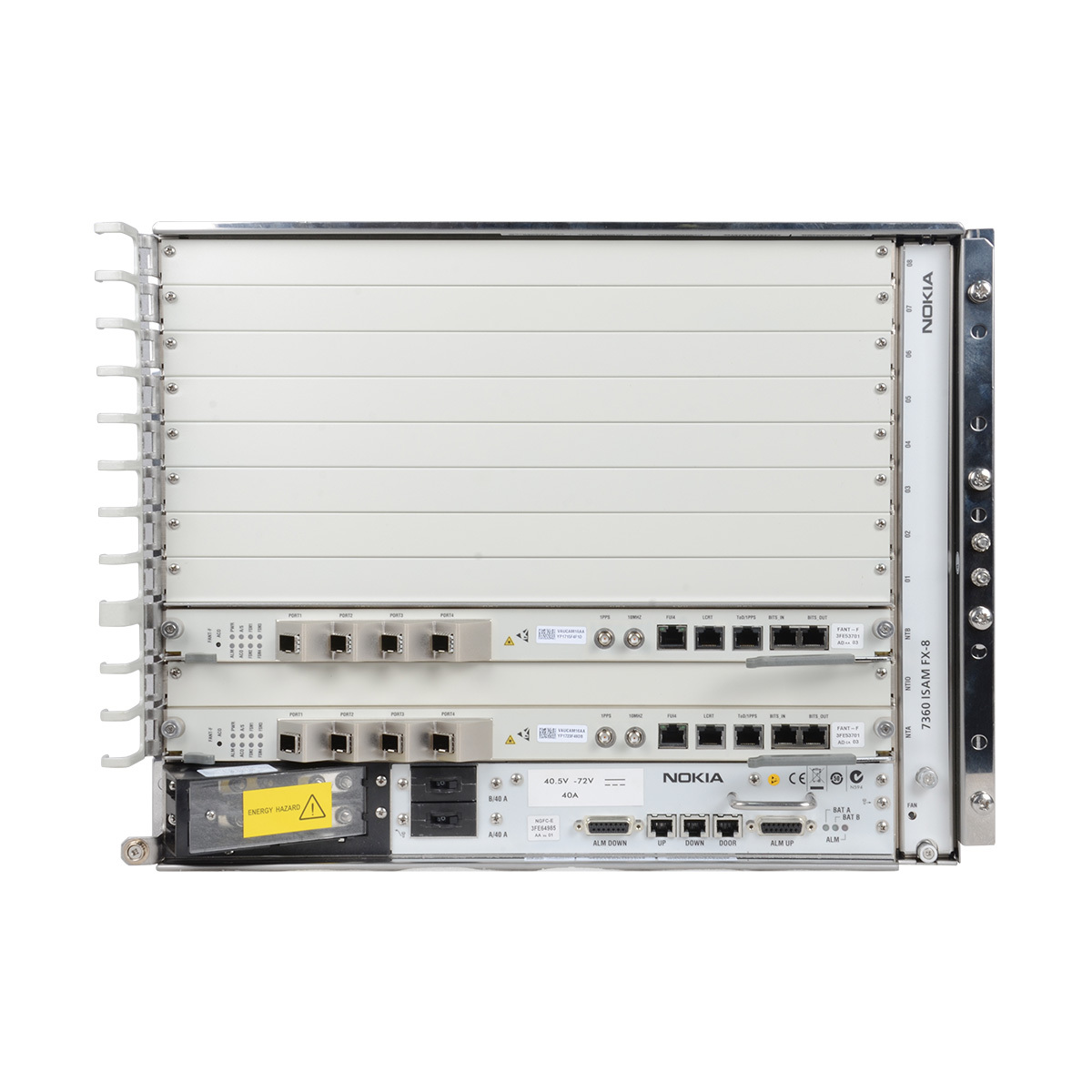

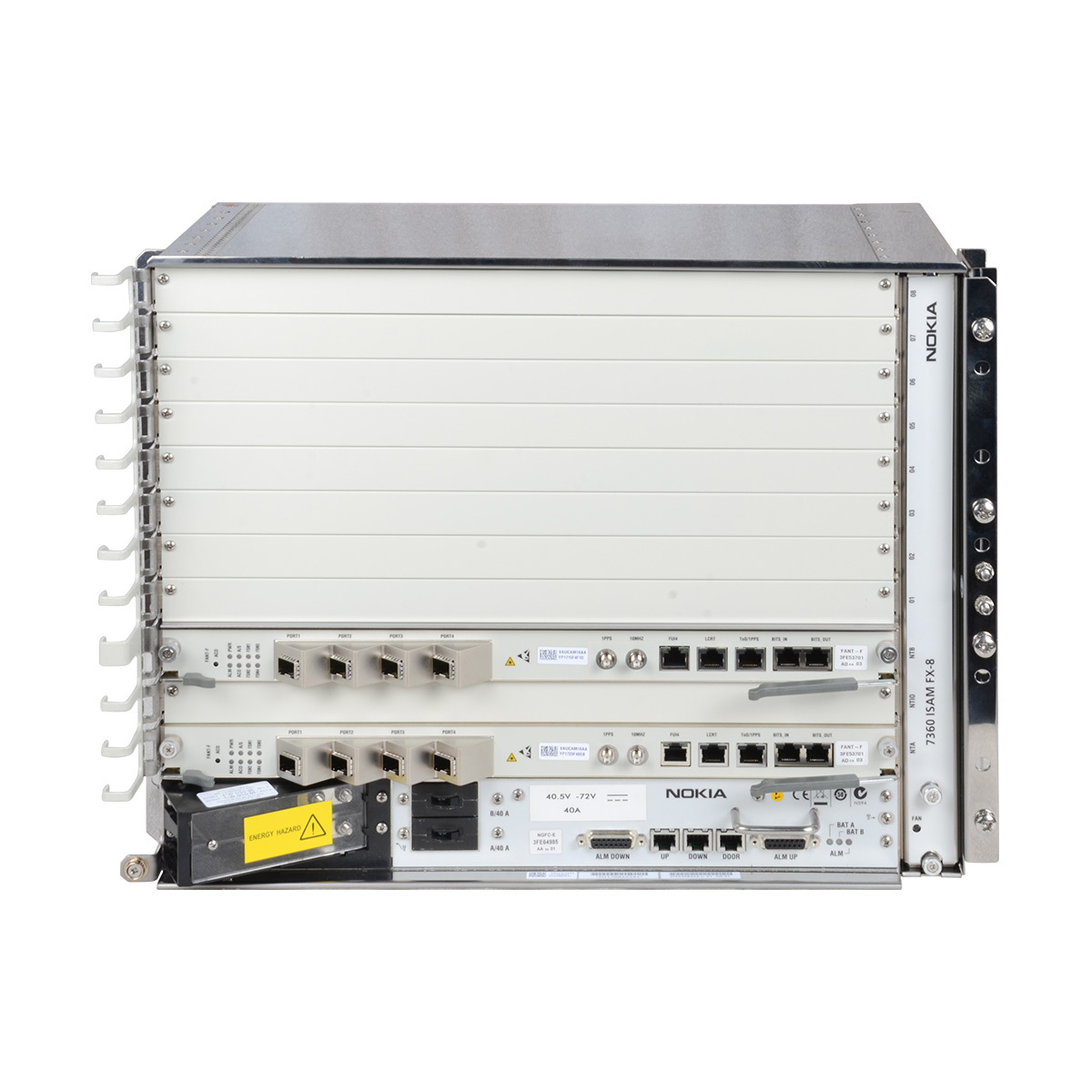

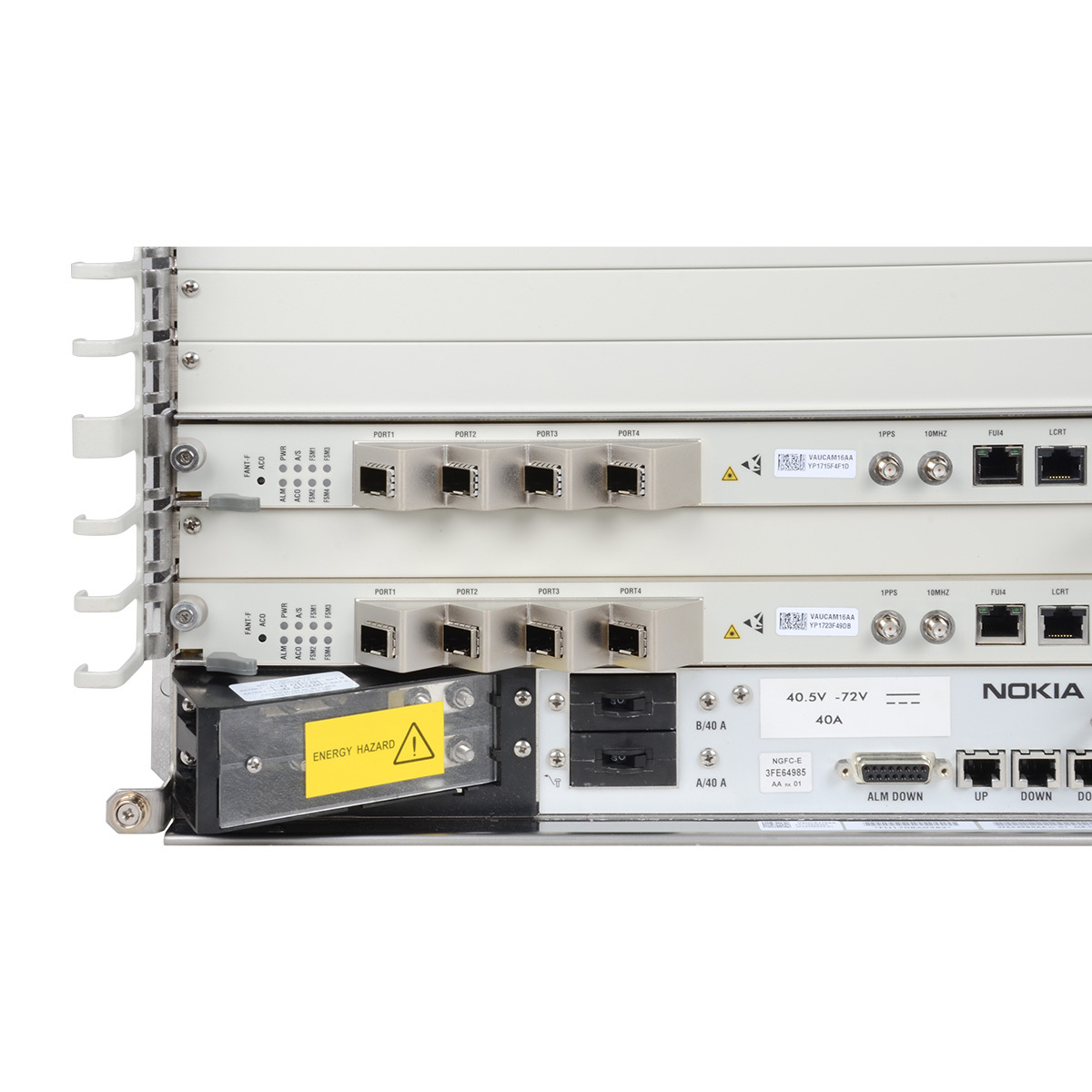

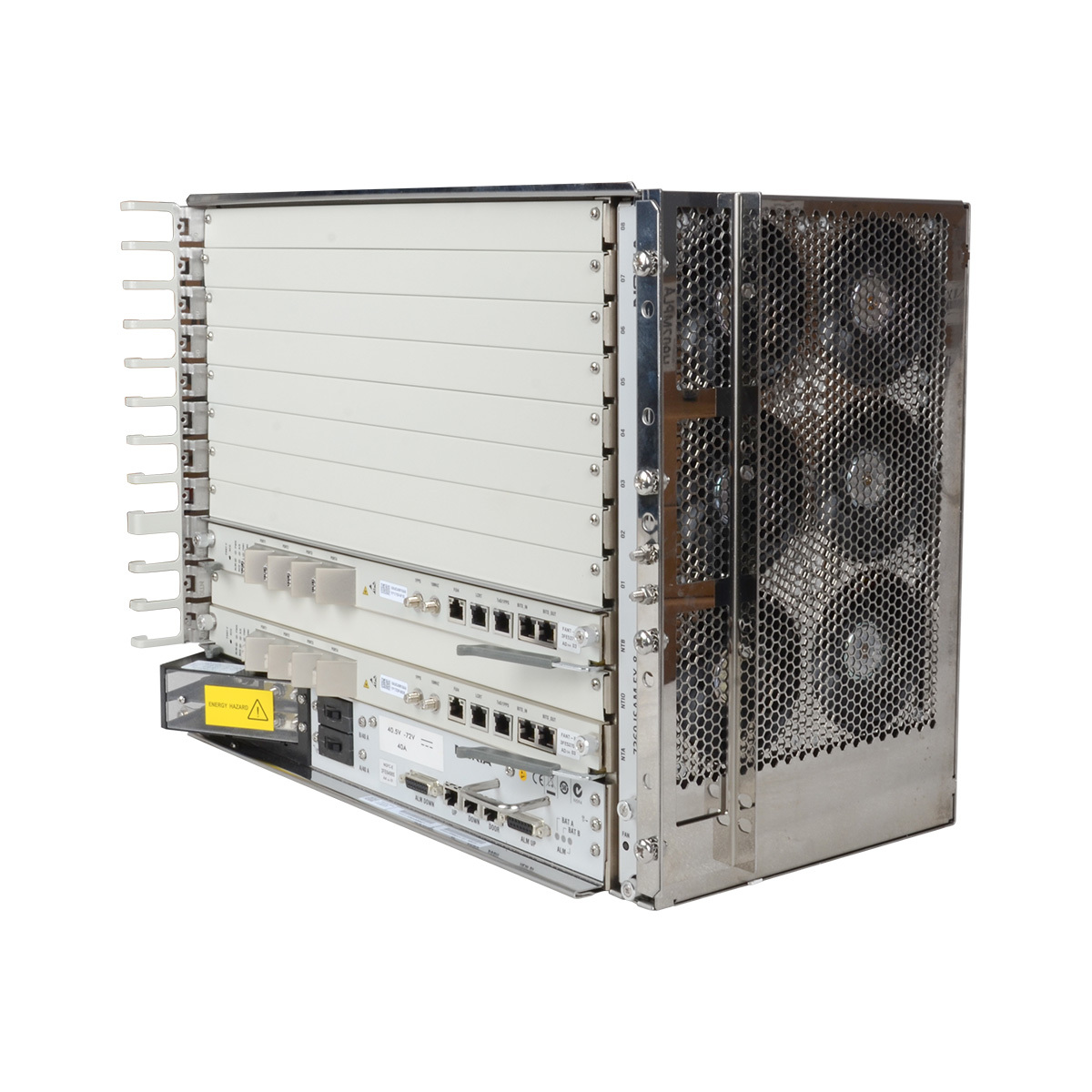

The NOKIA Alcatel-Lucent 7360 ISAM FX-8 OLT, configured with 2×FANT-F modules and 1×NGFC-E power unit, features an 8-service-slot chassis paired with a non-blocking, high-capacity backplane delivering 2×100Gb/s per slot. It is equipped with 480Gb/s high-performance NT controllers boasting 40Gb/s network capacity—flexible for use as uplinks, downlinks, or direct user links—while an optional Network Termination Input Output (NTIO) module can add an extra 80Gb/s of network capacity. The OLT supports GPON, XGS-PON, and universal next-generation PON (NG-PON) technologies, and concurrently enables mixed-service access including passive optical network (PON), point-to-point, POTS, and VDSL2 with vectoring.
Product Features
- High-capacity backplane: 2×100Gb/s per slot.
- High-performance 480Gb/s controllers (NT) featuring 40Gb/s network capacity, usable as uplinks, downlinks, or direct user links.
- Optional Network Termination Input Output (NTIO) module, enabling an additional 80Gb/s of network capacity.
- Concurrent support for passive optical network (PON), point-to-point, POTS, and VDSL2 with vectoring technologies.
Supported Boards
| Board Type |
Name and Version |
Description |
| EPON Board |
FPLT-A |
8 EPON ports interface board |
| Upstream boards |
FANT-F |
4-port 10GE/GE optical interface board |
| FANT-G |
4-port 10GE/GE optical interface board |
| GPON Board |
FGLT-A |
16 GPON ports interface board |
| FGLT-B |
16 GPON ports interface board |
| XGS-PON Board |
FGUT-A |
16 XGS-PON and GPON combo ports interface board |
| 10G GPON Board |
FWLT-B |
8 10G GPON ports interface board |
| FWLT-C |
16 10G GPON ports interface board |
| FWLT-P |
8 10G GPON ports interface board |
Compatible ONTs
Application Scenarios & Real-World Cases
1. Swiss Smart City & Utility Services Deployment
Swiss energy provider Energie Wasser Luzern (EWL) deployed the 7360 ISAM FX-8 to power smart metering (water/electricity) and ultra-broadband services for 12,000 buildings across Lucerne and its suburbs. Leveraging GPON/XGS-PON support and QoS capabilities, it unifies residential/business connectivity with secure utility monitoring on a single infrastructure, while enabling future upgrades to 25G PON.
2. South Korean Hospitality & Resort Network
The 7360 ISAM FX-8 serves as the core access node for Jeju Shinhwa World, a large-scale resort in South Korea. It supports 1,326 hotel rooms with triple-play services (IPTV, VoIP, high-speed Wi-Fi) and facility management systems. Its 8-service-slot capacity and non-blocking backplane (2×100Gb/s per slot) deliver seamless connectivity across the resort, eliminating the need for floor-level equipment closets.
3. European High-Density Urban FTTH Rollout
A leading European telecom operator adopted the 7360 ISAM FX-8 for metro area FTTH deployments in major cities. Its multi-service support (GPON/XGS-PON, VDSL2 vectoring, POTS) caters to mixed residential/business demands, while the 8-slot chassis and 480Gb/s switching capacity scale to serve tens of thousands of users per node. The solution simplifies network management via centralized control and ensures smooth evolution to next-gen PON technologies.
Downloadable resource
Technical Specifications
|
Alcatel-Lucent NOKIA 7360 ISAM FX-8 Datasheet
|
|
Switching capacity of the system
|
FANT-F: 480Gb/s switching matrix (bidirectional)
|
|
High-capacity backplane
|
100 Gb/s per slot
|
|
Service Slots
|
8
|
|
Power supply
|
Input – 48/60V DC nominal
|
|
Fully redundant power feeding (branch A and B)
|
|
Operating temperature range
|
-40⁰C to 65⁰C (-40⁰F to 149⁰F)
|
|
Relative humidity
|
5% to 93% (non-condensing)
|
|
Dimensions
|
Height: 223 mm. (8.77 in) (5 RU)
|
|
(W x D x H) (mm)
|
Height: 360mm (14.17in) (8 RU) Width: 445mm (17.52in); can be used in 19in racks Depth: 280mm (11.02in)
|
|
Rack-mounting pitch of 25 mm (0.984 in)
|
FAQ
Q: How many service slots does FX-4 have?
A: 8 service slots.
Q: Does it support PON services?
A: Yes, GPON, EPON (DPoE), and 10G PON.
Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.
Q: What’s the main difference between Nokia FX4 and FX8 OLT?
A: Core differences are slot count, size and capacity. FX4 has 4 LT slots, 5RU chassis, supports 16,000 users, ideal for small/medium deployments. FX8 has 8 LT slots, 8RU chassis, higher user density, fits large-scale FTTH. They share same backplane (2×100Gb/s per slot), access tech and management tools.
Q: Which to choose?
A: FX4 for rural/campus/outdoor cabinets; FX8 for high-density urban areas.
Q: Can it work outdoors?
A: Yes, -40°C to +65°C operating range.
