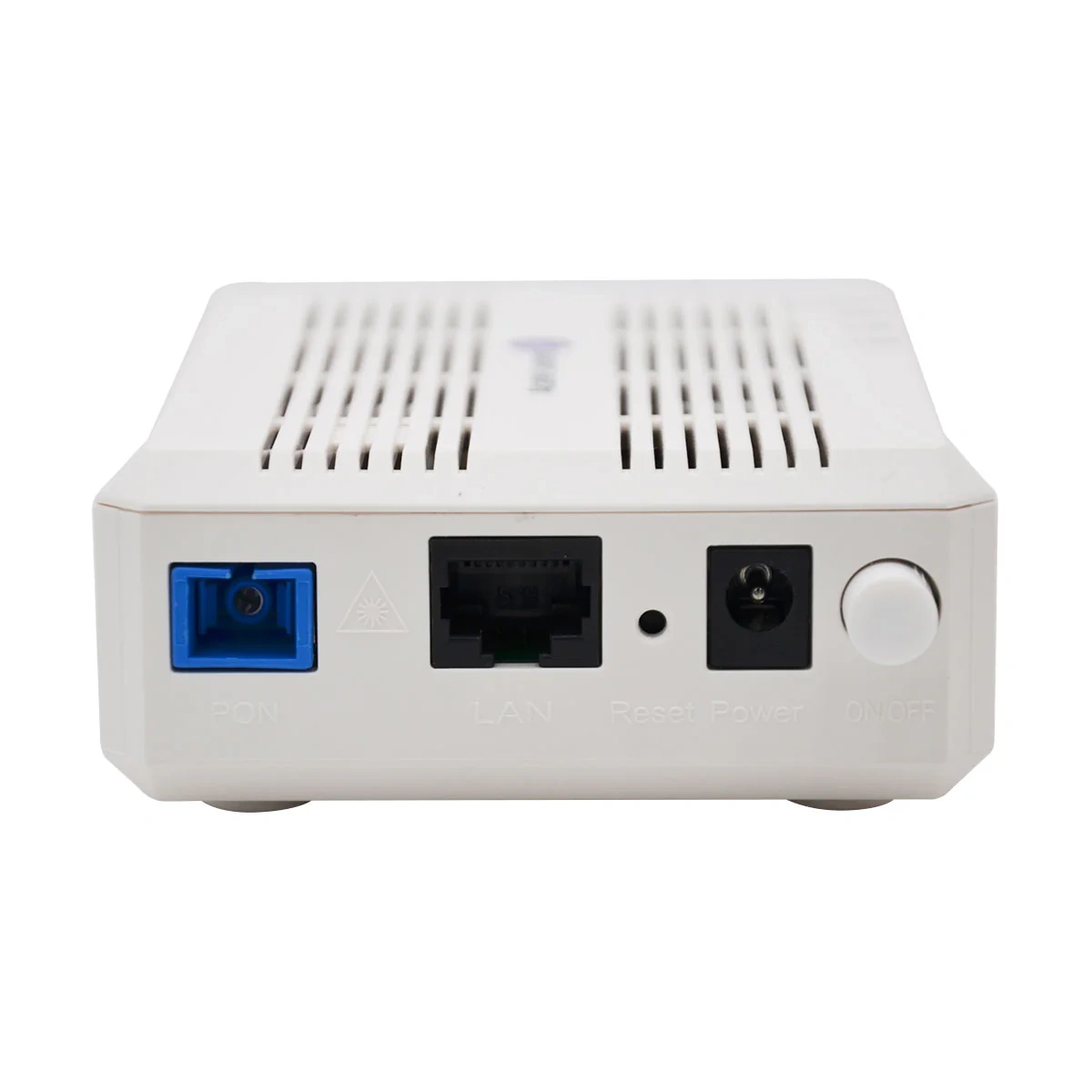

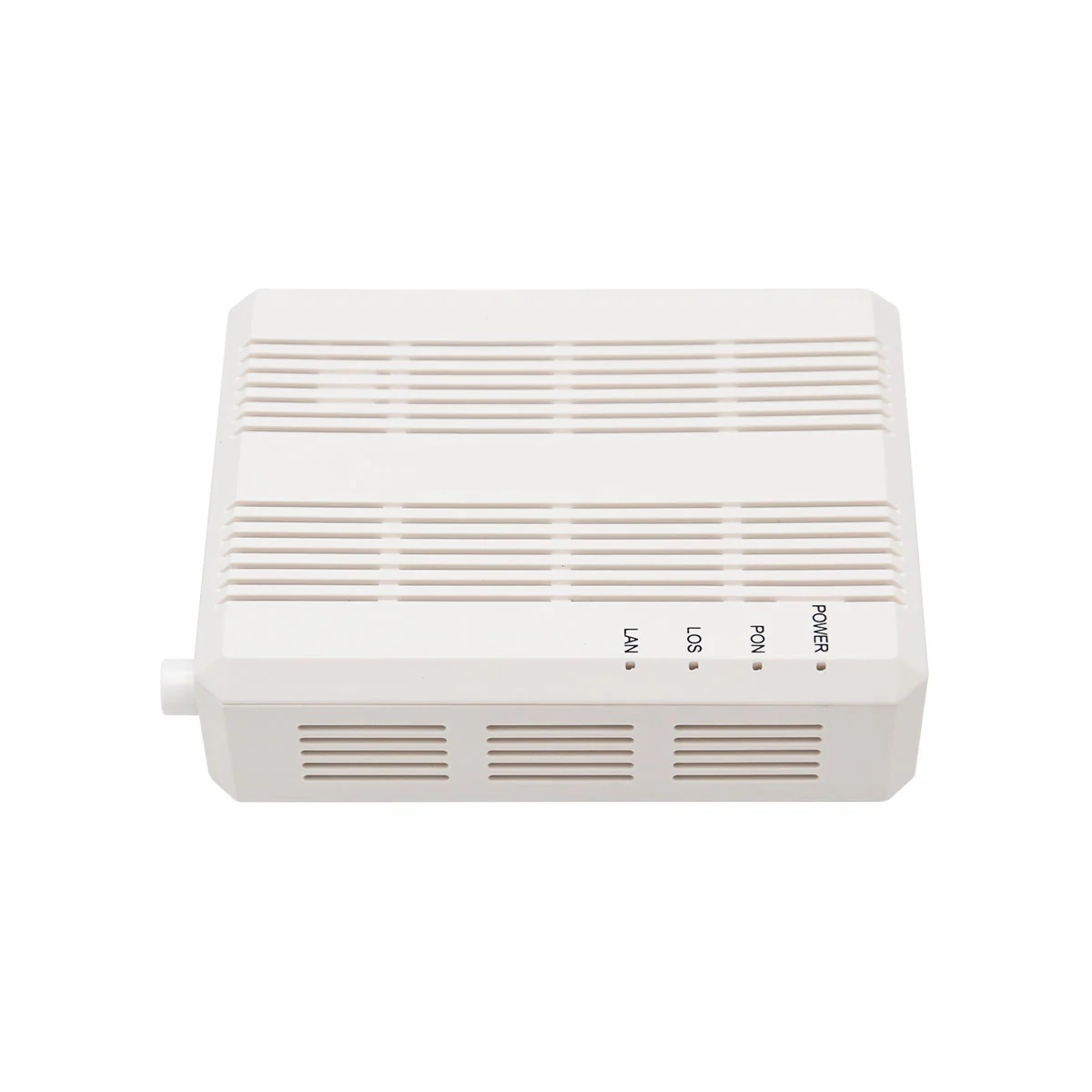

G-010G-P is an ITU-T G.984.x and G.988 compliant GPON Optical Network Terminal (ONT) with one 10/100/1000 Mbps Ethernet port for the FTTH scenario, and provides 2.488 Gbps downstream and 1.244 Gbps upstream GPON uplink interface.
| Item | Specifications |
| NNI | GPON |
| UNI | 1*GE |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Typical power consumption | 8 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 12 VDC, 0.5A | |
| Indicators | POWER/PON/LOS/LAN |
| Dimensions | 145 mm x 128 mm x 8mm |
| (length x width x height) | |
| Weight | <1kg |
