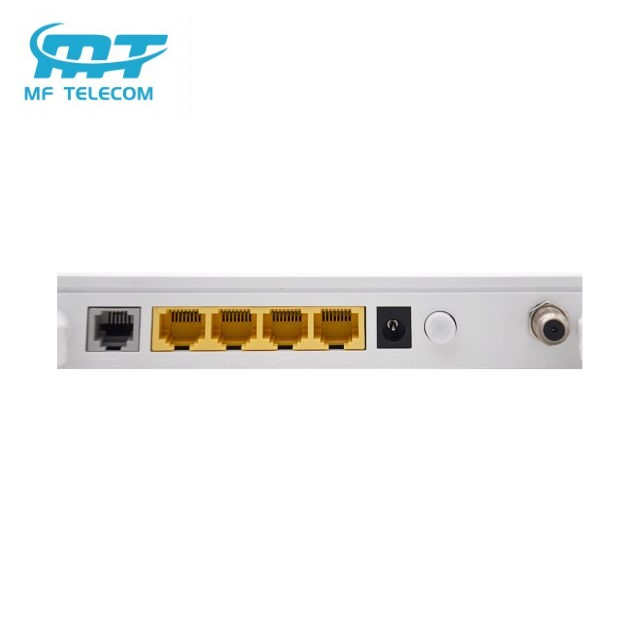

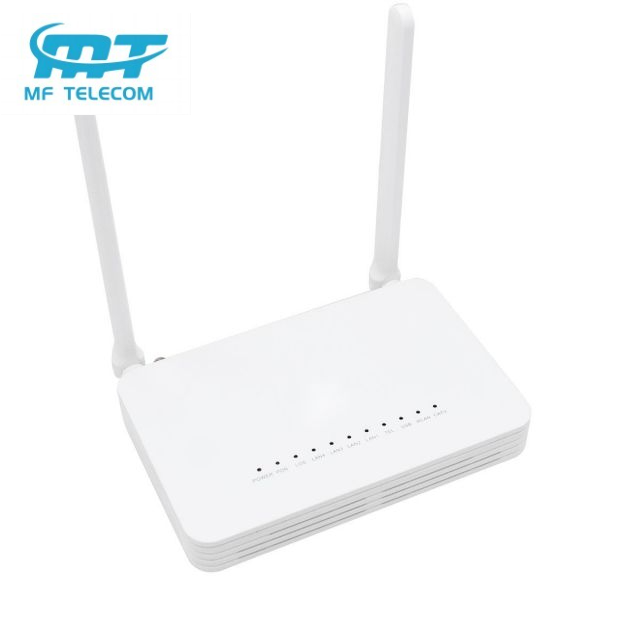

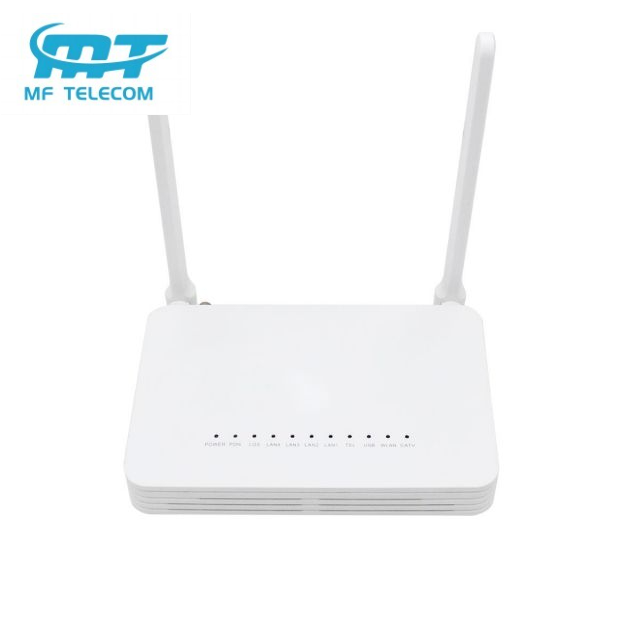

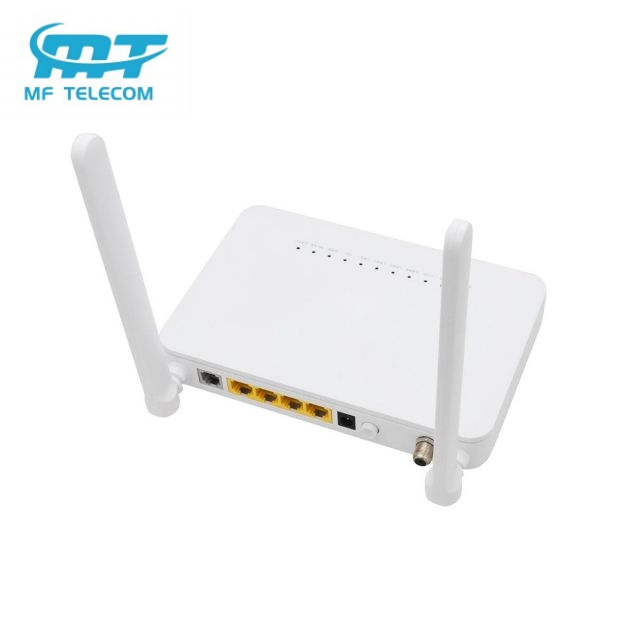

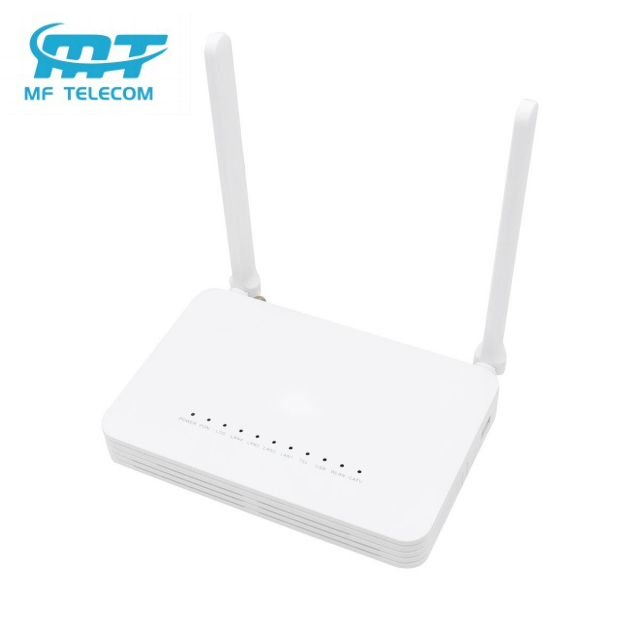

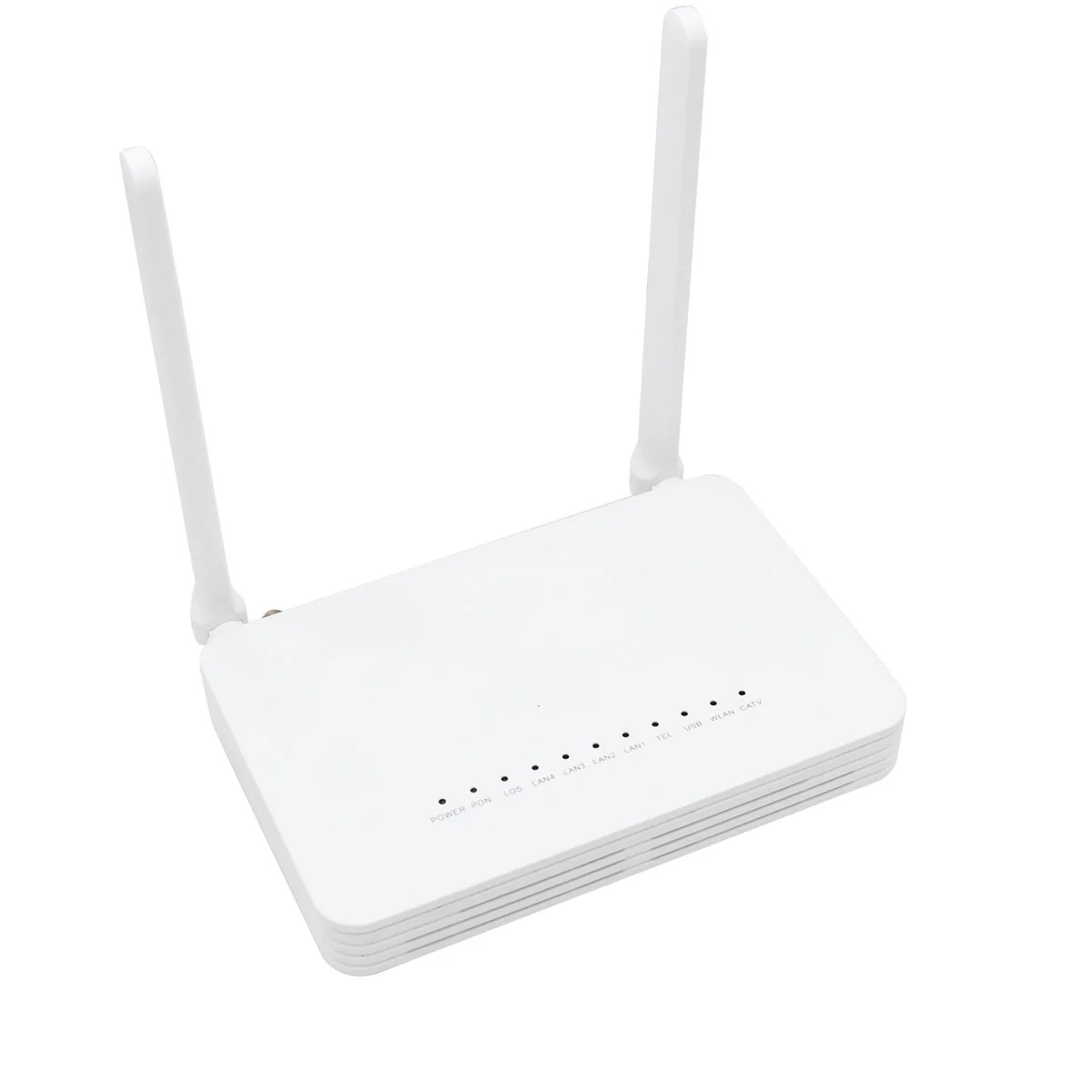

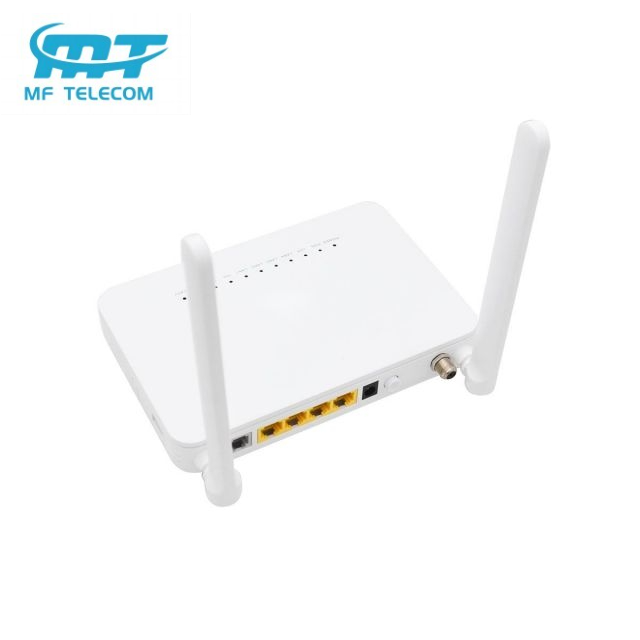

This ONT comes with 1*GE+3*FE+1*POTS+1*USB+1*CATV+2.4G WIFI 5dBi ports.
It intelligently adapts to the XPON network, both GPON and EPON can be used.
The CATV port is controlled, the user can switch the subscriber's CATV function on and off through the OLT.
5dBi high gain antennas ensure WiFi coverage and speed.
It supports private OMCI protocol.
It supports WebUI, OMCI, U2000, etc. management
EG8143A5 is an alternative model to EG8247H5. Compared with EG8247H5, it has a more integrated circuit system, a more modern appearance, and a 15% improvement in performance.
Optimized Network Access Solution for Enterprise and Service Providers The EG8143A5 serves as a sophisticated Optical Network Terminal designed for telecommunications operators and system integrators requiring robust XPON access equipment. Supporting both GPON and EPON standards, the EG8143A5 targets service providers delivering high-bandwidth broadband and controlled CATV services to residential and SME subscribers. Its multifaceted interface set—comprising 1 GE, 3 FE, 1 POTS, 1 USB, and a remotely controllable CATV port—facilitates versatile service delivery and subscriber management. The device’s compatibility with established network management systems ensures seamless integration within existing infrastructure.
Advanced Technical Specifications for Reliable Optical Performance Equipped with high-gain 5dBi antennas, the EG8143A5 ensures wide-ranging 2.4 GHz WiFi coverage adhering to IEEE 802.11b/g/n standards. It complies with ITU-T G.984.2 CLASS B+ for GPON, featuring optical transmission rates of up to 2.488 Gbit/s downstream and 1.244 Gbit/s upstream. The device also supports XG-PON optical interfaces, expanding network capacity scalability. Its optical parameters include a Tx power range of 0.5 to 5.0 dBm and receiver sensitivity between -27 dBm and -29 dBm, guaranteeing signal integrity over distances up to 20 kilometers. Network security is maintained through WPA-PSK, WPA2-PSK, AES, TKIP, and WEP encryption protocols.
Integration and Application within Optical Access Networks In practical deployments, the EG8143A5 enhances XPON optical access environments by enabling controlled CATV services via OLT commands, improving operational flexibility for network operators. Its combination of wired and wireless interfaces supports diverse subscriber demands from high-speed internet to voice and media services. The device is suitable for urban and suburban broadband rollouts, particularly in scenarios requiring centralized management using WebUI, OMCI, or U2000 platforms. This ONT serves as a scalable alternative for upgrading existing GPON/EPON infrastructures with improved circuit integration and approximately 15% performance enhancement.
Product Advantages
Design and System Integration Benefits of the EG8143A5 The EG8143A5 features a modernized chassis design and a more integrated circuit system compared to legacy models, improving manufacturability and reliability. The modular interface layout allows flexible service configurations with 1 GE, multiple FE ports, POTS, USB, and a controllable CATV port, optimizing network topology adaptation. By supporting private OMCI protocols and multiple management platforms such as WebUI and U2000, the device facilitates comprehensive network administration. This design coherence enables streamlined installation and maintenance, aligning with operator requirements for minimal downtime and scalable deployments.
Enhanced Performance and Usability in Network Operations Operational performance improvements reflect the incorporation of high-gain antennas that boost 2.4 GHz WiFi range and throughput, addressing coverage demands in residential and small-office environments. The EG8143A5’s CATV port control functionality grants operators precise remote management over subscriber TV services, enhancing revenue management and service flexibility. Firmware and network management capabilities simplify configuration, enabling rapid provisioning and troubleshooting. These usability features, combined with a robust optical transceiver subsystem, offer telecom providers a reliable solution that reduces operational expenditure and ensures high customer satisfaction through stable connectivity.
Use Scenarios
Deployment in Residential Fiber-to-the-Home (FTTH) Networks Within the residential broadband domain, the EG8143A5 functions as the critical endpoint device enabling fiber optic connectivity directly to subscribers’ premises. It operates in conjunction with XPON OLTs to deliver high-speed internet, voice, and controlled CATV services. The product’s technical compliance with ITU-T GPON standards and ability to toggle CATV services via OLT commands provides network operators with essential control mechanisms for service delivery. Integration into the subscriber premises network is facilitated through its multi-interface design, supporting Ethernet, voice, and USB peripherals, thus enabling comprehensive home connectivity aligned with FTTH deployment models and operator management workflows.
Application in Small and Medium Enterprise Network Access In the SME sector, the EG8143A5 is deployed to provide reliable wired and wireless connections suitable for office networking and unified communication needs. The device accommodates business requirements through gigabit Ethernet ports and stable 2.4G WiFi coverage augmented by 5dBi antennas, ensuring sufficient bandwidth for simultaneous users and data-intensive tasks. The controlled CATV port capability can be leveraged for internal media distribution or corporate informational channels. Its compatibility with management protocols such as OMCI assists IT administrators in maintaining network performance and security within office environments, facilitating smooth integration into existing network management systems and adherence to corporate communication policies.
FAQ
What network standards does the EG8143A5 support for compatibility? The EG8143A5 supports both GPON and EPON standards within XPON networks, offering flexible deployment options. This compatibility ensures broad applicability in diverse optical access infrastructures, enhancing network integration for operators.
Can the CATV port on the EG8143A5 be managed remotely? Yes, the EG8143A5 features a controllable CATV port that network operators can enable or disable remotely via the Optical Line Terminal (OLT), allowing precise subscriber service management and improved operational control.
What interfaces are available on the EG8143A5 for connectivity? The EG8143A5 provides multiple ports including 1 Gigabit Ethernet (GE), 3 Fast Ethernet (FE), 1 POTS for voice, 1 USB, and 1 CATV port. This variety supports versatile network and device connections in residential or small office environments.
How is the EG8143A5 managed and configured? The EG8143A5 supports configuration and management through WebUI, OMCI protocol, and the U2000 network management platform, offering operators flexible and efficient control over device settings and subscriber services.
