| Basic Parameters | |

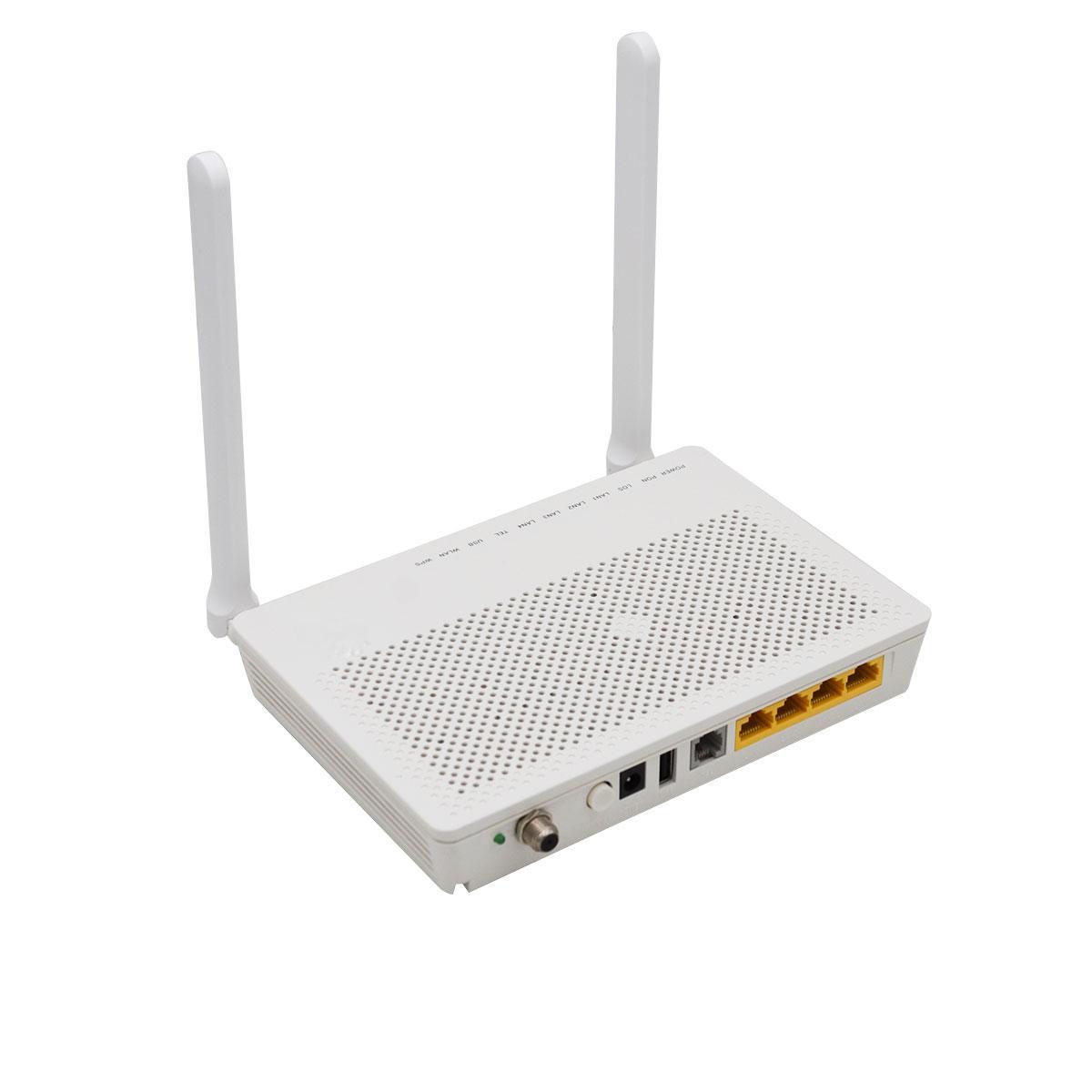

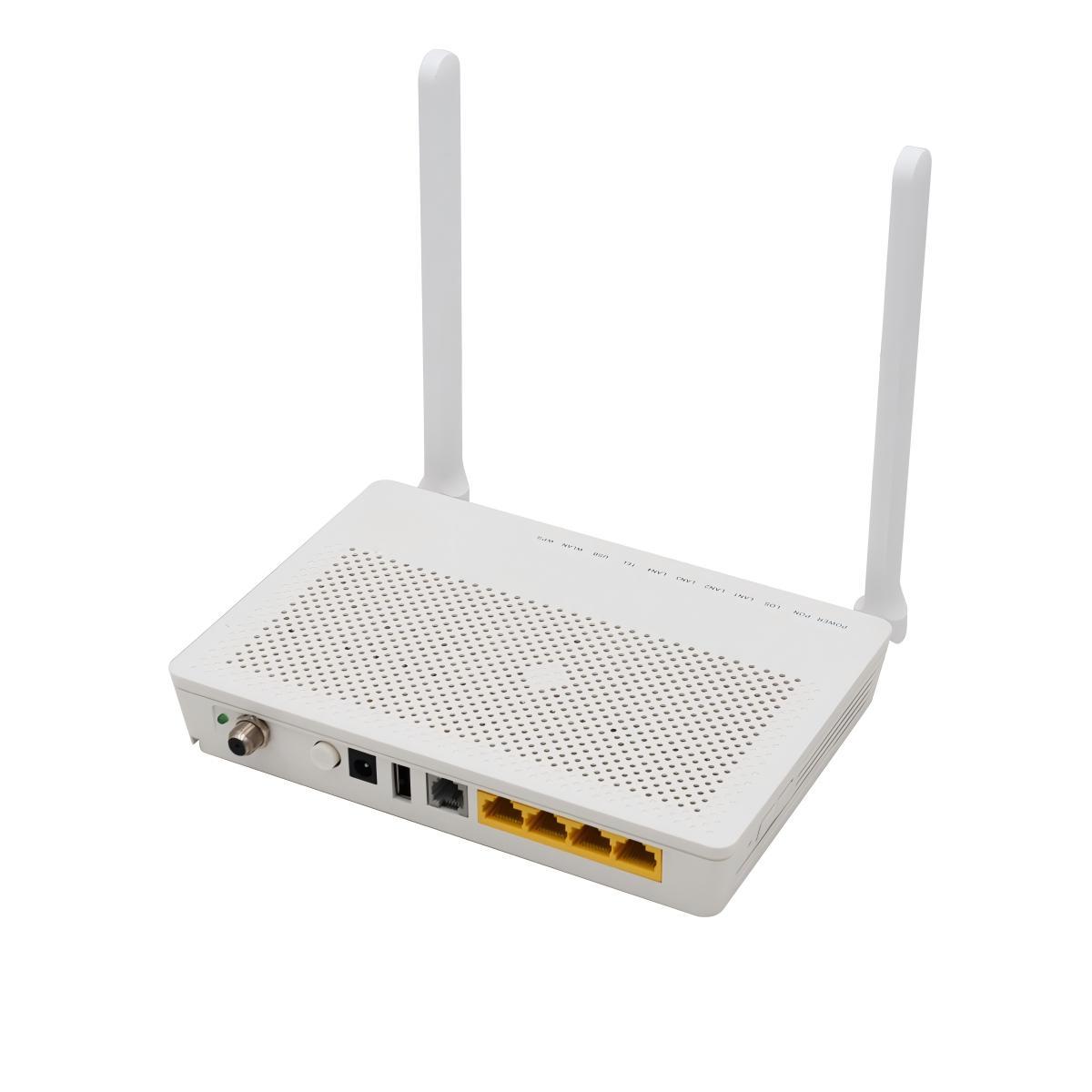

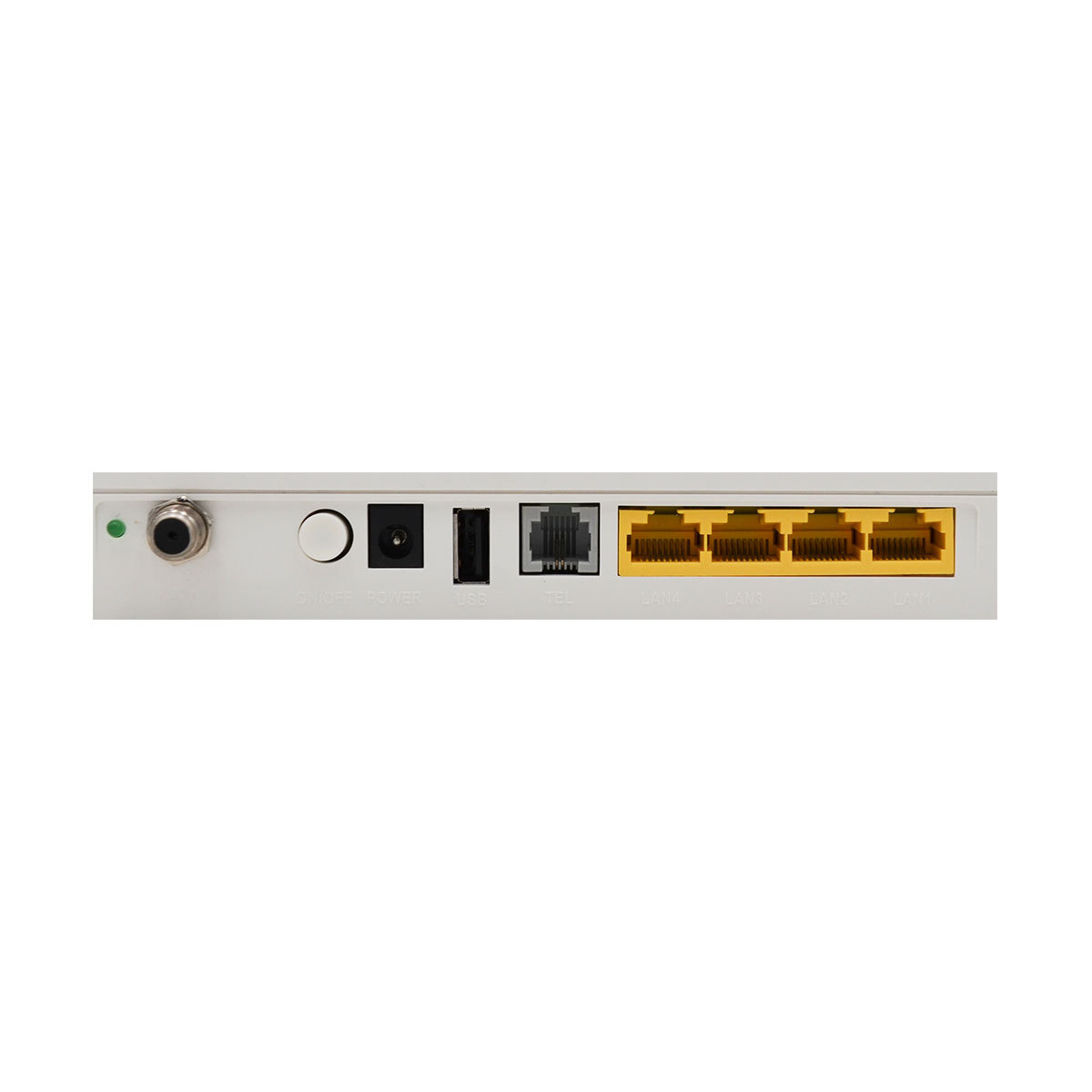

| Ports | 1GE+3FE+1TEL+1USB+1CATV+2.4G WIFI 5dBi |
| SC/APC XPON/GPON/EPON | |

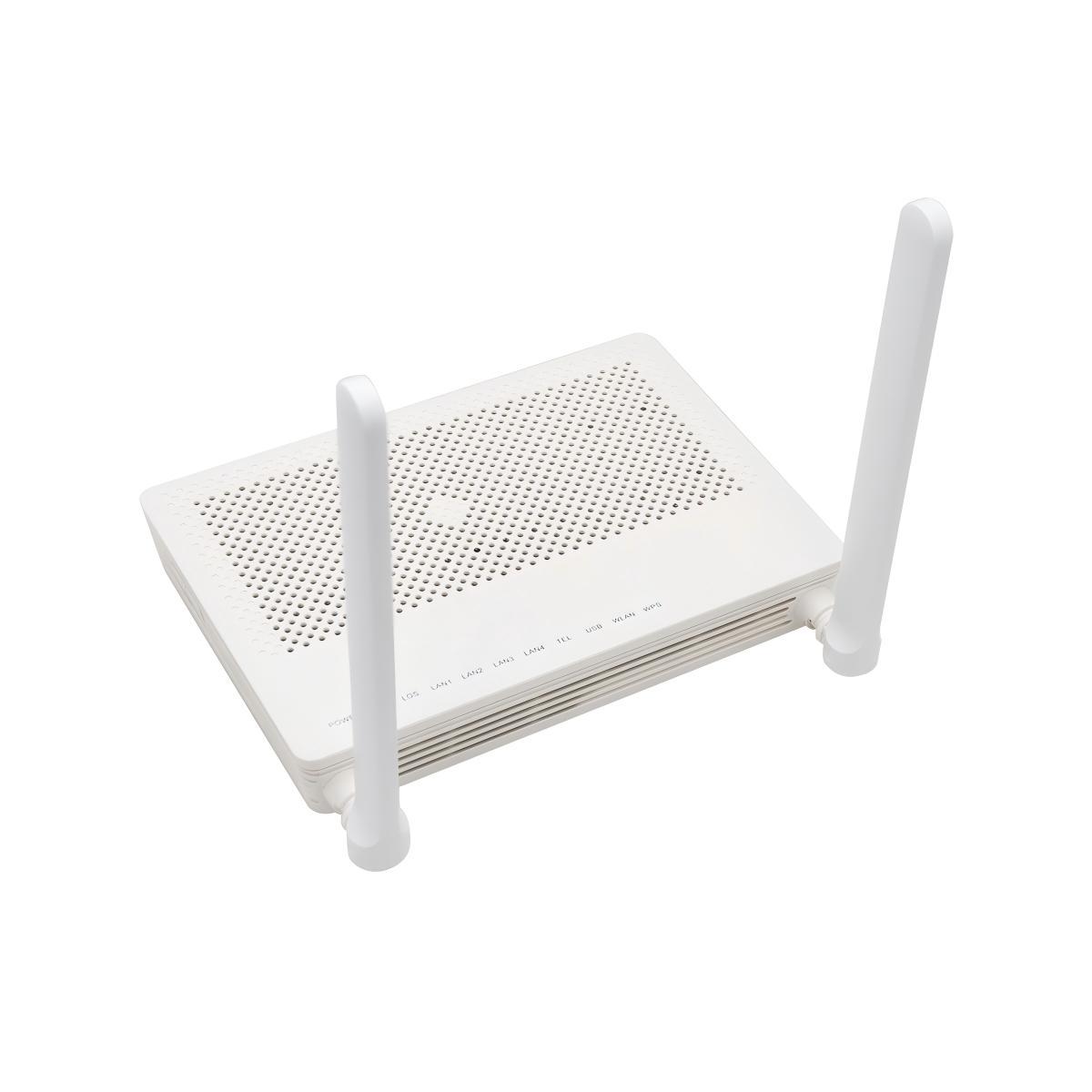

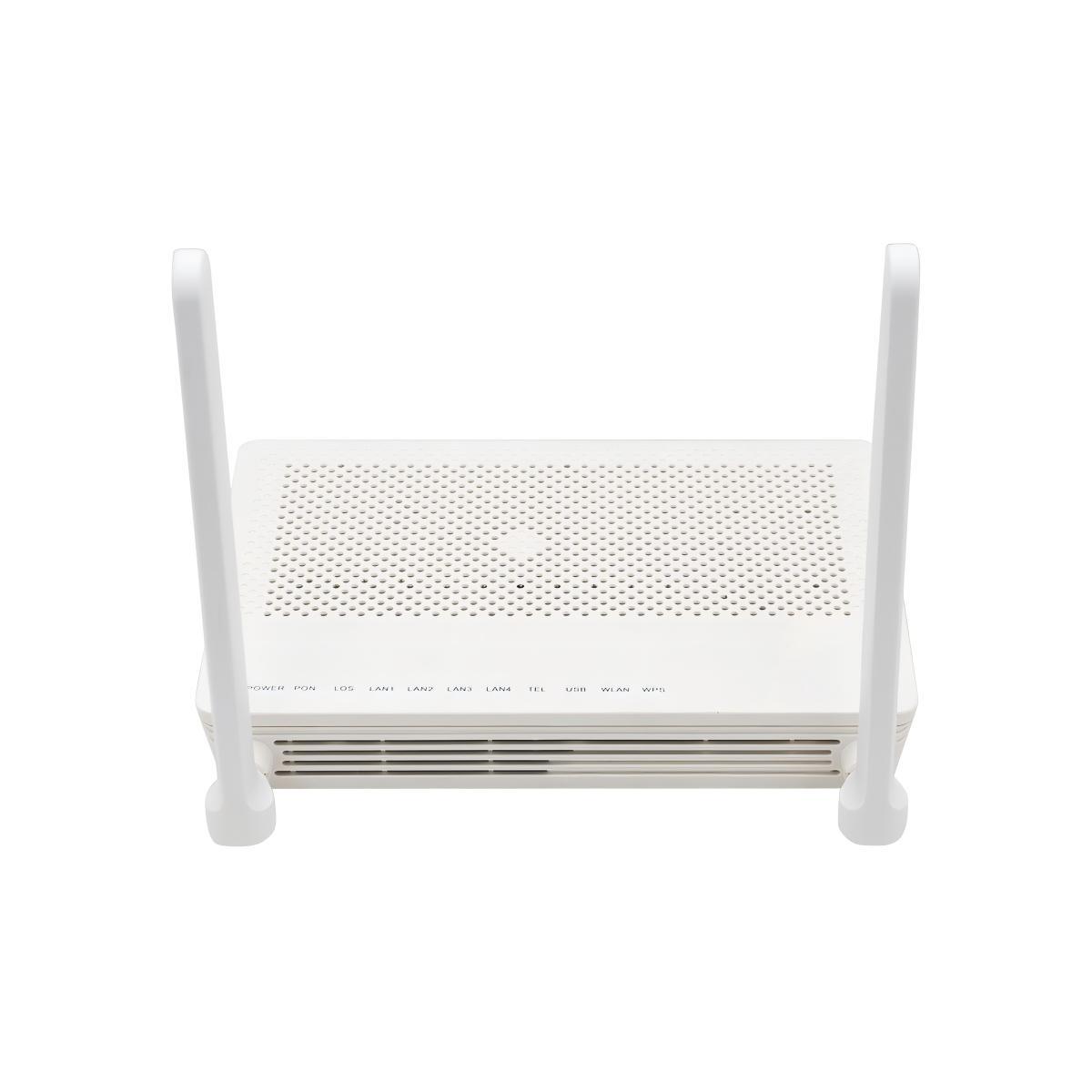

| Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
| Static power consumption | 7.5 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 V DC, 1 A | |
| Dimensions(length x width x height) | 180 mm x 155 mm x 290 mm |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Weight | About 400 g |
| Interface Parameters | |
| XPON Port | • Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • Wavelengths: US 1310nm, DS 1490nm • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing&dual-homing) |
| Ethernet Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
| CATV Port | • Frequency Range 54 MHz to 870 MHz • Output resistance 75 ohms • Received average optical power: -12dBm to +4dBm • RF output power: ≥17dBmV/Ch （With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% OMI analog, 2.15 % digital) |
| POTS Port | • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| USB Port | • USB2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function |
| WLAN | • IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • Air interface rate:300 Mbit/s |
| Product Function | |
| Smart interconnection | • Smart Wi-Fi coverage • SIP/H.248 auto-negotiation • Any port any service • Parental control • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink |
| Smart service | • Scheduled Wi-Fi shutdown • Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing |
| Smart O&M | • IPTV video quality diagnosis • eMDI • Rogue ONT detection and isolation from the OLT • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation |
| Layer 3 Features | • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port |
| Multicast | • IGMP v2/v3 proxy/snooping • MLD v1/v2 snooping |
| QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation |
| Common O&M | • OMCI/Web UI/TR069 • Variable-length OMCI messages • Dual-system software backup and rollback |
Q. Is this a Huawei brand product?
A. No, it's not a Huawei brand product. It's an OEM product, compatible with Huawei OLTs.
Q. Is EG8247H5 compatible with my OLT?
A. Yes, it supports standard GPON protocols and works with mainstream OLTs via OMCI.
Q. Does it support CATV and VoIP at the same time?
A. Yes, it provides dedicated CATV RF and POTS ports for simultaneous triple-play services.
Q. What Wi-Fi band does it support?
A. 2.4GHz 802.11b/g/n up to 300Mbps for stable coverage.
Q. Can it be mounted on the wall?
A. Yes, compact design supports desktop and wall-mount installation.
Q. What is the power consumption?
A. Typical <8W, max 12W, energy-saving for long-term use.
