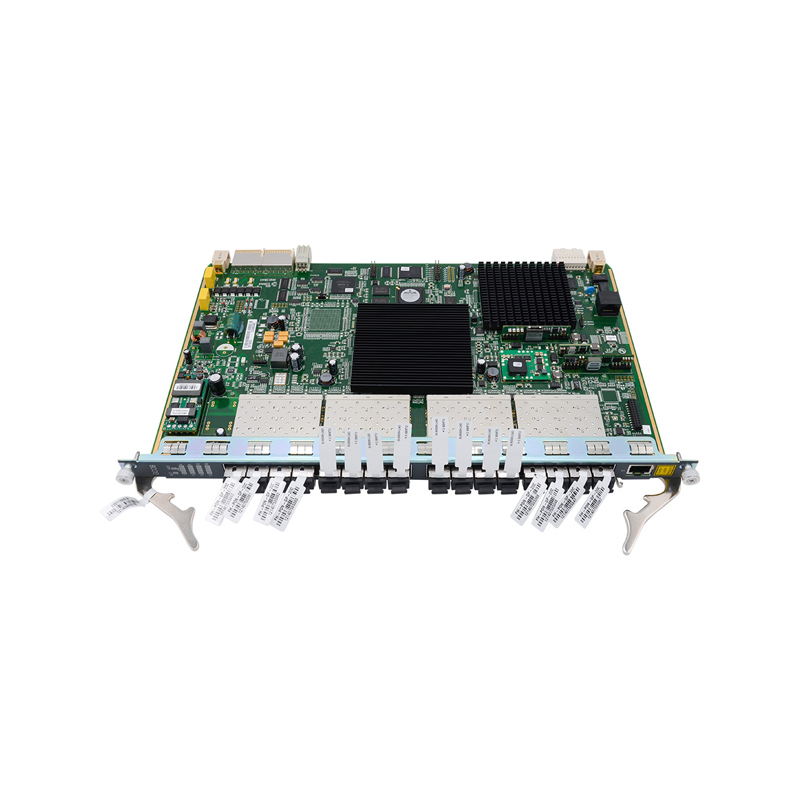

GFOA is a 16-port GPON XG-PON XGS-PON flexible interface card, which can be used in the chassis of Fiberhome brand OLT AN6000-7, AN6000-15, AN6000-17, and AN6000-2.
Agile-PON is a flexible PON solution developed by FiberHome for GPON and XG(S)-PON applications. It allows a service card to integrate multiple PON technologies by using different PON optical modules. In this way, OLT resources in the current network can be fully exploited, which facilitates smooth evolution from GPON to XG(S)-PON for operators.
The ports of an Agile-PON service card can work in multiple modes, which can be identified manually or automatically.
Automatic identification: Optical modules are identified and working modes are switched automatically.
Manual identification: You can set the port mode of an Agile-PON service card manually as needed.
Application Scenarios
1. F5G-A Ultra-Broadband Rollout in Saudi Arabia
A Saudi telecom deployed FiberHome GFOA Boards in AN6000-17 OLTs for Riyadh’s dense urban and business districts. The 16-port agile-PON card supported GPON/XGS-PON coexistence, delivering symmetric 10Gbps speeds for 8K IPTV, cloud computing, and enterprise backhaul. With 1:256 splitting ratio and 60km transmission, it efficiently served 4,096 subscribers per board, covering urban cores and suburban extensions. Backward compatibility with legacy GPON ONUs protected investments, while 1588v2 synchronization ensured high-quality video services—aligning with the operator’s F5G-A infrastructure upgrade.
2. Mixed-Service Convergence in Finland
A Finnish ISP adopted GFOA Boards in AN6000-07 OLTs for Helsinki’s suburban mixed-use areas and tech parks. The card’s flexible mode switching (GPON/XG-PON/XGS-PON) adapted to residential broadband and enterprise cloud needs. Dynamic bandwidth allocation (DBA) optimized traffic distribution, and ODN sharing eliminated the need for new fiber deployment. Automatic optical module identification simplified maintenance, while rogue ONU detection enhanced network security. This cost-effective solution supported smooth evolution to 10G PON, meeting medium-scale multi-service access demands in harsh Nordic climates.
|
FiberHome GFOA Board Datasheet |
|||||||||||||||||||||||||||||||||||
| Standard compliance | Conforms to ITU-T G.987 and G.9807 series of standards, with good interoperability. | ||||||||||||||||||||||||||||||||||
| transmission rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488Gbit/s | ||||||||||||||||||||||||||||||||||
| Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON & XGS-PON channel: Tx: 1577 nm Rx: 1270 nm | ||||||||||||||||||||||||||||||||||
| Maximum transmission distance | 60 km | ||||||||||||||||||||||||||||||||||
| Maximum differential fiber distance | 40 km | ||||||||||||||||||||||||||||||||||
| Maximum split ratio | 1:256 | ||||||||||||||||||||||||||||||||||
| Detection of optical power | Supports RSSI detection. | ||||||||||||||||||||||||||||||||||
| Detection of rogue ONUs | Supports automatic detection and location of ONUs that constantly emit light. | ||||||||||||||||||||||||||||||||||
| Compatibility | Supports various ONUs, such as SBU, SFU, MTU, cassette MDU, and MDU which can accommodate cards. | ||||||||||||||||||||||||||||||||||
| DBA | Dynamically allocates bandwidth according to subscribers' traffic status. | ||||||||||||||||||||||||||||||||||
| Reliability | Supports Type B, Type C, and Type C dual-homing protections. | ||||||||||||||||||||||||||||||||||
| Throughput | In the 10G/2.5G asymmetric access mode, when the XGS-PON system is fully configured with services (64 ONUs), the uplink throughput is no less than 1.9 Gbit/s, and the downlink throughput is no less than 8.5 Gbit/s. In the 10G/10G symmetric access mode, when the XGS-PON system is fully configured with services (64 ONUs), both the uplink throughput and the downlink throughput are no less than 8.5 Gbit/s. | ||||||||||||||||||||||||||||||||||
| transmission delay | The uplink average transmission delay (when the traffic is no more than 90% of the system throughput) is less than 1.5 ms (packets of all sizes are counted). | ||||||||||||||||||||||||||||||||||
| The downlink average transmission delay (when the traffic is no more than 90% of the system throughput) is less than 1 ms (packets of all sizes are counted). | |||||||||||||||||||||||||||||||||||
FAQ
Q: What is the FiberHome GFOA Board?
A: It is a 16-port agile-PON interface card for AN6000 series OLTs.
Q: Which OLT models is the GFOA compatible with?
A: It works seamlessly with FiberHome AN6000-02, AN6000-07, AN6000-15, and AN6000-17 OLT models.
Q: What key technical specifications does it have?
A: It features 16 PON ports, 1:256 maximum splitting ratio, 60km transmission distance, and symmetric 10Gbps speeds (XGS-PON mode).
Q: What transmission modes and standards does it support?
A: It supports GPON, GPON/XG-PON combo, and GPON/XGS-PON combo modes.
Q: What application scenarios is it ideal for?
A: It suits F5G-A upgrades, dense urban FTTH, enterprise access, mixed residential/business districts, and large-scale multi-service deployments.
Q: What is the lead time for orders?
A: 3-5 days for samples/small orders.
