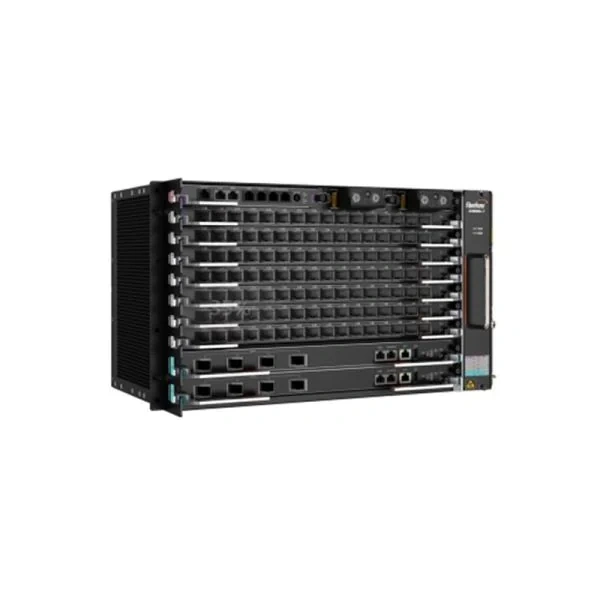

Providing seven service slots, the AN6000-7 is a medium-sized optical line terminal deployed in a central office. It can be applied to moderately populated areas to help save the deployment cost of users. AN6000-7 is the next-generation OLT platform with ultra-broadband access capability for PON smooth evolution. It is carrier-class optical line equipment that can be applied to access scenarios for moderate subscription density. Its distributed architecture design can support high-density GPON, XG(S)-PON, XG(S)-PON Combo, TWDM-PON, WDM-PON, and P2P card, it will bring about higher bandwidth and Medium capacity for the access network. This can help save the telecom operator’s deployment cost and bring them more profit.
The AN6000-07 comes with 2 PIBA DC power cards, If you do not have a DC power supply environment, then you need a power converter to power it, such as Huawei ETP48100 and ZTE ZXDU468 B600
| Card Name | Mode | Port nomber | Port rate |
| GPOA | GPON | 16 | 64 kbit/s |
| EX8A | 10G-EPON | 8 | 640 kbit/s |
| EXOA | 10G-EPON | 16 | 640 kbit/s |
| GX8A | 10G-GPON | 8 | 256 kbit/s |
| GM8A | 10G-GPON&GPON Comb0 | 8 | 256 kbit/s (XG-PON) / 64 kbit/s (GPON) |
| GM8B | 10G-GPON&GPON Comb0 | 8 | 256 kbit/s (XG-PON) / 64 kbit/s (GPON) |
| GMOA | 10G-GPON&GPON Comb0 | 16 | 256 kbit/s (XG-PON) / 64 kbit/s (GPON) |
| GNOA | 10GS-GPON&GPON Comb0 | 16 | 640 kbit/s (XGS-PON) / 64 kbit/s (GPON) |
| GFOA | 10G(S)-GPON&GPON Flexible | 16 | 640 kbit/s (XGS-PON) / 256 kbit/s (XG-PON) / 64 kbit/s (GPON) |
| AN5506-01-A | 1GE |
| 4*GE+1*TEL+2USB+2.4G/5G WIFI(5dBi) | |
| 4*GE+1*TEL+2USB+2.4G/5G WIFI(5dBi) |
|
FiberHome AN6000-7 OLT Datasheet |
|||
| Slot configuration | Two slots for core switch cards (slots 8 and 9) Seven slots for service cards (slots 1 to 7) Two slots for uplink cards (slots 6 and 7) Two slots for power cards (slots 24 and 25) One slot for the common interface card (slot 26) One slot for the fan unit (slot 23) | ||
| Dimensions (H × W × D) of a subrack with mounting ears for 19-inch cabinetsNote 1 | 266 mm × 480 mm × 253.8 mm (excluding the fiber passage unit) | ||
| Dimensions (H × W × D) of a subrack with mounting ears for 21-inch cabinets | 266 mm × 530 mm × 253.8 mm (excluding the fiber passage unit) | ||
| Weight of an empty subrack (excluding the fan unit) | 8.5 kg | ||
| Weight of an empty subrack (including the fan unit) | 10.7 kg | ||
| Maximum input current | 37.5 A | ||
| Power supply mode | DC (two channels of power supplies forming redundancy protection) | ||
| Working voltage range | -38.4 V to -57.6 V | ||
| Rated voltage | -48 V | ||
| Operating temperature | -40℃ to 65℃ | ||
| Operating relative humidity | 5% to 95% (non-condensing) | ||
| Storage temperature | -40℃ to 70℃ | ||
| Relative humidity for storage | 5% to 95% (non-condensing) | ||
| Atmospheric pressure | 70 kPa to 106 kPa | ||
| Slot bandwidth | 200 Gbit/s | ||
| Switch capacity of the backplane bus | 5.6 Tbit/s | ||
| Core switch card capacity (in the load sharing mode) | 6.8 Tbit/s | ||
| Maximum number of MAC addresses in the system | 262144 | ||
| Maximum number of IPv4 routing tables in the system | 16384 | ||
| Maximum number of IPv6 routing tables in the system | 8192 | ||
| Maximum number of ARP tables in the system | 18432 | ||
| Maximum number of ND tables in the system | 9216 | ||
| Maximum number of multicast groups in the system | 4096 | ||
| Full-load bit error rate | ＜ 10 e-7 | ||
| System reliability specifications | System availability with typical configuration: ＞ 99.999% Mean time between failures (MTBF) of the system: approx. 45 years Note: The mean time to repair (MTtr) for the entire system is 2 hours. | ||
| Maximum number of GPON ports in the system | 112 | ||
| Maximum number of 10G EPON ports in the system | 112 | ||
| Maximum number of XG-PON ports in the system | 112 | ||
| Maximum number of GPON & XG-PON Combo ports in the system | 112 | ||
| Maximum number of GPON & XGS-PON Combo ports in the system | 112 | ||
| Maximum number of Agile-PON ports in the system | 112 | ||
| Maximum number of uplink ports in the system | 8 × 10GE / GE uplink ports (HSCA) (Only core switch cards are used to provide uplink ports.) | ||
| 16 × 10GE / GE uplink ports (HU8A) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch cards and uplink cards are used to provide uplink ports.) | |||
| 8 × 10GE / GE uplink ports (KU1B) + 2 × 100GE uplink ports (KU1B) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch cards and uplink cards are used to provide uplink ports.) | |||
| Maximum number of Ethernet ports in the system | 168 | ||
| Maximum number of ONUs connected to the system | 8192 | ||
| Maximum number of multicast users in the system | 8192 | ||
| Maximum transmission distance (PON port) | 60 km | ||
| Maximum uplink transmission distance | 80 km | ||
| Time for active-standby switching of core switch cards/uplink cards | ≤ 50 ms | ||
| Time for optical path protection switching (Type B / Type C) | ≤ 50 ms | ||
| Bandwidth allocation granularity of DBA | GPOA: 64 kbit/s | ||
| EX8A: 640 kbit/s | |||
| EXOA: 640 kbit/s | |||
| GX8A: 256 kbit/s | |||
| GM8A: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||
| GM8B: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||
| GMOA: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||
| GNOA: 64 kbit/s (XGS-PON) / 64 kbit/s (GPON) | |||
| GFOA: 64 kbit/s (XGS-PON) / 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||
| Minimum configurable bandwidth of DBA | GPOA: 1024 kbit/s | ||
| EX8A: 2560 kbit/s | |||
| EXOA: 2560 kbit/s | |||
| GX8A: 1024 kbit/s | |||
| GM8A: 1024 kbit/s | |||
| GM8B: 1024 kbit/s | |||
| GMOA: 1024 kbit/s | |||
| GNOA: 1024 kbit/s | |||
| GFOA: 1024 kbit/s | |||
| DBA accuracy | Better than ±5% | ||
| Long-term packet loss rate | When the traffic accounts for 90% of the throughput, the 24-hour packet loss rate is 0. | ||
| Overall power consumption | Typical configuration: 2 × HSCA + 7 × GNOA + 2 × PIBA + FAN + CIOA Static power consumption: 614 W Typical power consumption: 996 W Maximum power consumption: 1301 W The equipment can be used together with a PDP with a rated current of 63 A / 32 A. For details of matching PDPs, see PDPs. Note: For other card configurations, calculate the overall power consumption according to this formula: overall power consumption = power consumption of 2 core switch cards + power consumption of 7 service cards + power consumption of 2 power cards + power consumption of the fan unit + power consumption of the common interface card. For power consumption of each card, refer to AN6000 Series Optical Line Terminal Equipment Hardware Description. | ||
| The overall power consumption is measured under the following conditions: u Working voltage: -53.5 V DC. u Room temperature: 25℃ (static power consumption and typical power consumption) or 55℃ (maximum power consumption) u Static power consumption: All the broadband ports are deactivated. u Typical power consumption: 50% of the broadband ports are concurrently activated. u Maximum power consumption: 100% of the broadband ports are concurrently activated. | |||
| Note 1: The AN6000-7 subrack is equipped with mounting ears for 19-inch cabinets by default. | |||
