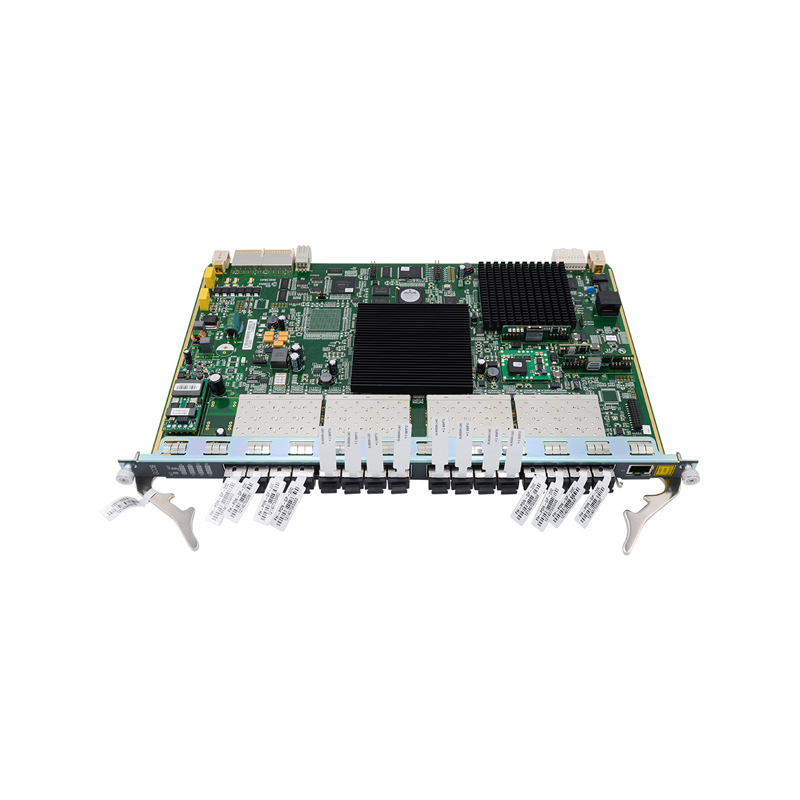

FiberHome GMOA XG-PON Card

Fiberhome GMOA overview

GMOA is a 16-port XG-PON and GPON combo card, which can be used in the chassis of Fiberhome brand OLT AN6000-7, AN6000-15, AN6000-17, and AN6000-2.
As a next-generation enhanced GPON technology evolved from GPON technology standardized in ITU-T G.984, XGPON caters to the demand for high-bandwidth services. The figure below shows the network structure of XG-PON. Combo PON adopts the new WDM1r technology to achieve optical wave splitting, and one device can meet the bandwidth requirements from high to low of different subscribers in a unified area. The self-adaptation of GPON & XG-PON is realized by inserting different optical modules into each PON port, which is the best choice for ISP companies under the current wave of network upgrades.

Product Features

• Smooth upgrade: XGS-PON service cards can replace XG-PON with little configuration change. Accordingly, services can be migrated smoothly.
• Software and hardware compatibility: Bandwidth can be upgraded without replacing subracks. Various PON service cards can coexist in a subrack.
• Low power consumption: An XGS-PON card consumes less than 70 W power.
• Clock and time synchronization with high precision: Uses the system time transfer protocol defined in IEEE 802.1as, and supports synchronous Ethernet (SyncE), IEEE1588 V2 and 1PPS+ToD.
• Overall protection: Supports backbone fiber protection (Type B) and all-fiber protection (Type C). The switching time is no more than 50 ms.
• Efficient data transmission: Encapsulates all the data to be transmitted into 125 us frames (fixed length frames) with the new XGEM encapsulation structure, which uses fewer transmission overhead bytes and improves the transmission efficiency.

Application Scenarios

1. Dense Urban GPON/XG-PON Upgrade in Germany

A German telecom integrated FiberHome GMOA Boards into AN6000-17 OLTs for Berlin’s central residential and business districts. The 16-port GPON/XG-PON combo card delivered 10Gbps downlink/2.5Gbps uplink speeds, supporting 4K IPTV and enterprise cloud services for 4,096 subscribers (1:256 splitting ratio). Backward compatibility with legacy GPON ONUs and shared ODN infrastructure reduced upgrade costs, while Type B/C PON protection (≤50ms switching) ensured 99.999% availability. 1588v2 synchronization guaranteed high-quality video calls, aligning with the operator’s F5G transition strategy.

2. Mixed-Service Convergence in Indonesia

An Indonesian ISP deployed GMOA Boards in AN6000-07 OLTs for Jakarta’s suburban mixed-use areas. The card’s dual-mode flexibility (GPON/XG-PON) catered to both residential broadband and small enterprise backhaul needs. WDM1R wavelength splitting optimized bandwidth allocation, and RSSI optical power detection simplified remote maintenance. Low power consumption (<70W) suited distributed deployments, while rogue ONU detection enhanced network security. This cost-effective solution reused existing fiber infrastructure, making it ideal for medium-scale multi-service access in scattered communities.

Downloadable resources

FiberHome GMOA Board Datasheet

Technical Specifications

FAQ

Q: What is the FiberHome GMOA Board?
A: It is a 16-port GPON/XG-PON combo interface card for AN6000 series OLTs, enabling flexible access via interchangeable modules to support both legacy and high-speed services.

Q: Which OLT models is the GMOA compatible with?
A: It works seamlessly with FiberHome AN6000-02, AN6000-07, AN6000-15, and AN6000-17 OLT models.

Q: What application scenarios is it ideal for?
A: It suits F5G network upgrades, dense urban FTTH, suburban mixed-service access, small enterprise connectivity, and cost-effective ODN reuse deployments.

Q: What is the lead time for orders?
A: 3-5 days for samples/small orders.

Q: What payment methods are accepted at MF-Telecom?
A: T/T, PayPal, China UnionPay, LC (Letter of Credit), Alipay, and Western Union are supported for secure transactions.
